Canon 80D vs Olympus E-M5

Portability
59
Imaging
66
Features
92
Overall
76
Canon EOS 80D front

Olympus OM-D E-M5 front
Portability
81
Imaging
51
Features
70
Overall
58

Canon 80D vs Olympus E-M5 Key Specs

Canon 80D
(Full Review)
  • 24MP - APS-C Sensor
  • 3" Fully Articulated Display
  • ISO 100 - 16000 (Boost to 25600)
  • 1/8000s Maximum Shutter
  • 1920 x 1080 video
  • Canon EF/EF-S Mount
  • 730g - 139 x 105 x 79mm
  • Announced February 2016
  • Earlier Model is Canon 70D
  • Newer Model is Canon 90D
Olympus E-M5
(Full Review)
  • 16MP - Four Thirds Sensor
  • 3" Tilting Screen
  • ISO 200 - 25600
  • Sensor based 5-axis Image Stabilization
  • 1920 x 1080 video
  • Micro Four Thirds Mount
  • 425g - 122 x 89 x 43mm
  • Released April 2012
  • Updated by Olympus E-M5 II
Pentax 17 Pre-Orders Outperform Expectations by a Landslide

Canon 80D vs Olympus E-M5 Overview

Let's look a bit more closely at the Canon 80D versus Olympus E-M5, one is a Advanced DSLR and the latter is a Advanced Mirrorless by rivals Canon and Olympus. There is a sizeable difference between the resolutions of the 80D (24MP) and E-M5 (16MP) and the 80D (APS-C) and E-M5 (Four Thirds) possess totally different sensor sizes.

President Biden pushes bill mandating TikTok sale or ban

The 80D was revealed 3 years after the E-M5 which is quite a large gap as far as tech is concerned. Each of the cameras offer different body type with the Canon 80D being a Mid-size SLR camera and the Olympus E-M5 being a SLR-style mirrorless camera.

Before we go straight into a more detailed comparison, below is a simple summation of how the 80D matches up vs the E-M5 when considering portability, imaging, features and an overall mark.

Apple Innovates by Creating Next-Level Optical Stabilization for iPhone



Reasons to pick Canon 80D over the Olympus E-M5

 80D E-M5
ReleasedFebruary 2016April 2012Newer by 47 months
Screen typeFully ArticulatedTiltingFully Articulating screen
Screen resolution1040k610kCrisper screen (+430k dot)
Selfie screen Easy selfies

Reasons to pick Olympus E-M5 over the Canon 80D

 E-M5 80D

Common features in the Canon 80D and Olympus E-M5

 80D E-M5
Focus manually More exact focus
Screen sizing3"3"Equivalent screen dimensions
Touch screen Quickly navigate

Canon 80D vs Olympus E-M5 Physical Comparison

If you're looking to travel with your camera, you'll have to consider its weight and proportions. The Canon 80D enjoys outside measurements of 139mm x 105mm x 79mm (5.5" x 4.1" x 3.1") and a weight of 730 grams (1.61 lbs) whilst the Olympus E-M5 has measurements of 122mm x 89mm x 43mm (4.8" x 3.5" x 1.7") accompanied by a weight of 425 grams (0.94 lbs).

Check the Canon 80D versus Olympus E-M5 in the latest Camera with Lens Size Comparison Tool. Camera Size Comparison with Lenses

Remember that, the weight of an Interchangeable Lens Camera will change dependant on the lens you are using at that moment. Underneath is the front view physical size comparison of the 80D vs the E-M5.

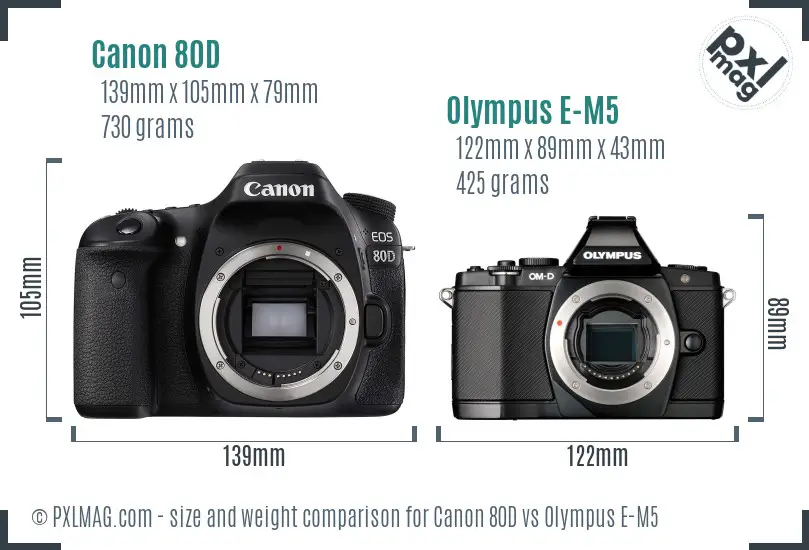

Canon 80D vs Olympus E-M5 size comparison

Considering size and weight, the portability score of the 80D and E-M5 is 59 and 81 respectively.

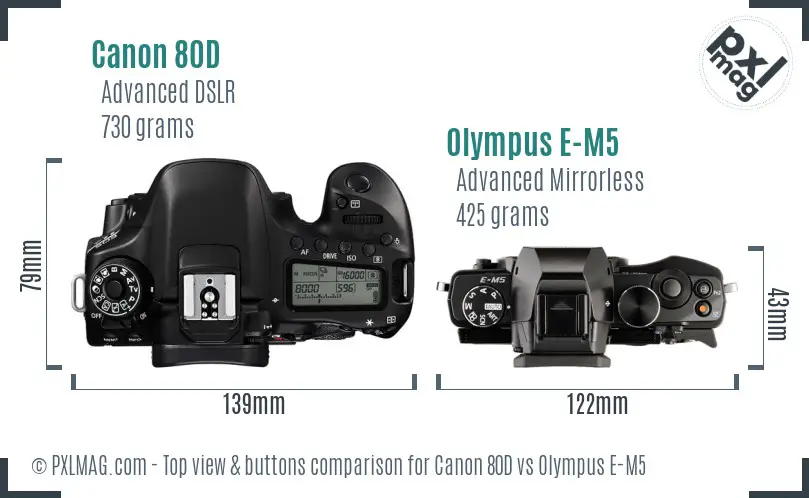

Canon 80D vs Olympus E-M5 top view buttons comparison

Canon 80D vs Olympus E-M5 Sensor Comparison

Usually, it's hard to envision the contrast between sensor dimensions just by reading specifications. The pic underneath might offer you a stronger sense of the sensor measurements in the 80D and E-M5.

To sum up, each of these cameras enjoy different megapixel count and different sensor dimensions. The 80D having a bigger sensor will make achieving shallower DOF less difficult and the Canon 80D will offer you extra detail because of its extra 8 Megapixels. Higher resolution can also help you crop photographs far more aggressively. The fresher 80D will have an edge with regard to sensor innovation.

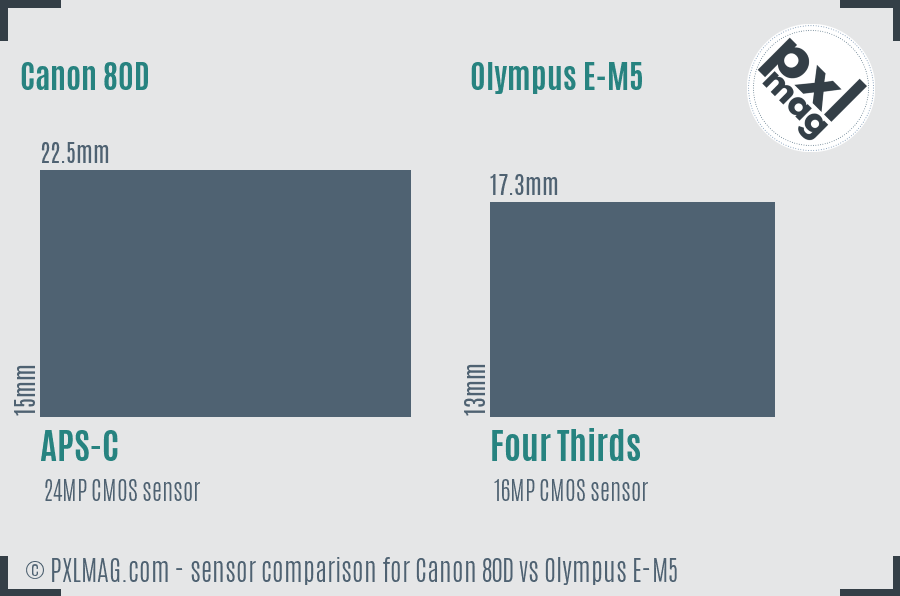

Canon 80D vs Olympus E-M5 sensor size comparison

Canon 80D vs Olympus E-M5 Screen and ViewFinder

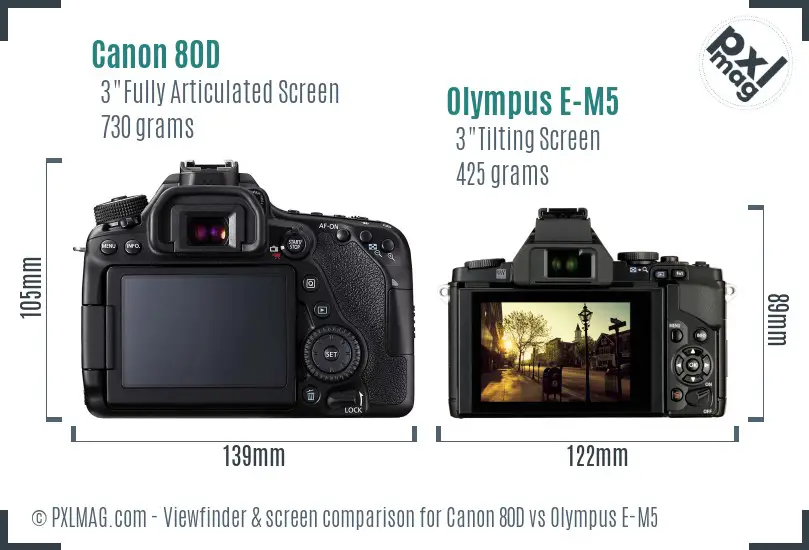

Canon 80D vs Olympus E-M5 Screen and Viewfinder comparison
Snapchat Adds Watermarks to AI-Created Images

Photography Type Scores

Portrait Comparison

Canon 80D Portrait photography factors
Olympus E-M5 Portrait photography factors
79
focusing manually
good resolution (24MP)
nice sensor size (APS-C)
includes face detection focusing
saves RAW formats
70
manual focus
megapixel count good (16MP)
decent sensor size (Four Thirds)
provides face detection focus
delivers RAW formats
Photography Glossary

Street Comparison

Canon 80D Street photography information
Olympus E-M5 Street photography information
69
screen articulates fully
nice sensor size (APS-C)
saves RAW formats
features touch focus
environment proofing
does not have image stabilization
82
screen tilts
built in image stabilization (Sensor based 5-axis)
decent sensor size (Four Thirds)
delivers RAW formats
provides focus via touch
weather proof
above average ISO range (25,600)
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes

Sports Comparison

Canon 80D as a Sports photography camera
Olympus E-M5 as a Sports photography camera
75
high shutter speed (1/8,000s)
good resolution (24 megapixels)
nice sensor size (APS-C)
includes tracking autofocus
environment proofing
supports phase detect AF
does not have image stabilization
67
built in image stabilization (Sensor based 5-axis)
megapixel count good (16MP)
decent sensor size (Four Thirds)
provides tracking autofocus
weather proof
lack of phase detect auto focus
Meta to Introduce 'AI-Generated' Labels for Media starting next month

Travel Comparison

Canon 80D Travel photography details
Olympus E-M5 Travel photography details
76
environment proofing
features touch focus
good resolution (24MP)
flash built-in
selfie friendly screen
66
weather proof
provides focus via touch
megapixel count good (16 megapixels)
lack of Timelapse mode
does not posses selfie friendly display
Sora from OpenAI releases its first ever music video

Landscape Comparison

Canon 80D Landscape photography information
Olympus E-M5 Landscape photography information
76
focusing manually
interchangeable lenses (Canon EF/EF-S mount)
screen is a good size (3 inch)
good resolution (24 megapixels)
nice sensor size (APS-C)
saves RAW formats
environment proofing
does not have image stabilization
73
manual focus
switch lenses (Micro Four Thirds mount)
screen size is good (3 inch)
built in image stabilization (Sensor based 5-axis)
megapixel count good (16 megapixels)
decent sensor size (Four Thirds)
above average ISO range (25,600)
delivers RAW formats
weather proof
lack of Timelapse mode
Samsung Releases Faster Versions of EVO MicroSD Cards

Vlogging Comparison

Vlogging with Canon 80D
Vlogging with Olympus E-M5
70
selfie friendly screen
touchscreen functionality
includes face detection focusing
good video quality (1920 x 1080 resolution)
comes with external mic socket
does not have image stabilization
34
touch screen
built in image stabilization (Sensor based 5-axis)
provides face detection focus
great video quality (1920 x 1080 pxls)
does not posses selfie friendly display
lack of external microphone socket
Photobucket discusses licensing 13 billion images with AI firms

Canon 80D vs Olympus E-M5 Specifications

Detailed spec comparison table for Canon 80D and Olympus E-M5
 Canon EOS 80DOlympus OM-D E-M5
General Information
Company Canon Olympus
Model type Canon EOS 80D Olympus OM-D E-M5
Type Advanced DSLR Advanced Mirrorless
Announced 2016-02-18 2012-04-30
Physical type Mid-size SLR SLR-style mirrorless
Sensor Information
Chip DIGIC 6 TruePic VI
Sensor type CMOS CMOS
Sensor size APS-C Four Thirds
Sensor measurements 22.5 x 15mm 17.3 x 13mm
Sensor area 337.5mm² 224.9mm²
Sensor resolution 24MP 16MP
Anti alias filter
Aspect ratio 1:1, 4:3, 3:2 and 16:9 1:1, 4:3, 3:2 and 16:9
Highest Possible resolution 6000 x 4000 4608 x 3456
Maximum native ISO 16000 25600
Maximum enhanced ISO 25600 -
Min native ISO 100 200
RAW images
Min enhanced ISO - 100
Autofocusing
Manual focusing
AF touch
Continuous AF
AF single
Tracking AF
Selective AF
Center weighted AF
AF multi area
AF live view
Face detect AF
Contract detect AF
Phase detect AF
Total focus points 45 35
Cross type focus points 45 -
Lens
Lens mount type Canon EF/EF-S Micro Four Thirds
Amount of lenses 326 107
Crop factor 1.6 2.1
Screen
Type of display Fully Articulated Tilting
Display size 3 inches 3 inches
Display resolution 1,040k dots 610k dots
Selfie friendly
Liveview
Touch screen
Display tech - Touch control in electrostatic capacitance type OLED monitor
Viewfinder Information
Viewfinder type Optical (pentaprism) Electronic
Viewfinder resolution - 1,440k dots
Viewfinder coverage 100 percent 100 percent
Viewfinder magnification 0.6x 0.58x
Features
Minimum shutter speed 30 seconds 60 seconds
Fastest shutter speed 1/8000 seconds 1/4000 seconds
Continuous shutter rate 7.0 frames per second 9.0 frames per second
Shutter priority
Aperture priority
Manually set exposure
Exposure compensation Yes Yes
Set WB
Image stabilization
Inbuilt flash
Flash distance 12.00 m (at ISO 100) no built-in flash
Flash modes - Auto, On, Off, Red-Eye, Fill-in, Slow Sync (2), Manual (3 levels)
Hot shoe
AEB
White balance bracketing
Fastest flash synchronize 1/250 seconds 1/250 seconds
Exposure
Multisegment exposure
Average exposure
Spot exposure
Partial exposure
AF area exposure
Center weighted exposure
Video features
Supported video resolutions 1920 x 1080 (60p, 30p, 24p), 1280 x 720 (60p, 30p) 1920 x 1080 (60 fps), 1280 x 720 (60, 30 fps), 640 x 480 (30 fps)
Maximum video resolution 1920x1080 1920x1080
Video format MPEG-4, H.264 H.264, Motion JPEG
Microphone port
Headphone port
Connectivity
Wireless Built-In Eye-Fi Connected
Bluetooth
NFC
HDMI
USB USB 2.0 (480 Mbit/sec) USB 2.0 (480 Mbit/sec)
GPS None None
Physical
Environment sealing
Water proofing
Dust proofing
Shock proofing
Crush proofing
Freeze proofing
Weight 730 gr (1.61 lb) 425 gr (0.94 lb)
Dimensions 139 x 105 x 79mm (5.5" x 4.1" x 3.1") 122 x 89 x 43mm (4.8" x 3.5" x 1.7")
DXO scores
DXO Overall rating 79 71
DXO Color Depth rating 23.6 22.8
DXO Dynamic range rating 13.2 12.3
DXO Low light rating 1135 826
Other
Battery life 960 photos 360 photos
Battery type Battery Pack Battery Pack
Battery ID LP-E6N BLN-1
Self timer Yes (2 or 10 sec) Yes (2 or 12 sec)
Time lapse feature
Storage type SD/SDHC/SDXC (UHS-I support) SD/SDHC/SDXC
Card slots Single Single
Cost at release $1,199 $799
