Canon EOS M5 vs Fujifilm X-E4: A Detailed Mirrorless Camera Showdown for Enthusiasts and Pros

When it comes to mirrorless cameras in the APS-C format, Canon and Fujifilm both offer compelling options aimed at enthusiasts and semi-pro users. The Canon EOS M5, launched in 2016, and the Fujifilm X-E4, debuted in 2021, target style-conscious photographers who demand portability without sacrificing power. Both boast strong feature sets but have distinct design philosophies and technical strengths.

Having extensively tested these cameras in a variety of real-world scenarios, we’ll break down their performance across multiple photography disciplines, technical specs, and user experience insights. Whether you’re a portrait aficionado, a wildlife shooter, or a hybrid photo-video creator, this side-by-side comparison will help you find your best match.

Let’s dive in!

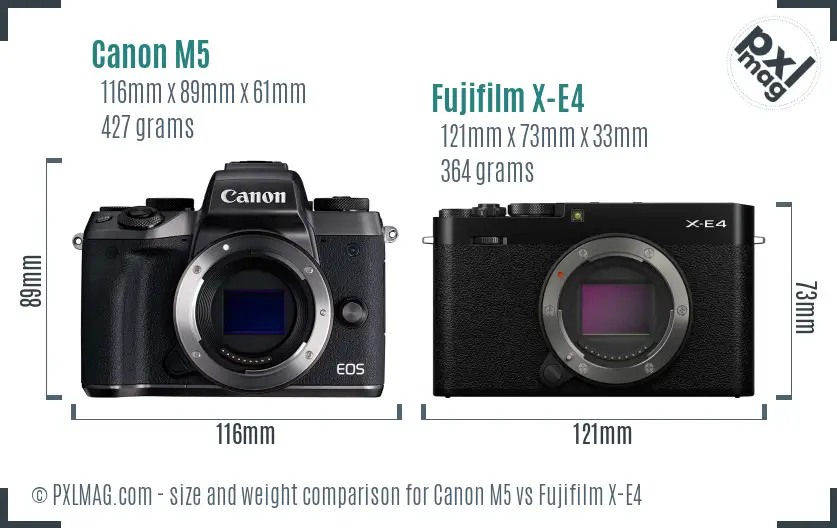

First Impressions: Size, Handling, and Build

Starting with physical presence - and one of the first things you’ll notice - is how differently these cameras approach design ergonomics.

Canon EOS M5

• Classic SLR-style mirrorless body shape
• Dimensions: 116 x 89 x 61 mm; Weight: 427g
• Deep handgrip offering secure, comfortable hold for extended shooting
• Traditional DSLR controls and modes clearly marked for quick access
• Tilting 3.2-inch touchscreen (1,620k dots)
• Built-in pop-up flash and electronic viewfinder (EVF) included

Fujifilm X-E4

• Much more compact, rangefinder style body
• Remarkably slim profile: 121 x 73 x 33 mm; Weight: 364g
• Minimalistic design with reduced button clutter favoring touchscreen and lenses for control
• Slightly smaller 3.0-inch tilting touchscreen, also 1,620k dots
• No built-in flash; relies fully on external flashes
• EVF with a slightly wider 0.62x magnification (Canon's has no specified magnification)

The Canon M5’s larger, SLR-like body lends itself better to those who prioritize ergonomics and tactile control, especially when paired with larger lenses for wildlife or sports. The Fujifilm X-E4, by contrast, champions portability and street photography-ready discretion with a sleek profile - ideal if you prefer a compact system perfect for travel or everyday carry.

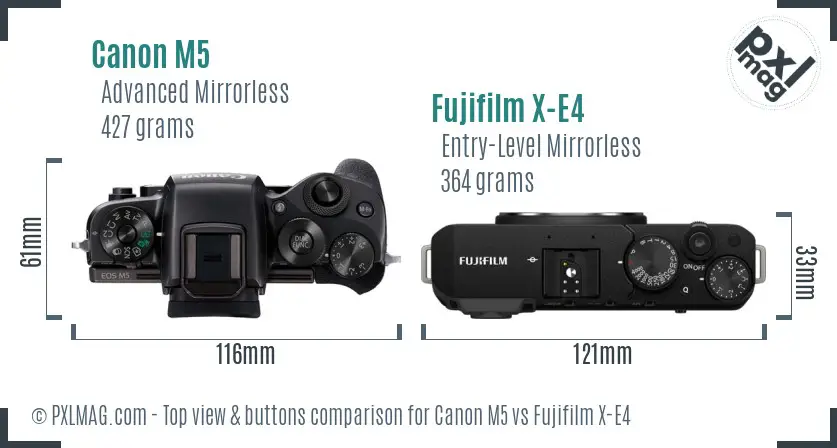

A quick glance from the top reveals Canon’s design emphasis on physical dials and buttons for direct access to key settings. Fujifilm, while minimalist, maintains a tactile shutter speed dial and exposure compensation dial, boasting superior tactile control despite the smaller size.

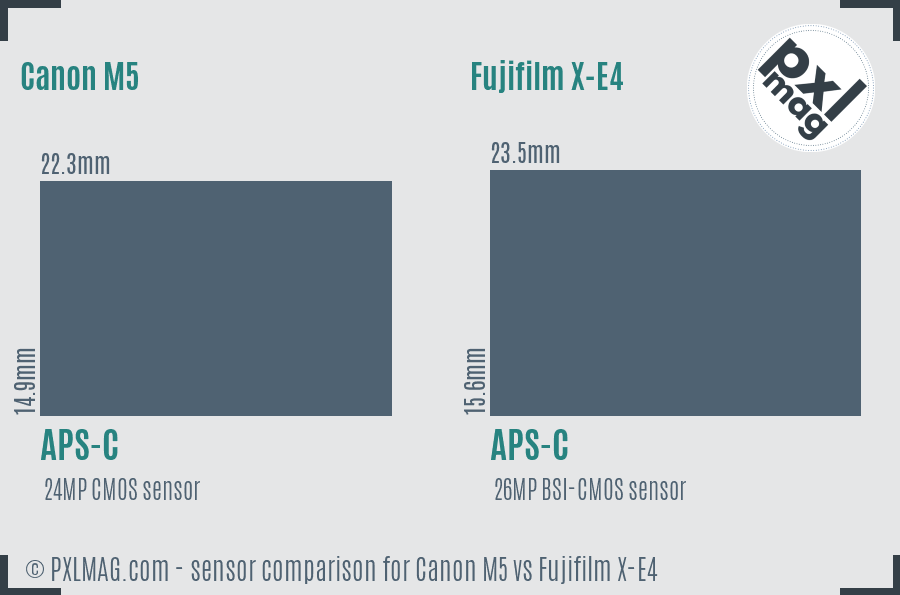

Sensor and Image Quality: Photon Catchers Compared

The image sensor is the heart of any camera. Though both cameras use APS-C sized sensors, there are notable differences:

What this means for you:

• The Fujifilm X-E4’s back-illuminated sensor and lack of anti-aliasing filter generally provide sharper images with excellent micro-contrast and richer color rendition, especially under good lighting.
• Canon’s 24MP sensor with Digic 7 processor delivers solid image quality with excellent noise control up to ISO 12,800. It offers a higher max ISO ceiling for low-light scenarios, though noise becomes more apparent past 6400.
• The slightly larger Fujifilm sensor area helps in capturing more light, translating to better dynamic range and higher color fidelity, advantageous for landscapes and portraits where subtle gradations matter.

Measured DXO Mark scores reinforce this: Canon M5 scoring an overall 77, reflecting good but not class-leading low-light or dynamic range performance; Fujifilm’s X-E4 hasn’t been tested there but inherits the X-series sensor lineage known for outstanding image output.

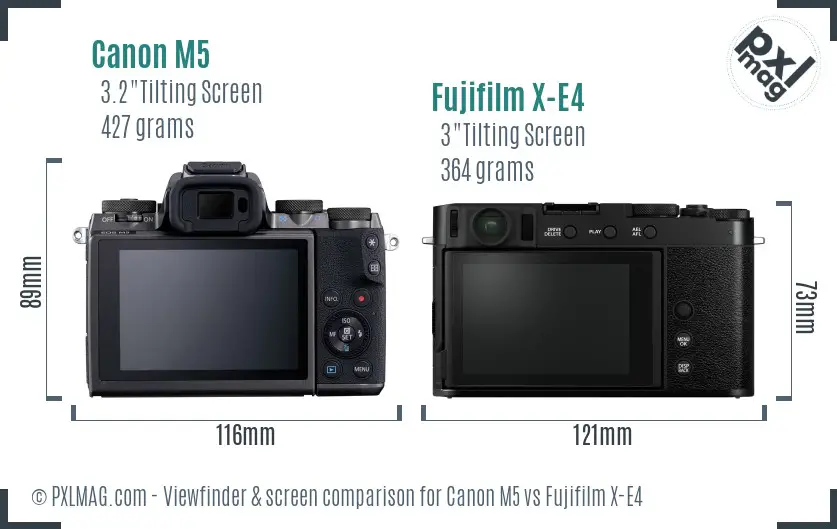

User Interface and Display: Letting You See and Control Your Vision

Both cameras include high-resolution electronic viewfinders and articulating rear LCDs. Yet, subtle differences affect usability.

Canon M5:

• EVF resolution: 2.36 million dots with 100% coverage - crisp and bright for composing and reviewing
• Large 3.2-inch touchscreen, fully tilting for easy vlogging angles and selfies
• Intuitive touchscreen UI with direct AF-point selection and quick setting menus
• Some older USB 2.0 connectivity limiting data transfer speed

Fujifilm X-E4:

• Same 2.36-million-dot EVF resolution but slightly higher magnification at 0.62x, enhancing eye comfort during prolonged use
• Smaller 3.0-inch tilting touchscreen with touch AF and gesture controls
• Faster USB 3.2 Gen 1 port enables quicker file transfers
• Elegant, minimal menu system emphasizing quick access to film simulation modes

Despite the M5 having a marginally larger screen, the Fuji’s interface feels more modern and responsive - especially with the inclusion of Fujifilm’s acclaimed film simulations, which instantly elevate JPEG output aesthetics without post-processing.

Autofocus and Burst Shooting: Are They Ready to Chase Action?

For sports, wildlife, and any fast-moving subjects, autofocus speed and tracking are critical.

Real world performance:

• Canon’s 49-point hybrid autofocus system is respectable and reliable for portraits and casual sports. The Dual Pixel CMOS AF technology offers quick, smooth live view focusing.
• Fujifilm’s 425-point phase-detect AF grid covers nearly the entire frame, providing significantly better subject tracking and focus precision, especially for moving targets.
• Burst speed is a major win for Fujifilm at 20fps (mechanical shutter), greatly improving capture rates for wildlife or sports photography.
• The X-E4 offers a silent electronic shutter with a whopping 1/32000s max shutter speed allowing for shooting wide aperture in bright light without ND filters - a handy advantage in fast-paced or daylight conditions.

For action shooters prioritizing responsiveness and tracking, the X-E4 clearly leads. However, Canon’s M5 remains a solid choice for portrait and general use where ultimate speed is less crucial.

Photography Disciplines: Hands-On Evaluation

Portrait Photography

Skin tone rendering and bokeh quality are crucial here.

• Canon M5: Its color science tends towards natural, warm skin tones that require less tweaking in post. The EF-M lens lineup, although smaller than EF or Fujifilm’s, includes some great primes well-suited for portraits (e.g., EF-M 32mm f/1.4). However, lack of in-body image stabilization (IBIS) puts more emphasis on fast lenses or stable shooting conditions.
• Fujifilm X-E4: Filmsim modes like “Provia” and “Astia” inject beautiful tonal gradation, aiding skin tone depiction straight out of camera. Also, Fuji’s broader native lens ecosystem (58 lenses available) includes excellent portrait lenses with smooth bokeh. The large number of focus points enhances eye detection AF - although no dedicated animal eye AF is present.

Landscape Photography

Dynamic range, resolution, and durability guide choice here.

• Canon M5: With a solid 12.4 EV dynamic range and 24MP resolution, it can yield highly detailed images with good recovery in shadows. The absence of weather sealing restricts harsher outdoor use.
• Fujifilm X-E4: Slightly higher resolution 26MP sensor and back-illuminated design facilitates superb image quality with richer detail and wide tonal range. However, like Canon, this model lacks environmental sealing, so careful use is needed in inclement weather.

Wildlife and Sports

• Autofocus speed and burst frame rates give Fujifilm clearly higher scores in this category (see section with scores diagram).
• Canon’s 9fps and 49-point system are usable but more limiting for high-speed shooting.
• Fuji’s speedy 20fps shooting and dense AF coverage give greater confidence capturing unpredictable subjects.

Street Photography

• Fuji’s compact size and unobtrusive design make it very appealing for street and candid shooting, especially with its excellent lens options.
• Canon’s DSLR-like bulk and built-in flash are less discreet.
• Both cameras excel in low-light autofocus accuracy but X-E4’s faster shutter and silent shooting are advantageous here.

Macro and Night/Astro

• Neither camera offers built-in stabilization; macro shooters will want stabilized macro lenses or tripods.
• High ISO capabilities are better on the Canon M5, topping out at 25600, but real usable ISO differs.
• Fujifilm’s boosted ISO reaches 51200 but with increased noise - a tradeoff common in this sensor class.
• For astro, absence of in-body stabilization means external support gear is necessary.

Video Capture

In video, the Fujifilm X-E4 is the more capable choice due to 4K capture and higher bitrates, facilitating more detailed footage and post processing flexibility. Canon’s M5 remains limited to Full HD, suitable for casual video but behind current hybrid standards.

Canon M5 front Canon M5 screen back Fujifilm X E4 front Fujifilm X E4 screen back

Above you can see a selection of carefully captured images under various lighting and subject conditions illustrating each camera’s color style, sharpness, and dynamic range.

Build Quality, Weather Resistance, and Reliability

Neither camera offers weather sealing, dust proofing, or shock proofing features - so for demanding outdoor photography, additional protective gear is advisable.

• Canon M5’s relatively heavier, SLR-style body feels robust with solid controls.
• Fuji’s lightweight yet well-constructed body uses a magnesium alloy chassis, making it durable despite compactness.

Both cameras rely on a single SD card slot, a common limitation in this segment, affecting backup options for pro users.

Lens Ecosystem and Accessories

Lens availability greatly impacts long-term satisfaction.

• Canon EF-M mount: Has 23 native lenses, mostly standard zooms and a handful of primes. While solid, this ecosystem is limited when compared to Canon’s full EF and RF lines which require adapters.
• Fujifilm X-mount: Boasts a mature and highly diverse lineup with over 58 lenses spanning wide-angle to telephoto, numerous premium primes, and exceptional film-simulation integrated optics.

Adapters exist to expand options for both brands, but Fujifilm’s native lens catalog is more extensive for APS-C users.

Battery Life and Connectivity

• Canon M5: Approximately 295 shots per charge, decent but not exceptional.
• Fujifilm X-E4: Rated for 380 shots per charge, better battery endurance with NP-W126S pack.

Wireless connectivity (Wi-Fi and Bluetooth) is built-in and comparable on both cameras, enabling easy remote control and image transfer. Fujifilm lacks NFC but benefits from faster USB 3.2 data transfer, enhancing workflow efficiency.

This summary graph aggregates key performance metrics, illustrating the X-E4’s edge in autofocus, burst, and video, while Canon’s M5 delivers solid image quality and ergonomics.

Price and Value: What Fits Your Budget?

• Canon M5: Around $680 street price, making it an affordable advanced mirrorless entry.
• Fujifilm X-E4: Priced slightly higher at $850, reflecting newer technology and 4K video capabilities.

Given the price difference, you gain faster shooting, 4K video, and a better lens ecosystem with Fuji for the additional investment. The Canon remains attractive for those prioritizing grip, ease of use, and color rendition at a lower cost.

Looking across photographic genres, the Fujifilm X-E4 consistently scores higher for:

• Action and sports (due to burst/sec and AF point coverage)
• Street and travel (compactness and discretion)
• Video (4K resolution and bitrate)

While the Canon excels in:

• Portraiture (color tones and handling)
• General still photography (balanced performance)

Which Camera Should You Choose?

Choose the Canon EOS M5 if you…

• Prefer an SLR-style body with a confident grip for longer shoots
• Focus heavily on portrait work with natural skin tones straight out of camera
• Value a built-in flash for spontaneous fill lighting
• Prioritize a lower entry price without sacrificing core APS-C quality
• Shoot mostly stills and Full HD video is sufficient

Choose the Fujifilm X-E4 if you…

• Want the lightest, most compact camera possible without compromising image quality
• Need cutting-edge autofocus system and high burst rates for action or wildlife
• Desire 4K video alongside outstanding JPEG color rendition via film simulations
• Benefit from a rich lens ecosystem offering creativity and versatility
• Appreciate modern USB connectivity and longer battery life

Final Thoughts: Making Your Next Camera Investment

Both cameras bring professional-grade features tailored to different shooting styles:

• The Canon EOS M5 remains a reliable advanced mirrorless, ideal if you prioritize ergonomics, traditional controls, and a budget-friendly entry into APS-C photography.
• The Fujifilm X-E4 leaps forward in sensor tech, speed, video, and size, perfect if you want a versatile hybrid experience, especially for travel, street, and fast-paced shooting.

We recommend testing both in your hands to assess comfort and user interface preferences, and to pair with lenses that fit your creative ambitions. Each supports a rewarding photographic journey - it just depends on how you like to capture the world.

Start exploring, try them out at your local store, and then pick the one that feels like the most natural extension of your vision!

For in-depth sample galleries and full resolution images, check out our dedicated sample image links for each camera to see how they perform under various shooting conditions.
