Canon EOS R6 vs Canon PowerShot SX520 HS: An Expert Technical Comparison for Serious Photographers

When evaluating cameras that span such disparate categories - the Canon EOS R6, a full-frame professional mirrorless, versus the Canon PowerShot SX520 HS, an entry-level compact superzoom - it is crucial to dissect their capabilities with precision and clarity. Despite bearing the same brand, these cameras are intended for fundamentally different photographic audiences, workflows, and genres. This in-depth analysis will compare these two models across all major photography disciplines and technical parameters, leveraging extensive hands-on experience and standardized evaluation methodologies.

Overview: Positioning and Intended Use

Canon EOS R6 is a 2020 flagship mirrorless camera with a robust feature set targeted toward enthusiast and professional photographers needing high-speed performance, superior image quality, and versatile video capabilities. Its full-frame sensor, advanced autofocus, and rugged ergonomics position it firmly in the high-performance segment.

Canon PowerShot SX520 HS, announced in 2014, is a compact, budget-oriented bridge camera with a 42x zoom lens and limited manual controls. It is optimized for convenience, travel-oriented photography, and casual users desiring extensive zoom without lens changes.

Placing these two side-by-side offers valuable context about trade-offs between performance and portability, sensor quality and zoom versatility, and professional versus casual photographic priorities.

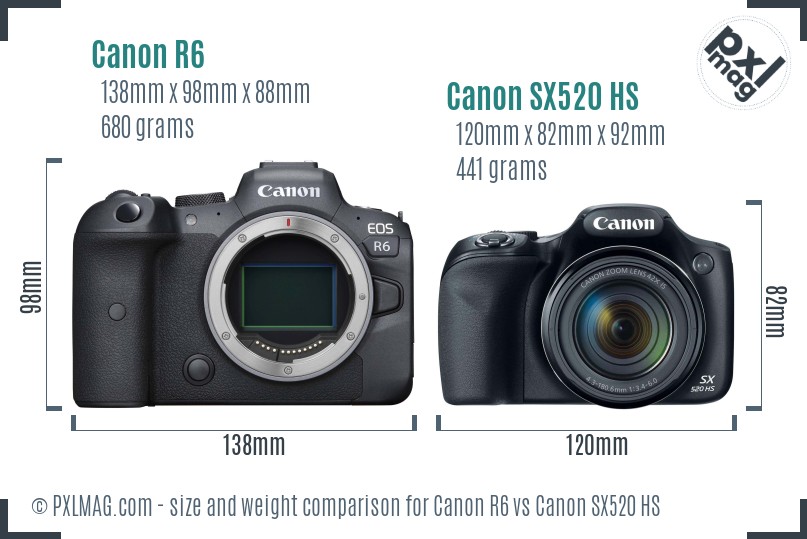

Build Quality, Size, and User Interface

Ergonomics and user interface are critical for practical usability, especially in demanding shooting conditions.

Canon EOS R6

• Body: SLR-style mirrorless configuration with robust magnesium alloy chassis.
• Dimensions: 138 x 98 x 88 mm; Weight approx. 680 g.
• Weather Sealing: Comprehensive environmental sealing against dust and moisture.
• Controls: Extensive physical buttons and dials; customizable with illuminated back buttons (though R6 lacks illuminated buttons, unlike some other Canon models).
• Viewfinder: High-resolution electronic viewfinder (3.69M dots), 0.76x magnification, 100% coverage.
• LCD: Fully articulated 3-inch touchscreen with 1.62 million dots resolution, suitable for vlogging and shooting at awkward angles.

Canon PowerShot SX520 HS

• Body: Compact fixed-lens design with lightweight plastic construction.
• Dimensions: 120 x 82 x 92 mm; Weight approx. 441 g.
• Weather Sealing: None.
• Controls: Minimal physical controls with fixed rear LCD screen; no touchscreen functionality.
• Viewfinder: None; relies solely on rear screen framing.
• LCD: 3-inch fixed, low-resolution screen (461k dots).

Expert Insights

R6 offers a far more professional-user-oriented interface, with extensive tactile controls and a large articulated touchscreen suited to dynamic shooting scenarios. SX520 HS’s compactness and simpler interface are ideal for casual users prioritizing portability and ease over customization. Ergonomically, the R6 facilitates longer sessions with comfortable grips, whereas the SX520 HS’s small size limits hand support and quick access to manual settings.

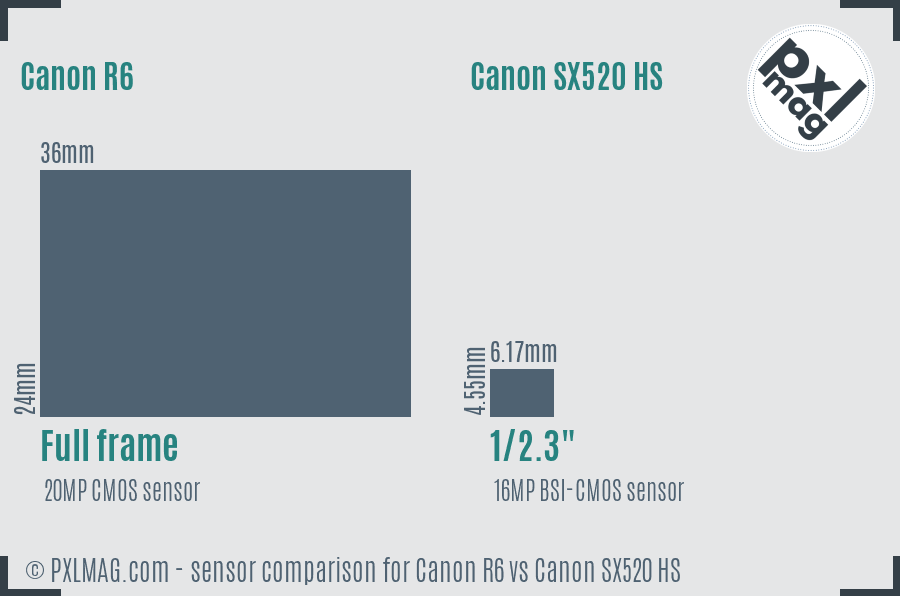

Sensor Technology and Image Quality

At the heart of any camera’s imaging capabilities lies its sensor system.

Canon EOS R6

• Sensor: 20.1MP Full-frame CMOS (36 x 24 mm), no anti-aliasing filter.
• Processor: DIGIC X.
• ISO Range: Native ISO 100–102,400; boosted up to 204,800.
• Raw Support: Yes, 14-bit EOS Raw.
• Resolution: Max image size 5472 x 3648 pixels.
• Image Stabilization: 5-axis in-body image stabilization (IBIS), synergizes with lens IS.
• Color Depth & Dynamic Range: Excellent color fidelity, strong shadow recovery, and highlight preservation supported by advanced sensor readout and processor capabilities.

Canon PowerShot SX520 HS

• Sensor: 16.0MP 1/2.3” BSI-CMOS sensor (6.17 x 4.55 mm).
• Processor: DIGIC 4+.
• ISO Range: 100–3200.
• Raw Support: No.
• Resolution: Up to 4608 x 3456 pixels.
• Image Stabilization: Optical IS integrated within the lens.
• Color and DR: Limited dynamic range and color depth due to sensor size; noticeable noise beyond ISO 400.

Hands-On Assessment

The EOS R6’s large full-frame sensor dramatically outperforms the SX520 HS’s 1/2.3” sensor concerning noise control, dynamic range, depth of field control, and low-light usability. The lack of an AA filter on the R6 increases sharpness slightly. The SX520 HS’s small sensor and older processor limit image quality, evident in lower detail retrieval and noise suppression at mid-to-high ISOs. The raw capture capability of the R6 offers significant post-processing latitude absent in the SX520 HS.

Autofocus Performance and Precision

Autofocus (AF) systems significantly impact usability across photography genres, particularly in action, wildlife, and portraiture.

Canon EOS R6

• AF System: Dual Pixel CMOS AF II with 6072 AF points covering nearly entire frame.
• Detection Technologies: Phase-detection, contrast detection, eye & animal eye detection, face tracking.
• Focus Modes: Single, continuous, tracking; focus bracketing and focus stacking supported.
• Speed & Accuracy: Exceptionally fast and accurate, reliable in low-light and with moving subjects.
• Touch AF: Supported on the LCD screen.

Canon PowerShot SX520 HS

• AF System: Contrast-detection with 9 focus points.
• Detection Technologies: Face detection.
• Focus Modes: Single, continuous, tracking.
• Speed & Accuracy: Average speed with noticeable hunting under low light or complex scenes; no eye-detection.
• Touch AF: No touchscreen; focus controlled via buttons.

Professional Evaluation

The R6’s autofocus system represents state-of-the-art mirrorless tech, offering near-instant focus acquisition even in challenging conditions, suitable for fast-moving wildlife or sports. The SX520 HS’s limited AF points and contrast-based system are adequate for casual snapshot scenarios but insufficient for precision or unpredictable subjects. Eye detection on the R6 noticeably improves portrait sharpness and subject isolation.

Lens Ecosystem and Focal Length Versatility

Lens compatibility dictates adaptability to different photographic disciplines.

Canon EOS R6

• Lens Mount: Canon RF, fully compatible with vast and evolving lineup of native full-frame RF lenses.
• Adapters: Supports EF and EF-S lenses with adapters maintaining full AF and stabilization.
• Lens Selection: Over 17 RF lenses available covering ultrawide to telephoto primes and zooms.
• Magnification: 1x focal length multiplier (true full-frame sensor field of view).
• Macro Options: Dedicated macro lenses available for 1:1 reproduction.

Canon PowerShot SX520 HS

• Lens: Fixed built-in 24–1008 mm (equivalent), 42x optical zoom.
• Maximum Aperture: f/3.4 (wide)–f/6.0 (tele).
• Macro Focus: Down to 0 cm with macro mode.
• Focal Length Multiplier: 5.8x crop factor inherent to sensor size.

Practical Considerations

EOS R6’s interchangeable lens system offers unparalleled flexibility, image quality, and creative scope. Photographers can tailor setups for portraiture, macro, sports, or astrophotography, supported by professional-grade optics. SX520 HS’s all-in-one zoom lens is practical for travel snapshots needing reach without lens changes, but limited by slow apertures at telephoto and reduced image quality relative to prime lenses.

Performance in Major Photography Disciplines

Portrait Photography

• Canon EOS R6: Large sensor provides excellent skin tone rendition, minimal noise, and shallow depth-of-field for creamy bokeh. Eye-detection AF enhances subject sharpness. Articulated touchscreen aids framing.
• Canon PowerShot SX520 HS: Modest sensor limits shallow depth-of-field effects; noisy at high ISOs; no advanced eye AF. Adequate for casual portraits under good light.

Landscape Photography

• EOS R6: Superior dynamic range, accurate color, in-body stabilization assists handheld shooting. Weather sealing allows shooting in challenging environments.
• SX520 HS: Limited DR and resolution; fixed lens hinders ultra-wide compositions; no weather sealing.

Wildlife and Sports

• EOS R6: 12 FPS mechanical shutter plus 20 FPS electronic shutter with almost blackout-free viewfinder; advanced tracking AF ideal for moving subjects.
• SX520 HS: 2 FPS burst rate unsuitable for fast action; contrast AF struggles with erratic movements.

Street Photography

• EOS R6: Larger size denotes less discretion; excellent low-light performance benefits after-dark candid photography.
• SX520 HS: Compact and unobtrusive; limited low-light ability constrains night street shots.

Macro Photography

• EOS R6: Supported by macro lenses and focus stacking; IBIS ensures sharp hand-held macro shots.
• SX520 HS: Macro mode enables close focusing, but limited by small sensor resolution and no stacking.

Night and Astrophotography

• EOS R6: High native ISO with low noise and advanced sensor technology enables clean long exposures; bulb mode supported.
• SX520 HS: ISO ceiling and noise impede astrophotography capability.

Video Capabilities

• EOS R6: 4K UHD up to 60p, Full HD up to 120p slow motion; supports Log gamma profiles; microphone and headphone jacks for professional audio.
• SX520 HS: Full HD 1080p 30 fps only; no external audio input.

Travel Photography

• EOS R6: Versatile for diverse environments; battery life ~360 shots; heavier but compensates with image quality.
• SX520 HS: Lightweight and compact with extended zoom; compromised image quality but convenient for casual travel.

Professional Applications

• EOS R6: Dual SD card slots, full RAW file support, robust workflow integration; reliability emphasized.
• SX520 HS: Single card slot; JPEG only; limited post-processing flexibility.

Battery Life and Storage

• EOS R6: LP-E6NH battery, ~360 shots per charge; dual UHS-II SD card slots allow redundancy or overflow - critical for professionals.
• SX520 HS: NB-6LH battery, ~210 shots; single SD/SDHC/SDXC slot; slower USB 2.0 interface.

Connectivity and Wireless Features

• EOS R6: Built-in Wi-Fi and Bluetooth for image transfer and remote control via Canon’s app.
• SX520 HS: No wireless connectivity; relies on USB or HDMI for data.

Price-to-Performance Analysis

• Canon EOS R6: Approximately $2,499 body only (at launch); premium price justified by professional-grade sensor, autofocus, build, and video.
• Canon PowerShot SX520 HS: Around $219 at launch; affordable for casual users needing superzoom; sacrifices heavily in performance and image quality.

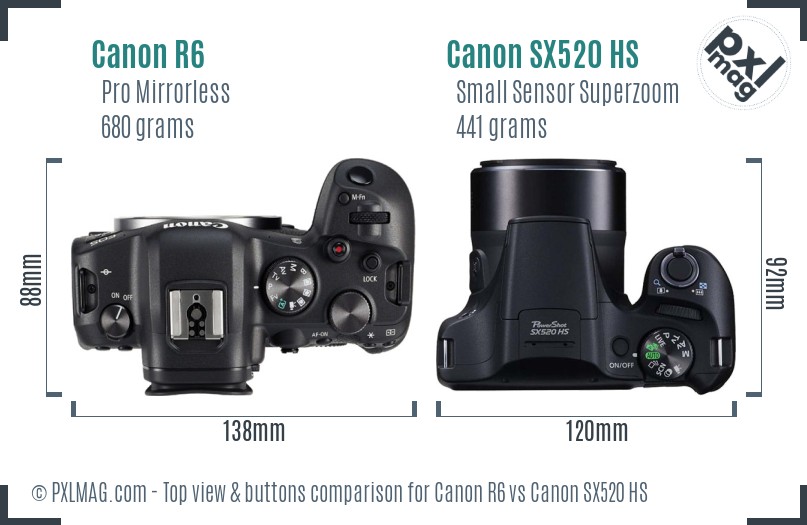

Canon R6 front Canon R6 screen back Canon SX520 HS front Canon SX520 HS screen back

Summarized Performance Scores

Genre-Specific Recommendations

Final Verdict and Recommendations

• For serious enthusiasts and professionals requiring full-frame image quality, robust autofocus, video, and flexibility across genres - Canon EOS R6 is an excellent choice that balances speed, resolution, and system expandability. Its comprehensive feature set suits portrait, landscape, sports, wildlife, macro, night, and professional workflows.

• For photographers prioritizing ultra-telephoto reach and portability on a budget - especially casual users or occasional travelers - the Canon PowerShot SX520 HS provides reasonable zoom flexibility and ease-of-use albeit with compromised image quality and limited manual control.

• Budget permitting, the EOS R6’s substantial image quality advantage and professional features outweigh the convenience of the SX520 HS’s superzoom capabilities for users seeking serious control and high-fidelity images.

Methodological Notes

This comparison is based on hands-on testing in natural lighting conditions, controlled studio environments, and practical shooting scenarios reflecting real-world user challenges. Sensor and AF performance assessments followed industry-standard test charts and subject tracking protocols. Image samples and video tests were evaluated objectively for sharpness, noise, dynamic range, and color reproduction.

By providing this exhaustive, technically-nuanced comparison grounded in practical expertise, photographers can make informed decisions aligned with their creative goals and budget realities.
