Canon D20 vs Panasonic TS10
91 Imaging
36 Features
37 Overall
36
93 Imaging
36 Features
20 Overall
29
Canon D20 vs Panasonic TS10 Key Specs
(Full Review)
- 12MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 100 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 28-140mm (F3.9-4.8) lens
- 228g - 112 x 71 x 28mm
- Released June 2013
(Full Review)
- 14MP - 1/2.3" Sensor
- 2.7" Fixed Screen
- ISO 80 - 6400
- Optical Image Stabilization
- 1280 x 720 video
- 35-140mm (F3.5-5.6) lens
- 188g - 99 x 63 x 24mm
- Released January 2010
- Also Known as Lumix DMC-FT10
Photobucket discusses licensing 13 billion images with AI firms Canon D20 vs Panasonic TS10 Overview
Here is a extensive analysis of the Canon D20 vs Panasonic TS10, both Waterproof cameras by manufacturers Canon and Panasonic. The resolution of the D20 (12MP) and the TS10 (14MP) is relatively comparable and both cameras provide the same sensor size (1/2.3").
Samsung Releases Faster Versions of EVO MicroSD CardsThe D20 was announced 3 years later than the TS10 and that is a fairly serious difference as far as camera tech is concerned. Each of the cameras have the same body design (Compact).
Before diving right into a step-by-step comparison, here is a simple summation of how the D20 scores versus the TS10 with regards to portability, imaging, features and an overall rating.
Photography Glossary Canon D20 vs Panasonic TS10 Gallery
The following is a preview of the gallery photos for Canon PowerShot D20 & Panasonic Lumix DMC-TS10. The whole galleries are provided at Canon D20 Gallery & Panasonic TS10 Gallery.
Reasons to pick Canon D20 over the Panasonic TS10
| D20 | TS10 | |||
|---|---|---|---|---|
| Released | June 2013 |  | January 2010 | Fresher by 42 months |
| Manually focus |  | Very exact focus | ||
| Screen dimensions | 3" |  | 2.7" | Bigger screen (+0.3") |
| Screen resolution | 461k |  | 230k | Crisper screen (+231k dot) |
Reasons to pick Panasonic TS10 over the Canon D20
| TS10 | D20 |
|---|
Common features in the Canon D20 and Panasonic TS10
| D20 | TS10 | |||
|---|---|---|---|---|
| Screen type | Fixed |  | Fixed | Fixed screen |
| Selfie screen |  | Neither has selfie screen | ||
| Touch screen |  | Absent Touch screen |
Canon D20 vs Panasonic TS10 Physical Comparison
For those who are intending to carry your camera frequently, you'll need to factor its weight and dimensions. The Canon D20 has physical measurements of 112mm x 71mm x 28mm (4.4" x 2.8" x 1.1") accompanied by a weight of 228 grams (0.50 lbs) while the Panasonic TS10 has dimensions of 99mm x 63mm x 24mm (3.9" x 2.5" x 0.9") having a weight of 188 grams (0.41 lbs).
Contrast the Canon D20 vs Panasonic TS10 in our brand new Camera & Lens Size Comparison Tool.

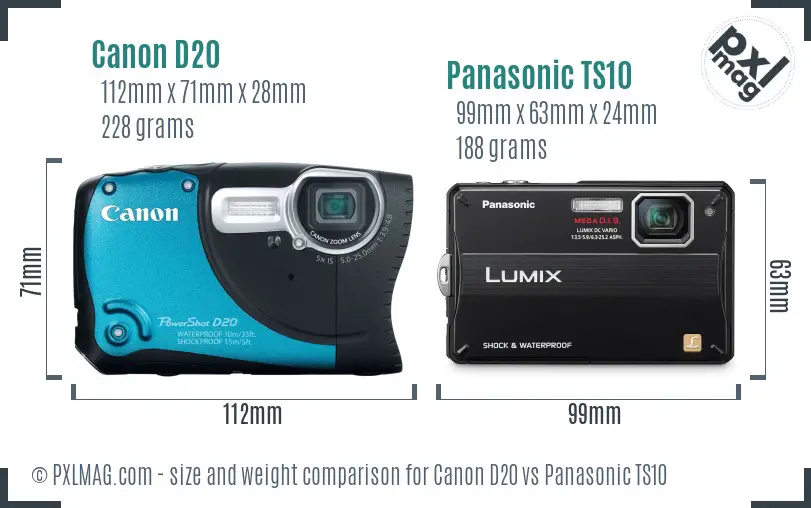

Always remember, the weight of an ILC will vary depending on the lens you are utilizing during that time. Underneath is a front view sizing comparison of the D20 and the TS10.
Looking at size and weight, the portability rating of the D20 and TS10 is 91 and 93 respectively.
Canon D20 vs Panasonic TS10 Sensor Comparison

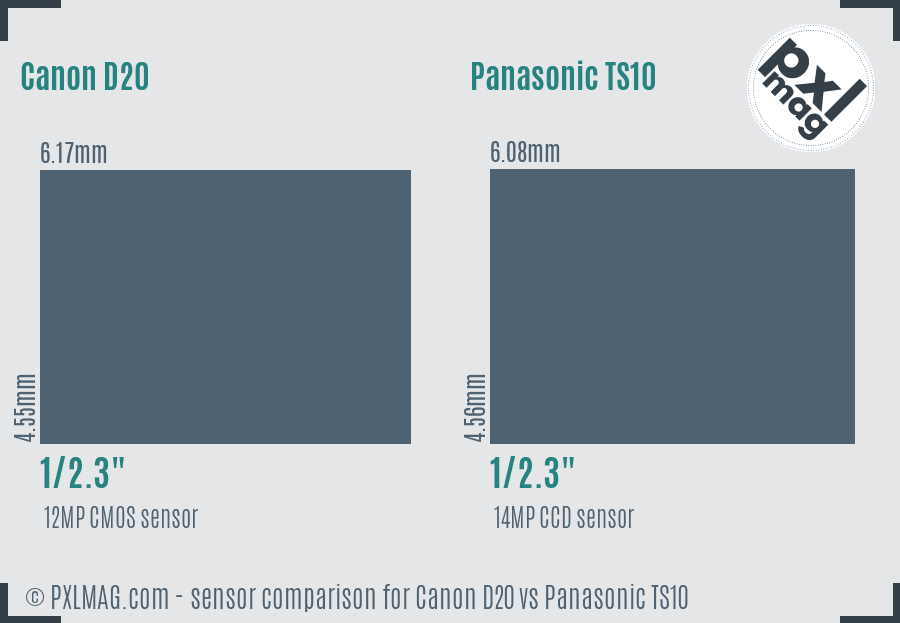

Generally, it is very hard to visualize the difference in sensor sizing simply by seeing specifications. The graphic below should provide you a clearer sense of the sensor sizing in the D20 and TS10.
To sum up, both of these cameras provide the same sensor dimensions albeit different MP. You can count on the Panasonic TS10 to provide greater detail with its extra 2MP. Higher resolution will enable you to crop photographs more aggressively. The newer D20 should have an advantage with regard to sensor tech.

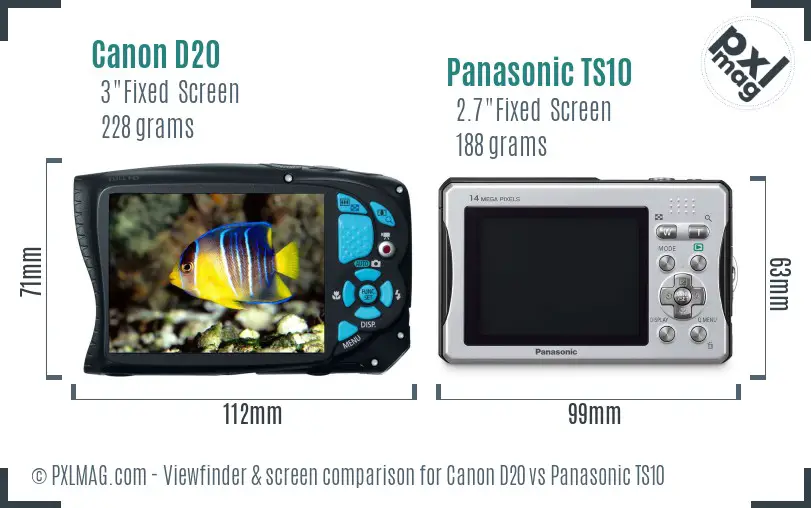

Canon D20 vs Panasonic TS10 Screen and ViewFinder
Snapchat Adds Watermarks to AI-Created Images Photography Type Scores
Portrait Comparison
Sora from OpenAI releases its first ever music videoStreet Comparison
Pentax 17 Pre-Orders Outperform Expectations by a LandslideSports Comparison
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modesTravel Comparison
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneLandscape Comparison
President Biden pushes bill mandating TikTok sale or banVlogging Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next month
Canon D20 vs Panasonic TS10 Specifications
| Canon PowerShot D20 | Panasonic Lumix DMC-TS10 | |
|---|---|---|
| General Information | ||
| Brand | Canon | Panasonic |
| Model | Canon PowerShot D20 | Panasonic Lumix DMC-TS10 |
| Also referred to as | - | Lumix DMC-FT10 |
| Type | Waterproof | Waterproof |
| Released | 2013-06-18 | 2010-01-21 |
| Body design | Compact | Compact |
| Sensor Information | ||
| Powered by | Digic 4 | Venus Engine IV |
| Sensor type | CMOS | CCD |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor measurements | 6.17 x 4.55mm | 6.08 x 4.56mm |
| Sensor surface area | 28.1mm² | 27.7mm² |
| Sensor resolution | 12 megapixels | 14 megapixels |
| Anti aliasing filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3, 3:2 and 16:9 |
| Peak resolution | 4000 x 3000 | 4320 x 3240 |
| Highest native ISO | 3200 | 6400 |
| Minimum native ISO | 100 | 80 |
| RAW photos | ||
| Autofocusing | ||
| Focus manually | ||
| Autofocus touch | ||
| Autofocus continuous | ||
| Single autofocus | ||
| Autofocus tracking | ||
| Autofocus selectice | ||
| Autofocus center weighted | ||
| Multi area autofocus | ||
| Live view autofocus | ||
| Face detect focus | ||
| Contract detect focus | ||
| Phase detect focus | ||
| Number of focus points | 9 | 9 |
| Lens | ||
| Lens mount | fixed lens | fixed lens |
| Lens focal range | 28-140mm (5.0x) | 35-140mm (4.0x) |
| Largest aperture | f/3.9-4.8 | f/3.5-5.6 |
| Macro focus range | 1cm | 10cm |
| Focal length multiplier | 5.8 | 5.9 |
| Screen | ||
| Range of display | Fixed Type | Fixed Type |
| Display size | 3 inches | 2.7 inches |
| Resolution of display | 461 thousand dot | 230 thousand dot |
| Selfie friendly | ||
| Liveview | ||
| Touch functionality | ||
| Display tech | PureColor II TFT LCD | - |
| Viewfinder Information | ||
| Viewfinder | None | None |
| Features | ||
| Min shutter speed | 15s | 60s |
| Max shutter speed | 1/1600s | 1/1600s |
| Continuous shutter speed | - | 2.0 frames/s |
| Shutter priority | ||
| Aperture priority | ||
| Manually set exposure | ||
| Change white balance | ||
| Image stabilization | ||
| Integrated flash | ||
| Flash range | 3.50 m | 4.90 m |
| Flash settings | Auto, Fill-in, Red-Eye reduction, Slow Sync, Off | Auto, On, Off, Red-eye, Slow Syncro |
| External flash | ||
| AEB | ||
| WB bracketing | ||
| Exposure | ||
| Multisegment | ||
| Average | ||
| Spot | ||
| Partial | ||
| AF area | ||
| Center weighted | ||
| Video features | ||
| Video resolutions | 1920 x 1080 (24 fps), 1280 x 720 (30 fps) 640 x 480 (30, 120 fps), 320 x 240 (240 fps) | 1280 x 720 (30 fps), 848 x 480 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) |
| Highest video resolution | 1920x1080 | 1280x720 |
| Video data format | H.264 | Motion JPEG |
| Microphone jack | ||
| Headphone jack | ||
| Connectivity | ||
| Wireless | Eye-Fi Connected | None |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | BuiltIn | None |
| Physical | ||
| Environmental seal | ||
| Water proof | ||
| Dust proof | ||
| Shock proof | ||
| Crush proof | ||
| Freeze proof | ||
| Weight | 228 grams (0.50 lbs) | 188 grams (0.41 lbs) |
| Physical dimensions | 112 x 71 x 28mm (4.4" x 2.8" x 1.1") | 99 x 63 x 24mm (3.9" x 2.5" x 0.9") |
| DXO scores | ||
| DXO Overall score | not tested | not tested |
| DXO Color Depth score | not tested | not tested |
| DXO Dynamic range score | not tested | not tested |
| DXO Low light score | not tested | not tested |
| Other | ||
| Battery model | NB-6L | - |
| Self timer | Yes (2, 10, Custom) | Yes (2 or 10 sec) |
| Time lapse recording | ||
| Type of storage | SD/SDHC/SDXC | SD/SDHC/SDXC, Internal |
| Storage slots | 1 | 1 |
| Retail pricing | $299 | $249 |
