Canon ELPH 530 HS vs Olympus SZ-16 iHS

Portability
95
Imaging
34
Features
40
Overall
36
Canon PowerShot ELPH 530 HS front

Olympus SZ-16 iHS front
Portability
89
Imaging
39
Features
36
Overall
37

Canon ELPH 530 HS vs Olympus SZ-16 iHS Key Specs

Canon ELPH 530 HS
(Full Review)
  • 10MP - 1/2.3" Sensor
  • 3.2" Fixed Display
  • ISO 100 - 3200
  • Optical Image Stabilization
  • 1920 x 1080 video
  • 28-336mm (F3.4-5.6) lens
  • 163g - 86 x 54 x 20mm
  • Released February 2012
  • Other Name is IXUS 510 HS
Olympus SZ-16 iHS
(Full Review)
  • 16MP - 1/2.3" Sensor
  • 3" Fixed Display
  • ISO 80 - 6400
  • Sensor-shift Image Stabilization
  • 1280 x 720 video
  • 25-600mm (F3.0-6.9) lens
  • 226g - 108 x 70 x 40mm
  • Revealed January 2013
Meta to Introduce 'AI-Generated' Labels for Media starting next month

Canon ELPH 530 HS vs Olympus SZ-16 iHS Overview

Here is a complete assessment of the Canon ELPH 530 HS versus Olympus SZ-16 iHS, both Small Sensor Superzoom digital cameras by competitors Canon and Olympus. There is a big difference between the resolutions of the ELPH 530 HS (10MP) and SZ-16 iHS (16MP) but they come with the same exact sensor sizes (1/2.3").

Pentax 17 Pre-Orders Outperform Expectations by a Landslide

The ELPH 530 HS was manufactured 11 months prior to the SZ-16 iHS and they are both of a similar generation. Both of these cameras offer the identical body type (Compact).

Before getting in to a detailed comparison, below is a brief summation of how the ELPH 530 HS matches up against the SZ-16 iHS in regards to portability, imaging, features and an overall rating.

Samsung Releases Faster Versions of EVO MicroSD Cards



Reasons to pick Canon ELPH 530 HS over the Olympus SZ-16 iHS

 ELPH 530 HS SZ-16 iHS
Display sizing3.2"3"Larger display (+0.2")
Display resolution461k460kClearer display (+1k dot)
Touch friendly display Easily navigate

Reasons to pick Olympus SZ-16 iHS over the Canon ELPH 530 HS

 SZ-16 iHS ELPH 530 HS
RevealedJanuary 2013February 2012Fresher by 11 months

Common features in the Canon ELPH 530 HS and Olympus SZ-16 iHS

 ELPH 530 HS SZ-16 iHS
Manual focus Lack of manual focusing
Display typeFixed Fixed Fixed display
Selfie screen Neither provides selfie screen

Canon ELPH 530 HS vs Olympus SZ-16 iHS Physical Comparison

For anybody who is aiming to carry your camera often, you have to factor in its weight and size. The Canon ELPH 530 HS provides physical dimensions of 86mm x 54mm x 20mm (3.4" x 2.1" x 0.8") along with a weight of 163 grams (0.36 lbs) while the Olympus SZ-16 iHS has specifications of 108mm x 70mm x 40mm (4.3" x 2.8" x 1.6") with a weight of 226 grams (0.50 lbs).

Compare the Canon ELPH 530 HS versus Olympus SZ-16 iHS in the new Camera with Lens Size Comparison Tool. Camera Size Comparison with Lenses

Bear in mind, the weight of an Interchangeable Lens Camera will differ based on the lens you select at that time. Following is the front view proportions comparison of the ELPH 530 HS compared to the SZ-16 iHS.

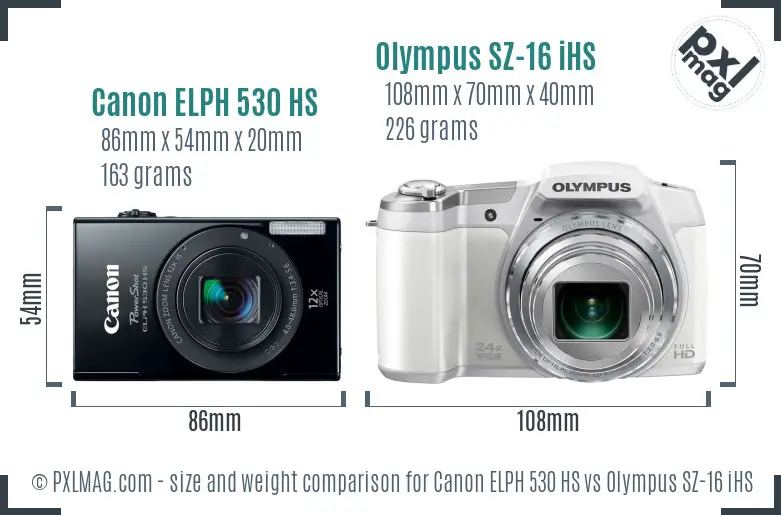

Canon ELPH 530 HS vs Olympus SZ-16 iHS size comparison

Factoring in size and weight, the portability score of the ELPH 530 HS and SZ-16 iHS is 95 and 89 respectively.

Canon ELPH 530 HS vs Olympus SZ-16 iHS top view buttons comparison

Canon ELPH 530 HS vs Olympus SZ-16 iHS Sensor Comparison

In many cases, its tough to imagine the difference between sensor sizing simply by reading through specs. The photograph underneath will help provide you a more clear sense of the sensor dimensions in the ELPH 530 HS and SZ-16 iHS.

As you can plainly see, both the cameras enjoy the same exact sensor sizing but different MP. You should expect to see the Olympus SZ-16 iHS to give greater detail due to its extra 6 Megapixels. Greater resolution can also allow you to crop images far more aggressively. The older ELPH 530 HS is going to be behind when it comes to sensor tech.

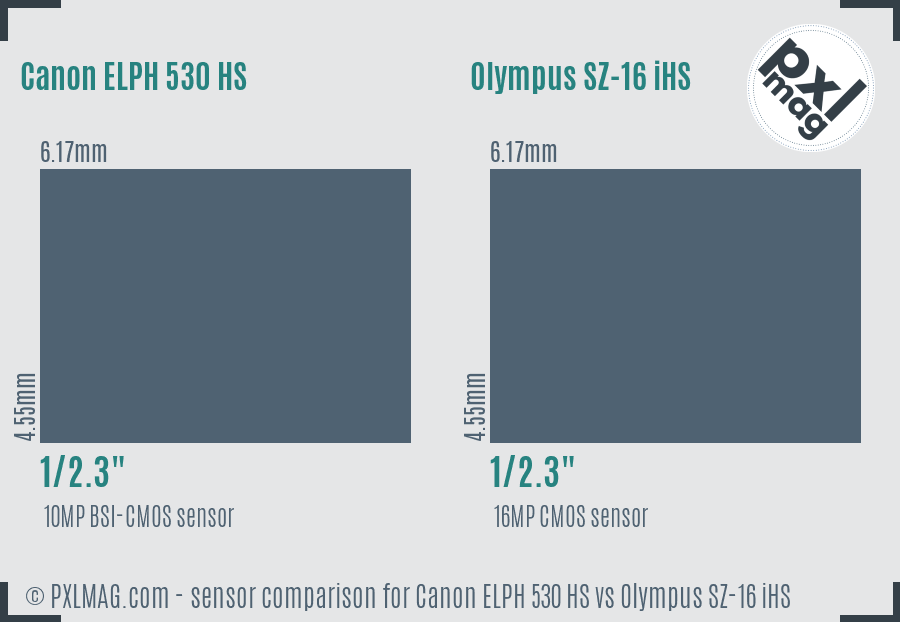

Canon ELPH 530 HS vs Olympus SZ-16 iHS sensor size comparison

Canon ELPH 530 HS vs Olympus SZ-16 iHS Screen and ViewFinder

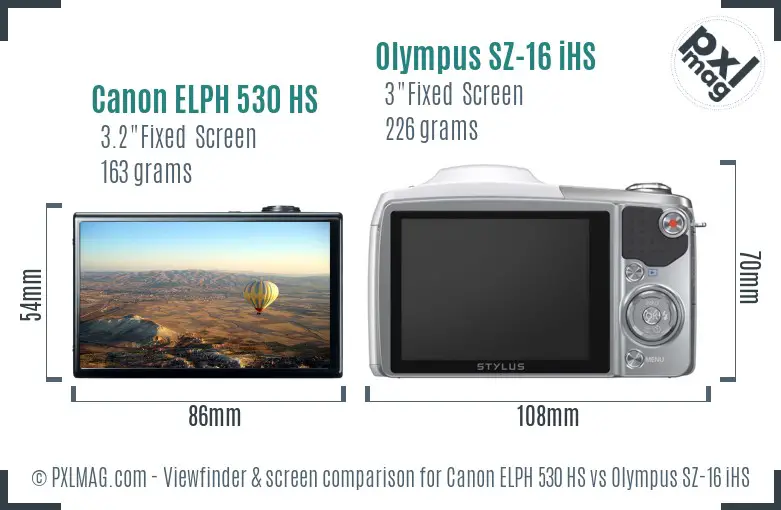

Canon ELPH 530 HS vs Olympus SZ-16 iHS Screen and Viewfinder comparison
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone

Photography Type Scores

Portrait Comparison

Canon ELPH 530 HS Portrait photography features
Olympus SZ-16 iHS Portrait photography features
26
comes with face detection focus
manual focus not available
manual mode not available
can't use external flash
low megapixels (10MP)
small sensor (1/2.3")
no RAW support
34
MP count good (16 megapixels)
supports face detect focusing
manual focus not available
manual exposure not possible
cannot use external flash
small sensor size (1/2.3")
doesn't have RAW format
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes

Street Comparison

Street photography with Canon ELPH 530 HS
Street photography with Olympus SZ-16 iHS
66
has image stabilization (Optical)
features touch focus
lighter than others (163 grams)
no moving screen
small sensor (1/2.3")
no RAW support
60
has image stabilization (Sensor-shift)
lighter than others (226g)
no articulating screen
small sensor size (1/2.3")
doesn't have RAW format
Snapchat Adds Watermarks to AI-Created Images

Sports Comparison

Canon ELPH 530 HS Sports photography advice
Olympus SZ-16 iHS Sports photography advice
29
has image stabilization (Optical)
comes with tracking autofocus
slow frames per second (3.0 frames/s)
no shutter priority
low megapixels (10MP)
small sensor (1/2.3")
terrible battery life (190 CIPA)
no phase detect auto focus
41
excellent zoom range (25-600mm 24.0 x zoom)
has image stabilization (Sensor-shift)
MP count good (16 megapixels)
supports tracking focus
continuous shooting slow (2.0 fps)
no shutter priority mode
small sensor size (1/2.3")
low battery life (220 shots)
doesn't have phase detect AF
Photobucket discusses licensing 13 billion images with AI firms

Travel Comparison

Travel photography with Canon ELPH 530 HS
Travel photography with Olympus SZ-16 iHS
64
lighter than others (163 grams)
features touch focus
has built in flash
fairly wide (28mm)
very long zoom (336mm)
doesn't have Time Lapse recording
terrible battery life (190 shots)
low megapixels (10 megapixels)
does not posses selfie friendly display
slow max aperture (f3.4)
65
lighter than others (226g)
MP count good (16MP)
built-in flash
relatively wide (25mm)
long reach (600mm)
lack of Time Lapse function
low battery life (220 shots)
does not contain selfie friendly display
somewhat slow maximum aperture (f3.0)
President Biden pushes bill mandating TikTok sale or ban

Landscape Comparison

Canon ELPH 530 HS Landscape photography factors
Olympus SZ-16 iHS Landscape photography factors
35
fairly wide (28mm)
good sized screen (3.2 inch)
has image stabilization (Optical)
manual focus not available
cannot swap lens (fixed lens mount)
slow max aperture (f3.4)
manual mode not available
low megapixels (10MP)
small sensor (1/2.3")
no RAW support
terrible battery life (190 CIPA)
doesn't have Time Lapse recording
41
relatively wide (25mm)
screen size is good (3 inches)
has image stabilization (Sensor-shift)
MP count good (16 megapixels)
manual focus not available
can't swap lens (fixed lens mount)
somewhat slow maximum aperture (f3.0)
manual exposure not possible
small sensor size (1/2.3")
doesn't have RAW format
low battery life (220 shots)
lack of Time Lapse function
Photography Glossary

Vlogging Comparison

Canon ELPH 530 HS Vlogging details
Olympus SZ-16 iHS Vlogging details
35
fairly wide (28mm)
touchscreen
has image stabilization (Optical)
comes with face detection focus
high res video (1920 x 1080 pixels)
lighter than others (163g)
slow max aperture (f3.4)
does not posses selfie friendly display
doesn't have external mic socket
31
relatively wide (25mm)
has image stabilization (Sensor-shift)
supports face detect focusing
lighter than others (226 grams)
somewhat slow maximum aperture (f3.0)
does not contain selfie friendly display
video quality not great (1280 x 720 pixels)
lack of mic port
Sora from OpenAI releases its first ever music video

Canon ELPH 530 HS vs Olympus SZ-16 iHS Specifications

Detailed spec comparison table for Canon ELPH 530 HS and Olympus SZ-16 iHS
 Canon PowerShot ELPH 530 HSOlympus SZ-16 iHS
General Information
Manufacturer Canon Olympus
Model type Canon PowerShot ELPH 530 HS Olympus SZ-16 iHS
Also called IXUS 510 HS -
Type Small Sensor Superzoom Small Sensor Superzoom
Released 2012-02-07 2013-01-08
Body design Compact Compact
Sensor Information
Processor Chip DIGIC 5 -
Sensor type BSI-CMOS CMOS
Sensor size 1/2.3" 1/2.3"
Sensor dimensions 6.17 x 4.55mm 6.17 x 4.55mm
Sensor area 28.1mm² 28.1mm²
Sensor resolution 10 megapixel 16 megapixel
Anti alias filter
Aspect ratio 1:1, 4:3, 3:2 and 16:9 -
Max resolution 3648 x 2736 4608 x 3456
Max native ISO 3200 6400
Minimum native ISO 100 80
RAW support
Autofocusing
Manual focusing
Touch focus
Continuous AF
Single AF
Tracking AF
Selective AF
Center weighted AF
AF multi area
AF live view
Face detect AF
Contract detect AF
Phase detect AF
Total focus points 9 -
Cross type focus points - -
Lens
Lens mount type fixed lens fixed lens
Lens zoom range 28-336mm (12.0x) 25-600mm (24.0x)
Maximal aperture f/3.4-5.6 f/3.0-6.9
Macro focusing distance 1cm -
Crop factor 5.8 5.8
Screen
Range of display Fixed Type Fixed Type
Display sizing 3.2" 3"
Display resolution 461 thousand dot 460 thousand dot
Selfie friendly
Liveview
Touch display
Display technology PureColor II Touch TFT LCD TFT Color LCD
Viewfinder Information
Viewfinder None None
Features
Minimum shutter speed 15 seconds 4 seconds
Fastest shutter speed 1/4000 seconds 1/2000 seconds
Continuous shutter speed 3.0 frames/s 2.0 frames/s
Shutter priority
Aperture priority
Manually set exposure
Custom WB
Image stabilization
Inbuilt flash
Flash distance 2.50 m -
Flash modes Auto, On, Off, Red-Eye, Slow Sync Auto, On, Off, Red-Eye, Fill-in
Hot shoe
AE bracketing
White balance bracketing
Exposure
Multisegment metering
Average metering
Spot metering
Partial metering
AF area metering
Center weighted metering
Video features
Supported video resolutions 1920 x 1080 (24 fps), 1280 x 720 (30 fps) 640 x 480 (30, 120 fps), 320 x 240 (240 fps) 1280 x 720 (30 fps), 640 x 480 (30 fps), 320 x 180 (30fps)
Max video resolution 1920x1080 1280x720
Video file format H.264 MPEG-4, H.264
Mic jack
Headphone jack
Connectivity
Wireless Built-In None
Bluetooth
NFC
HDMI
USB USB 2.0 (480 Mbit/sec) USB 2.0 (480 Mbit/sec)
GPS None None
Physical
Environment seal
Water proofing
Dust proofing
Shock proofing
Crush proofing
Freeze proofing
Weight 163 gr (0.36 lb) 226 gr (0.50 lb)
Dimensions 86 x 54 x 20mm (3.4" x 2.1" x 0.8") 108 x 70 x 40mm (4.3" x 2.8" x 1.6")
DXO scores
DXO Overall rating not tested not tested
DXO Color Depth rating not tested not tested
DXO Dynamic range rating not tested not tested
DXO Low light rating not tested not tested
Other
Battery life 190 images 220 images
Battery form Battery Pack Battery Pack
Battery ID NB-9L LI-50B
Self timer Yes (2 or 10 sec, Custom) Yes (2 or 12 sec, pet auto shutter)
Time lapse shooting
Storage media microSD/microSDHC/microSDXC SD/SDHC/SDXC
Storage slots 1 1
Price at release $250 $230
