Canon S100 vs Olympus FE-5020

Portability
93 Imaging
36 Features
48 Overall
40
Canon PowerShot S100 front

Olympus FE-5020 front
Portability
95 Imaging
34 Features
20 Overall
28

Canon S100 vs Olympus FE-5020 Key Specs

Canon S100
(Full Review)
  • 12MP - 1/1.7" Sensor
  • 3" Fixed Screen
  • ISO 80 - 6400
  • Optical Image Stabilization
  • 1920 x 1080 video
  • 24-120mm (F2.0-5.9) lens
  • 198g - 99 x 60 x 28mm
  • Revealed December 2011
  • Succeeded the Canon S95
  • Successor is Canon S110
Olympus FE-5020
(Full Review)
  • 12MP - 1/2.3" Sensor
  • 2.7" Fixed Display
  • ISO 64 - 1600
  • 640 x 480 video
  • 24-120mm (F3.3-5.8) lens
  • 137g - 93 x 56 x 25mm
  • Announced July 2009
  • Also referred to as X-935
Snapchat Adds Watermarks to AI-Created Images

Canon S100 vs Olympus FE-5020 Overview

Here, we are looking at the Canon S100 versus Olympus FE-5020, both Small Sensor Compact digital cameras by companies Canon and Olympus. The resolution of the S100 (12MP) and the FE-5020 (12MP) is very similar but the S100 (1/1.7") and FE-5020 (1/2.3") posses different sensor measurements.

Meta to Introduce 'AI-Generated' Labels for Media starting next month

The S100 was unveiled 2 years after the FE-5020 which is quite a sizable difference as far as technology is concerned. Each of the cameras feature the same body design (Compact).

Before delving right into a more detailed comparison, here is a short summary of how the S100 matches up against the FE-5020 in regards to portability, imaging, features and an overall score.

Samsung Releases Faster Versions of EVO MicroSD Cards






Reasons to pick Canon S100 over the Olympus FE-5020






 S100 FE-5020
AnnouncedDecember 2011July 2009More modern by 30 months
Manual focus  More precise focus
Display size3"2.7"Larger display (+0.3")
Display resolution461k230kCrisper display (+231k dot)










Reasons to pick Olympus FE-5020 over the Canon S100






 FE-5020 S100










Common features in the Canon S100 and Olympus FE-5020






 S100 FE-5020
Display typeFixed Fixed Fixed display
Selfie screen  Lacking selfie screen
Touch display  Lacking Touch display
















Canon S100 vs Olympus FE-5020 Physical Comparison






When you are going to carry around your camera often, you will have to take into account its weight and volume. The Canon S100 provides exterior measurements of 99mm x 60mm x 28mm (3.9" x 2.4" x 1.1") and a weight of 198 grams (0.44 lbs) and the Olympus FE-5020 has sizing of 93mm x 56mm x 25mm (3.7" x 2.2" x 1.0") and a weight of 137 grams (0.30 lbs).
Look at the Canon S100 versus Olympus FE-5020 in our newest Camera plus Lens Size Comparison Tool. Camera Size Comparison with Lenses
Bear in mind, the weight of an ILC will vary dependant on the lens you select at that time. Here is a front view measurements comparison of the S100 and the FE-5020.

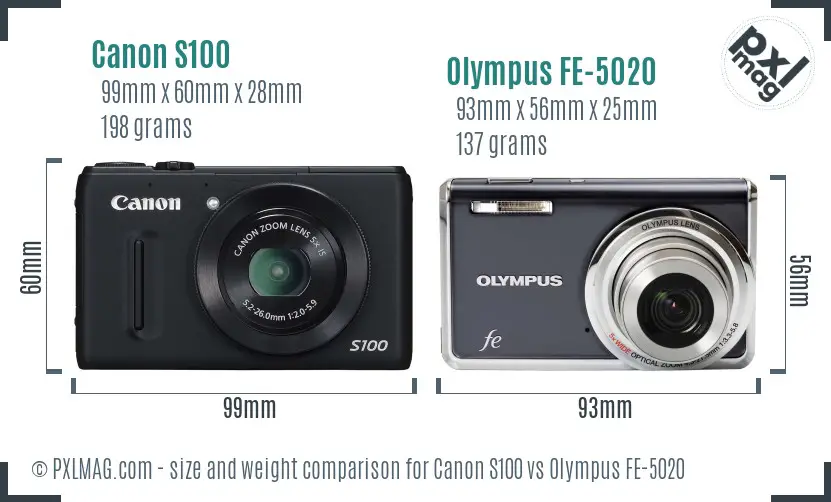

Canon S100 vs Olympus FE-5020 size comparison
Taking into account dimensions and weight, the portability rating of the S100 and FE-5020 is 93 and 95 respectively.

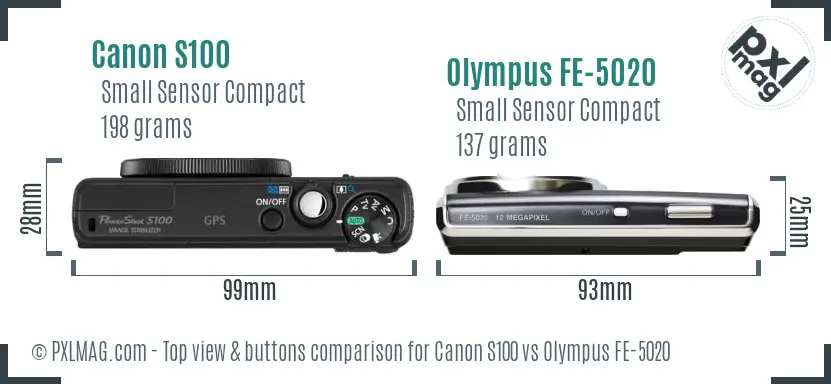

Canon S100 vs Olympus FE-5020 top view buttons comparison









Canon S100 vs Olympus FE-5020 Sensor Comparison






Quite often, it's difficult to picture the gap between sensor sizes merely by reviewing technical specs. The pic below will provide you a stronger sense of the sensor measurements in the S100 and FE-5020.
As you can tell, the 2 cameras feature the identical megapixel count but different sensor sizes. The S100 has got the larger sensor which will make getting shallow DOF less difficult. The fresher S100 provides an advantage when it comes to sensor innovation.

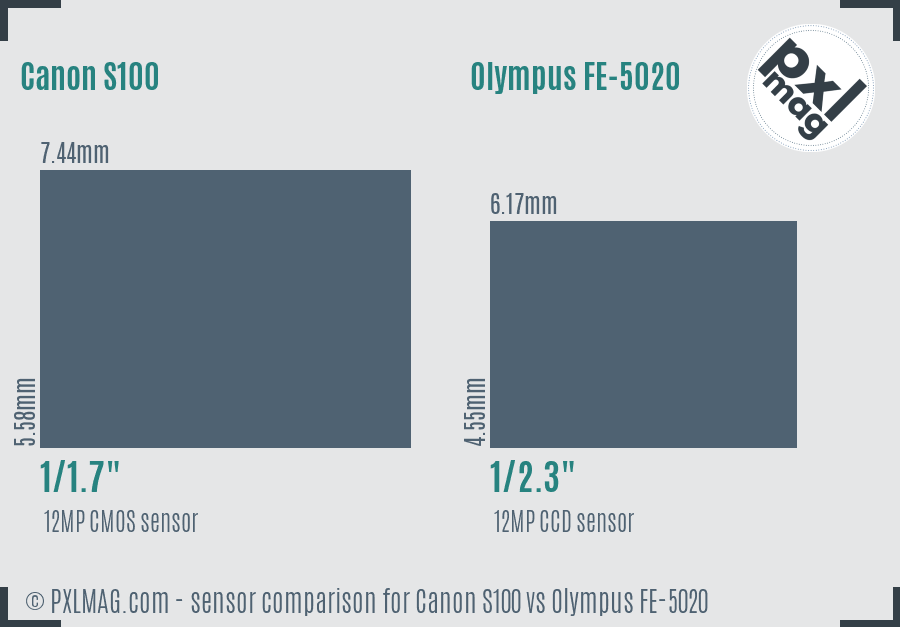

            Canon S100 vs Olympus FE-5020 sensor size comparison










Canon S100 vs Olympus FE-5020 Screen and ViewFinder

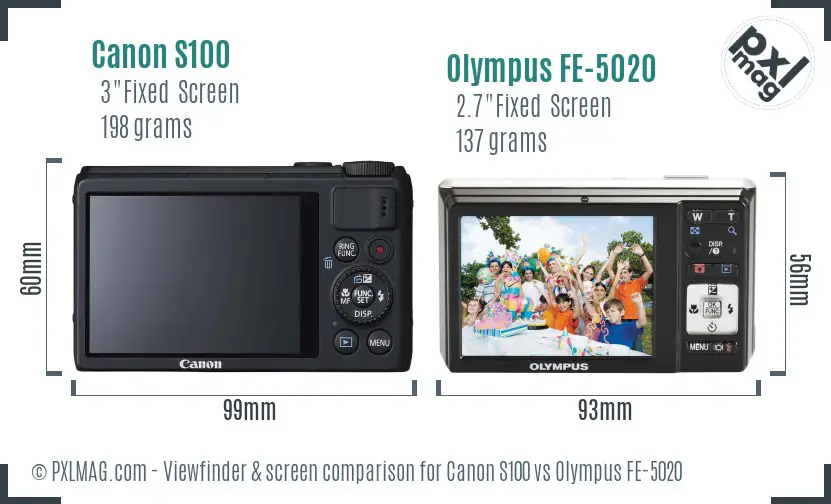

          Canon S100 vs Olympus FE-5020 Screen and Viewfinder comparison


                Photobucket discusses licensing 13 billion images with AI firms









Photography Type Scores






Portrait Comparison
Canon S100 Portrait photography info
Olympus FE-5020 Portrait photography info
44
 has manual focus
 flash sync speed is above average (1/2,000 seconds)
 supports face detection focus
 delivers RAW formats
 external flash not possible
 MP count low (12MP)
 tiny sensor (1/1.7")
20
 manual focus not available
 no manual control
 no external flash support
 low megapixels (12MP)
 sensor  is tiny (1/2.3")
 lack of RAW support
Pentax 17 Pre-Orders Outperform Expectations by a Landslide
Street Comparison
Street photography with Canon S100
Street photography with Olympus FE-5020
65
 built in image stabilization (Optical)
 delivers RAW formats
 no moving screen
 tiny sensor (1/1.7")
59
 weather proofing
 lighter than competition (137g)
 screen does not articulate
 does not have image stabilization
 sensor  is tiny (1/2.3")
 lack of RAW support
Sora from OpenAI releases its first ever music video
Sports Comparison
Canon S100 Sports photography features
Olympus FE-5020 Sports photography features
32
 built in image stabilization (Optical)
 supports tracking autofocus
 continuous shooting slow (2.0 fps)
 MP count low (12 megapixels)
 tiny sensor (1/1.7")
 low battery life (200 shots)
 lack of phase detect auto focus
24
 weather proofing
 low maximum shutter speed (1/500s)
 lack of shutter priority mode
 does not have image stabilization
 low megapixels (12MP)
 sensor  is tiny (1/2.3")
 lack of phase detect autofocus
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone
Travel Comparison
Canon S100 Travel photography features
Olympus FE-5020 Travel photography features
61
 flash built-in
 quite wide (24mm)
 fast maximum aperture (f2.0)
 doesn't have Time Lapse function
 low battery life (200 per charge)
 MP count low (12 megapixels)
 display is not selfie friendly
64
 lighter than competition (137 grams)
 weather proofing
 flash built-in
 reasonably wide (24mm)
 no Timelapse recording
 low megapixels (12MP)
 does not posses selfie friendly screen
 sluggish maximum aperture (f3.3)
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes
Landscape Comparison
Canon S100 Landscape photography advice
Olympus FE-5020 Landscape photography advice
50
 has manual focus
 quite wide (24mm)
 fast maximum aperture (f2.0)
 screen is a good size (3 inches)
 built in image stabilization (Optical)
 delivers RAW formats
 lens is fixed (fixed lens mount)
 MP count low (12 megapixels)
 tiny sensor (1/1.7")
 low battery life (200 CIPA)
 doesn't have Time Lapse function
31
 reasonably wide (24mm)
 weather proofing
 manual focus not available
 lens is fixed (fixed lens mount)
 sluggish maximum aperture (f3.3)
 tiny screen (2.7")
 no manual control
 does not have image stabilization
 low megapixels (12 megapixels)
 sensor  is tiny (1/2.3")
 lack of RAW support
 no Timelapse recording
President Biden pushes bill mandating TikTok sale or ban
Vlogging Comparison
 Canon S100 as a Vlogging camera
 Olympus FE-5020 as a Vlogging camera
36
 quite wide (24mm)
 fast maximum aperture (f2.0)
 built in image stabilization (Optical)
 supports face detection focus
 high quality video (1920 x 1080 resolution)
 display is not selfie friendly
 doesn't have external mic socket
28
 reasonably wide (24mm)
 lighter than competition (137g)
 sluggish maximum aperture (f3.3)
 does not posses selfie friendly screen
 does not have image stabilization
 low res video (640 x 480 resolution)
 no microphone socket
Photography Glossary







Canon S100 vs Olympus FE-5020 Specifications










            Detailed spec comparison table for Canon S100 and Olympus FE-5020
 Canon PowerShot S100Olympus FE-5020
General Information
Brand Canon Olympus
Model Canon PowerShot S100 Olympus FE-5020
Other name - X-935
Category Small Sensor Compact Small Sensor Compact
Revealed 2011-12-22 2009-07-22
Physical type Compact Compact
Sensor Information
Processor Chip Digic 5 TruePic III
Sensor type CMOS CCD
Sensor size 1/1.7" 1/2.3"
Sensor measurements 7.44 x 5.58mm 6.17 x 4.55mm
Sensor surface area 41.5mm² 28.1mm²
Sensor resolution 12MP 12MP
Anti aliasing filter
Aspect ratio 1:1, 5:4, 4:3, 3:2 and  16:9 4:3
Highest Possible resolution 4000 x 3000 3968 x 2976
Maximum native ISO 6400 1600
Min native ISO 80 64
RAW images
Autofocusing
Focus manually
Touch focus
Continuous AF
Single AF
Tracking AF
AF selectice
AF center weighted
AF multi area
Live view AF
Face detection AF
Contract detection AF
Phase detection AF
Number of focus points 9 -
Lens
Lens mount fixed lens fixed lens
Lens focal range 24-120mm (5.0x) 24-120mm (5.0x)
Maximal aperture f/2.0-5.9 f/3.3-5.8
Macro focus distance 3cm 1cm
Crop factor 4.8 5.8
Screen
Screen type Fixed Type Fixed Type
Screen sizing 3" 2.7"
Resolution of screen 461k dots 230k dots
Selfie friendly
Liveview
Touch capability
Viewfinder Information
Viewfinder None None
Features
Minimum shutter speed 15s 4s
Fastest shutter speed 1/2000s 1/500s
Continuous shutter rate 2.0fps -
Shutter priority
Aperture priority
Expose Manually
Exposure compensation Yes -
Change WB
Image stabilization
Built-in flash
Flash range 7.00 m 4.10 m
Flash settings Auto, On, Off, Red-Eye, Slow Sync Auto, On, Off, Red-eye, Fill-in
External flash
AEB
White balance bracketing
Fastest flash synchronize 1/2000s -
Exposure
Multisegment metering
Average metering
Spot metering
Partial metering
AF area metering
Center weighted metering
Video features
Supported video resolutions 1920 x 1080 (24 fps), 1280 x 720 (30 fps) 640 x 480 (120, 30 fps), 320 x 240 (240, 30 fps) 640 x 480 (30, 15 fps), 320 x 240 (30, 15 fps)
Maximum video resolution 1920x1080 640x480
Video format H.264, Motion JPEG Motion JPEG
Microphone port
Headphone port
Connectivity
Wireless Eye-Fi Connected None
Bluetooth
NFC
HDMI
USB USB 2.0 (480 Mbit/sec) USB 2.0 (480 Mbit/sec)
GPS BuiltIn None
Physical
Environment sealing
Water proof
Dust proof
Shock proof
Crush proof
Freeze proof
Weight 198 gr (0.44 lb) 137 gr (0.30 lb)
Physical dimensions 99 x 60 x 28mm (3.9" x 2.4" x 1.1") 93 x 56 x 25mm (3.7" x 2.2" x 1.0")
DXO scores
DXO Overall score 50 not tested
DXO Color Depth score 20.7 not tested
DXO Dynamic range score 11.6 not tested
DXO Low light score 153 not tested
Other
Battery life 200 photos -
Form of battery Battery Pack -
Battery model NB-5L LI-42B
Self timer Yes (2 or 10 sec, Custom) Yes (12 seconds)
Time lapse feature
Storage type SD/SDHC/SDXC xD-Picture Card, microSD
Card slots Single Single
Price at release $429 $160
