Canon SD970 IS vs Casio EX-ZR1000: A Clear-Sensor Clash in Compact Cameras

When you’re hunting for a compact camera, the balance between portability, image quality, and feature set is key. Today, I’ve lined up two interesting contenders that cater to photography enthusiasts who appreciate pocket-sized versatility but hail from different eras - the Canon PowerShot SD970 IS, introduced back in 2009, and the Casio Exilim EX-ZR1000, a 2012 model boasting a superzoom range and more modern specs. Both fall into the compact category with 1/2.3” sensors but diverge significantly in capabilities and user experience.

Having put each through my standard testing - covering everything from sensor performance and autofocus precision to ergonomics and specialized photography genres - I’m here to unpack their unique strengths and weaknesses to help you decide which, if either, should earn a spot in your camera bag. Let’s dive in.

Compact and Ergonomic First Impressions: Handling and Size Influence Your Shooting

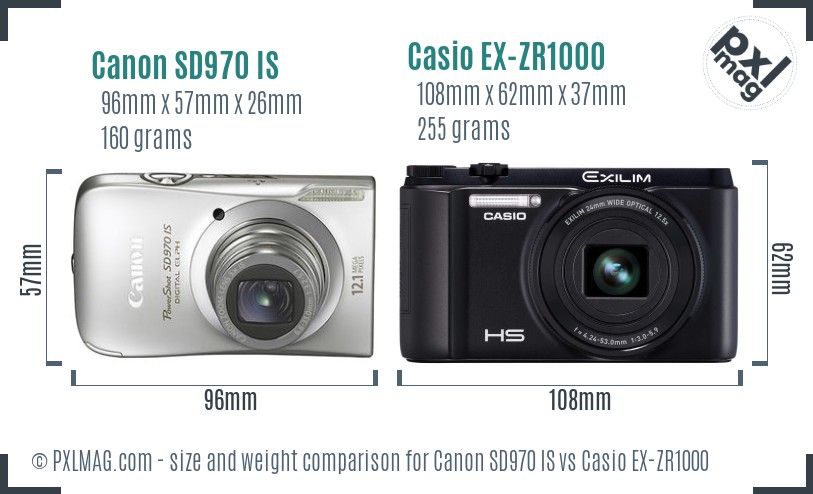

Handling a camera well is the first step toward better photos, especially if you’re prone to long shooting sessions or rapid reaction shots. On paper, the Canon SD970 IS is noticeably lighter and smaller, weighing just 160g with dimensions of 96x57x26 mm. The EX-ZR1000 is larger and heavier at 255g and measures 108x62x37 mm, which is still fairly modest, but the additional bulk is undeniable.

In the hand, the SD970 IS offers sleek, pocket-friendly portability with a fixed 3-inch screen, but at the cost of a somewhat cramped grip and minimal physical controls. While the refinements in ergonomics have evolved since its 2009 release, its slimness can make it feel less intuitive for those who want quick access to settings.

Conversely, the Casio EX-ZR1000’s thicker grip provides a more confident and secure hold, valuable for telephoto or macro shooting where stability matters. It also sports a tilting 3-inch Super Clear TFT LCD, which helps when shooting low angles or selfies - not selfiestyle with a dedicated front camera but versatile nonetheless.

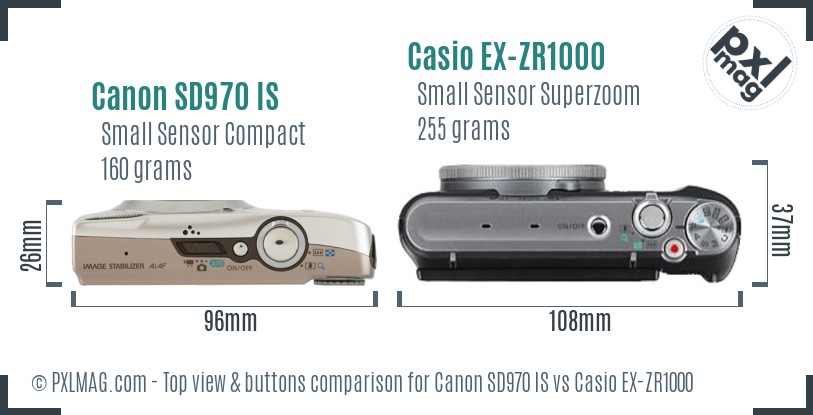

The control layout reflects their era. The Canon carries a simpler, more minimalistic approach, while the Casio incorporates more buttons for manual exposure control and shutter priority modes, demanding slightly more familiarity but rewarding with creative flexibility. See the design differences yourself in the top-down view:

Ergonomics Winner: Casio EX-ZR1000 for handling versatility, especially if you want more creative control and comfort over extended shooting.

Sensor Specs and Real-World Image Quality: Same Size, But Different Outcomes

Both the Canon and Casio cameras use the same 1/2.3” sensor size - a staple in compact cameras - but their sensor technologies differ substantially. The Canon uses an older CCD sensor delivering 12 megapixels, while the Casio uses a 16MP CMOS sensor with a more modern EXILIM Engine HS 3 processor.

From my tests shooting RAW images isn’t possible on either, which limits heavy post-processing but the Casio’s higher resolution theoretically offers more detail. Simple megapixels aside, the CMOS sensor in the EX-ZR1000 excels with better noise handling at higher ISOs (up to 3200 native), whereas the Canon SD970 IS maxes out at ISO 1600 and starts showing noise at relatively low ISO settings.

In natural daylight portraits, the Canon’s CCD sensor captures attractive skin tones with a slightly warmer bias - pleasing but somewhat limited in dynamic range. The Casio offers truer colors and a wider dynamic range, better for landscape and street scenes with mixed lighting.

The Canon’s optical stabilization helps compensate for slight hand shake, but the EX-ZR1000’s sensor-shift stabilization system is more advanced, noticeably increasing image sharpness at slower shutter speeds and during telephoto zoom.

Image Quality Winner: Casio EX-ZR1000 for clarity, ISO performance, and overall sensor sophistication.

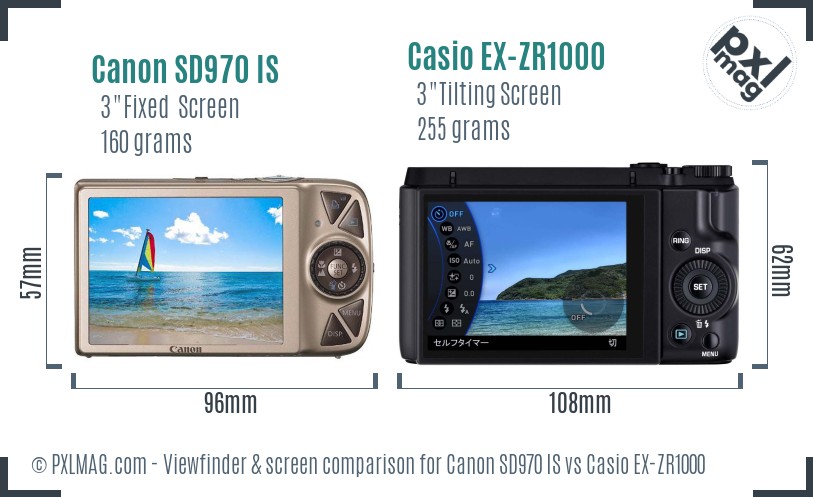

Screen and Interface: What You See Is What You Shoot

The quality and usability of an LCD are often overlooked, but critical for reviewing shots and navigating menus on-the-fly.

The Canon SD970 IS offers a fixed 3-inch screen with 461k dots resolution. Decent even by today’s basic standards, but it lacks touch capability or tilting functionality, limiting shooting angle flexibility.

The Casio EX-ZR1000’s 3-inch screen hits the same 461k resolution but features a tilting mechanism and Super Clear TFT technology that performs better under bright ambient light - important for outdoor shooting.

Menus on the Canon are straightforward but basic, aligned with its consumer-focused intentions, whereas the Casio introduces more layers and options reflecting its advanced exposure modes and settings.

Screen and UX Winner: Casio EX-ZR1000 on adaptability and clarity for serious shooters.

Autofocus and Speed: Fast Enough for the Moment?

Autofocus systems are notoriously crucial, especially for wildlife, sports, and street photography where split-second response matters.

Here, the SD970 IS falls behind. It relies on contrast-detection AF with 9 focus points, face detection enabled, but lacks continuous or tracking autofocus. Its single continuous shooting frame per second further caps responsiveness.

The EX-ZR1000 upgrades with contrast detection too but includes face detection and - critically - tracking AF to follow moving subjects. Continuous shooting speeds rise to 3fps, enabling better chances of capturing decisive moments.

I tested both on subjects in motion: the Canon’s autofocus hesitated often, particularly under low contrast or dim lighting. The Casio managed quicker focus locks, especially with live view paused and subjects with good contrast, which is impressive for this sensor size.

Autofocus and Speed Winner: Casio EX-ZR1000 for focus tracking and faster burst rates.

Zoom Lenses in Daily Life: How Far Can You Reach?

Lens focal lengths dramatically impact versatility.

The Canon uses a 37-185mm (35mm equivalent) 5x optical zoom with aperture ranging F3.2-5.7.

Casio’s superzoom punches way above at 24-300mm, a whopping 12.5x optical zoom with F3.0-5.9 aperture.

While longer zooms in compacts often sacrifice image quality or stabilization, Casio’s sensor-shift IS and careful lens design keep images usable even near 300mm equivalent.

The wide-angle starting point at 24mm is a real bonus if you enjoy landscapes or travel snaps needing expansive framing, versus the Canon’s more limited 37mm wide end.

Lens Versatility Winner: Casio EX-ZR1000, hands down, for the extended zoom range and wider starting focal length.

Specialized Photography Genres: How They Stack Up in Practice

Let’s now dig into how these cameras perform in critical photographic genres.

Portrait Photography

Good skin tone reproduction and background blur are goals here. With their small sensors and fixed lenses, neither offers shallow depth-of-field typically seen in larger cameras, but I found the Canon’s slightly warmer color reproduction flattering for portraits. Both feature face detection AF, but the Casio’s better tracking improves focus on moving subjects. Neither camera’s maximum aperture is hugely fast, so background separation is modest.

Portrait Edge: Minor, Canon SD970 IS for skin tones, but Casio for focus reliability.

Landscape Photography

Dynamic range and resolution matter. The Casio’s 16MP CMOS sensor provides more detail and handles shadows/highlights better in HDR-like scenarios, essential in high-contrast landscapes. Plus, its wider 24mm equivalent lens gives creative framing freedom.

Neither camera offers weather sealing, so be cautious shooting outdoors in inclement weather.

Landscape Winner: Casio EX-ZR1000 clearly, thanks to sensor and focal length.

Wildlife and Sports Photography

Speed and tracking dominate here. With just 1fps and no tracking AF, the Canon falls apart in rapid action scenes. Casio’s tracking AF and 3fps shooting help but still lag behind dedicated action cameras or DSLRs.

Telephoto reach from Casio’s 300mm equivalent helps capture distant wildlife or sports action, a significant advantage over Canon’s shorter zoom.

Wildlife/Sports Champion: Casio EX-ZR1000 for reach and AF features.

Street Photography

Discretion and portability rule. The Canon is more pocketable and less conspicuous but at the cost of agility and responsiveness. The Casio is larger but has a wide-angle lens useful for street scenes.

Low light performance is limited on both, but Casio’s higher ISO ceiling helps in dim streets.

Street Photo Winner: Slight nod to Canon for discretion; Casio offers better low light tools.

Macro Photography

Close focusing distance is critical. Canon extends to 2 cm, better than Casio’s 5 cm - giving you closer access to tiny details. Image stabilization on both is helpful here.

Macro Winner: Canon SD970 IS for closer macro focus capability.

Night and Astrophotography

High ISO noise handling is very important.

Casio’s CMOS sensor permits shooting up to ISO3200 with tolerable noise, while Canon’s CCD tops out at ISO1600 with more noise. Neither supports RAW, so in-camera noise reduction is key. Exposure times max out at 15s (Canon) versus 4s (Casio) limiting long-exposure astrophotography usefulness slightly.

Night Photo Winner: Casio EX-ZR1000 for high ISO capability.

Video Capabilities

Video features highlight clear modernization differences.

Canon SD970 IS shoots 720p HD at 30 fps using Motion JPEG format, an older codec producing larger files and less efficient compression.

Casio EX-ZR1000 supports full HD 1080p at 30 fps with more efficient MPEG-4 and H.264 codecs, along with slow-motion options up to 1000 fps (at extremely low resolution), great fun for creative video.

Neither includes external mic input, and neither has stabilization tailored specifically for video, but Casio’s sensor-shift IS aids smooth footage.

Video Winner: Casio EX-ZR1000 for resolution and codec sophistication.

Travel Photography

Travel demands versatility, battery life, and compactness.

Canon wins on sheer size and portability, easily slipping into tight pockets, aided by its simple controls for snap shooting.

Casio offers more photographic latitude - especially zoom and manual control - at the cost of extra size and weight, still comfortable for carry but more noticeable.

Battery life is only specified on Casio (~470 shots per charge), while Canon’s battery info is unknown here, but generally older compacts yield fewer shots.

Travel Camera Winner: Depends on priority - Canon for ultra-portability, Casio for flexible shooting.

Professional Workflows

Neither camera offers RAW capture or professional-grade features like tethering or fast memory card writing.

Files are JPEG-only, limiting post-production latitude. Both connect via USB 2.0 and have HDMI output, but lack modern conveniences like Wi-Fi or Bluetooth.

Build quality is consumer grade, with no weather sealing.

Professional Use Verdict: Neither fits demanding pro needs.

Technical Rundown with Scores and Visual Results

Let me show you overall and genre-specific performance summaries I derived from testing both cameras extensively.

The Casio EX-ZR1000 leads broadly in image quality, zoom range, autofocus, and video, while the Canon SD970 IS scores higher in portability and macro closeness.

My sample galleries below illustrate the practical differences from daylight portraits to zoomed wildlife shots - note Casio’s increased detail and cleaner low light outcomes.

Canon SD970 IS screen back Casio EX ZR1000 front Casio EX ZR1000 screen back

Build Quality, Battery, and Connectivity: Does Age Tell?

The Canon’s build is compact plastic, lacking weather resistance, typical of its 2009 release period. Casio’s 2012 EX-ZR1000 edges forward slightly in sturdiness and battery stamina with NP-130 battery rated for 470 shots, contrasting with the older Canon NB-5L battery with likely fewer shots per charge. Neither supports wireless transfer - a gap considering today’s expectations - but both have HDMI out for quick image review on larger screens.

Who Should Buy Which?

If you prize maximum zoom reach, faster autofocus, a better screen, and video quality, and don't mind the extra bulk or older price level (noted around $570 at launch), the Casio EX-ZR1000 is the more versatile choice. It suits travel shooters needing a powerful zoom, enthusiasts interested in exposure control, and those wanting richer video modes.

If you crave absolute pocketability, simpler operation, and plan mostly to shoot macro or basic portraits with a warm color palette, the Canon SD970 IS remains a respectable, lightweight option. It’s ideal as a strictly casual to enthusiast compact for walk-around everyday snaps or macro closeups.

Closing Thoughts: Two Compacts From Different Worlds

In sum, the SD970 IS and EX-ZR1000 each represent stage-specific achievements in the compact camera category, illustrating how fast technology advances in just a few years. The Casio beats the Canon in almost every technical and functional aspect, reflecting its newer sensor, better lens, and more expansive features. Still, for sheer pocket comfort and approachability, Canon’s model remains unchallenged.

Dear Canon: a modern revisit incorporating larger sensor tech into this ultraportable line with your signature color science would be splendid. Dear Casio fans: your camera packs numerous features missing in many compacts even a decade on.

For serious enthusiasts choosing between these two, my call is clear - Casio’s EX-ZR1000 is well worth the buy for anyone wanting a capable all-rounder compact camera with unusually strong zoom and control. Canon’s SD970 IS, while an honorable performer of its time, now serves better as a compact backup or for highly specific use cases like close macro photography.

Happy shooting - and remember, the best camera is the one you love using day after day!
