Canon SX120 IS vs Canon SX510 HS
87 Imaging
33 Features
28 Overall
31


80 Imaging
36 Features
41 Overall
38
Canon SX120 IS vs Canon SX510 HS Key Specs
(Full Review)
- 10MP - 1/2.5" Sensor
- 3" Fixed Screen
- ISO 80 - 1600
- Optical Image Stabilization
- 640 x 480 video
- 36-360mm (F2.8-4.3) lens
- 285g - 111 x 71 x 45mm
- Released August 2009
(Full Review)
- 12MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-720mm (F3.4-5.8) lens
- 349g - 104 x 70 x 80mm
- Announced August 2013
- Earlier Model is Canon SX500 IS
- Updated by Canon SX520 HS

Canon SX120 IS vs Canon SX510 HS Overview
Below is a detailed assessment of the Canon SX120 IS versus Canon SX510 HS, one being a Small Sensor Compact and the latter is a Small Sensor Superzoom and they are both designed by Canon. The resolution of the SX120 IS (10MP) and the SX510 HS (12MP) is relatively comparable but the SX120 IS (1/2.5") and SX510 HS (1/2.3") offer different sensor sizes.

The SX120 IS was released 5 years earlier than the SX510 HS and that is a fairly serious gap as far as camera tech is concerned. Both of these cameras feature the same body design (Compact).
Before diving right into a in depth comparison, here is a concise summary of how the SX120 IS scores against the SX510 HS in terms of portability, imaging, features and an overall grade.

Canon SX120 IS vs Canon SX510 HS Gallery
This is a preview of the gallery photos for Canon PowerShot SX120 IS and Canon PowerShot SX510 HS. The complete galleries are viewable at Canon SX120 IS Gallery and Canon SX510 HS Gallery.
Reasons to pick Canon SX120 IS over the Canon SX510 HS
SX120 IS | SX510 HS |
---|
Reasons to pick Canon SX510 HS over the Canon SX120 IS
SX510 HS | SX120 IS | |||
---|---|---|---|---|
Announced | August 2013 | ![]() | August 2009 | More recent by 48 months |
Screen resolution | 461k | ![]() | 230k | Sharper screen (+231k dot) |
Common features in the Canon SX120 IS and Canon SX510 HS
SX120 IS | SX510 HS | |||
---|---|---|---|---|
Manual focus | ![]() | Dial exact focusing | ||
Screen type | Fixed | ![]() | Fixed | Fixed screen |
Screen size | 3" | ![]() | 3" | Same screen dimensions |
Selfie screen | ![]() | No selfie screen | ||
Touch screen | ![]() | Neither comes with Touch screen |
Canon SX120 IS vs Canon SX510 HS Physical Comparison
For those who are looking to lug around your camera often, you will need to consider its weight and dimensions. The Canon SX120 IS comes with physical measurements of 111mm x 71mm x 45mm (4.4" x 2.8" x 1.8") along with a weight of 285 grams (0.63 lbs) and the Canon SX510 HS has dimensions of 104mm x 70mm x 80mm (4.1" x 2.8" x 3.1") with a weight of 349 grams (0.77 lbs).
Take a look at the Canon SX120 IS versus Canon SX510 HS in the latest Camera and Lens Size Comparison Tool.

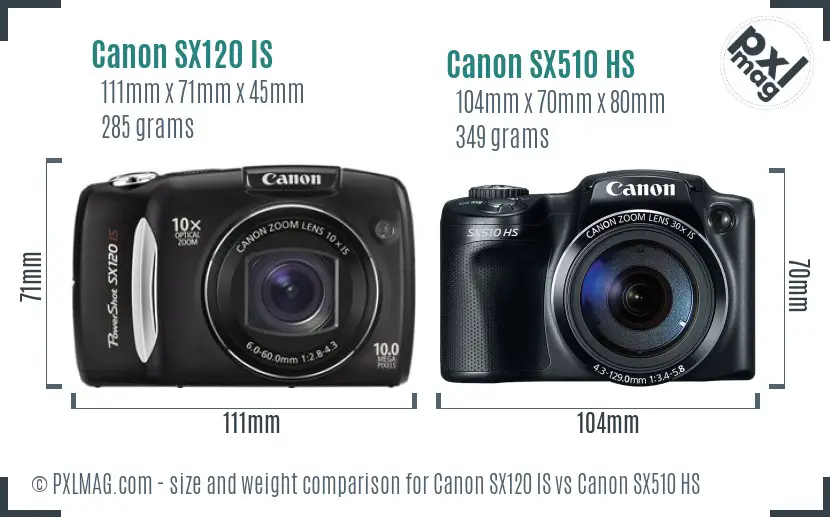

Bear in mind, the weight of an Interchangeable Lens Camera will vary dependant on the lens you have chosen during that time. The following is a front view scale comparison of the SX120 IS vs the SX510 HS.

Looking at size and weight, the portability rating of the SX120 IS and SX510 HS is 87 and 80 respectively.

Canon SX120 IS vs Canon SX510 HS Sensor Comparison

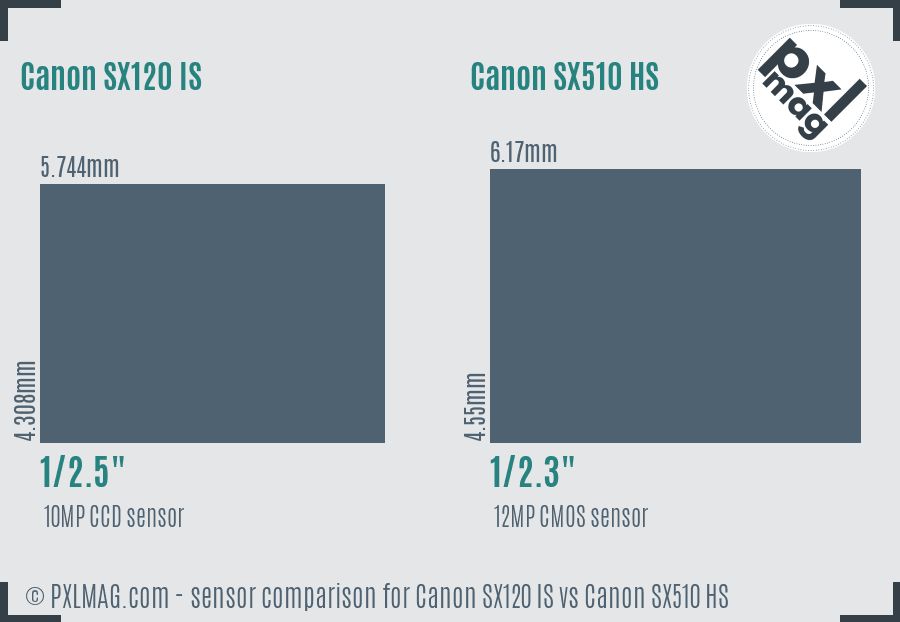

Generally, it is very tough to imagine the gap in sensor measurements simply by checking out specifications. The graphic here should offer you a clearer sense of the sensor sizing in the SX120 IS and SX510 HS.
To sum up, both of these cameras come with different resolutions and different sensor measurements. The SX120 IS featuring a smaller sensor is going to make achieving shallower depth of field tougher and the Canon SX510 HS will show greater detail as a result of its extra 2 Megapixels. Higher resolution can also let you crop shots a good deal more aggressively. The older SX120 IS will be disadvantaged in sensor innovation.

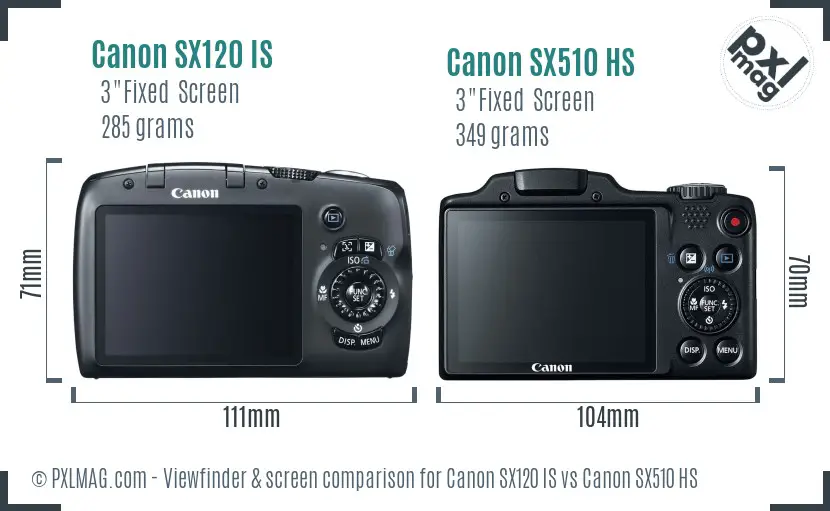

Canon SX120 IS vs Canon SX510 HS Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Canon SX120 IS vs Canon SX510 HS Specifications
Canon PowerShot SX120 IS | Canon PowerShot SX510 HS | |
---|---|---|
General Information | ||
Brand Name | Canon | Canon |
Model | Canon PowerShot SX120 IS | Canon PowerShot SX510 HS |
Category | Small Sensor Compact | Small Sensor Superzoom |
Released | 2009-08-19 | 2013-08-22 |
Physical type | Compact | Compact |
Sensor Information | ||
Chip | Digic 4 | Digic 4 |
Sensor type | CCD | CMOS |
Sensor size | 1/2.5" | 1/2.3" |
Sensor dimensions | 5.744 x 4.308mm | 6.17 x 4.55mm |
Sensor area | 24.7mm² | 28.1mm² |
Sensor resolution | 10 megapixel | 12 megapixel |
Anti aliasing filter | ||
Aspect ratio | 4:3 and 3:2 | 1:1, 4:3, 3:2 and 16:9 |
Highest Possible resolution | 3648 x 2736 | 4608 x 3456 |
Maximum native ISO | 1600 | 3200 |
Lowest native ISO | 80 | 80 |
RAW data | ||
Autofocusing | ||
Manual focus | ||
Touch focus | ||
Autofocus continuous | ||
Single autofocus | ||
Tracking autofocus | ||
Autofocus selectice | ||
Autofocus center weighted | ||
Multi area autofocus | ||
Live view autofocus | ||
Face detection autofocus | ||
Contract detection autofocus | ||
Phase detection autofocus | ||
Number of focus points | - | 1 |
Lens | ||
Lens mount | fixed lens | fixed lens |
Lens focal range | 36-360mm (10.0x) | 24-720mm (30.0x) |
Maximal aperture | f/2.8-4.3 | f/3.4-5.8 |
Macro focus range | 1cm | 0cm |
Crop factor | 6.3 | 5.8 |
Screen | ||
Screen type | Fixed Type | Fixed Type |
Screen size | 3 inch | 3 inch |
Resolution of screen | 230k dots | 461k dots |
Selfie friendly | ||
Liveview | ||
Touch function | ||
Screen technology | - | TFT Color LCD |
Viewfinder Information | ||
Viewfinder | None | None |
Features | ||
Min shutter speed | 15 secs | 15 secs |
Max shutter speed | 1/2500 secs | 1/1600 secs |
Continuous shutter rate | 1.0 frames per sec | 4.0 frames per sec |
Shutter priority | ||
Aperture priority | ||
Manual mode | ||
Exposure compensation | Yes | Yes |
Change white balance | ||
Image stabilization | ||
Integrated flash | ||
Flash range | 3.00 m | 5.00 m |
Flash settings | Auto, On, Off, Red-Eye, Slow Sync, Fill-in | Auto, on, slow synchro, off |
External flash | ||
Auto exposure bracketing | ||
WB bracketing | ||
Max flash synchronize | 1/500 secs | - |
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Supported video resolutions | 640 x 480 (30 fps), 320 x 240 (30 fps), 160 x 120 (15 fps) | 1920 x 1080 (24 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) |
Maximum video resolution | 640x480 | 1920x1080 |
Video format | Motion JPEG | MPEG-4, H.264 |
Mic support | ||
Headphone support | ||
Connectivity | ||
Wireless | None | Built-In |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environment sealing | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 285g (0.63 lb) | 349g (0.77 lb) |
Physical dimensions | 111 x 71 x 45mm (4.4" x 2.8" x 1.8") | 104 x 70 x 80mm (4.1" x 2.8" x 3.1") |
DXO scores | ||
DXO Overall score | not tested | not tested |
DXO Color Depth score | not tested | not tested |
DXO Dynamic range score | not tested | not tested |
DXO Low light score | not tested | not tested |
Other | ||
Battery life | - | 250 pictures |
Battery style | - | Battery Pack |
Battery model | 2 x AA | NB-6LH |
Self timer | Yes (2 or 10 sec, Custom) | Yes (2 or 10 sec, Custom) |
Time lapse feature | ||
Storage type | SD, SDHC, MMC, MMCplus, HC MMCplus | SD/SDHC/SDXC |
Card slots | 1 | 1 |
Price at release | $249 | $249 |
