Canon SX170 IS vs Olympus TG-630 iHS
Portability
88 Imaging
40 Features
41 Overall
40
88 Imaging
40 Features
41 Overall
40
Portability
94 Imaging
36 Features
34 Overall
35
94 Imaging
36 Features
34 Overall
35
Canon SX170 IS vs Olympus TG-630 iHS Key Specs
Canon SX170 IS
(Full Review)
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 100 - 1600
- Optical Image Stabilization
- 1280 x 720 video
- 28-448mm (F3.5-5.9) lens
- 251g - 108 x 71 x 44mm
- Released August 2013
- Replaced the Canon SX160 IS
Olympus TG-630 iHS
(Full Review)
(Full Review)
- 12MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 100 - 6400
- Sensor-shift Image Stabilization
- 1920 x 1080 video
- 28-140mm (F3.9-5.9) lens
- 167g - 98 x 66 x 22mm
- Revealed January 2013
Pentax 17 Pre-Orders Outperform Expectations by a Landslide Canon SX170 IS vs Olympus TG-630 iHS Overview
On this page, we are evaluating the Canon SX170 IS vs Olympus TG-630 iHS, one being a Small Sensor Superzoom and the other is a Waterproof by competitors Canon and Olympus. There exists a sizeable gap among the resolutions of the SX170 IS (16MP) and TG-630 iHS (12MP) but both cameras offer the same sensor size (1/2.3").
Photobucket discusses licensing 13 billion images with AI firmsThe SX170 IS was revealed 8 months later than the TG-630 iHS and they are both of a similar generation. Both of these cameras have the same body design (Compact).
Before delving right into a comprehensive comparison, here is a simple overview of how the SX170 IS scores vs the TG-630 iHS in regards to portability, imaging, features and an overall rating.
Photography Glossary Canon SX170 IS vs Olympus TG-630 iHS Gallery
Following is a sample of the gallery pics for Canon PowerShot SX170 IS and Olympus TG-630 iHS. The full galleries are viewable at Canon SX170 IS Gallery and Olympus TG-630 iHS Gallery.
Reasons to pick Canon SX170 IS over the Olympus TG-630 iHS
| SX170 IS | TG-630 iHS | |||
|---|---|---|---|---|
| Revealed | August 2013 |  | January 2013 | Fresher by 8 months |
| Manual focus |  | Very precise focus |
Reasons to pick Olympus TG-630 iHS over the Canon SX170 IS
| TG-630 iHS | SX170 IS | |||
|---|---|---|---|---|
| Display resolution | 460k |  | 230k | Crisper display (+230k dot) |
Common features in the Canon SX170 IS and Olympus TG-630 iHS
| SX170 IS | TG-630 iHS | |||
|---|---|---|---|---|
| Display type | Fixed |  | Fixed | Fixed display |
| Display dimensions | 3" |  | 3" | Equal display size |
| Selfie screen |  | Missing selfie screen | ||
| Touch friendly display |  | Missing Touch friendly display |

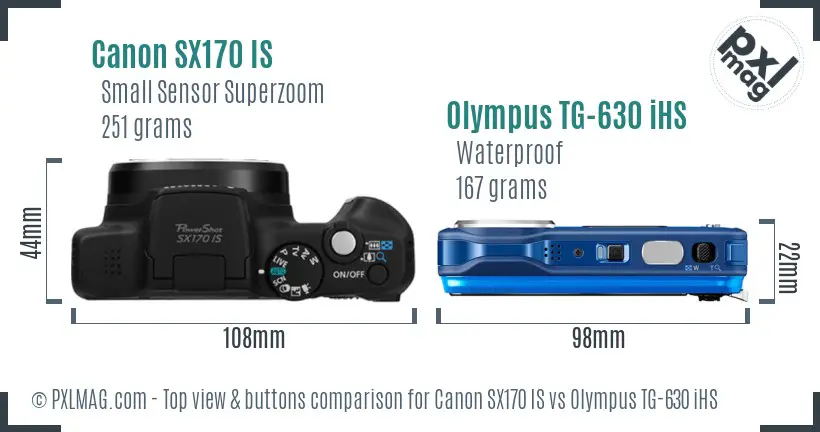

Canon SX170 IS vs Olympus TG-630 iHS Physical Comparison

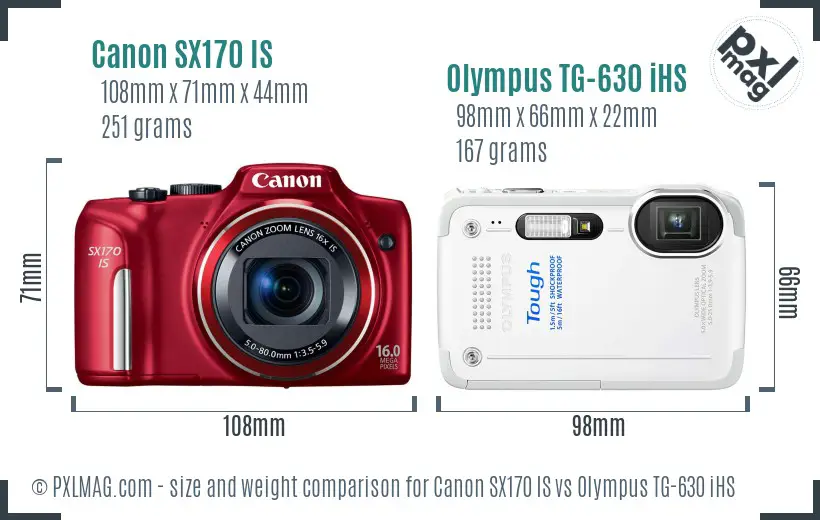

When you are planning to carry your camera regularly, you need to factor its weight and measurements. The Canon SX170 IS provides exterior dimensions of 108mm x 71mm x 44mm (4.3" x 2.8" x 1.7") with a weight of 251 grams (0.55 lbs) whilst the Olympus TG-630 iHS has proportions of 98mm x 66mm x 22mm (3.9" x 2.6" x 0.9") with a weight of 167 grams (0.37 lbs).
Look at the Canon SX170 IS vs Olympus TG-630 iHS in the all new Camera and Lens Size Comparison Tool.
Don't forget, the weight of an Interchangeable Lens Camera will change based on the lens you are using at that time. Underneath is a front view over all size comparison of the SX170 IS and the TG-630 iHS.
Using dimensions and weight, the portability grade of the SX170 IS and TG-630 iHS is 88 and 94 respectively.
Canon SX170 IS vs Olympus TG-630 iHS Sensor Comparison

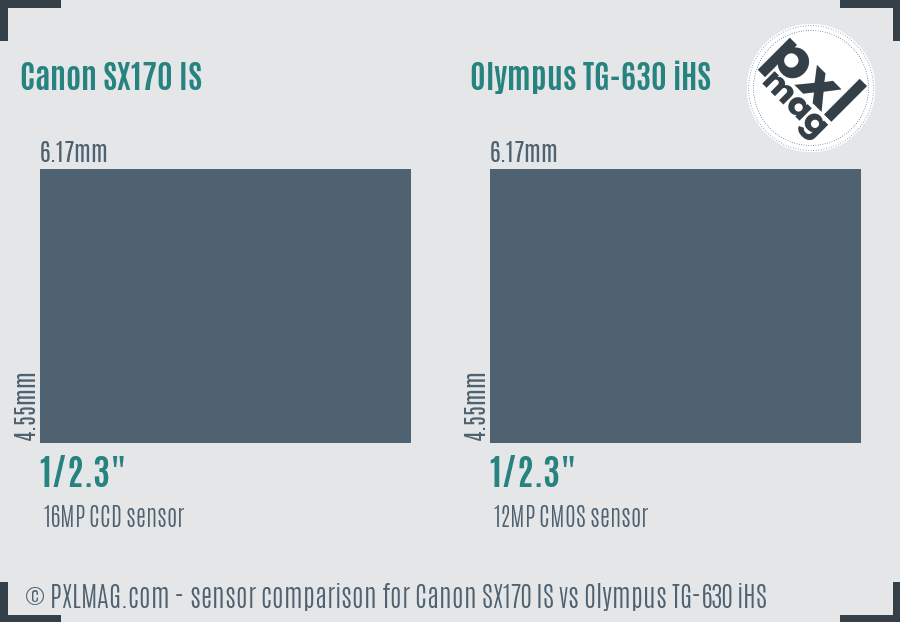

Sometimes, it is very tough to imagine the difference in sensor sizing only by seeing a spec sheet. The graphic underneath should offer you a better sense of the sensor sizes in the SX170 IS and TG-630 iHS.
Clearly, the 2 cameras have the same sensor dimensions but different resolution. You should expect to see the Canon SX170 IS to show more detail because of its extra 4MP. Greater resolution can also make it easier to crop photos a bit more aggressively. The younger SX170 IS should have an edge in sensor innovation.

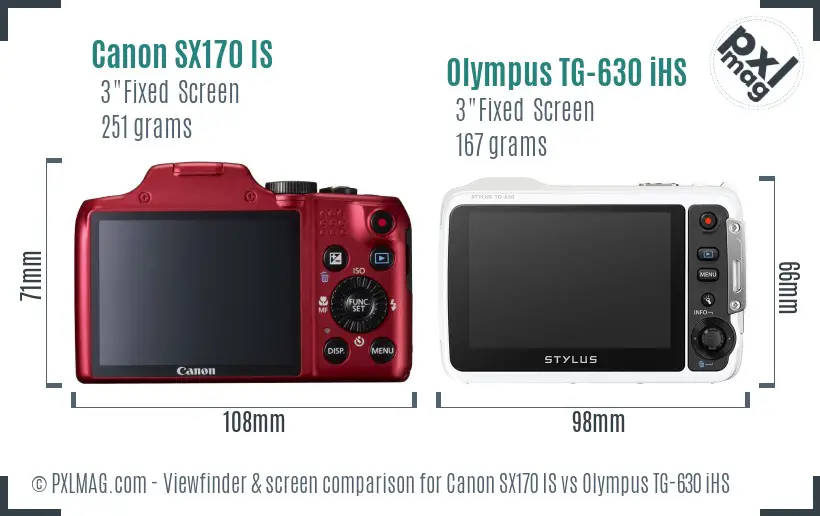

Canon SX170 IS vs Olympus TG-630 iHS Screen and ViewFinder
Snapchat Adds Watermarks to AI-Created Images Photography Type Scores
Portrait Comparison
Canon SX170 IS Portrait photography advice
Olympus TG-630 iHS Portrait photography advice
you can focus manually
MP count decent (16 megapixels)
has face detection focusing
no external flash support
sensor is very small (1/2.3")
has no RAW support
includes face detection focusing
focusing manually not possible
manual mode not available
no external flash support
megapixel count low (12 megapixels)
small sensor (1/2.3")
lack of RAW files
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modesStreet Comparison
Canon SX170 IS Street photography information
Olympus TG-630 iHS Street photography information
has image stabilization (Optical)
lighter than competitors in class (251g)
fixed screen
sensor is very small (1/2.3")
has no RAW support
image stabilization (Sensor-shift)
weather proofing
no moving screen
small sensor (1/2.3")
lack of RAW files
Meta to Introduce 'AI-Generated' Labels for Media starting next monthSports Comparison
Canon SX170 IS Sports photography information
Olympus TG-630 iHS Sports photography information
incredible zoom range (28-448mm 16.0 x zoom)
has image stabilization (Optical)
MP count decent (16MP)
has tracking autofocus
continuous shooting slow (1.0 fps)
sensor is very small (1/2.3")
has no phase detect AF
image stabilization (Sensor-shift)
includes tracking autofocus
weather proofing
slow continuous shooting (5.0 frames/s)
no shutter priority mode
megapixel count low (12MP)
small sensor (1/2.3")
not so great battery pack (220 CIPA)
lack of phase detect AF
Samsung Releases Faster Versions of EVO MicroSD CardsTravel Comparison
Canon SX170 IS Travel photography information
Olympus TG-630 iHS Travel photography information
lighter than competitors in class (251 grams)
MP count decent (16 megapixels)
built-in flash
really wide (28mm)
long reach (448mm)
does not have Time Lapse recording
does not posses selfie friendly screen
somewhat slow maximum aperture (f3.5)
weather proofing
built-in flash
pretty wide (28mm)
does not have Timelapse function
not so great battery pack (220 CIPA)
megapixel count low (12MP)
screen isn't selfie friendly
somewhat slow maximum aperture (f3.9)
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneLandscape Comparison
Landscape photography with Canon SX170 IS
Landscape photography with Olympus TG-630 iHS
you can focus manually
really wide (28mm)
pretty good screen size (3 inches)
has image stabilization (Optical)
MP count decent (16 megapixels)
can't switch lenses (fixed lens mount)
somewhat slow maximum aperture (f3.5)
sensor is very small (1/2.3")
has no RAW support
does not have Time Lapse recording
pretty wide (28mm)
screen size is decent (3 inch)
image stabilization (Sensor-shift)
weather proofing
focusing manually not possible
cannot change lenses (fixed lens mount)
somewhat slow maximum aperture (f3.9)
manual mode not available
megapixel count low (12MP)
small sensor (1/2.3")
lack of RAW files
not so great battery pack (220 shots)
does not have Timelapse function
President Biden pushes bill mandating TikTok sale or banVlogging Comparison
Canon SX170 IS Vlogging information
Olympus TG-630 iHS Vlogging information
really wide (28mm)
has image stabilization (Optical)
has face detection focusing
lighter than competitors in class (251 grams)
somewhat slow maximum aperture (f3.5)
does not posses selfie friendly screen
low quality video (1280 x 720 pixels)
does not have external mic socket
pretty wide (28mm)
image stabilization (Sensor-shift)
includes face detection focusing
video resolution high (1920 x 1080 resolution)
somewhat slow maximum aperture (f3.9)
screen isn't selfie friendly
does not have external microphone support
Sora from OpenAI releases its first ever music video
Canon SX170 IS vs Olympus TG-630 iHS Specifications
| Canon PowerShot SX170 IS | Olympus TG-630 iHS | |
|---|---|---|
| General Information | ||
| Company | Canon | Olympus |
| Model | Canon PowerShot SX170 IS | Olympus TG-630 iHS |
| Type | Small Sensor Superzoom | Waterproof |
| Released | 2013-08-22 | 2013-01-08 |
| Physical type | Compact | Compact |
| Sensor Information | ||
| Powered by | Digic 4 | - |
| Sensor type | CCD | CMOS |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor measurements | 6.17 x 4.55mm | 6.17 x 4.55mm |
| Sensor surface area | 28.1mm² | 28.1mm² |
| Sensor resolution | 16MP | 12MP |
| Anti aliasing filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3 and 16:9 |
| Max resolution | 4608 x 3456 | 3968 x 2976 |
| Max native ISO | 1600 | 6400 |
| Min native ISO | 100 | 100 |
| RAW images | ||
| Autofocusing | ||
| Focus manually | ||
| Touch focus | ||
| AF continuous | ||
| AF single | ||
| Tracking AF | ||
| AF selectice | ||
| Center weighted AF | ||
| Multi area AF | ||
| Live view AF | ||
| Face detection focusing | ||
| Contract detection focusing | ||
| Phase detection focusing | ||
| Cross focus points | - | - |
| Lens | ||
| Lens mount | fixed lens | fixed lens |
| Lens focal range | 28-448mm (16.0x) | 28-140mm (5.0x) |
| Max aperture | f/3.5-5.9 | f/3.9-5.9 |
| Macro focus range | 1cm | 1cm |
| Crop factor | 5.8 | 5.8 |
| Screen | ||
| Screen type | Fixed Type | Fixed Type |
| Screen size | 3 inch | 3 inch |
| Screen resolution | 230k dots | 460k dots |
| Selfie friendly | ||
| Liveview | ||
| Touch screen | ||
| Screen tech | TFT Color LCD | - |
| Viewfinder Information | ||
| Viewfinder | None | None |
| Features | ||
| Min shutter speed | 15 seconds | 4 seconds |
| Max shutter speed | 1/3200 seconds | 1/2000 seconds |
| Continuous shutter rate | 1.0fps | 5.0fps |
| Shutter priority | ||
| Aperture priority | ||
| Expose Manually | ||
| Exposure compensation | Yes | - |
| Custom WB | ||
| Image stabilization | ||
| Built-in flash | ||
| Flash range | 3.00 m | - |
| Flash options | Auto, Flash On, Slow Synchro, Flash Off | Auto, On, Off, Red-Eye, Fill-in |
| External flash | ||
| AEB | ||
| WB bracketing | ||
| Exposure | ||
| Multisegment metering | ||
| Average metering | ||
| Spot metering | ||
| Partial metering | ||
| AF area metering | ||
| Center weighted metering | ||
| Video features | ||
| Video resolutions | 1280 x 720 (30, 25 fps), 640 x 480 (30 fps) | 1920 x 1080 (60 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps), 320 x 180 (30fps) |
| Max video resolution | 1280x720 | 1920x1080 |
| Video file format | MPEG-4, H.264 | MPEG-4, H.264 |
| Microphone support | ||
| Headphone support | ||
| Connectivity | ||
| Wireless | Eye-Fi Connected | None |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environment sealing | ||
| Water proof | ||
| Dust proof | ||
| Shock proof | ||
| Crush proof | ||
| Freeze proof | ||
| Weight | 251 gr (0.55 lb) | 167 gr (0.37 lb) |
| Physical dimensions | 108 x 71 x 44mm (4.3" x 2.8" x 1.7") | 98 x 66 x 22mm (3.9" x 2.6" x 0.9") |
| DXO scores | ||
| DXO Overall score | not tested | not tested |
| DXO Color Depth score | not tested | not tested |
| DXO Dynamic range score | not tested | not tested |
| DXO Low light score | not tested | not tested |
| Other | ||
| Battery life | 300 shots | 220 shots |
| Style of battery | Battery Pack | Battery Pack |
| Battery model | NB-6LH | LI-50B |
| Self timer | Yes (2 or 10 sec, Custom) | Yes (2 or 12 sec, pet auto shutter) |
| Time lapse feature | ||
| Type of storage | SD/SDHC/SDXC | SD/SDHC/SDXC |
| Card slots | 1 | 1 |
| Pricing at release | $0 | $200 |
