Canon SX510 HS vs Pentax S1

Portability
80 Imaging
36 Features
41 Overall
38
Canon PowerShot SX510 HS front

Pentax Optio S1 front
Portability
93 Imaging
37 Features
31 Overall
34

Canon SX510 HS vs Pentax S1 Key Specs

Canon SX510 HS
(Full Review)
  • 12MP - 1/2.3" Sensor
  • 3" Fixed Display
  • ISO 80 - 3200
  • Optical Image Stabilization
  • 1920 x 1080 video
  • 24-720mm (F3.4-5.8) lens
  • 349g - 104 x 70 x 80mm
  • Released August 2013
  • Earlier Model is Canon SX500 IS
  • New Model is Canon SX520 HS
Pentax S1
(Full Review)
  • 14MP - 1/2.3" Sensor
  • 2.7" Fixed Display
  • ISO 80 - 6400
  • Sensor-shift Image Stabilization
  • 1280 x 720 video
  • 28-140mm (F3.5-5.5) lens
  • 157g - 114 x 58 x 28mm
  • Released March 2011
Pentax 17 Pre-Orders Outperform Expectations by a Landslide

Canon SX510 HS vs Pentax S1 Overview

On this page, we are reviewing the Canon SX510 HS vs Pentax S1, former being a Small Sensor Superzoom while the other is a Small Sensor Compact by companies Canon and Pentax. The resolution of the SX510 HS (12MP) and the S1 (14MP) is fairly well matched and both cameras provide the same sensor sizing (1/2.3").

Photography Glossary

The SX510 HS was released 2 years later than the S1 and that is quite a large difference as far as tech is concerned. Both of these cameras have the same body design (Compact).

Before delving into a in-depth comparison, here is a brief summation of how the SX510 HS scores vs the S1 in relation to portability, imaging, features and an overall rating.

Photobucket discusses licensing 13 billion images with AI firms






Reasons to pick Canon SX510 HS over the Pentax S1






 SX510 HS S1
ReleasedAugust 2013March 2011Fresher by 31 months
Display dimensions3"2.7"Larger display (+0.3")
Display resolution461k230kCrisper display (+231k dot)










Reasons to pick Pentax S1 over the Canon SX510 HS






 S1 SX510 HS










Common features in the Canon SX510 HS and Pentax S1






 SX510 HS S1
Manual focus  Very precise focusing
Display typeFixed Fixed Fixed display
Selfie screen  Neither includes selfie screen
Touch friendly display  Neither includes Touch friendly display
















Canon SX510 HS vs Pentax S1 Physical Comparison






In case you're looking to carry your camera, you're going to have to take into account its weight and size. The Canon SX510 HS features outer measurements of 104mm x 70mm x 80mm (4.1" x 2.8" x 3.1") having a weight of 349 grams (0.77 lbs) while the Pentax S1 has specifications of 114mm x 58mm x 28mm (4.5" x 2.3" x 1.1") having a weight of 157 grams (0.35 lbs).
Contrast the Canon SX510 HS vs Pentax S1 in our brand new Camera plus Lens Size Comparison Tool. Camera Size Comparison with Lenses
Always remember, the weight of an ILC will vary dependant on the lens you select at that time. The following is a front view measurement comparison of the SX510 HS vs the S1.

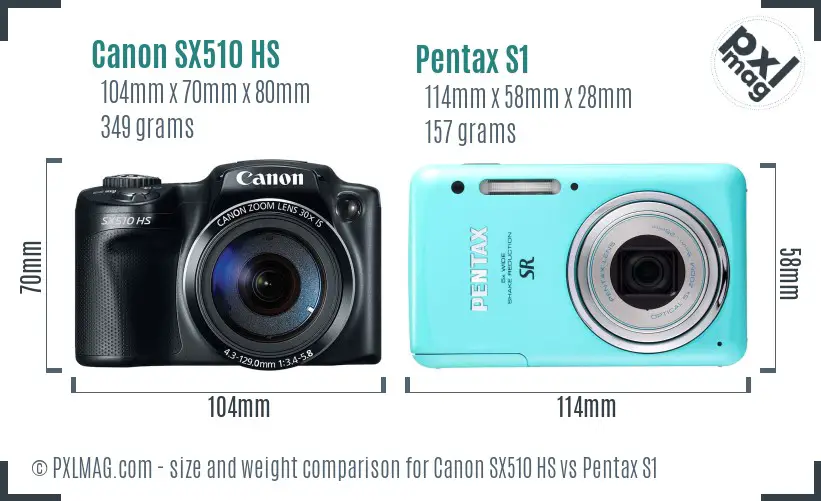

Canon SX510 HS vs Pentax S1 size comparison
Taking into account size and weight, the portability grade of the SX510 HS and S1 is 80 and 93 respectively.

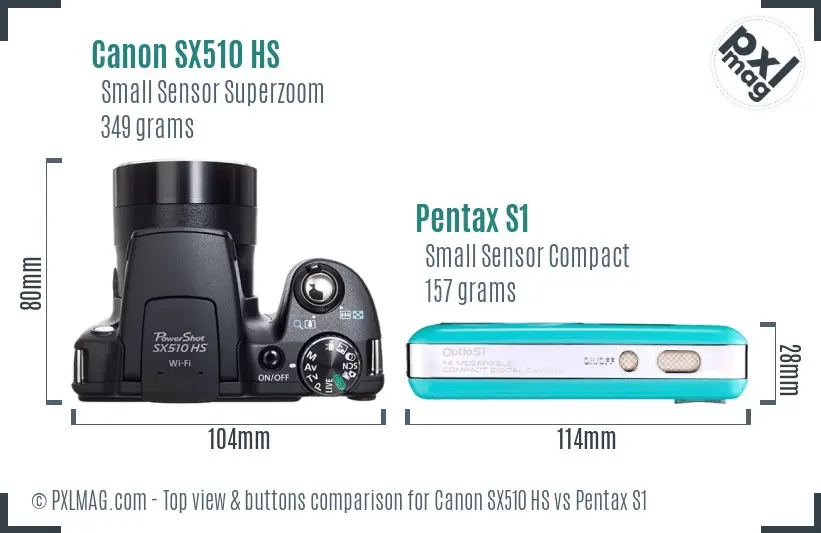

Canon SX510 HS vs Pentax S1 top view buttons comparison









Canon SX510 HS vs Pentax S1 Sensor Comparison






Generally, it is hard to see the gap between sensor sizing only by checking a spec sheet. The visual below should offer you a better sense of the sensor sizing in the SX510 HS and S1.
As you can see, both the cameras have the same sensor dimensions but not the same MP. You can anticipate the Pentax S1 to give you greater detail as a result of its extra 2MP. Greater resolution will also help you crop photos a bit more aggressively. The more recent SX510 HS will have an edge when it comes to sensor tech.

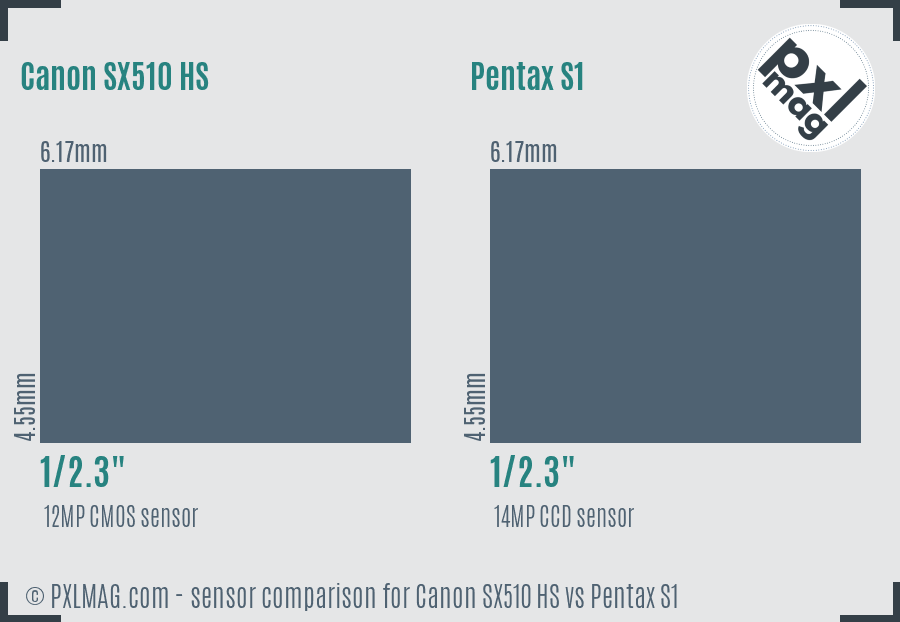

            Canon SX510 HS vs Pentax S1 sensor size comparison










Canon SX510 HS vs Pentax S1 Screen and ViewFinder

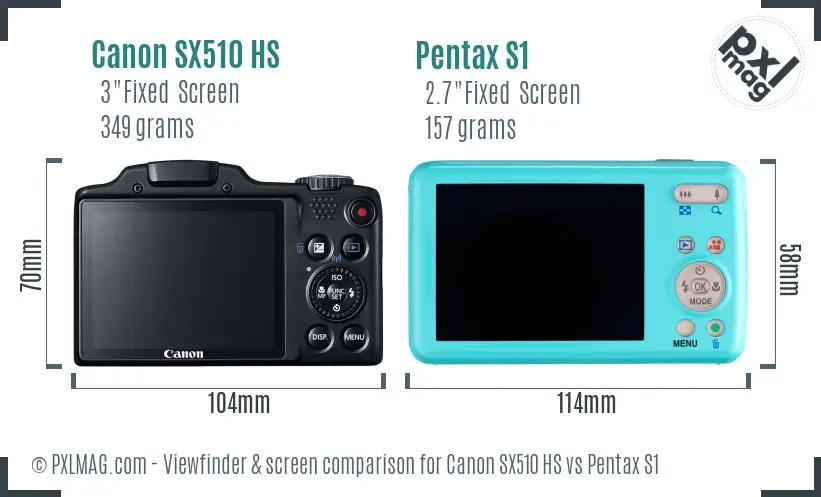

          Canon SX510 HS vs Pentax S1 Screen and Viewfinder comparison


                Samsung Releases Faster Versions of EVO MicroSD Cards









Photography Type Scores






Portrait Comparison
 Canon SX510 HS as a Portrait photography camera
 Pentax S1 as a Portrait photography camera
34
 has manual focus
 provides face detect focusing
 external flash not possible
 megapixel count low (12 megapixels)
 very small sensor (1/2.3")
 has no RAW format
35
 you can focus manually
 MP count good (14MP)
 manual exposure not possible
 cannot use external flash
 tiny sensor (1/2.3")
 no RAW format
Sora from OpenAI releases its first ever music video
Street Comparison
Canon SX510 HS Street photography factors
Pentax S1 Street photography factors
50
 has image stabilization (Optical)
 no articulating screen
 very small sensor (1/2.3")
 has no RAW format
56
 built in image stabilization (Sensor-shift)
 screen is fixed
 tiny sensor (1/2.3")
 no RAW format
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes
Sports Comparison
Canon SX510 HS Sports photography factors
Pentax S1 Sports photography factors
36
 great zoom range (24-720mm  30.0 x zoom)
 has image stabilization (Optical)
 provides tracking focus
 max frames per second low (4.0 fps)
 megapixel count low (12 megapixels)
 very small sensor (1/2.3")
 terrible battery (250 CIPA)
 has no phase detect AF
39
 built in image stabilization (Sensor-shift)
 MP count good (14MP)
 includes tracking focus
 very slow continuous shooting (1.0 frames per second)
 lack of shutter priority mode
 tiny sensor (1/2.3")
 no phase detect autofocus
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone
Travel Comparison
Canon SX510 HS Travel photography factors
Pentax S1 Travel photography factors
54
 flash built-in
 relatively wide (24mm)
 great zoom (720mm)
 doesn't have Timelapse mode
 terrible battery (250 CIPA)
 megapixel count low (12MP)
 doesn't have a selfie friendly display
 somewhat slow max aperture (f3.4)
64
 MP count good (14MP)
 has built in flash
 fairly wide (28mm)
 missing Timelapse function
 does not have a selfie friendly display
 somewhat slow max aperture (f3.5)
Snapchat Adds Watermarks to AI-Created Images
Landscape Comparison
Canon SX510 HS Landscape photography advice
Pentax S1 Landscape photography advice
40
 has manual focus
 relatively wide (24mm)
 screen is a good size (3 inch)
 has image stabilization (Optical)
 cannot change lens (fixed lens mount)
 somewhat slow max aperture (f3.4)
 megapixel count low (12MP)
 very small sensor (1/2.3")
 has no RAW format
 terrible battery (250 CIPA)
 doesn't have Timelapse mode
42
 you can focus manually
 fairly wide (28mm)
 built in image stabilization (Sensor-shift)
 MP count good (14MP)
 lens is fixed (fixed lens mount)
 somewhat slow max aperture (f3.5)
 screen is somewhat small (2.7")
 manual exposure not possible
 tiny sensor (1/2.3")
 no RAW format
 missing Timelapse function
Meta to Introduce 'AI-Generated' Labels for Media starting next month
Vlogging Comparison
Canon SX510 HS Vlogging features
Pentax S1 Vlogging features
31
 relatively wide (24mm)
 has image stabilization (Optical)
 provides face detect focusing
 high quality video (1920 x 1080 resolution)
 somewhat slow max aperture (f3.4)
 doesn't have a selfie friendly display
 doesn't have microphone socket
28
 fairly wide (28mm)
 built in image stabilization (Sensor-shift)
 somewhat slow max aperture (f3.5)
 does not have a selfie friendly display
 video res low (1280 x 720 resolution)
 missing microphone socket
President Biden pushes bill mandating TikTok sale or ban







Canon SX510 HS vs Pentax S1 Specifications










            Detailed spec comparison table for Canon SX510 HS and Pentax S1
 Canon PowerShot SX510 HSPentax Optio S1
General Information
Company Canon Pentax
Model type Canon PowerShot SX510 HS Pentax Optio S1
Category Small Sensor Superzoom Small Sensor Compact
Released 2013-08-22 2011-03-02
Physical type Compact Compact
Sensor Information
Processor Chip Digic 4 -
Sensor type CMOS CCD
Sensor size 1/2.3" 1/2.3"
Sensor measurements 6.17 x 4.55mm 6.17 x 4.55mm
Sensor area 28.1mm² 28.1mm²
Sensor resolution 12MP 14MP
Anti alias filter
Aspect ratio 1:1, 4:3, 3:2 and  16:9 1:1, 4:3 and  16:9
Max resolution 4608 x 3456 4288 x 3216
Max native ISO 3200 6400
Lowest native ISO 80 80
RAW data
Autofocusing
Manual focusing
Touch to focus
Autofocus continuous
Single autofocus
Autofocus tracking
Autofocus selectice
Autofocus center weighted
Multi area autofocus
Live view autofocus
Face detect focus
Contract detect focus
Phase detect focus
Total focus points 1 9
Lens
Lens mount type fixed lens fixed lens
Lens zoom range 24-720mm (30.0x) 28-140mm (5.0x)
Largest aperture f/3.4-5.8 f/3.5-5.5
Macro focusing distance 0cm 1cm
Focal length multiplier 5.8 5.8
Screen
Type of display Fixed Type Fixed Type
Display sizing 3 inch 2.7 inch
Resolution of display 461 thousand dots 230 thousand dots
Selfie friendly
Liveview
Touch display
Display tech TFT Color LCD TFT color LCD with Anti-reflective coating
Viewfinder Information
Viewfinder type None None
Features
Minimum shutter speed 15 seconds 4 seconds
Fastest shutter speed 1/1600 seconds 1/1500 seconds
Continuous shutter rate 4.0 frames/s 1.0 frames/s
Shutter priority
Aperture priority
Manually set exposure
Exposure compensation Yes -
Change white balance
Image stabilization
Built-in flash
Flash distance 5.00 m 3.90 m
Flash modes Auto, on, slow synchro, off Auto, On, Off, Red-eye, Soft
External flash
AE bracketing
WB bracketing
Exposure
Multisegment exposure
Average exposure
Spot exposure
Partial exposure
AF area exposure
Center weighted exposure
Video features
Supported video resolutions 1920 x 1080 (24 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) 1280 x 720 (30, 15 fps), 640 x 480 (30, 15 fps), 320 x 240 (30, 15 fps)
Max video resolution 1920x1080 1280x720
Video format MPEG-4, H.264 Motion JPEG
Microphone port
Headphone port
Connectivity
Wireless Built-In None
Bluetooth
NFC
HDMI
USB USB 2.0 (480 Mbit/sec) USB 2.0 (480 Mbit/sec)
GPS None None
Physical
Environmental sealing
Water proofing
Dust proofing
Shock proofing
Crush proofing
Freeze proofing
Weight 349 gr (0.77 lbs) 157 gr (0.35 lbs)
Physical dimensions 104 x 70 x 80mm (4.1" x 2.8" x 3.1") 114 x 58 x 28mm (4.5" x 2.3" x 1.1")
DXO scores
DXO Overall rating not tested not tested
DXO Color Depth rating not tested not tested
DXO Dynamic range rating not tested not tested
DXO Low light rating not tested not tested
Other
Battery life 250 images 260 images
Form of battery Battery Pack Battery Pack
Battery ID NB-6LH D-LI92
Self timer Yes (2 or 10 sec, Custom) Yes (2 or 10 sec)
Time lapse shooting
Storage type SD/SDHC/SDXC SD/SDHC/SDXC, Internal
Card slots 1 1
Retail pricing $249 $174
