Canon SX510 HS vs Ricoh WG-20
80 Imaging
37 Features
41 Overall
38
93 Imaging
39 Features
36 Overall
37
Canon SX510 HS vs Ricoh WG-20 Key Specs
(Full Review)
- 12MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-720mm (F3.4-5.8) lens
- 349g - 104 x 70 x 80mm
- Launched August 2013
- Older Model is Canon SX500 IS
- Refreshed by Canon SX520 HS
(Full Review)
- 14MP - 1/2.3" Sensor
- 2.7" Fixed Display
- ISO 80 - 6400
- Digital Image Stabilization
- 1280 x 720 video
- 28-140mm (F3.5-5.5) lens
- 164g - 114 x 58 x 28mm
- Released February 2014
Canon SX510 HS vs Ricoh WG-20 Overview
Here, we are looking at the Canon SX510 HS versus Ricoh WG-20, former is a Small Sensor Superzoom while the other is a Waterproof by rivals Canon and Ricoh. The image resolution of the SX510 HS (12MP) and the WG-20 (14MP) is very similar and both cameras boast the identical sensor dimensions (1/2.3").
Snapchat Adds Watermarks to AI-Created ImagesThe SX510 HS was announced 5 months prior to the WG-20 so they are of a similar age. Both cameras feature the same body design (Compact).
Before getting right into a full comparison, here is a concise summation of how the SX510 HS grades versus the WG-20 for portability, imaging, features and an overall mark.
Canon SX510 HS vs Ricoh WG-20 Gallery
Following is a sample of the gallery pics for Canon PowerShot SX510 HS & Ricoh WG-20. The whole galleries are available at Canon SX510 HS Gallery & Ricoh WG-20 Gallery.
Reasons to pick Canon SX510 HS over the Ricoh WG-20
SX510 HS | WG-20 | |||
---|---|---|---|---|
Display size | 3" | 2.7" | Larger display (+0.3") | |
Display resolution | 461k | 230k | Sharper display (+231k dot) |
Reasons to pick Ricoh WG-20 over the Canon SX510 HS
WG-20 | SX510 HS |
---|
Common features in the Canon SX510 HS and Ricoh WG-20
SX510 HS | WG-20 | |||
---|---|---|---|---|
Released | August 2013 | February 2014 | Similar age | |
Manual focus | Very exact focus | |||
Display type | Fixed | Fixed | Fixed display | |
Selfie screen | No selfie screen | |||
Touch friendly display | No Touch friendly display |
Canon SX510 HS vs Ricoh WG-20 Physical Comparison
When you are aiming to travel with your camera, you need to factor its weight and proportions. The Canon SX510 HS features physical measurements of 104mm x 70mm x 80mm (4.1" x 2.8" x 3.1") having a weight of 349 grams (0.77 lbs) whilst the Ricoh WG-20 has measurements of 114mm x 58mm x 28mm (4.5" x 2.3" x 1.1") and a weight of 164 grams (0.36 lbs).

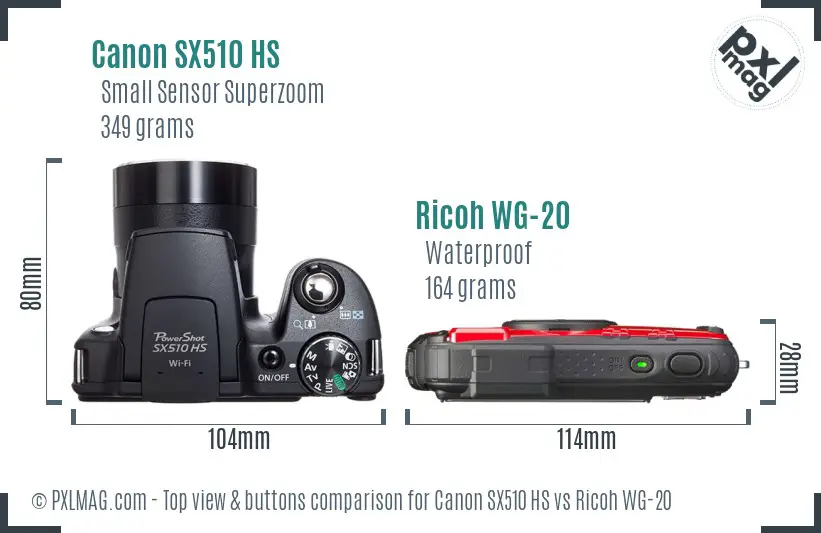

Take a look at the Canon SX510 HS versus Ricoh WG-20 in our completely new Camera & Lens Size Comparison Tool.Bear in mind, the weight of an ILC will change dependant on the lens you have attached at the time. Here is a front view measurement comparison of the SX510 HS versus the WG-20.
Considering dimensions and weight, the portability score of the SX510 HS and WG-20 is 80 and 93 respectively.
Canon SX510 HS vs Ricoh WG-20 Sensor Comparison
Sometimes, it is difficult to imagine the difference between sensor dimensions merely by reviewing a spec sheet. The image here may provide you a far better sense of the sensor sizing in the SX510 HS and WG-20.
As you can see, both of these cameras feature the identical sensor size but different megapixels. You can expect to see the Ricoh WG-20 to deliver extra detail with its extra 2MP. Greater resolution will also enable you to crop images way more aggressively.

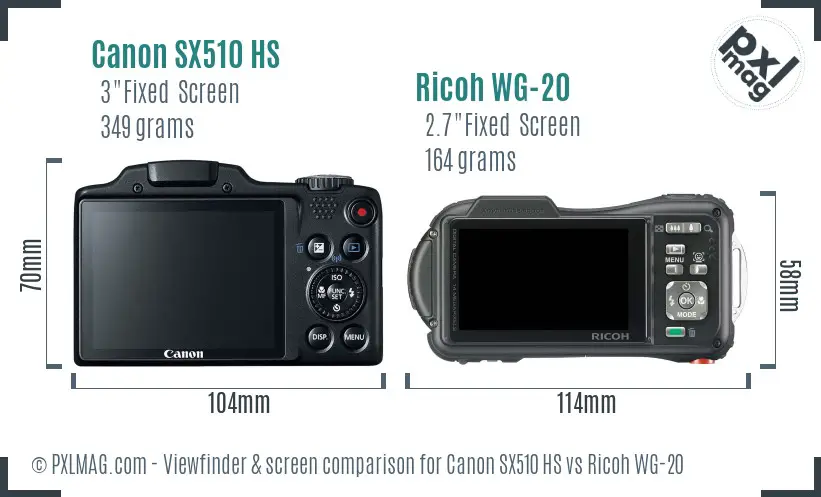

Canon SX510 HS vs Ricoh WG-20 Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Canon SX510 HS vs Ricoh WG-20 Specifications
Canon PowerShot SX510 HS | Ricoh WG-20 | |
---|---|---|
General Information | ||
Company | Canon | Ricoh |
Model type | Canon PowerShot SX510 HS | Ricoh WG-20 |
Category | Small Sensor Superzoom | Waterproof |
Launched | 2013-08-22 | 2014-02-05 |
Body design | Compact | Compact |
Sensor Information | ||
Chip | Digic 4 | - |
Sensor type | CMOS | CCD |
Sensor size | 1/2.3" | 1/2.3" |
Sensor measurements | 6.17 x 4.55mm | 6.17 x 4.55mm |
Sensor surface area | 28.1mm² | 28.1mm² |
Sensor resolution | 12MP | 14MP |
Anti alias filter | ||
Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 1:1, 4:3 and 16:9 |
Highest Possible resolution | 4608 x 3456 | 4288 x 3216 |
Maximum native ISO | 3200 | 6400 |
Min native ISO | 80 | 80 |
RAW photos | ||
Autofocusing | ||
Manual focusing | ||
Autofocus touch | ||
Continuous autofocus | ||
Single autofocus | ||
Autofocus tracking | ||
Autofocus selectice | ||
Center weighted autofocus | ||
Autofocus multi area | ||
Live view autofocus | ||
Face detect focus | ||
Contract detect focus | ||
Phase detect focus | ||
Total focus points | 1 | 9 |
Lens | ||
Lens support | fixed lens | fixed lens |
Lens zoom range | 24-720mm (30.0x) | 28-140mm (5.0x) |
Maximal aperture | f/3.4-5.8 | f/3.5-5.5 |
Macro focusing distance | 0cm | 1cm |
Crop factor | 5.8 | 5.8 |
Screen | ||
Range of display | Fixed Type | Fixed Type |
Display diagonal | 3" | 2.7" |
Resolution of display | 461 thousand dot | 230 thousand dot |
Selfie friendly | ||
Liveview | ||
Touch display | ||
Display tech | TFT Color LCD | TFT LCD |
Viewfinder Information | ||
Viewfinder type | None | None |
Features | ||
Minimum shutter speed | 15s | 4s |
Fastest shutter speed | 1/1600s | 1/1500s |
Continuous shutter speed | 4.0 frames per sec | 1.0 frames per sec |
Shutter priority | ||
Aperture priority | ||
Expose Manually | ||
Exposure compensation | Yes | - |
Set white balance | ||
Image stabilization | ||
Inbuilt flash | ||
Flash distance | 5.00 m | 4.00 m (Auto ISO) |
Flash modes | Auto, on, slow synchro, off | Auto, flash off, flash on, auto + redeye |
Hot shoe | ||
Auto exposure bracketing | ||
WB bracketing | ||
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Supported video resolutions | 1920 x 1080 (24 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) | 1280 x 720 (30p, 15p), 640 x 480 (30p, 15p), 320 x 240 (30p, 15p) |
Maximum video resolution | 1920x1080 | 1280x720 |
Video data format | MPEG-4, H.264 | Motion JPEG |
Microphone input | ||
Headphone input | ||
Connectivity | ||
Wireless | Built-In | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environment seal | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 349 grams (0.77 pounds) | 164 grams (0.36 pounds) |
Physical dimensions | 104 x 70 x 80mm (4.1" x 2.8" x 3.1") | 114 x 58 x 28mm (4.5" x 2.3" x 1.1") |
DXO scores | ||
DXO Overall rating | not tested | not tested |
DXO Color Depth rating | not tested | not tested |
DXO Dynamic range rating | not tested | not tested |
DXO Low light rating | not tested | not tested |
Other | ||
Battery life | 250 shots | 260 shots |
Battery format | Battery Pack | Battery Pack |
Battery ID | NB-6LH | D-LI92 |
Self timer | Yes (2 or 10 sec, Custom) | Yes (2 or 10 secs) |
Time lapse recording | ||
Storage media | SD/SDHC/SDXC | SD/SDHC/SDXC, internal |
Storage slots | Single | Single |
Cost at release | $249 | $370 |
