Canon SX520 HS vs Fujifilm XP70
69 Imaging
40 Features
44 Overall
41
93 Imaging
39 Features
35 Overall
37
Canon SX520 HS vs Fujifilm XP70 Key Specs
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 100 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1008mm (F3.4-6.0) lens
- 441g - 120 x 82 x 92mm
- Launched July 2014
- Superseded the Canon SX510 HS
- Replacement is Canon SX530 HS
(Full Review)
- 16MP - 1/2.3" Sensor
- 2.7" Fixed Screen
- ISO 100 - 6400
- Sensor-shift Image Stabilization
- 1920 x 1080 video
- 28-140mm (F3.9-4.9) lens
- 179g - 104 x 67 x 26mm
- Launched January 2014
- Previous Model is Fujifilm XP60
- Newer Model is Fujifilm XP80
Photobucket discusses licensing 13 billion images with AI firms Canon SX520 HS vs Fujifilm XP70 Overview
In this article, we will be evaluating the Canon SX520 HS vs Fujifilm XP70, one is a Small Sensor Superzoom and the latter is a Waterproof by companies Canon and FujiFilm. The image resolution of the SX520 HS (16MP) and the Fujifilm XP70 (16MP) is relatively comparable and they come with the same exact sensor size (1/2.3").
Pentax 17 Pre-Orders Outperform Expectations by a LandslideThe SX520 HS was manufactured 7 months after the Fujifilm XP70 and they are of a similar generation. Each of the cameras offer the identical body type (Compact).
Before getting straight into a comprehensive comparison, below is a brief overview of how the SX520 HS matches up vs the Fujifilm XP70 with regards to portability, imaging, features and an overall mark.
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone Canon SX520 HS vs Fujifilm XP70 Gallery
Following is a preview of the gallery photos for Canon PowerShot SX520 HS and Fujifilm FinePix XP70. The entire galleries are viewable at Canon SX520 HS Gallery and Fujifilm XP70 Gallery.
Reasons to pick Canon SX520 HS over the Fujifilm XP70
| SX520 HS | Fujifilm XP70 | |||
|---|---|---|---|---|
| Launched | July 2014 |  | January 2014 | Newer by 7 months |
| Manually focus |  | More precise focusing | ||
| Screen sizing | 3" |  | 2.7" | Bigger screen (+0.3") |
| Screen resolution | 461k |  | 460k | Crisper screen (+1k dot) |
Reasons to pick Fujifilm XP70 over the Canon SX520 HS
| Fujifilm XP70 | SX520 HS |
|---|
Common features in the Canon SX520 HS and Fujifilm XP70
| SX520 HS | Fujifilm XP70 | |||
|---|---|---|---|---|
| Screen type | Fixed |  | Fixed | Fixed screen |
| Selfie screen |  | Neither contains selfie screen | ||
| Touch screen |  | Lack of Touch screen |

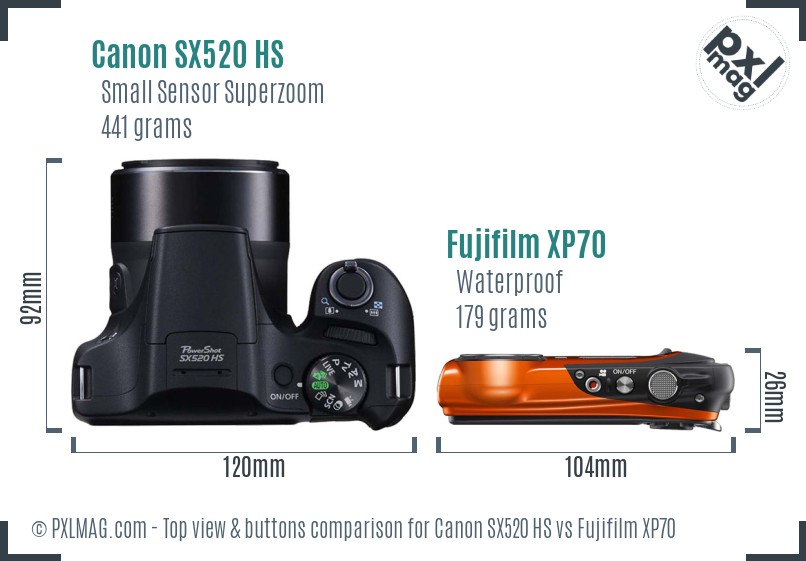

Canon SX520 HS vs Fujifilm XP70 Physical Comparison
If you're aiming to travel with your camera, you need to factor its weight and dimensions. The Canon SX520 HS has got outside dimensions of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") accompanied by a weight of 441 grams (0.97 lbs) and the Fujifilm XP70 has dimensions of 104mm x 67mm x 26mm (4.1" x 2.6" x 1.0") along with a weight of 179 grams (0.39 lbs).
Check out the Canon SX520 HS vs Fujifilm XP70 in the all new Camera and Lens Size Comparison Tool.

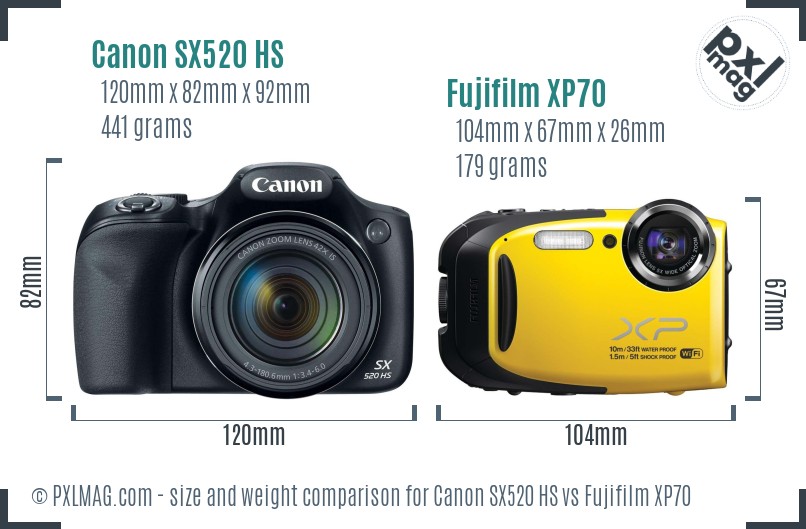

Remember that, the weight of an Interchangeable Lens Camera will differ depending on the lens you choose during that time. Here is the front view dimension comparison of the SX520 HS and the Fujifilm XP70.
Using size and weight, the portability rating of the SX520 HS and Fujifilm XP70 is 69 and 93 respectively.
Canon SX520 HS vs Fujifilm XP70 Sensor Comparison
Oftentimes, it is very tough to imagine the difference in sensor dimensions purely by seeing specifications. The picture here should offer you a much better sense of the sensor dimensions in the SX520 HS and Fujifilm XP70.
Plainly, each of the cameras offer the same exact sensor sizing and the exact same resolution and you should expect comparable quality of photos however you need to factor the production date of the cameras into account. The newer SX520 HS should have a benefit in sensor innovation.

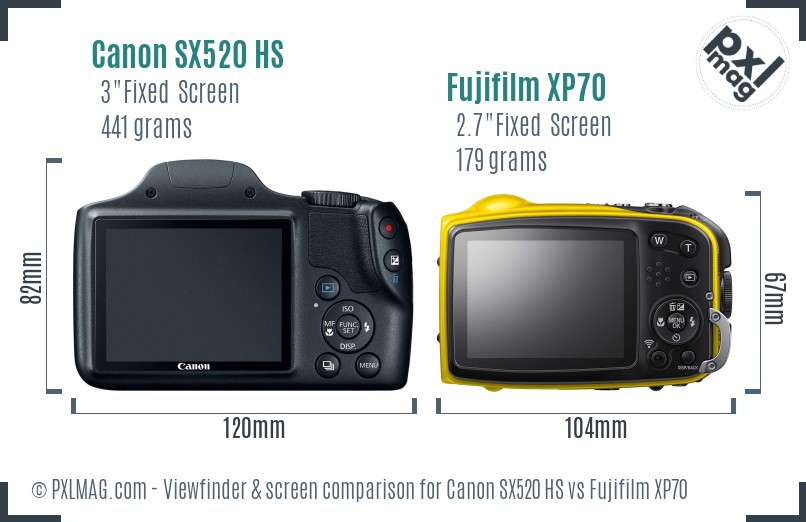

Canon SX520 HS vs Fujifilm XP70 Screen and ViewFinder
Snapchat Adds Watermarks to AI-Created Images Photography Type Scores
Portrait Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthStreet Comparison
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modesSports Comparison
President Biden pushes bill mandating TikTok sale or banTravel Comparison
Samsung Releases Faster Versions of EVO MicroSD CardsLandscape Comparison
Photography GlossaryVlogging Comparison
Sora from OpenAI releases its first ever music video
Canon SX520 HS vs Fujifilm XP70 Specifications
| Canon PowerShot SX520 HS | Fujifilm FinePix XP70 | |
|---|---|---|
| General Information | ||
| Brand Name | Canon | FujiFilm |
| Model type | Canon PowerShot SX520 HS | Fujifilm FinePix XP70 |
| Class | Small Sensor Superzoom | Waterproof |
| Launched | 2014-07-29 | 2014-01-06 |
| Body design | Compact | Compact |
| Sensor Information | ||
| Powered by | Digic 4+ | - |
| Sensor type | BSI-CMOS | CMOS |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
| Sensor area | 28.1mm² | 28.1mm² |
| Sensor resolution | 16 megapixel | 16 megapixel |
| Anti alias filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 1:1, 4:3, 3:2 and 16:9 |
| Maximum resolution | 4608 x 3456 | 4608 x 3456 |
| Maximum native ISO | 3200 | 6400 |
| Lowest native ISO | 100 | 100 |
| RAW pictures | ||
| Autofocusing | ||
| Manual focusing | ||
| Touch focus | ||
| AF continuous | ||
| AF single | ||
| Tracking AF | ||
| Selective AF | ||
| Center weighted AF | ||
| Multi area AF | ||
| AF live view | ||
| Face detection AF | ||
| Contract detection AF | ||
| Phase detection AF | ||
| Total focus points | 9 | - |
| Cross type focus points | - | - |
| Lens | ||
| Lens support | fixed lens | fixed lens |
| Lens zoom range | 24-1008mm (42.0x) | 28-140mm (5.0x) |
| Max aperture | f/3.4-6.0 | f/3.9-4.9 |
| Macro focusing range | 0cm | 9cm |
| Crop factor | 5.8 | 5.8 |
| Screen | ||
| Range of screen | Fixed Type | Fixed Type |
| Screen size | 3 inches | 2.7 inches |
| Screen resolution | 461 thousand dot | 460 thousand dot |
| Selfie friendly | ||
| Liveview | ||
| Touch operation | ||
| Viewfinder Information | ||
| Viewfinder | None | None |
| Features | ||
| Slowest shutter speed | 15s | 4s |
| Maximum shutter speed | 1/2000s | 1/2000s |
| Continuous shooting speed | 2.0 frames/s | 10.0 frames/s |
| Shutter priority | ||
| Aperture priority | ||
| Manually set exposure | ||
| Exposure compensation | Yes | - |
| Change WB | ||
| Image stabilization | ||
| Integrated flash | ||
| Flash distance | 5.50 m | 3.10 m |
| Flash settings | Auto, on, off, slow synchro | Auto, forced flash, flash off, slow synchro |
| External flash | ||
| AE bracketing | ||
| WB bracketing | ||
| Exposure | ||
| Multisegment | ||
| Average | ||
| Spot | ||
| Partial | ||
| AF area | ||
| Center weighted | ||
| Video features | ||
| Supported video resolutions | 1920 x 1080 (30 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) | 1920 x 1080 (30p/60p), 1280 x 720 (60p), 640 x 480 (30p) |
| Maximum video resolution | 1920x1080 | 1920x1080 |
| Video data format | MPEG-4, H.264 | H.264 |
| Mic jack | ||
| Headphone jack | ||
| Connectivity | ||
| Wireless | None | Built-In |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | Optional |
| Physical | ||
| Environment seal | ||
| Water proofing | ||
| Dust proofing | ||
| Shock proofing | ||
| Crush proofing | ||
| Freeze proofing | ||
| Weight | 441 gr (0.97 lbs) | 179 gr (0.39 lbs) |
| Dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 104 x 67 x 26mm (4.1" x 2.6" x 1.0") |
| DXO scores | ||
| DXO All around rating | not tested | not tested |
| DXO Color Depth rating | not tested | not tested |
| DXO Dynamic range rating | not tested | not tested |
| DXO Low light rating | not tested | not tested |
| Other | ||
| Battery life | 210 pictures | 210 pictures |
| Form of battery | Battery Pack | Battery Pack |
| Battery ID | NB-6LH | NP-45S |
| Self timer | Yes (2 or 10 sec, Custom) | Yes |
| Time lapse recording | ||
| Storage media | SD/SDHC/SDXC | SC/SDHC/SDXC, Internal |
| Storage slots | 1 | 1 |
| Launch price | $219 | $199 |
