Canon SX520 HS vs Panasonic FZ80
69 Imaging
40 Features
44 Overall
41
63 Imaging
43 Features
62 Overall
50
Canon SX520 HS vs Panasonic FZ80 Key Specs
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 100 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1008mm (F3.4-6.0) lens
- 441g - 120 x 82 x 92mm
- Released July 2014
- Superseded the Canon SX510 HS
- Renewed by Canon SX530 HS
(Full Review)
- 18MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200 (Expand to 6400)
- Optical Image Stabilization
- 3840 x 2160 video
- 20-1200mm (F2.8-5.9) lens
- 616g - 130 x 94 x 119mm
- Launched January 2017
- Also Known as Lumix DMC-FZ82
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes Canon SX520 HS vs Panasonic FZ80 Overview
Its time to look more in depth at the Canon SX520 HS and Panasonic FZ80, both Small Sensor Superzoom cameras by companies Canon and Panasonic. The image resolution of the SX520 HS (16MP) and the FZ80 (18MP) is very close and both cameras offer the identical sensor sizing (1/2.3").
Photography GlossaryThe SX520 HS was introduced 3 years prior to the FZ80 and that is a fairly large gap as far as camera technology is concerned. The two cameras feature different body design with the Canon SX520 HS being a Compact camera and the Panasonic FZ80 being a SLR-like (bridge) camera.
Before we go into a comprehensive comparison, here is a simple view of how the SX520 HS matches up versus the FZ80 when it comes to portability, imaging, features and an overall grade.
Pentax 17 Pre-Orders Outperform Expectations by a Landslide Canon SX520 HS vs Panasonic FZ80 Gallery
The following is a sample of the gallery pics for Canon PowerShot SX520 HS and Panasonic Lumix DMC-FZ80. The whole galleries are provided at Canon SX520 HS Gallery and Panasonic FZ80 Gallery.
Reasons to pick Canon SX520 HS over the Panasonic FZ80
| SX520 HS | FZ80 |
|---|
Reasons to pick Panasonic FZ80 over the Canon SX520 HS
| FZ80 | SX520 HS | |||
|---|---|---|---|---|
| Launched | January 2017 |  | July 2014 | More recent by 29 months |
| Display resolution | 1040k |  | 461k | Sharper display (+579k dot) |
| Touch display |  | Easily navigate |
Common features in the Canon SX520 HS and Panasonic FZ80
| SX520 HS | FZ80 | |||
|---|---|---|---|---|
| Focus manually |  | More exact focus | ||
| Display type | Fixed |  | Fixed | Fixed display |
| Display size | 3" |  | 3" | Same display measurement |
| Selfie screen |  | Neither contains selfie screen |
Canon SX520 HS vs Panasonic FZ80 Physical Comparison

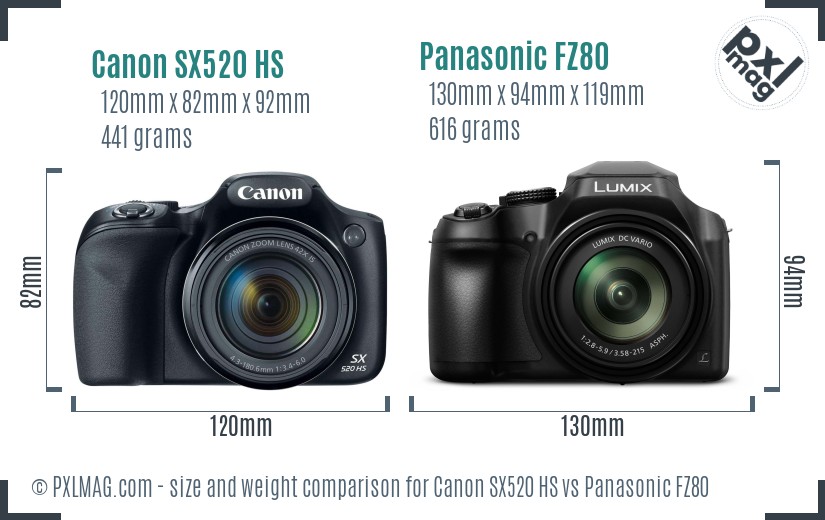

For anyone who is looking to lug around your camera regularly, you will need to factor in its weight and dimensions. The Canon SX520 HS has got outside dimensions of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") having a weight of 441 grams (0.97 lbs) whilst the Panasonic FZ80 has dimensions of 130mm x 94mm x 119mm (5.1" x 3.7" x 4.7") and a weight of 616 grams (1.36 lbs).
Look at the Canon SX520 HS and Panasonic FZ80 in the latest Camera and Lens Size Comparison Tool.

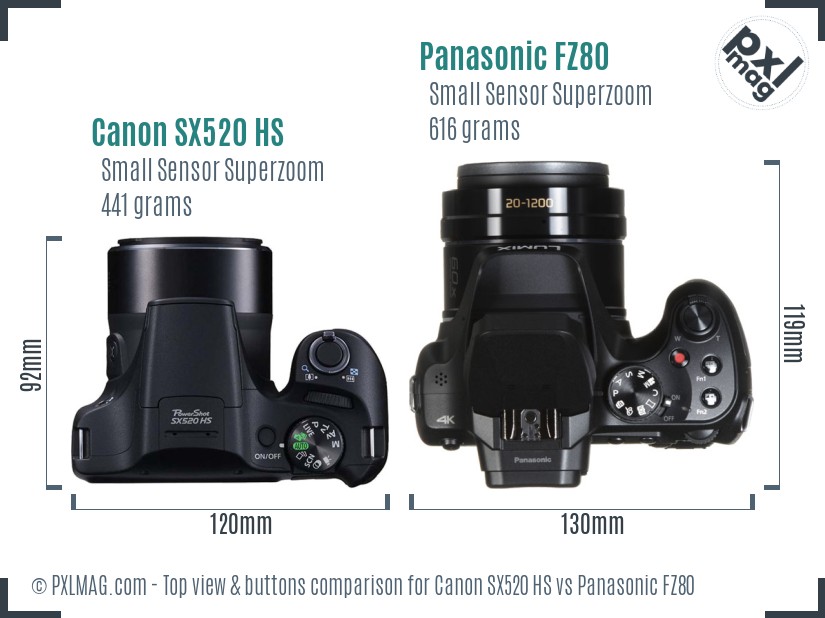

Take into account, the weight of an Interchangeable Lens Camera will differ dependant on the lens you have attached at the time. Following is a front view measurement comparison of the SX520 HS and the FZ80.
Looking at dimensions and weight, the portability score of the SX520 HS and FZ80 is 69 and 63 respectively.
Canon SX520 HS vs Panasonic FZ80 Sensor Comparison
Typically, it is very hard to picture the difference in sensor measurements only by viewing technical specs. The photograph below will help offer you a clearer sense of the sensor dimensions in the SX520 HS and FZ80.
As you have seen, the two cameras come with the identical sensor size but different MP. You should expect to see the Panasonic FZ80 to render more detail using its extra 2MP. Greater resolution will also let you crop images a good deal more aggressively. The older SX520 HS will be behind when it comes to sensor tech.

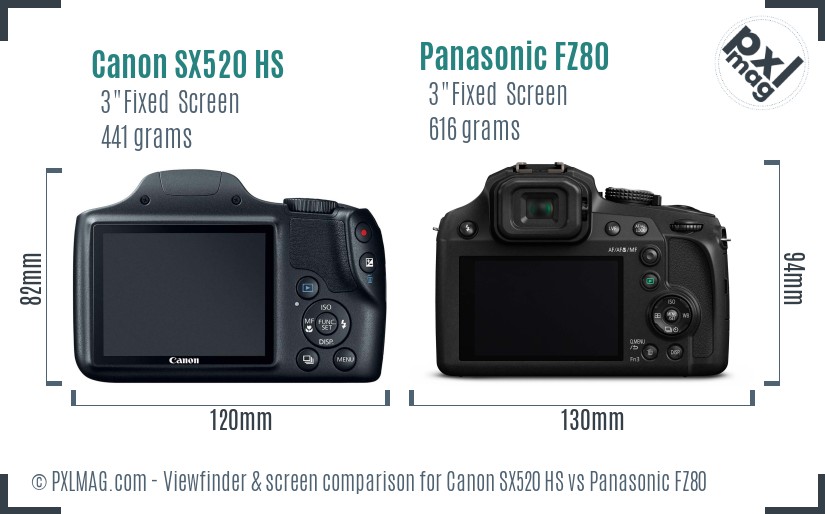

Canon SX520 HS vs Panasonic FZ80 Screen and ViewFinder
Photobucket discusses licensing 13 billion images with AI firms Photography Type Scores
Portrait Comparison
Mastering Nature Photography with a Digital Microscope CameraStreet Comparison
Snapchat Adds Watermarks to AI-Created ImagesSports Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthTravel Comparison
President Biden pushes bill mandating TikTok sale or banLandscape Comparison
Samsung Releases Faster Versions of EVO MicroSD CardsVlogging Comparison
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone
Canon SX520 HS vs Panasonic FZ80 Specifications
| Canon PowerShot SX520 HS | Panasonic Lumix DMC-FZ80 | |
|---|---|---|
| General Information | ||
| Make | Canon | Panasonic |
| Model type | Canon PowerShot SX520 HS | Panasonic Lumix DMC-FZ80 |
| Alternate name | - | Lumix DMC-FZ82 |
| Type | Small Sensor Superzoom | Small Sensor Superzoom |
| Released | 2014-07-29 | 2017-01-04 |
| Physical type | Compact | SLR-like (bridge) |
| Sensor Information | ||
| Processor | Digic 4+ | Venus Engine |
| Sensor type | BSI-CMOS | BSI-CMOS |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor measurements | 6.17 x 4.55mm | 6.17 x 4.55mm |
| Sensor surface area | 28.1mm² | 28.1mm² |
| Sensor resolution | 16 megapixel | 18 megapixel |
| Anti alias filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3 |
| Max resolution | 4608 x 3456 | 4896 x 3672 |
| Max native ISO | 3200 | 3200 |
| Max enhanced ISO | - | 6400 |
| Minimum native ISO | 100 | 80 |
| RAW data | ||
| Autofocusing | ||
| Focus manually | ||
| Autofocus touch | ||
| Autofocus continuous | ||
| Single autofocus | ||
| Tracking autofocus | ||
| Autofocus selectice | ||
| Center weighted autofocus | ||
| Multi area autofocus | ||
| Live view autofocus | ||
| Face detection autofocus | ||
| Contract detection autofocus | ||
| Phase detection autofocus | ||
| Total focus points | 9 | 49 |
| Lens | ||
| Lens support | fixed lens | fixed lens |
| Lens zoom range | 24-1008mm (42.0x) | 20-1200mm (60.0x) |
| Maximum aperture | f/3.4-6.0 | f/2.8-5.9 |
| Macro focusing range | 0cm | 1cm |
| Focal length multiplier | 5.8 | 5.8 |
| Screen | ||
| Screen type | Fixed Type | Fixed Type |
| Screen sizing | 3" | 3" |
| Screen resolution | 461k dots | 1,040k dots |
| Selfie friendly | ||
| Liveview | ||
| Touch functionality | ||
| Viewfinder Information | ||
| Viewfinder | None | Electronic |
| Viewfinder resolution | - | 1,166k dots |
| Viewfinder coverage | - | 100 percent |
| Viewfinder magnification | - | 0.46x |
| Features | ||
| Min shutter speed | 15s | 4s |
| Max shutter speed | 1/2000s | 1/2000s |
| Max silent shutter speed | - | 1/16000s |
| Continuous shutter rate | 2.0fps | 10.0fps |
| Shutter priority | ||
| Aperture priority | ||
| Expose Manually | ||
| Exposure compensation | Yes | Yes |
| Custom white balance | ||
| Image stabilization | ||
| Integrated flash | ||
| Flash distance | 5.50 m | 14.10 m (at Auto ISO) |
| Flash modes | Auto, on, off, slow synchro | Auto, Auto/Red-eye Reduction, Forced Off, Forced On, Forced On/Red-eye Reduction, Slow Sync, Slow Sync/Red-eye Reduction, 1st Curtain Sync, 2nd Curtain Sync |
| External flash | ||
| AEB | ||
| White balance bracketing | ||
| Exposure | ||
| Multisegment | ||
| Average | ||
| Spot | ||
| Partial | ||
| AF area | ||
| Center weighted | ||
| Video features | ||
| Video resolutions | 1920 x 1080 (30 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) | 3840 x 2160 @ 30p / 100 Mbps, MP4, H.264, AAC1920 x 1080 @ 60p / 28 Mbps, MP4, H.264, AAC |
| Max video resolution | 1920x1080 | 3840x2160 |
| Video file format | MPEG-4, H.264 | MPEG-4, AVCHD |
| Microphone support | ||
| Headphone support | ||
| Connectivity | ||
| Wireless | None | Built-In |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environmental sealing | ||
| Water proofing | ||
| Dust proofing | ||
| Shock proofing | ||
| Crush proofing | ||
| Freeze proofing | ||
| Weight | 441g (0.97 lb) | 616g (1.36 lb) |
| Physical dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 130 x 94 x 119mm (5.1" x 3.7" x 4.7") |
| DXO scores | ||
| DXO Overall rating | not tested | not tested |
| DXO Color Depth rating | not tested | not tested |
| DXO Dynamic range rating | not tested | not tested |
| DXO Low light rating | not tested | not tested |
| Other | ||
| Battery life | 210 images | 330 images |
| Type of battery | Battery Pack | Battery Pack |
| Battery ID | NB-6LH | - |
| Self timer | Yes (2 or 10 sec, Custom) | Yes (2 or 10 secs, 3 images x 10 secs) |
| Time lapse recording | ||
| Type of storage | SD/SDHC/SDXC | SD/SDHC/SDXC card |
| Card slots | 1 | 1 |
| Launch cost | $219 | $399 |
