Canon SX520 HS vs Sony TX20
Portability
69 Imaging
40 Features
44 Overall
41
69 Imaging
40 Features
44 Overall
41
Portability
96 Imaging
39 Features
50 Overall
43
96 Imaging
39 Features
50 Overall
43
Canon SX520 HS vs Sony TX20 Key Specs
Canon SX520 HS
(Full Review)
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 100 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1008mm (F3.4-6.0) lens
- 441g - 120 x 82 x 92mm
- Introduced July 2014
- Replaced the Canon SX510 HS
- Refreshed by Canon SX530 HS
Sony TX20
(Full Review)
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 125 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 25-100mm (F3.5-4.6) lens
- 133g - 96 x 56 x 18mm
- Launched February 2012
Meta to Introduce 'AI-Generated' Labels for Media starting next month Canon SX520 HS vs Sony TX20 Overview
Lets look closer at the Canon SX520 HS versus Sony TX20, one is a Small Sensor Superzoom and the other is a Ultracompact by companies Canon and Sony. The resolution of the SX520 HS (16MP) and the TX20 (16MP) is very similar and they enjoy the exact same sensor sizing (1/2.3").
Samsung Releases Faster Versions of EVO MicroSD CardsThe SX520 HS was announced 2 years after the TX20 which is quite a significant gap as far as tech is concerned. Both cameras come with different body type with the Canon SX520 HS being a Compact camera and the Sony TX20 being a Ultracompact camera.
Before we go in to a complete comparison, below is a quick introduction of how the SX520 HS scores vs the TX20 in regards to portability, imaging, features and an overall score.
Sora from OpenAI releases its first ever music video Canon SX520 HS vs Sony TX20 Gallery
Below is a sample of the gallery pics for Canon PowerShot SX520 HS and Sony Cyber-shot DSC-TX20. The whole galleries are provided at Canon SX520 HS Gallery and Sony TX20 Gallery.
Reasons to pick Canon SX520 HS over the Sony TX20
| SX520 HS | TX20 | |||
|---|---|---|---|---|
| Launched | July 2014 |  | February 2012 | More modern by 30 months |
Reasons to pick Sony TX20 over the Canon SX520 HS
| TX20 | SX520 HS | |||
|---|---|---|---|---|
| Display resolution | 922k |  | 461k | Sharper display (+461k dot) |
| Touch friendly display |  | Easily navigate |
Common features in the Canon SX520 HS and Sony TX20
| SX520 HS | TX20 | |||
|---|---|---|---|---|
| Manual focus |  | Dial accurate focus | ||
| Display type | Fixed |  | Fixed | Fixed display |
| Display dimension | 3" |  | 3" | Identical display measurement |
| Selfie screen |  | Neither has selfie screen |

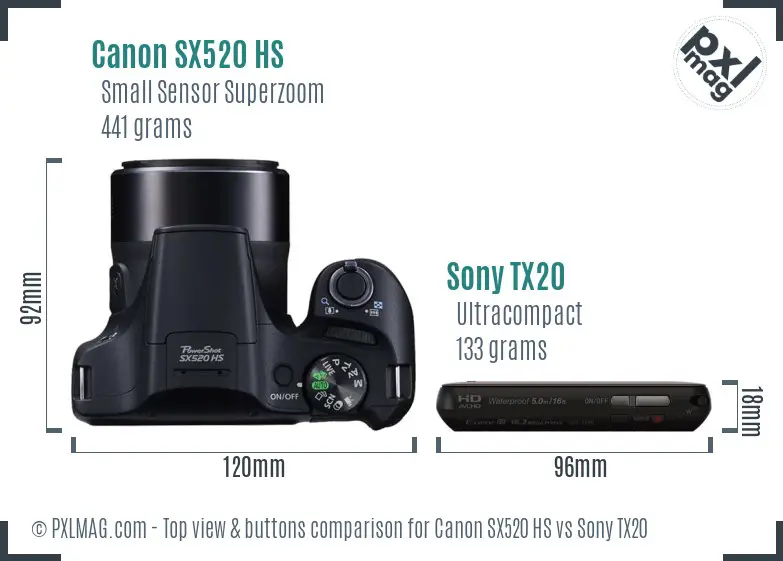

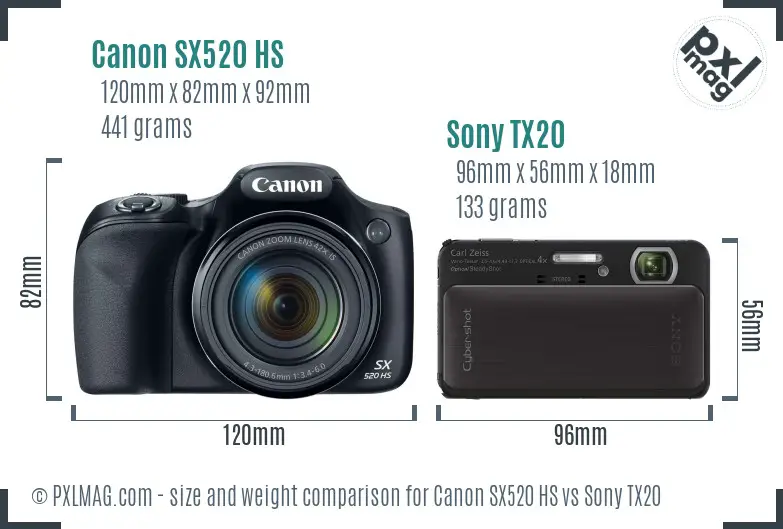

Canon SX520 HS vs Sony TX20 Physical Comparison
When you are planning to carry around your camera regularly, you'll need to think about its weight and measurements. The Canon SX520 HS has outer dimensions of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") having a weight of 441 grams (0.97 lbs) whilst the Sony TX20 has proportions of 96mm x 56mm x 18mm (3.8" x 2.2" x 0.7") having a weight of 133 grams (0.29 lbs).
Analyze the Canon SX520 HS versus Sony TX20 in the latest Camera and Lens Size Comparison Tool.
Remember, the weight of an Interchangeable Lens Camera will vary depending on the lens you are employing during that time. Following is the front view measurement comparison of the SX520 HS against the TX20.
Considering size and weight, the portability grade of the SX520 HS and TX20 is 69 and 96 respectively.

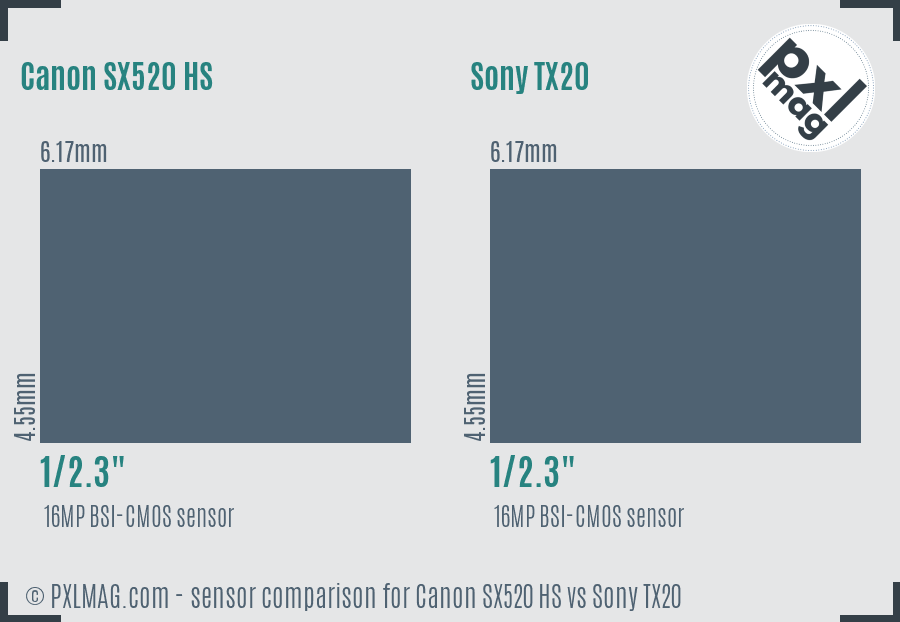

Canon SX520 HS vs Sony TX20 Sensor Comparison
Usually, its tough to visualize the contrast between sensor sizes purely by reviewing a spec sheet. The picture below will help provide you a clearer sense of the sensor dimensions in the SX520 HS and TX20.
As you can see, the two cameras have got the exact same sensor measurements and the same exact MP so you should expect similar quality of images but you would want to take the production date of the products into consideration. The more recent SX520 HS should have an edge with regard to sensor innovation.

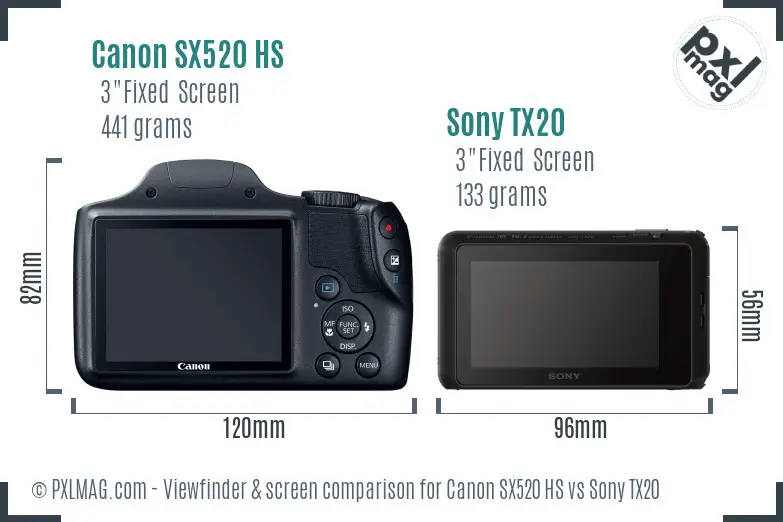

Canon SX520 HS vs Sony TX20 Screen and ViewFinder
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone Photography Type Scores
Portrait Comparison
Canon SX520 HS Portrait photography features
Sony TX20 Portrait photography features
has manual focus
resolution is good (16MP)
comes with face detect autofocus
no external flash support
sensor is tiny (1/2.3")
no RAW files
manual focus
resolution is good (16 megapixels)
has face detect focus
manual exposure not available
cannot use external flash
sensor is tiny (1/2.3")
does not have RAW support
President Biden pushes bill mandating TikTok sale or banStreet Comparison
Canon SX520 HS as a Street photography camera
Sony TX20 as a Street photography camera
has image stabilization (Optical)
screen is fixed
sensor is tiny (1/2.3")
no RAW files
built in image stabilization (Optical)
includes focus by touch
weather sealing
no moving screen
sensor is tiny (1/2.3")
does not have RAW support
Pentax 17 Pre-Orders Outperform Expectations by a LandslideSports Comparison
Canon SX520 HS Sports photography information
Sony TX20 Sports photography information
great zoom range (24-1008mm 42.0 x zoom)
has image stabilization (Optical)
resolution is good (16 megapixels)
comes with tracking focus
slow fps (2.0 frames/s)
sensor is tiny (1/2.3")
not so great battery power (210 per charge)
no phase detect autofocus
built in image stabilization (Optical)
resolution is good (16 megapixels)
has tracking focus
weather sealing
great battery power (250 CIPA)
no shutter priority mode
sensor is tiny (1/2.3")
does not have phase detect auto focus
Photobucket discusses licensing 13 billion images with AI firmsTravel Comparison
Canon SX520 HS Travel photography features
Sony TX20 Travel photography features
resolution is good (16MP)
has built in flash
quite wide (24mm)
long zoom (1008mm)
lack of Time Lapse mode
not so great battery power (210 CIPA)
doesn't offer selfie friendly display
slow maximum aperture (f3.4)
great battery power (250 per charge)
weather sealing
includes focus by touch
resolution is good (16MP)
built-in flash
quite wide (25mm)
does not have Time Lapse function
doesn't offer selfie friendly display
sluggish maximum aperture (f3.5)
Snapchat Adds Watermarks to AI-Created ImagesLandscape Comparison
Canon SX520 HS as a Landscape photography camera
Sony TX20 as a Landscape photography camera
has manual focus
quite wide (24mm)
nice screen size (3 inch)
has image stabilization (Optical)
resolution is good (16 megapixels)
fixed lens (fixed lens mount)
slow maximum aperture (f3.4)
sensor is tiny (1/2.3")
no RAW files
not so great battery power (210 shots)
lack of Time Lapse mode
manual focus
quite wide (25mm)
good sized screen (3")
built in image stabilization (Optical)
resolution is good (16 megapixels)
weather sealing
great battery power (250 CIPA)
can't swap lens (fixed lens mount)
sluggish maximum aperture (f3.5)
manual exposure not available
sensor is tiny (1/2.3")
does not have RAW support
does not have Time Lapse function
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modesVlogging Comparison
Canon SX520 HS Vlogging factors
Sony TX20 Vlogging factors
quite wide (24mm)
has image stabilization (Optical)
comes with face detect autofocus
high res video (1920 x 1080 pixels)
slow maximum aperture (f3.4)
doesn't offer selfie friendly display
lack of mic socket
quite wide (25mm)
touchscreen capability
built in image stabilization (Optical)
has face detect focus
high quality video (1920 x 1080 pxls)
sluggish maximum aperture (f3.5)
doesn't offer selfie friendly display
does not have mic support
Photography Glossary
Canon SX520 HS vs Sony TX20 Specifications
| Canon PowerShot SX520 HS | Sony Cyber-shot DSC-TX20 | |
|---|---|---|
| General Information | ||
| Manufacturer | Canon | Sony |
| Model type | Canon PowerShot SX520 HS | Sony Cyber-shot DSC-TX20 |
| Category | Small Sensor Superzoom | Ultracompact |
| Introduced | 2014-07-29 | 2012-02-28 |
| Physical type | Compact | Ultracompact |
| Sensor Information | ||
| Processor Chip | Digic 4+ | BIONZ |
| Sensor type | BSI-CMOS | BSI-CMOS |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
| Sensor surface area | 28.1mm² | 28.1mm² |
| Sensor resolution | 16MP | 16MP |
| Anti alias filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3 and 16:9 |
| Highest resolution | 4608 x 3456 | 4608 x 3456 |
| Highest native ISO | 3200 | 3200 |
| Minimum native ISO | 100 | 125 |
| RAW images | ||
| Autofocusing | ||
| Focus manually | ||
| Touch to focus | ||
| Continuous autofocus | ||
| Autofocus single | ||
| Tracking autofocus | ||
| Selective autofocus | ||
| Autofocus center weighted | ||
| Autofocus multi area | ||
| Autofocus live view | ||
| Face detect autofocus | ||
| Contract detect autofocus | ||
| Phase detect autofocus | ||
| Total focus points | 9 | - |
| Cross type focus points | - | - |
| Lens | ||
| Lens support | fixed lens | fixed lens |
| Lens zoom range | 24-1008mm (42.0x) | 25-100mm (4.0x) |
| Highest aperture | f/3.4-6.0 | f/3.5-4.6 |
| Macro focusing distance | 0cm | 1cm |
| Crop factor | 5.8 | 5.8 |
| Screen | ||
| Display type | Fixed Type | Fixed Type |
| Display sizing | 3 inches | 3 inches |
| Display resolution | 461k dots | 922k dots |
| Selfie friendly | ||
| Liveview | ||
| Touch display | ||
| Display technology | - | XtraFine TruBlack TFT LCD |
| Viewfinder Information | ||
| Viewfinder type | None | None |
| Features | ||
| Lowest shutter speed | 15s | 4s |
| Highest shutter speed | 1/2000s | 1/1600s |
| Continuous shooting rate | 2.0 frames per second | 10.0 frames per second |
| Shutter priority | ||
| Aperture priority | ||
| Manually set exposure | ||
| Exposure compensation | Yes | - |
| Set white balance | ||
| Image stabilization | ||
| Integrated flash | ||
| Flash distance | 5.50 m | 3.70 m |
| Flash modes | Auto, on, off, slow synchro | Auto, On, Off, Slow Sync |
| External flash | ||
| Auto exposure bracketing | ||
| White balance bracketing | ||
| Exposure | ||
| Multisegment | ||
| Average | ||
| Spot | ||
| Partial | ||
| AF area | ||
| Center weighted | ||
| Video features | ||
| Video resolutions | 1920 x 1080 (30 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) | 1920 x 1080 (60 fps), 1440 x 1080 (60, 30 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) |
| Highest video resolution | 1920x1080 | 1920x1080 |
| Video data format | MPEG-4, H.264 | MPEG-4, AVCHD |
| Mic support | ||
| Headphone support | ||
| Connectivity | ||
| Wireless | None | Eye-Fi Connected |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environment sealing | ||
| Water proofing | ||
| Dust proofing | ||
| Shock proofing | ||
| Crush proofing | ||
| Freeze proofing | ||
| Weight | 441g (0.97 lbs) | 133g (0.29 lbs) |
| Dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 96 x 56 x 18mm (3.8" x 2.2" x 0.7") |
| DXO scores | ||
| DXO All around rating | not tested | not tested |
| DXO Color Depth rating | not tested | not tested |
| DXO Dynamic range rating | not tested | not tested |
| DXO Low light rating | not tested | not tested |
| Other | ||
| Battery life | 210 photographs | 250 photographs |
| Battery style | Battery Pack | Battery Pack |
| Battery ID | NB-6LH | NP-BN |
| Self timer | Yes (2 or 10 sec, Custom) | Yes (2 or 10 sec, Portrait 1/2) |
| Time lapse feature | ||
| Type of storage | SD/SDHC/SDXC | SD/SDHC/SDXC/Memory Stick Duo/Memory Stick Pro Duo, Memory Stick Pro-HG Duo |
| Card slots | 1 | 1 |
| Cost at launch | $219 | $330 |
