Canon SX540 HS vs Casio EX-H15
69 Imaging
45 Features
44 Overall
44
93 Imaging
36 Features
29 Overall
33
Canon SX540 HS vs Casio EX-H15 Key Specs
(Full Review)
- 20MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1200mm (F3.4-6.5) lens
- 442g - 120 x 82 x 92mm
- Introduced January 2016
(Full Review)
- 14MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 64 - 3200
- Sensor-shift Image Stabilization
- 640 x 480 video
- 24-240mm (F3.2-5.7) lens
- 161g - 101 x 60 x 28mm
- Announced January 2010
Pentax 17 Pre-Orders Outperform Expectations by a Landslide Canon SX540 HS vs Casio EX-H15 Overview
Lets look more in depth at the Canon SX540 HS versus Casio EX-H15, former is a Small Sensor Superzoom while the latter is a Small Sensor Compact by brands Canon and Casio. There exists a large gap among the sensor resolutions of the SX540 HS (20MP) and EX-H15 (14MP) but both cameras boast the identical sensor sizes (1/2.3").
Photography GlossaryThe SX540 HS was revealed 6 years after the EX-H15 which is a fairly serious difference as far as camera technology is concerned. Each of the cameras feature different body design with the Canon SX540 HS being a SLR-like (bridge) camera and the Casio EX-H15 being a Compact camera.
Before going right into a more detailed comparison, here is a simple summary of how the SX540 HS matches up vs the EX-H15 with respect to portability, imaging, features and an overall mark.
President Biden pushes bill mandating TikTok sale or ban Canon SX540 HS vs Casio EX-H15 Gallery
This is a preview of the gallery images for Canon PowerShot SX540 HS & Casio Exilim EX-H15. The full galleries are viewable at Canon SX540 HS Gallery & Casio EX-H15 Gallery.
Reasons to pick Canon SX540 HS over the Casio EX-H15
| SX540 HS | EX-H15 | |||
|---|---|---|---|---|
| Announced | January 2016 |  | January 2010 | Newer by 73 months |
Reasons to pick Casio EX-H15 over the Canon SX540 HS
| EX-H15 | SX540 HS |
|---|
Common features in the Canon SX540 HS and Casio EX-H15
| SX540 HS | EX-H15 | |||
|---|---|---|---|---|
| Manually focus |  | Very accurate focus | ||
| Screen type | Fixed |  | Fixed | Fixed screen |
| Screen size | 3" |  | 3" | Same screen dimensions |
| Screen resolution | 461k |  | 461k | Identical screen resolution |
| Selfie screen |  | Neither includes selfie screen | ||
| Touch screen |  | Lack of Touch screen |
Canon SX540 HS vs Casio EX-H15 Physical Comparison
For anybody who is going to travel with your camera regularly, you will want to factor in its weight and proportions. The Canon SX540 HS features outside dimensions of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") and a weight of 442 grams (0.97 lbs) whilst the Casio EX-H15 has measurements of 101mm x 60mm x 28mm (4.0" x 2.4" x 1.1") along with a weight of 161 grams (0.35 lbs).
Take a look at the Canon SX540 HS versus Casio EX-H15 in our brand new Camera & Lens Size Comparison Tool.

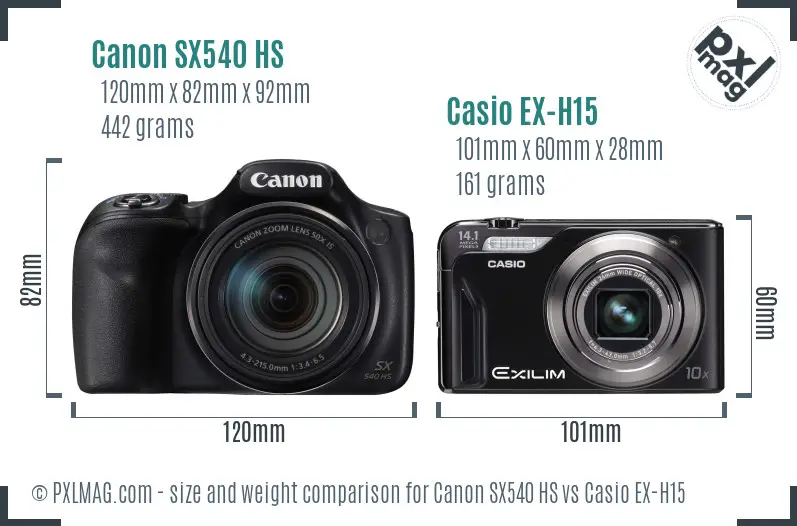

Bear in mind, the weight of an ILC will vary depending on the lens you choose during that time. Underneath is a front view sizing comparison of the SX540 HS compared to the EX-H15.
Looking at dimensions and weight, the portability grade of the SX540 HS and EX-H15 is 69 and 93 respectively.
Canon SX540 HS vs Casio EX-H15 Sensor Comparison
Typically, it can be difficult to visualize the contrast in sensor dimensions just by checking out technical specs. The pic underneath may offer you a much better sense of the sensor sizes in the SX540 HS and EX-H15.
As you have seen, each of these cameras feature the identical sensor size albeit different megapixels. You can expect the Canon SX540 HS to provide greater detail because of its extra 6 Megapixels. Higher resolution will also allow you to crop shots way more aggressively. The more modern SX540 HS should have an edge when it comes to sensor tech.

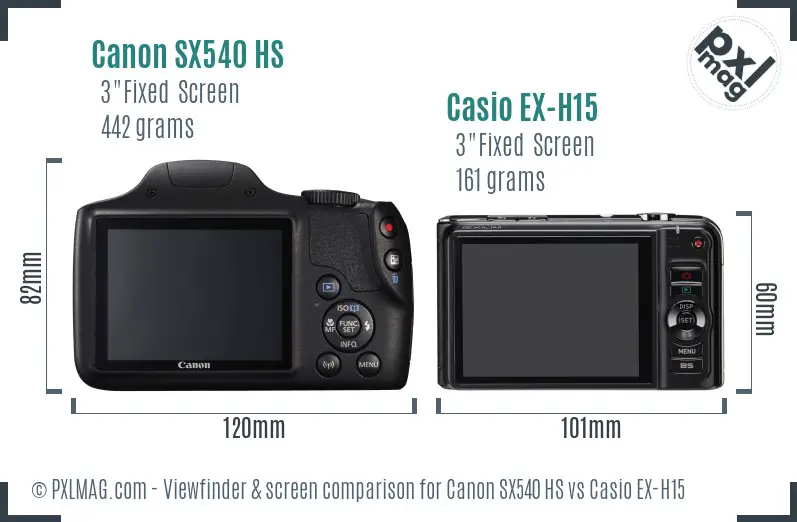

Canon SX540 HS vs Casio EX-H15 Screen and ViewFinder
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone Photography Type Scores
Portrait Comparison
Photobucket discusses licensing 13 billion images with AI firmsStreet Comparison
Samsung Releases Faster Versions of EVO MicroSD CardsSports Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthTravel Comparison
Sora from OpenAI releases its first ever music videoLandscape Comparison
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modesVlogging Comparison
Snapchat Adds Watermarks to AI-Created Images
Canon SX540 HS vs Casio EX-H15 Specifications
| Canon PowerShot SX540 HS | Casio Exilim EX-H15 | |
|---|---|---|
| General Information | ||
| Make | Canon | Casio |
| Model | Canon PowerShot SX540 HS | Casio Exilim EX-H15 |
| Category | Small Sensor Superzoom | Small Sensor Compact |
| Introduced | 2016-01-05 | 2010-01-06 |
| Body design | SLR-like (bridge) | Compact |
| Sensor Information | ||
| Processor Chip | DIGIC 6 | - |
| Sensor type | BSI-CMOS | CCD |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
| Sensor surface area | 28.1mm² | 28.1mm² |
| Sensor resolution | 20 megapixel | 14 megapixel |
| Anti aliasing filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3, 3:2 and 16:9 |
| Highest Possible resolution | 5184 x 3888 | 4320 x 3240 |
| Maximum native ISO | 3200 | 3200 |
| Min native ISO | 80 | 64 |
| RAW files | ||
| Autofocusing | ||
| Focus manually | ||
| Touch to focus | ||
| AF continuous | ||
| Single AF | ||
| Tracking AF | ||
| AF selectice | ||
| AF center weighted | ||
| Multi area AF | ||
| Live view AF | ||
| Face detection focusing | ||
| Contract detection focusing | ||
| Phase detection focusing | ||
| Lens | ||
| Lens mount | fixed lens | fixed lens |
| Lens focal range | 24-1200mm (50.0x) | 24-240mm (10.0x) |
| Highest aperture | f/3.4-6.5 | f/3.2-5.7 |
| Macro focus range | 0cm | - |
| Crop factor | 5.8 | 5.8 |
| Screen | ||
| Screen type | Fixed Type | Fixed Type |
| Screen sizing | 3 inches | 3 inches |
| Resolution of screen | 461k dot | 461k dot |
| Selfie friendly | ||
| Liveview | ||
| Touch friendly | ||
| Viewfinder Information | ||
| Viewfinder type | None | None |
| Features | ||
| Minimum shutter speed | 15s | 4s |
| Fastest shutter speed | 1/2000s | 1/2000s |
| Continuous shutter speed | 5.9 frames/s | - |
| Shutter priority | ||
| Aperture priority | ||
| Manually set exposure | ||
| Exposure compensation | Yes | - |
| Change WB | ||
| Image stabilization | ||
| Integrated flash | ||
| Flash range | 5.50 m (at Auto ISO) | - |
| Flash options | Auto, on, off, slow synchro | Auto, flash off, flash on, red eye reduction |
| External flash | ||
| AEB | ||
| WB bracketing | ||
| Exposure | ||
| Multisegment metering | ||
| Average metering | ||
| Spot metering | ||
| Partial metering | ||
| AF area metering | ||
| Center weighted metering | ||
| Video features | ||
| Video resolutions | 1920 x 1080 (60p, 30p), 1280 x 720 (30p), 640 x 480 (30p) | 1280 × 720 (30 fps) , 640 x 480 (30 fps), 320 x 240 (30 fps) |
| Maximum video resolution | 1920x1080 | 640x480 |
| Video file format | MPEG-4, H.264 | Motion JPEG |
| Mic input | ||
| Headphone input | ||
| Connectivity | ||
| Wireless | Built-In | Eye-Fi Connected |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environment seal | ||
| Water proof | ||
| Dust proof | ||
| Shock proof | ||
| Crush proof | ||
| Freeze proof | ||
| Weight | 442 grams (0.97 pounds) | 161 grams (0.35 pounds) |
| Physical dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 101 x 60 x 28mm (4.0" x 2.4" x 1.1") |
| DXO scores | ||
| DXO Overall score | not tested | not tested |
| DXO Color Depth score | not tested | not tested |
| DXO Dynamic range score | not tested | not tested |
| DXO Low light score | not tested | not tested |
| Other | ||
| Battery life | 205 shots | - |
| Type of battery | Battery Pack | - |
| Battery model | NB-6LH | NP-90 |
| Self timer | Yes (2 or 10 secs, custom) | Yes (10 seconds, 2 seconds, Triple Self-timer) |
| Time lapse shooting | ||
| Type of storage | SD/SDHC/SDXC | SD/SDHC card, Internal |
| Storage slots | 1 | 1 |
| Price at release | $399 | $300 |
