Canon SX540 HS vs Kodak Astro Zoom AZ651
69 Imaging
45 Features
44 Overall
44


65 Imaging
45 Features
56 Overall
49
Canon SX540 HS vs Kodak Astro Zoom AZ651 Key Specs
(Full Review)
- 20MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1200mm (F3.4-6.5) lens
- 442g - 120 x 82 x 92mm
- Released January 2016
(Full Review)
- 21MP - 1/2.3" Sensor
- 3" Fully Articulated Screen
- ISO 100 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1560mm (F2.9-6.5) lens
- 567g - 125 x 114 x 89mm
- Released January 2014

Canon SX540 HS vs Kodak Astro Zoom AZ651 Overview
Let's look more closely at the Canon SX540 HS versus Kodak Astro Zoom AZ651, both Small Sensor Superzoom digital cameras by rivals Canon and Kodak. The resolution of the SX540 HS (20MP) and the Astro Zoom AZ651 (21MP) is relatively similar and both cameras have the same sensor measurements (1/2.3").

The SX540 HS was manufactured 2 years after the Astro Zoom AZ651 which is quite a significant gap as far as technology is concerned. Both the cameras have the same body design (SLR-like (bridge)).
Before getting into a detailed comparison, here is a concise view of how the SX540 HS grades versus the Astro Zoom AZ651 with regard to portability, imaging, features and an overall score.

Canon SX540 HS vs Kodak Astro Zoom AZ651 Gallery
Here is a preview of the gallery photos for Canon PowerShot SX540 HS and Kodak Pixpro Astro Zoom AZ651. The entire galleries are provided at Canon SX540 HS Gallery and Kodak Astro Zoom AZ651 Gallery.
Reasons to pick Canon SX540 HS over the Kodak Astro Zoom AZ651
SX540 HS | Astro Zoom AZ651 | |||
---|---|---|---|---|
Released | January 2016 | ![]() | January 2014 | More modern by 25 months |
Reasons to pick Kodak Astro Zoom AZ651 over the Canon SX540 HS
Astro Zoom AZ651 | SX540 HS | |||
---|---|---|---|---|
Screen type | Fully Articulated | ![]() | Fixed | Fully Articulating screen |
Screen resolution | 920k | ![]() | 461k | Sharper screen (+459k dot) |
Selfie screen | ![]() | Take selfies |
Common features in the Canon SX540 HS and Kodak Astro Zoom AZ651
SX540 HS | Astro Zoom AZ651 | |||
---|---|---|---|---|
Manually focus | ![]() | Dial precise focusing | ||
Screen dimensions | 3" | ![]() | 3" | Equal screen measurements |
Touch screen | ![]() | No Touch screen |

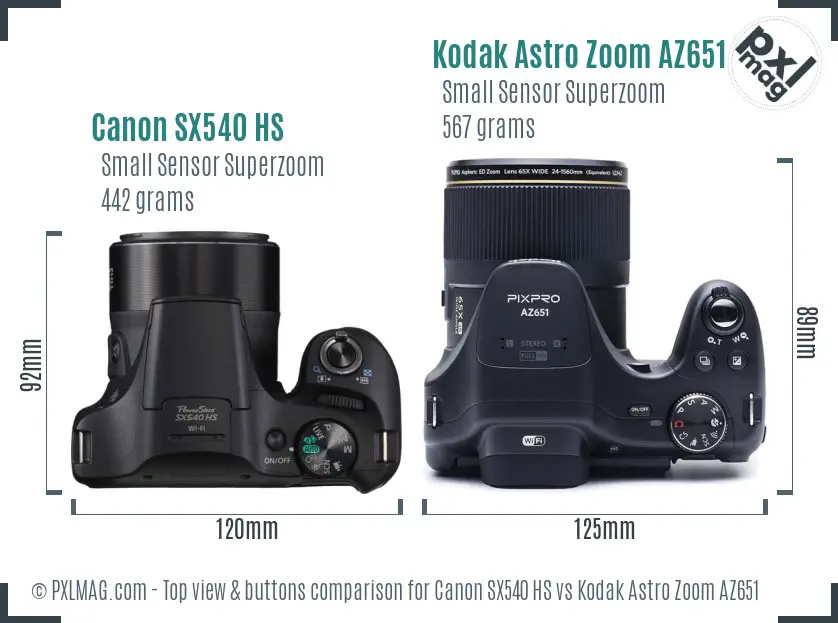

Canon SX540 HS vs Kodak Astro Zoom AZ651 Physical Comparison
For anybody who is intending to carry around your camera frequently, you are going to need to think about its weight and measurements. The Canon SX540 HS features outer dimensions of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") along with a weight of 442 grams (0.97 lbs) whilst the Kodak Astro Zoom AZ651 has proportions of 125mm x 114mm x 89mm (4.9" x 4.5" x 3.5") having a weight of 567 grams (1.25 lbs).
Examine the Canon SX540 HS versus Kodak Astro Zoom AZ651 in the latest Camera with Lens Size Comparison Tool.

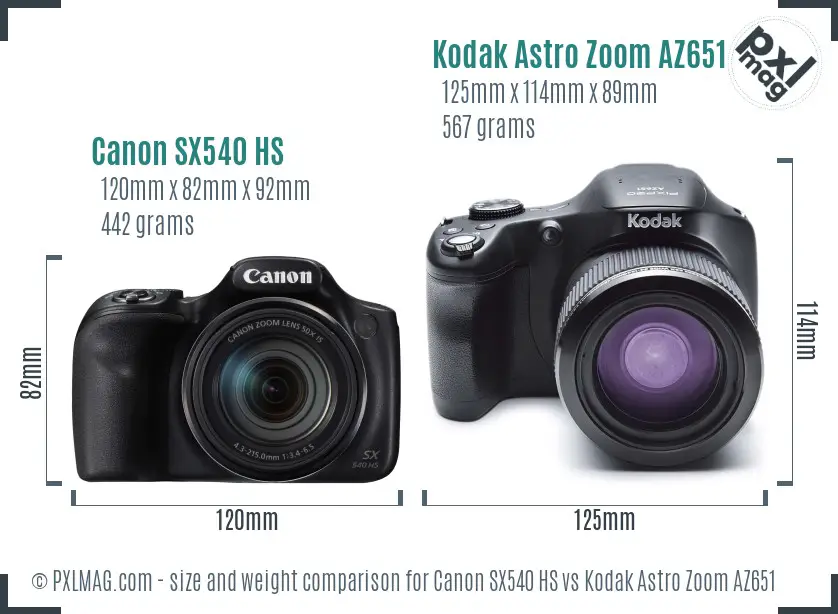

Don't forget, the weight of an Interchangeable Lens Camera will change depending on the lens you are working with at the time. Here is a front view scale comparison of the SX540 HS and the Astro Zoom AZ651.

Taking into consideration dimensions and weight, the portability score of the SX540 HS and Astro Zoom AZ651 is 69 and 65 respectively.

Canon SX540 HS vs Kodak Astro Zoom AZ651 Sensor Comparison
Quite often, it's hard to imagine the gap between sensor sizes merely by reviewing specifications. The pic underneath will help offer you a greater sense of the sensor dimensions in the SX540 HS and Astro Zoom AZ651.
Plainly, each of these cameras have the same sensor dimensions albeit different resolution. You should count on the Kodak Astro Zoom AZ651 to offer you more detail due to its extra 1 Megapixels. Higher resolution will enable you to crop photographs a bit more aggressively. The newer SX540 HS should have an edge when it comes to sensor innovation.

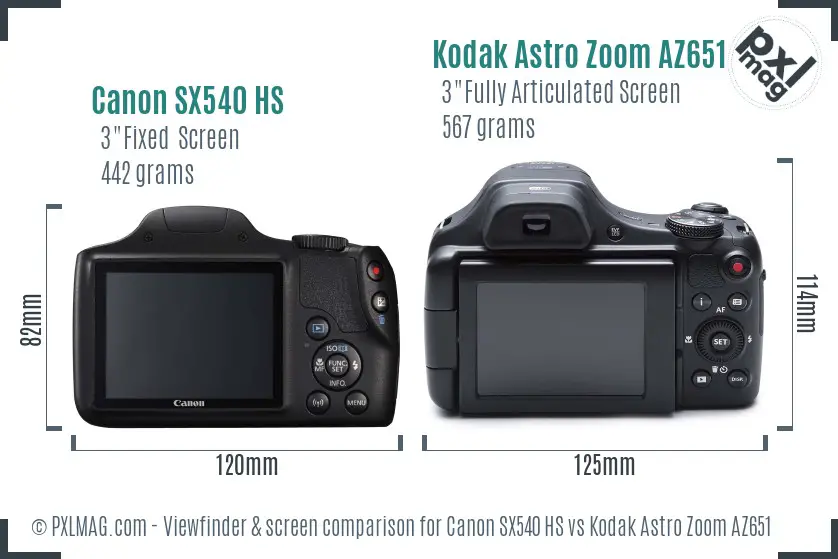

Canon SX540 HS vs Kodak Astro Zoom AZ651 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Canon SX540 HS vs Kodak Astro Zoom AZ651 Specifications
Canon PowerShot SX540 HS | Kodak Pixpro Astro Zoom AZ651 | |
---|---|---|
General Information | ||
Brand Name | Canon | Kodak |
Model type | Canon PowerShot SX540 HS | Kodak Pixpro Astro Zoom AZ651 |
Category | Small Sensor Superzoom | Small Sensor Superzoom |
Released | 2016-01-05 | 2014-01-07 |
Physical type | SLR-like (bridge) | SLR-like (bridge) |
Sensor Information | ||
Powered by | DIGIC 6 | - |
Sensor type | BSI-CMOS | CMOS |
Sensor size | 1/2.3" | 1/2.3" |
Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
Sensor surface area | 28.1mm² | 28.1mm² |
Sensor resolution | 20MP | 21MP |
Anti alias filter | ||
Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 3:2 and 16:9 |
Highest Possible resolution | 5184 x 3888 | 5184 x 3888 |
Maximum native ISO | 3200 | 3200 |
Lowest native ISO | 80 | 100 |
RAW files | ||
Autofocusing | ||
Focus manually | ||
Touch to focus | ||
Continuous AF | ||
AF single | ||
Tracking AF | ||
AF selectice | ||
Center weighted AF | ||
AF multi area | ||
Live view AF | ||
Face detection focusing | ||
Contract detection focusing | ||
Phase detection focusing | ||
Total focus points | - | 25 |
Lens | ||
Lens mount type | fixed lens | fixed lens |
Lens zoom range | 24-1200mm (50.0x) | 24-1560mm (65.0x) |
Highest aperture | f/3.4-6.5 | f/2.9-6.5 |
Macro focusing range | 0cm | 3cm |
Crop factor | 5.8 | 5.8 |
Screen | ||
Screen type | Fixed Type | Fully Articulated |
Screen size | 3 inch | 3 inch |
Resolution of screen | 461 thousand dots | 920 thousand dots |
Selfie friendly | ||
Liveview | ||
Touch friendly | ||
Viewfinder Information | ||
Viewfinder type | None | Electronic |
Viewfinder coverage | - | 100% |
Features | ||
Minimum shutter speed | 15 seconds | - |
Fastest shutter speed | 1/2000 seconds | 1/2000 seconds |
Continuous shutter rate | 5.9 frames per sec | 9.0 frames per sec |
Shutter priority | ||
Aperture priority | ||
Expose Manually | ||
Exposure compensation | Yes | Yes |
Change WB | ||
Image stabilization | ||
Inbuilt flash | ||
Flash distance | 5.50 m (at Auto ISO) | - |
Flash modes | Auto, on, off, slow synchro | - |
External flash | ||
AE bracketing | ||
White balance bracketing | ||
Exposure | ||
Multisegment | ||
Average | ||
Spot | ||
Partial | ||
AF area | ||
Center weighted | ||
Video features | ||
Video resolutions | 1920 x 1080 (60p, 30p), 1280 x 720 (30p), 640 x 480 (30p) | 1920 x 1080 |
Maximum video resolution | 1920x1080 | 1920x1080 |
Video file format | MPEG-4, H.264 | - |
Mic support | ||
Headphone support | ||
Connectivity | ||
Wireless | Built-In | Built-In |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | none |
GPS | None | None |
Physical | ||
Environment sealing | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 442 grams (0.97 lb) | 567 grams (1.25 lb) |
Physical dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 125 x 114 x 89mm (4.9" x 4.5" x 3.5") |
DXO scores | ||
DXO Overall rating | not tested | not tested |
DXO Color Depth rating | not tested | not tested |
DXO Dynamic range rating | not tested | not tested |
DXO Low light rating | not tested | not tested |
Other | ||
Battery life | 205 pictures | - |
Type of battery | Battery Pack | - |
Battery ID | NB-6LH | - |
Self timer | Yes (2 or 10 secs, custom) | - |
Time lapse shooting | ||
Type of storage | SD/SDHC/SDXC | - |
Card slots | One | One |
Launch pricing | $399 | $419 |
