Canon SX540 HS vs Ricoh CX1
69 Imaging
45 Features
44 Overall
44
93 Imaging
32 Features
30 Overall
31
Canon SX540 HS vs Ricoh CX1 Key Specs
(Full Review)
- 20MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1200mm (F3.4-6.5) lens
- 442g - 120 x 82 x 92mm
- Released January 2016
(Full Review)
- 9MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 1600
- Sensor-shift Image Stabilization
- 640 x 480 video
- 28-200mm (F3.3-5.2) lens
- 180g - 102 x 58 x 28mm
- Announced February 2009
Snapchat Adds Watermarks to AI-Created Images Canon SX540 HS vs Ricoh CX1 Overview
On this page, we are analyzing the Canon SX540 HS vs Ricoh CX1, one is a Small Sensor Superzoom and the other is a Small Sensor Compact by competitors Canon and Ricoh. There is a huge difference among the resolutions of the SX540 HS (20MP) and CX1 (9MP) but both cameras have the same sensor sizes (1/2.3").
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modesThe SX540 HS was launched 6 years after the CX1 which is a fairly significant gap as far as camera tech is concerned. Both of these cameras have different body design with the Canon SX540 HS being a SLR-like (bridge) camera and the Ricoh CX1 being a Compact camera.
Before diving straight to a thorough comparison, here is a simple highlight of how the SX540 HS scores against the CX1 with regard to portability, imaging, features and an overall score.
Photography Glossary Canon SX540 HS vs Ricoh CX1 Gallery
The following is a sample of the gallery pictures for Canon PowerShot SX540 HS and Ricoh CX1. The complete galleries are provided at Canon SX540 HS Gallery and Ricoh CX1 Gallery.
Reasons to pick Canon SX540 HS over the Ricoh CX1
| SX540 HS | CX1 | |||
|---|---|---|---|---|
| Announced | January 2016 |  | February 2009 | More modern by 84 months |
Reasons to pick Ricoh CX1 over the Canon SX540 HS
| CX1 | SX540 HS | |||
|---|---|---|---|---|
| Display resolution | 920k |  | 461k | Sharper display (+459k dot) |
Common features in the Canon SX540 HS and Ricoh CX1
| SX540 HS | CX1 | |||
|---|---|---|---|---|
| Focus manually |  | Very exact focusing | ||
| Display type | Fixed |  | Fixed | Fixed display |
| Display dimensions | 3" |  | 3" | Equal display dimensions |
| Selfie screen |  | Neither offers selfie screen | ||
| Touch display |  | Neither offers Touch display |
Canon SX540 HS vs Ricoh CX1 Physical Comparison
If you are planning to carry around your camera frequently, you'll have to take into account its weight and volume. The Canon SX540 HS offers outside measurements of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") with a weight of 442 grams (0.97 lbs) whilst the Ricoh CX1 has sizing of 102mm x 58mm x 28mm (4.0" x 2.3" x 1.1") with a weight of 180 grams (0.40 lbs).
Check the Canon SX540 HS vs Ricoh CX1 in the latest Camera with Lens Size Comparison Tool.

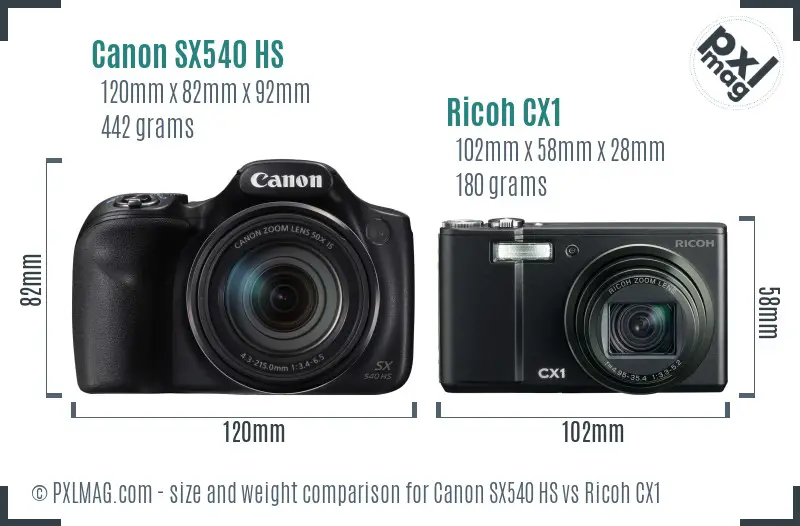

Take into consideration, the weight of an Interchangeable Lens Camera will vary depending on the lens you have chosen at the time. Following is a front view sizing comparison of the SX540 HS versus the CX1.
Factoring in size and weight, the portability rating of the SX540 HS and CX1 is 69 and 93 respectively.
Canon SX540 HS vs Ricoh CX1 Sensor Comparison

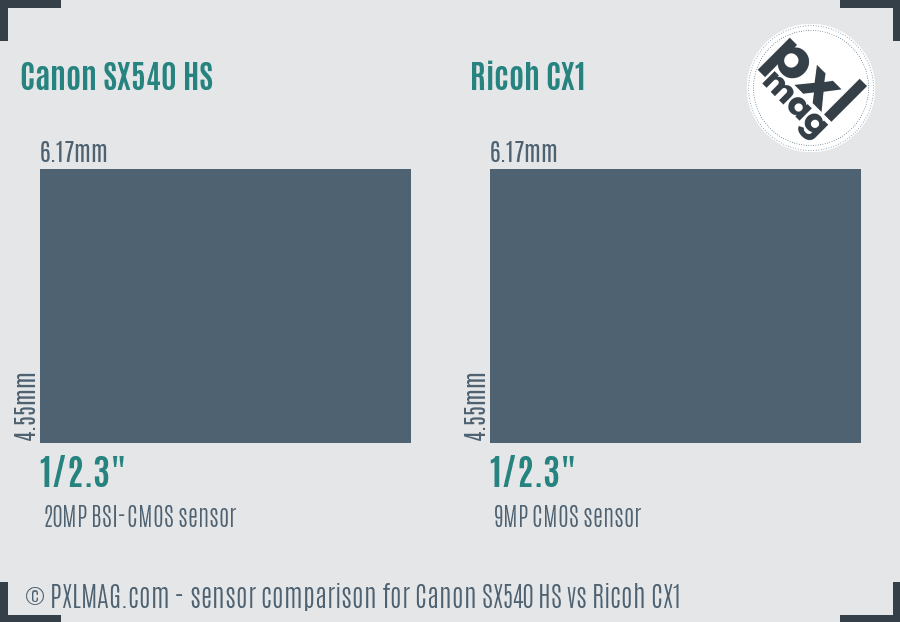

Generally, it is tough to imagine the gap in sensor sizes just by seeing technical specs. The picture below will offer you a better sense of the sensor measurements in the SX540 HS and CX1.
As you can tell, each of these cameras have the same sensor dimensions but different resolution. You should anticipate the Canon SX540 HS to produce more detail utilizing its extra 11MP. Greater resolution will also let you crop photos a bit more aggressively. The fresher SX540 HS should have an edge when it comes to sensor tech.

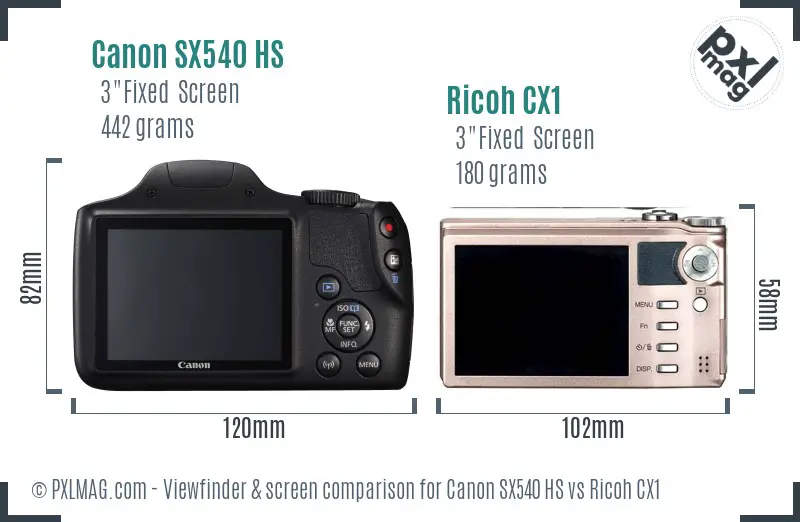

Canon SX540 HS vs Ricoh CX1 Screen and ViewFinder
Meta to Introduce 'AI-Generated' Labels for Media starting next month Photography Type Scores
Portrait Comparison
President Biden pushes bill mandating TikTok sale or banStreet Comparison
Pentax 17 Pre-Orders Outperform Expectations by a LandslideSports Comparison
Samsung Releases Faster Versions of EVO MicroSD CardsTravel Comparison
Sora from OpenAI releases its first ever music videoLandscape Comparison
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneVlogging Comparison
Photobucket discusses licensing 13 billion images with AI firms
Canon SX540 HS vs Ricoh CX1 Specifications
| Canon PowerShot SX540 HS | Ricoh CX1 | |
|---|---|---|
| General Information | ||
| Company | Canon | Ricoh |
| Model type | Canon PowerShot SX540 HS | Ricoh CX1 |
| Type | Small Sensor Superzoom | Small Sensor Compact |
| Released | 2016-01-05 | 2009-02-19 |
| Physical type | SLR-like (bridge) | Compact |
| Sensor Information | ||
| Processor Chip | DIGIC 6 | Smooth Imaging Engine IV |
| Sensor type | BSI-CMOS | CMOS |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
| Sensor surface area | 28.1mm² | 28.1mm² |
| Sensor resolution | 20MP | 9MP |
| Anti alias filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 1:1, 4:3 and 3:2 |
| Maximum resolution | 5184 x 3888 | 3456 x 2592 |
| Maximum native ISO | 3200 | 1600 |
| Minimum native ISO | 80 | 80 |
| RAW photos | ||
| Autofocusing | ||
| Focus manually | ||
| Touch to focus | ||
| Continuous autofocus | ||
| Single autofocus | ||
| Tracking autofocus | ||
| Autofocus selectice | ||
| Autofocus center weighted | ||
| Autofocus multi area | ||
| Live view autofocus | ||
| Face detect autofocus | ||
| Contract detect autofocus | ||
| Phase detect autofocus | ||
| Lens | ||
| Lens mount type | fixed lens | fixed lens |
| Lens zoom range | 24-1200mm (50.0x) | 28-200mm (7.1x) |
| Maximum aperture | f/3.4-6.5 | f/3.3-5.2 |
| Macro focusing distance | 0cm | 1cm |
| Focal length multiplier | 5.8 | 5.8 |
| Screen | ||
| Display type | Fixed Type | Fixed Type |
| Display sizing | 3" | 3" |
| Display resolution | 461k dots | 920k dots |
| Selfie friendly | ||
| Liveview | ||
| Touch display | ||
| Viewfinder Information | ||
| Viewfinder type | None | None |
| Features | ||
| Slowest shutter speed | 15s | 8s |
| Maximum shutter speed | 1/2000s | 1/2000s |
| Continuous shooting rate | 5.9 frames/s | - |
| Shutter priority | ||
| Aperture priority | ||
| Manually set exposure | ||
| Exposure compensation | Yes | - |
| Custom white balance | ||
| Image stabilization | ||
| Inbuilt flash | ||
| Flash distance | 5.50 m (at Auto ISO) | 3.00 m |
| Flash options | Auto, on, off, slow synchro | Auto, On, Off, Red-Eye, Slow Sync |
| External flash | ||
| AE bracketing | ||
| White balance bracketing | ||
| Exposure | ||
| Multisegment | ||
| Average | ||
| Spot | ||
| Partial | ||
| AF area | ||
| Center weighted | ||
| Video features | ||
| Video resolutions | 1920 x 1080 (60p, 30p), 1280 x 720 (30p), 640 x 480 (30p) | 640 x 480 (30 fps), 320 x 240 (30 fps) |
| Maximum video resolution | 1920x1080 | 640x480 |
| Video file format | MPEG-4, H.264 | Motion JPEG |
| Mic port | ||
| Headphone port | ||
| Connectivity | ||
| Wireless | Built-In | None |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environmental sealing | ||
| Water proofing | ||
| Dust proofing | ||
| Shock proofing | ||
| Crush proofing | ||
| Freeze proofing | ||
| Weight | 442 grams (0.97 pounds) | 180 grams (0.40 pounds) |
| Physical dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 102 x 58 x 28mm (4.0" x 2.3" x 1.1") |
| DXO scores | ||
| DXO All around rating | not tested | not tested |
| DXO Color Depth rating | not tested | not tested |
| DXO Dynamic range rating | not tested | not tested |
| DXO Low light rating | not tested | not tested |
| Other | ||
| Battery life | 205 pictures | - |
| Battery type | Battery Pack | - |
| Battery ID | NB-6LH | DB-70 |
| Self timer | Yes (2 or 10 secs, custom) | Yes (2, 10 or Custom) |
| Time lapse feature | ||
| Type of storage | SD/SDHC/SDXC | SD/SDHC card, Internal |
| Card slots | One | One |
| Pricing at launch | $399 | $299 |
