Canon SX540 HS vs Samsung PL170
69 Imaging
45 Features
44 Overall
44
99 Imaging
38 Features
20 Overall
30
Canon SX540 HS vs Samsung PL170 Key Specs
(Full Review)
- 20MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1200mm (F3.4-6.5) lens
- 442g - 120 x 82 x 92mm
- Released January 2016
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 0 - 3200
- 1280 x 720 video
- ()mm (F) lens
- n/ag - 95 x 57 x 19mm
- Introduced January 2011
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone Canon SX540 HS vs Samsung PL170 Overview
Lets look more closely at the Canon SX540 HS and Samsung PL170, one is a Small Sensor Superzoom and the other is a Ultracompact by competitors Canon and Samsung. There is a significant difference between the image resolutions of the SX540 HS (20MP) and PL170 (16MP) but both cameras posses the same sensor sizing (1/2.3").
Photography GlossaryThe SX540 HS was unveiled 5 years after the PL170 which is quite a sizable gap as far as tech is concerned. The two cameras have different body design with the Canon SX540 HS being a SLR-like (bridge) camera and the Samsung PL170 being a Ultracompact camera.
Before diving straight to a step-by-step comparison, here is a brief highlight of how the SX540 HS matches up against the PL170 in terms of portability, imaging, features and an overall mark.
Photobucket discusses licensing 13 billion images with AI firms Canon SX540 HS vs Samsung PL170 Gallery
Following is a sample of the gallery pictures for Canon PowerShot SX540 HS and Samsung PL170. The full galleries are provided at Canon SX540 HS Gallery and Samsung PL170 Gallery.
Reasons to pick Canon SX540 HS over the Samsung PL170
| SX540 HS | PL170 | |||
|---|---|---|---|---|
| Introduced | January 2016 |  | January 2011 | Newer by 61 months |
| Manually focus |  | More precise focus | ||
| Display resolution | 461k |  | 230k | Crisper display (+231k dot) |
Reasons to pick Samsung PL170 over the Canon SX540 HS
| PL170 | SX540 HS |
|---|
Common features in the Canon SX540 HS and Samsung PL170
| SX540 HS | PL170 | |||
|---|---|---|---|---|
| Display type | Fixed |  | Fixed | Fixed display |
| Display dimensions | 3" |  | 3" | Equal display measurement |
| Selfie screen |  | Neither provides selfie screen | ||
| Touch display |  | Neither provides Touch display |
Canon SX540 HS vs Samsung PL170 Physical Comparison
When you are going to travel with your camera regularly, you will need to take into account its weight and size. The Canon SX540 HS provides exterior measurements of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") accompanied by a weight of 442 grams (0.97 lbs) and the Samsung PL170 has specifications of 95mm x 57mm x 19mm (3.7" x 2.2" x 0.7") along with a weight of n/a grams (0.00 lbs).
Check out the Canon SX540 HS and Samsung PL170 in the all new Camera with Lens Size Comparison Tool.

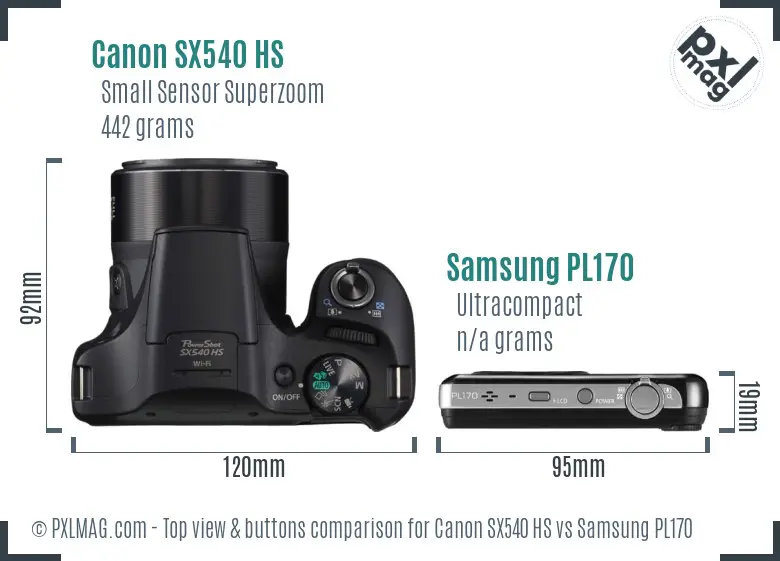

Always remember, the weight of an Interchangeable Lens Camera will vary dependant on the lens you use during that time. Here is a front view size comparison of the SX540 HS against the PL170.
Looking at size and weight, the portability score of the SX540 HS and PL170 is 69 and 99 respectively.
Canon SX540 HS vs Samsung PL170 Sensor Comparison
Usually, it is very tough to envision the contrast between sensor dimensions just by reading specifications. The image here will help provide you a better sense of the sensor measurements in the SX540 HS and PL170.
Plainly, the 2 cameras provide the same sensor dimensions but not the same MP. You should anticipate the Canon SX540 HS to offer you greater detail having an extra 4MP. Greater resolution will help you crop photos more aggressively. The fresher SX540 HS will have an edge in sensor innovation.

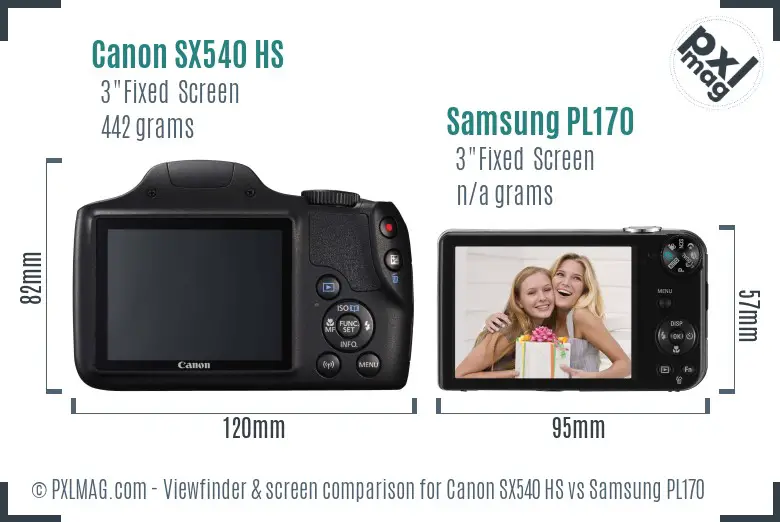

Canon SX540 HS vs Samsung PL170 Screen and ViewFinder
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes Photography Type Scores
Portrait Comparison
President Biden pushes bill mandating TikTok sale or banStreet Comparison
Snapchat Adds Watermarks to AI-Created ImagesSports Comparison
Sora from OpenAI releases its first ever music videoTravel Comparison
Pentax 17 Pre-Orders Outperform Expectations by a LandslideLandscape Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthVlogging Comparison
Samsung Releases Faster Versions of EVO MicroSD Cards
Canon SX540 HS vs Samsung PL170 Specifications
| Canon PowerShot SX540 HS | Samsung PL170 | |
|---|---|---|
| General Information | ||
| Brand Name | Canon | Samsung |
| Model | Canon PowerShot SX540 HS | Samsung PL170 |
| Type | Small Sensor Superzoom | Ultracompact |
| Released | 2016-01-05 | 2011-01-05 |
| Body design | SLR-like (bridge) | Ultracompact |
| Sensor Information | ||
| Chip | DIGIC 6 | - |
| Sensor type | BSI-CMOS | CCD |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor measurements | 6.17 x 4.55mm | 6.08 x 4.56mm |
| Sensor surface area | 28.1mm² | 27.7mm² |
| Sensor resolution | 20 megapixel | 16 megapixel |
| Anti aliasing filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | - |
| Maximum resolution | 5184 x 3888 | 4608 x 3456 |
| Maximum native ISO | 3200 | 3200 |
| Min native ISO | 80 | - |
| RAW files | ||
| Autofocusing | ||
| Focus manually | ||
| Autofocus touch | ||
| Continuous autofocus | ||
| Autofocus single | ||
| Tracking autofocus | ||
| Autofocus selectice | ||
| Autofocus center weighted | ||
| Autofocus multi area | ||
| Live view autofocus | ||
| Face detection focus | ||
| Contract detection focus | ||
| Phase detection focus | ||
| Cross focus points | - | - |
| Lens | ||
| Lens mounting type | fixed lens | fixed lens |
| Lens focal range | 24-1200mm (50.0x) | () |
| Max aperture | f/3.4-6.5 | - |
| Macro focus range | 0cm | - |
| Focal length multiplier | 5.8 | 5.9 |
| Screen | ||
| Screen type | Fixed Type | Fixed Type |
| Screen diagonal | 3" | 3" |
| Screen resolution | 461 thousand dot | 230 thousand dot |
| Selfie friendly | ||
| Liveview | ||
| Touch screen | ||
| Viewfinder Information | ||
| Viewfinder type | None | None |
| Features | ||
| Slowest shutter speed | 15 secs | 8 secs |
| Maximum shutter speed | 1/2000 secs | 1/2000 secs |
| Continuous shooting speed | 5.9 frames per sec | - |
| Shutter priority | ||
| Aperture priority | ||
| Manual exposure | ||
| Exposure compensation | Yes | - |
| Set white balance | ||
| Image stabilization | ||
| Inbuilt flash | ||
| Flash range | 5.50 m (at Auto ISO) | - |
| Flash modes | Auto, on, off, slow synchro | - |
| Hot shoe | ||
| Auto exposure bracketing | ||
| WB bracketing | ||
| Exposure | ||
| Multisegment | ||
| Average | ||
| Spot | ||
| Partial | ||
| AF area | ||
| Center weighted | ||
| Video features | ||
| Video resolutions | 1920 x 1080 (60p, 30p), 1280 x 720 (30p), 640 x 480 (30p) | 1280 x 720 |
| Maximum video resolution | 1920x1080 | 1280x720 |
| Video file format | MPEG-4, H.264 | - |
| Microphone input | ||
| Headphone input | ||
| Connectivity | ||
| Wireless | Built-In | None |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | none |
| GPS | None | None |
| Physical | ||
| Environmental seal | ||
| Water proof | ||
| Dust proof | ||
| Shock proof | ||
| Crush proof | ||
| Freeze proof | ||
| Weight | 442 gr (0.97 pounds) | - |
| Physical dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 95 x 57 x 19mm (3.7" x 2.2" x 0.7") |
| DXO scores | ||
| DXO All around score | not tested | not tested |
| DXO Color Depth score | not tested | not tested |
| DXO Dynamic range score | not tested | not tested |
| DXO Low light score | not tested | not tested |
| Other | ||
| Battery life | 205 pictures | - |
| Battery format | Battery Pack | - |
| Battery model | NB-6LH | - |
| Self timer | Yes (2 or 10 secs, custom) | - |
| Time lapse feature | ||
| Type of storage | SD/SDHC/SDXC | - |
| Storage slots | 1 | 1 |
| Pricing at launch | $399 | $175 |
