Canon SX540 HS vs Sigma DP1x
69 Imaging
45 Features
44 Overall
44
88 Imaging
43 Features
27 Overall
36
Canon SX540 HS vs Sigma DP1x Key Specs
(Full Review)
- 20MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1200mm (F3.4-6.5) lens
- 442g - 120 x 82 x 92mm
- Revealed January 2016
(Full Review)
- 5MP - APS-C Sensor
- 2.5" Fixed Screen
- ISO 100 - 3200
- 320 x 240 video
- 28mm (F4.0) lens
- 250g - 113 x 60 x 50mm
- Introduced February 2010
- Old Model is Sigma DP1s
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone Canon SX540 HS vs Sigma DP1x Overview
Here, we will be evaluating the Canon SX540 HS versus Sigma DP1x, one is a Small Sensor Superzoom and the latter is a Large Sensor Compact by competitors Canon and Sigma. There is a big difference between the sensor resolutions of the SX540 HS (20MP) and DP1x (5MP) and the SX540 HS (1/2.3") and DP1x (APS-C) have totally different sensor size.
Sora from OpenAI releases its first ever music videoThe SX540 HS was launched 5 years after the DP1x which is quite a big gap as far as tech is concerned. Each of these cameras feature different body design with the Canon SX540 HS being a SLR-like (bridge) camera and the Sigma DP1x being a Large Sensor Compact camera.
Before getting straight to a in depth comparison, here is a brief highlight of how the SX540 HS grades against the DP1x with regard to portability, imaging, features and an overall score.
Photobucket discusses licensing 13 billion images with AI firms Canon SX540 HS vs Sigma DP1x Gallery
Below is a preview of the gallery photos for Canon PowerShot SX540 HS and Sigma DP1x. The complete galleries are provided at Canon SX540 HS Gallery and Sigma DP1x Gallery.
Reasons to pick Canon SX540 HS over the Sigma DP1x
| SX540 HS | DP1x | |||
|---|---|---|---|---|
| Introduced | January 2016 |  | February 2010 | More modern by 72 months |
| Screen size | 3" |  | 2.5" | Bigger screen (+0.5") |
| Screen resolution | 461k |  | 230k | Sharper screen (+231k dot) |
Reasons to pick Sigma DP1x over the Canon SX540 HS
| DP1x | SX540 HS |
|---|
Common features in the Canon SX540 HS and Sigma DP1x
| SX540 HS | DP1x | |||
|---|---|---|---|---|
| Focus manually |  | Very precise focusing | ||
| Screen type | Fixed |  | Fixed | Fixed screen |
| Selfie screen |  | Neither includes selfie screen | ||
| Touch screen |  | Neither includes Touch screen |

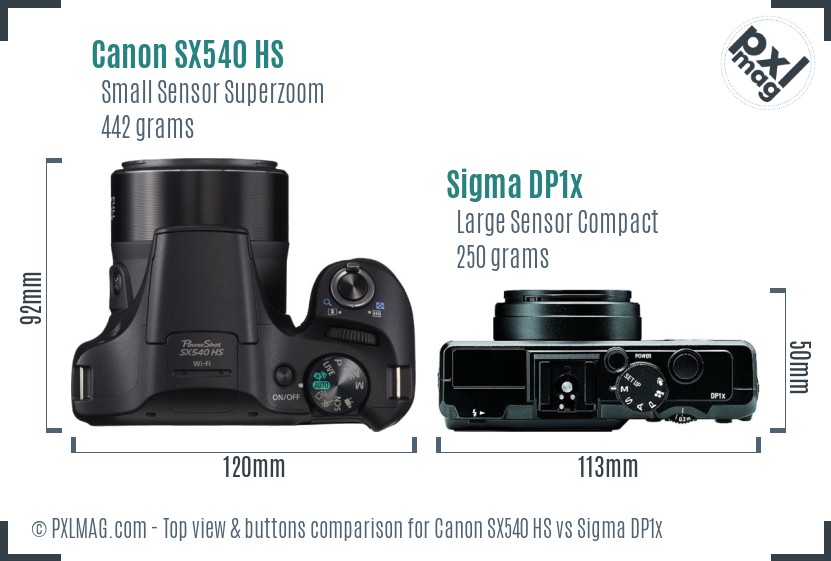

Canon SX540 HS vs Sigma DP1x Physical Comparison
If you are intending to carry around your camera, you will want to consider its weight and size. The Canon SX540 HS features outside measurements of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") along with a weight of 442 grams (0.97 lbs) and the Sigma DP1x has specifications of 113mm x 60mm x 50mm (4.4" x 2.4" x 2.0") having a weight of 250 grams (0.55 lbs).
Examine the Canon SX540 HS versus Sigma DP1x in the new Camera and Lens Size Comparison Tool.

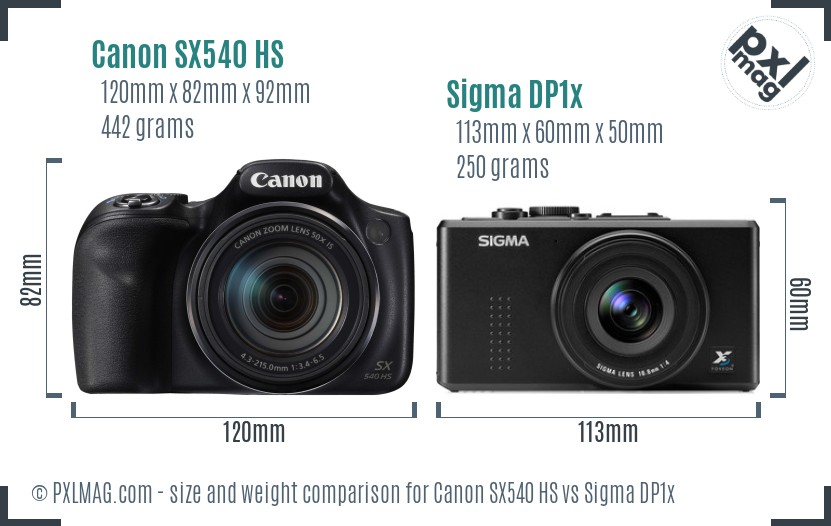

Keep in mind, the weight of an Interchangeable Lens Camera will differ based on the lens you have at the time. Below is a front view sizing comparison of the SX540 HS compared to the DP1x.
Taking into account size and weight, the portability rating of the SX540 HS and DP1x is 69 and 88 respectively.
Canon SX540 HS vs Sigma DP1x Sensor Comparison

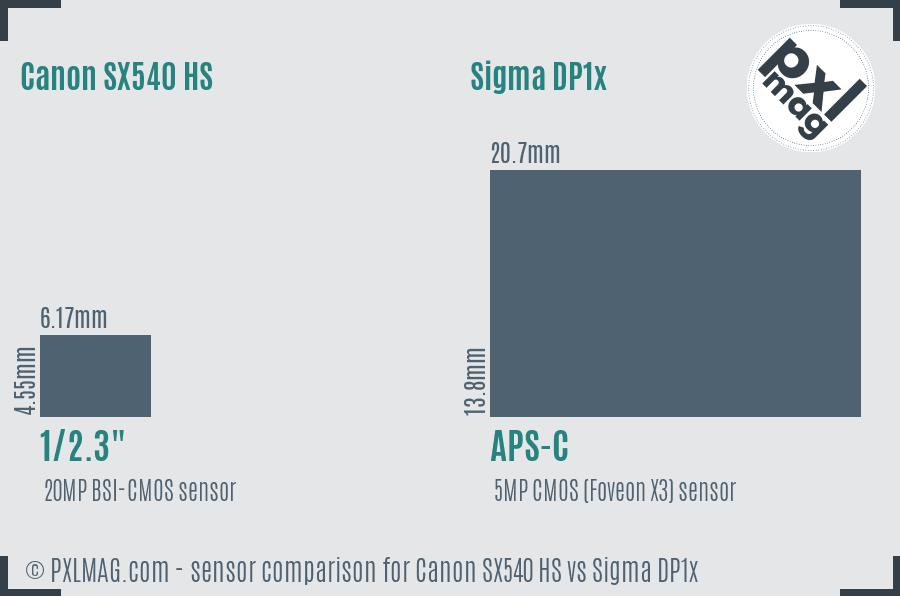

Oftentimes, it is tough to envision the contrast between sensor sizes only by reading specifications. The picture below will offer you a stronger sense of the sensor sizing in the SX540 HS and DP1x.
Plainly, both cameras come with different resolutions and different sensor sizes. The SX540 HS due to its tinier sensor will make achieving shallow DOF tougher and the Canon SX540 HS will offer more detail utilizing its extra 15MP. Higher resolution can also help you crop photographs a good deal more aggressively. The newer SX540 HS will have an edge when it comes to sensor technology.

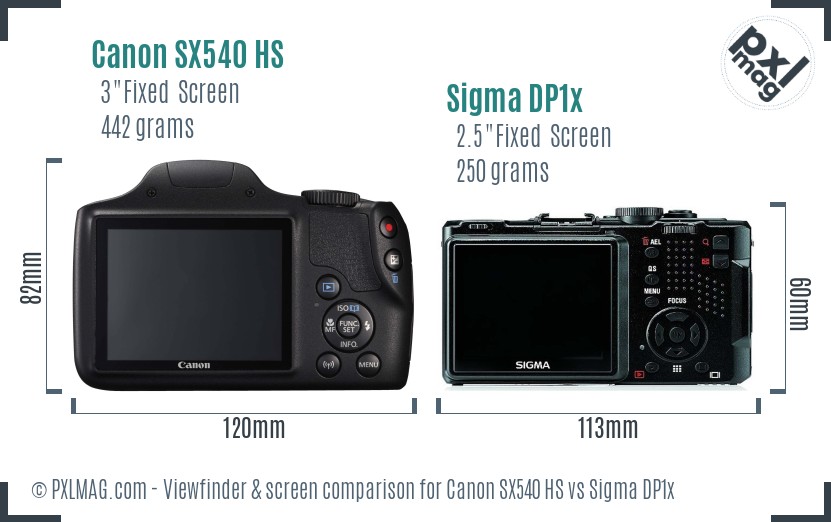

Canon SX540 HS vs Sigma DP1x Screen and ViewFinder
Snapchat Adds Watermarks to AI-Created Images Photography Type Scores
Portrait Comparison
President Biden pushes bill mandating TikTok sale or banStreet Comparison
Pentax 17 Pre-Orders Outperform Expectations by a LandslideSports Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthTravel Comparison
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modesLandscape Comparison
Samsung Releases Faster Versions of EVO MicroSD CardsVlogging Comparison
Photography Glossary
Canon SX540 HS vs Sigma DP1x Specifications
| Canon PowerShot SX540 HS | Sigma DP1x | |
|---|---|---|
| General Information | ||
| Company | Canon | Sigma |
| Model type | Canon PowerShot SX540 HS | Sigma DP1x |
| Type | Small Sensor Superzoom | Large Sensor Compact |
| Revealed | 2016-01-05 | 2010-02-20 |
| Physical type | SLR-like (bridge) | Large Sensor Compact |
| Sensor Information | ||
| Powered by | DIGIC 6 | True II |
| Sensor type | BSI-CMOS | CMOS (Foveon X3) |
| Sensor size | 1/2.3" | APS-C |
| Sensor measurements | 6.17 x 4.55mm | 20.7 x 13.8mm |
| Sensor area | 28.1mm² | 285.7mm² |
| Sensor resolution | 20MP | 5MP |
| Anti alias filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 3:2 |
| Highest Possible resolution | 5184 x 3888 | 2640 x 1760 |
| Maximum native ISO | 3200 | 3200 |
| Min native ISO | 80 | 100 |
| RAW support | ||
| Autofocusing | ||
| Manual focusing | ||
| Touch focus | ||
| Continuous autofocus | ||
| Single autofocus | ||
| Tracking autofocus | ||
| Autofocus selectice | ||
| Autofocus center weighted | ||
| Autofocus multi area | ||
| Live view autofocus | ||
| Face detect autofocus | ||
| Contract detect autofocus | ||
| Phase detect autofocus | ||
| Lens | ||
| Lens support | fixed lens | fixed lens |
| Lens zoom range | 24-1200mm (50.0x) | 28mm (1x) |
| Highest aperture | f/3.4-6.5 | f/4.0 |
| Macro focusing distance | 0cm | - |
| Crop factor | 5.8 | 1.7 |
| Screen | ||
| Type of display | Fixed Type | Fixed Type |
| Display size | 3 inches | 2.5 inches |
| Display resolution | 461 thousand dots | 230 thousand dots |
| Selfie friendly | ||
| Liveview | ||
| Touch operation | ||
| Viewfinder Information | ||
| Viewfinder | None | None |
| Features | ||
| Minimum shutter speed | 15 secs | 30 secs |
| Fastest shutter speed | 1/2000 secs | 1/4000 secs |
| Continuous shutter rate | 5.9 frames/s | - |
| Shutter priority | ||
| Aperture priority | ||
| Manual mode | ||
| Exposure compensation | Yes | Yes |
| Set white balance | ||
| Image stabilization | ||
| Inbuilt flash | ||
| Flash distance | 5.50 m (at Auto ISO) | - |
| Flash options | Auto, on, off, slow synchro | - |
| Hot shoe | ||
| AE bracketing | ||
| WB bracketing | ||
| Exposure | ||
| Multisegment exposure | ||
| Average exposure | ||
| Spot exposure | ||
| Partial exposure | ||
| AF area exposure | ||
| Center weighted exposure | ||
| Video features | ||
| Supported video resolutions | 1920 x 1080 (60p, 30p), 1280 x 720 (30p), 640 x 480 (30p) | 320 x 240 |
| Maximum video resolution | 1920x1080 | 320x240 |
| Video format | MPEG-4, H.264 | - |
| Microphone port | ||
| Headphone port | ||
| Connectivity | ||
| Wireless | Built-In | None |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 1.0 (1.5 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environment sealing | ||
| Water proofing | ||
| Dust proofing | ||
| Shock proofing | ||
| Crush proofing | ||
| Freeze proofing | ||
| Weight | 442g (0.97 lbs) | 250g (0.55 lbs) |
| Physical dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 113 x 60 x 50mm (4.4" x 2.4" x 2.0") |
| DXO scores | ||
| DXO Overall rating | not tested | not tested |
| DXO Color Depth rating | not tested | not tested |
| DXO Dynamic range rating | not tested | not tested |
| DXO Low light rating | not tested | not tested |
| Other | ||
| Battery life | 205 pictures | - |
| Battery type | Battery Pack | - |
| Battery ID | NB-6LH | - |
| Self timer | Yes (2 or 10 secs, custom) | Yes (10 sec) |
| Time lapse recording | ||
| Storage type | SD/SDHC/SDXC | SD/MMC card |
| Card slots | 1 | 1 |
| Price at release | $399 | $574 |
