Canon SX540 HS vs Sony W830
69 Imaging
46 Features
44 Overall
45
96 Imaging
44 Features
26 Overall
36
Canon SX540 HS vs Sony W830 Key Specs
(Full Review)
- 20MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1200mm (F3.4-6.5) lens
- 442g - 120 x 82 x 92mm
- Released January 2016
(Full Review)
- 20MP - 1/2.3" Sensor
- 2.7" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 1280 x 720 video
- 25-200mm (F3.3-6.3) lens
- 122g - 93 x 52 x 23mm
- Revealed January 2014
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone Canon SX540 HS vs Sony W830 Overview
Lets look much closer at the Canon SX540 HS and Sony W830, one being a Small Sensor Superzoom and the latter is a Ultracompact by rivals Canon and Sony. The sensor resolution of the SX540 HS (20MP) and the W830 (20MP) is pretty similar and they enjoy the same exact sensor size (1/2.3").
Meta to Introduce 'AI-Generated' Labels for Media starting next monthThe SX540 HS was revealed 2 years later than the W830 and that is quite a sizable gap as far as technology is concerned. Each of the cameras offer different body type with the Canon SX540 HS being a SLR-like (bridge) camera and the Sony W830 being a Ultracompact camera.
Before going through a detailed comparison, below is a concise introduction of how the SX540 HS matches up versus the W830 in regards to portability, imaging, features and an overall grade.
Pentax 17 Pre-Orders Outperform Expectations by a Landslide Canon SX540 HS vs Sony W830 Gallery
Following is a preview of the gallery images for Canon PowerShot SX540 HS and Sony Cyber-shot DSC-W830. The full galleries are available at Canon SX540 HS Gallery and Sony W830 Gallery.
Reasons to pick Canon SX540 HS over the Sony W830
| SX540 HS | W830 | |||
|---|---|---|---|---|
| Revealed | January 2016 |  | January 2014 | More recent by 25 months |
| Focus manually |  | Dial exact focus | ||
| Screen sizing | 3" |  | 2.7" | Bigger screen (+0.3") |
| Screen resolution | 461k |  | 230k | Sharper screen (+231k dot) |
Reasons to pick Sony W830 over the Canon SX540 HS
| W830 | SX540 HS |
|---|
Common features in the Canon SX540 HS and Sony W830
| SX540 HS | W830 | |||
|---|---|---|---|---|
| Screen type | Fixed |  | Fixed | Fixed screen |
| Selfie screen |  | Lack of selfie screen | ||
| Touch screen |  | Lack of Touch screen |

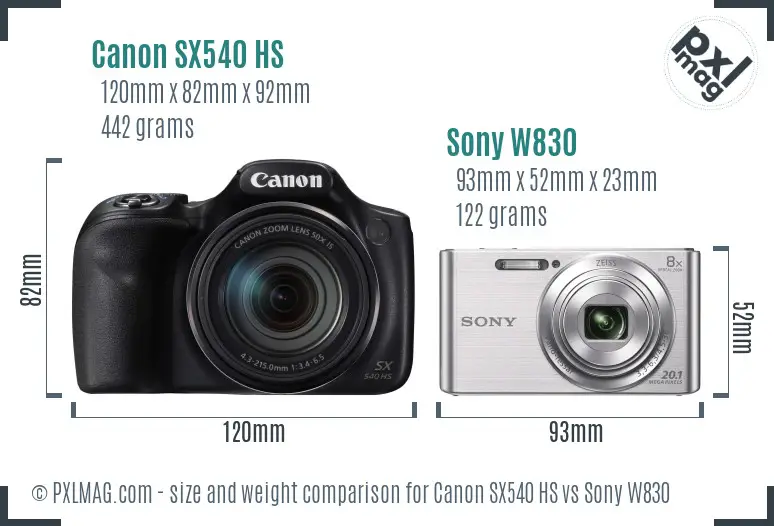

Canon SX540 HS vs Sony W830 Physical Comparison
For those who are aiming to lug around your camera frequently, you need to take into account its weight and volume. The Canon SX540 HS has external measurements of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") accompanied by a weight of 442 grams (0.97 lbs) and the Sony W830 has sizing of 93mm x 52mm x 23mm (3.7" x 2.0" x 0.9") and a weight of 122 grams (0.27 lbs).
Check the Canon SX540 HS and Sony W830 in the all new Camera with Lens Size Comparison Tool.
Take into consideration, the weight of an Interchangeable Lens Camera will change based on the lens you have attached during that time. Below is the front view overall size comparison of the SX540 HS against the W830.
Considering dimensions and weight, the portability rating of the SX540 HS and W830 is 69 and 96 respectively.
Canon SX540 HS vs Sony W830 Sensor Comparison
Normally, its difficult to picture the difference between sensor measurements merely by going over technical specs. The visual underneath might give you a better sense of the sensor measurements in the SX540 HS and W830.
As you have seen, both of these cameras enjoy the same exact sensor sizing and the same megapixels and you should expect similar quality of files although you will want to consider the release date of the products into consideration. The newer SX540 HS should have an edge in sensor tech.

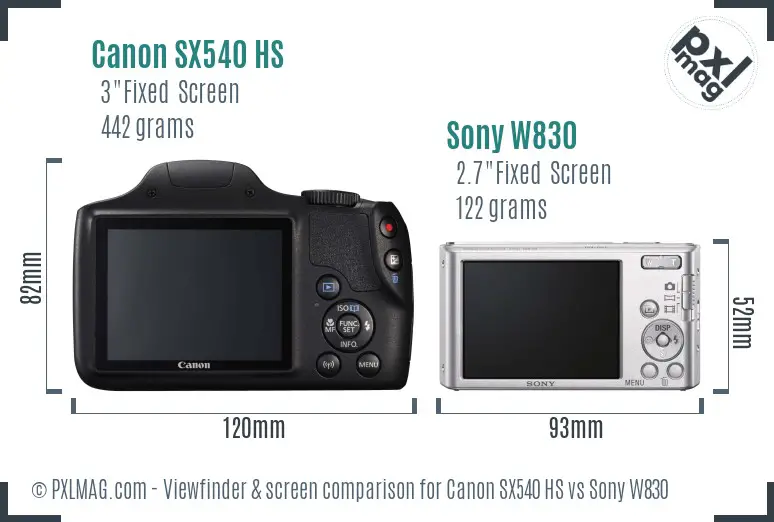

Canon SX540 HS vs Sony W830 Screen and ViewFinder
Photography Glossary Photography Type Scores
Portrait Comparison
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modesStreet Comparison
President Biden pushes bill mandating TikTok sale or banSports Comparison
Photobucket discusses licensing 13 billion images with AI firmsTravel Comparison
Samsung Releases Faster Versions of EVO MicroSD CardsLandscape Comparison
Snapchat Adds Watermarks to AI-Created ImagesVlogging Comparison
Sora from OpenAI releases its first ever music video
Canon SX540 HS vs Sony W830 Specifications
| Canon PowerShot SX540 HS | Sony Cyber-shot DSC-W830 | |
|---|---|---|
| General Information | ||
| Make | Canon | Sony |
| Model | Canon PowerShot SX540 HS | Sony Cyber-shot DSC-W830 |
| Category | Small Sensor Superzoom | Ultracompact |
| Released | 2016-01-05 | 2014-01-07 |
| Body design | SLR-like (bridge) | Ultracompact |
| Sensor Information | ||
| Chip | DIGIC 6 | Bionz |
| Sensor type | BSI-CMOS | CCD |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
| Sensor surface area | 28.1mm² | 28.1mm² |
| Sensor resolution | 20MP | 20MP |
| Anti aliasing filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3 and 16:9 |
| Highest resolution | 5184 x 3888 | 5152 x 3864 |
| Highest native ISO | 3200 | 3200 |
| Lowest native ISO | 80 | 80 |
| RAW data | ||
| Autofocusing | ||
| Focus manually | ||
| Touch to focus | ||
| Autofocus continuous | ||
| Single autofocus | ||
| Tracking autofocus | ||
| Selective autofocus | ||
| Center weighted autofocus | ||
| Multi area autofocus | ||
| Autofocus live view | ||
| Face detect autofocus | ||
| Contract detect autofocus | ||
| Phase detect autofocus | ||
| Cross focus points | - | - |
| Lens | ||
| Lens mounting type | fixed lens | fixed lens |
| Lens focal range | 24-1200mm (50.0x) | 25-200mm (8.0x) |
| Maximum aperture | f/3.4-6.5 | f/3.3-6.3 |
| Macro focus distance | 0cm | - |
| Crop factor | 5.8 | 5.8 |
| Screen | ||
| Range of display | Fixed Type | Fixed Type |
| Display size | 3 inch | 2.7 inch |
| Display resolution | 461 thousand dot | 230 thousand dot |
| Selfie friendly | ||
| Liveview | ||
| Touch display | ||
| Display technology | - | Clear Photo LCD |
| Viewfinder Information | ||
| Viewfinder type | None | None |
| Features | ||
| Slowest shutter speed | 15s | 2s |
| Maximum shutter speed | 1/2000s | 1/1600s |
| Continuous shooting speed | 5.9 frames/s | 1.0 frames/s |
| Shutter priority | ||
| Aperture priority | ||
| Expose Manually | ||
| Exposure compensation | Yes | - |
| Change white balance | ||
| Image stabilization | ||
| Integrated flash | ||
| Flash range | 5.50 m (at Auto ISO) | 2.80 m (with ISO auto) |
| Flash modes | Auto, on, off, slow synchro | Auto / Flash On / Slow Synchro / Flash Off / Advanced Flash |
| External flash | ||
| AEB | ||
| WB bracketing | ||
| Exposure | ||
| Multisegment exposure | ||
| Average exposure | ||
| Spot exposure | ||
| Partial exposure | ||
| AF area exposure | ||
| Center weighted exposure | ||
| Video features | ||
| Video resolutions | 1920 x 1080 (60p, 30p), 1280 x 720 (30p), 640 x 480 (30p) | 1280 x 720 (30 fps), 640 x 480 (30 fps) |
| Highest video resolution | 1920x1080 | 1280x720 |
| Video format | MPEG-4, H.264 | H.264 |
| Mic input | ||
| Headphone input | ||
| Connectivity | ||
| Wireless | Built-In | None |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environment seal | ||
| Water proof | ||
| Dust proof | ||
| Shock proof | ||
| Crush proof | ||
| Freeze proof | ||
| Weight | 442g (0.97 lbs) | 122g (0.27 lbs) |
| Dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 93 x 52 x 23mm (3.7" x 2.0" x 0.9") |
| DXO scores | ||
| DXO All around score | not tested | not tested |
| DXO Color Depth score | not tested | not tested |
| DXO Dynamic range score | not tested | not tested |
| DXO Low light score | not tested | not tested |
| Other | ||
| Battery life | 205 shots | - |
| Battery format | Battery Pack | - |
| Battery model | NB-6LH | NP-BN |
| Self timer | Yes (2 or 10 secs, custom) | Yes (2 or 10 secs) |
| Time lapse recording | ||
| Type of storage | SD/SDHC/SDXC | Memory Stick Duo/Pro Duo/Pro-HG Duo, microSD/microSDHC |
| Storage slots | Single | Single |
| Retail pricing | $399 | $128 |
