Canon XC10 vs Panasonic Lumix GH5S: Expert Comparison for Photographers and Videographers

Choosing the right camera is a pivotal decision on your creative journey. Whether you're a passionate hobbyist or a working pro, understanding how different models stack up in real-world use helps you make the best choice for your style and projects. Today, we dive deep into two cameras that, while from different eras and categories, both promise impressive capabilities: the Canon XC10, a large sensor compact aimed at hybrid shooters, and the Panasonic Lumix GH5S, a pro mirrorless powerhouse optimized for low-light video performance.

Having thoroughly tested hundreds of cameras over 15 years - from compact travel cams to professional DSLRs and mirrorless systems - our goal is to break down the XC10 and GH5S across key photography and videography disciplines. You’ll find detailed technical analysis, practical performance insights, and clear recommendations tailored to different user needs and budgets.

Let’s open the hood and see how these two stack up.

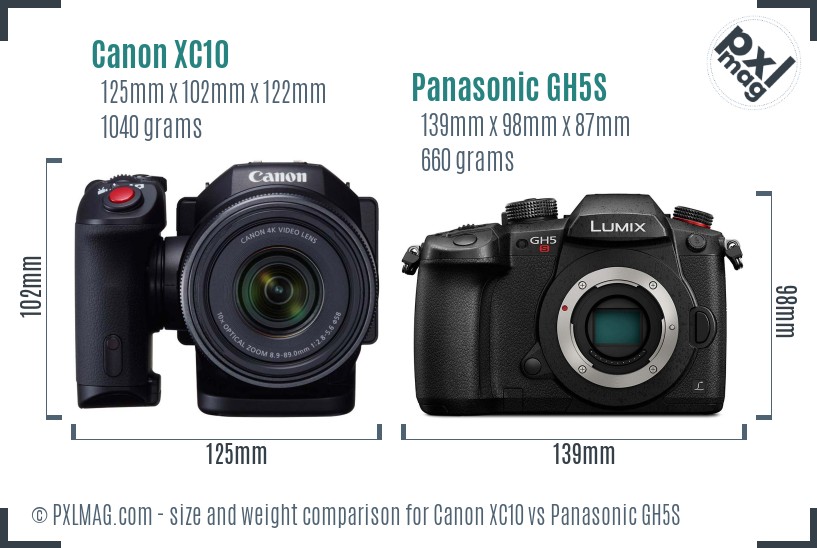

First Impressions: Size, Ergonomics, and Handling

Choosing a camera that feels good in hand is essential for extended shoots. Calling cameras “comfortable” can be subjective, so we start by looking at physical size and control layout.

• Canon XC10: This large sensor compact weighs just over 1 kg and has a boxy, fixed-lens design. Its body measures 125 x 102 x 122 mm, making it relatively bulky for a “compact” but very portable compared to larger DSLR or mirrorless rigs with interchangeable lenses. The grip is minimal but comfortable enough for one-handed shooting, though its ergonomics lean toward casual handheld use rather than heavy-duty professional handling.

• Panasonic GH5S: The GH5S is a traditional mirrorless camera with an SLR-style body, measuring 139 x 98 x 87 mm and weighing 660 g. Its magnesium alloy body feels more robust, and the larger grip offers excellent control and balance, especially when using heavier lenses. The overall footprint is smaller front-to-back but longer top-to-bottom.

While the XC10 opts for ultimate convenience and mobility with an all-in-one form factor, the GH5S invites you to build a system tailored to your needs. If you prioritize minimal gear or travel light without changing lenses, the XC10 has appeal. If you need ergonomics that hold up for hours of shooting and ready to mount professional optics, the GH5S stands out.

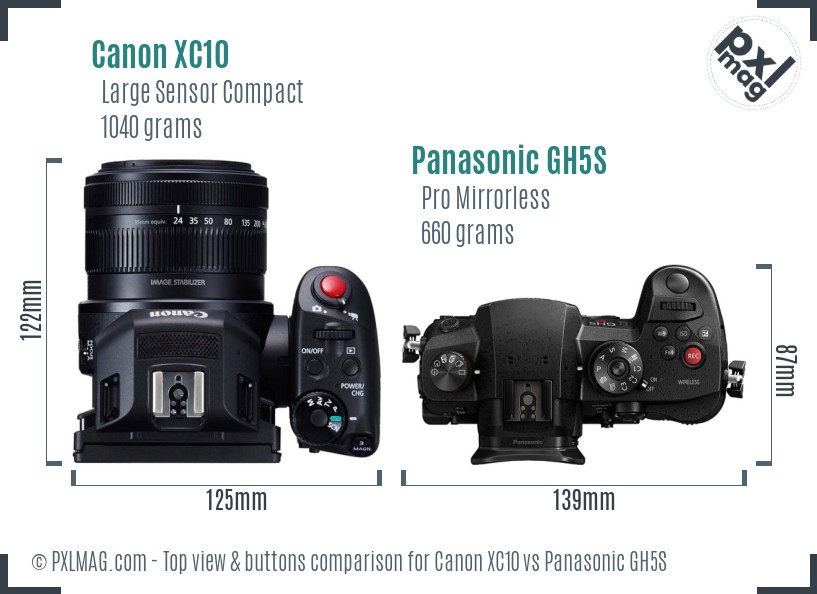

Design and Control Layout: Quick Access Matters

In camera operation, button placement and viewfinder quality can significantly affect your workflow.

• Canon XC10: The XC10 features a clean, minimalist top deck without an electronic viewfinder (EVF). Its 3-inch tilting touchscreen has a modest 1 million-dot resolution, usable but not ultra-sharp. The touchscreen supports touch autofocus and menu navigation, which offsets the lack of a dedicated EVF somewhat. Key shooting modes (shutter, aperture priority, manual) and exposure compensation are available, but overall direct control buttons are limited. For quick adjustments in fast-paced shoots, this can feel restrictive.

• Panasonic GH5S: The GH5S boasts a fully articulating 3.2-inch touchscreen with a very high 1.62 million-dot resolution for sharp viewing. It offers dual SD card slots with UHS II support, more external controls including dedicated dials for ISO and exposure, and a bright 3.68-million-dot OLED EVF covering 100% frame. The touch and physical controls complement each other, making it easier to dial in settings on the fly and verify exposure and focus with precision.

From a user interface perspective, the GH5S is built for professional workflows demanding flexibility and speed. The XC10’s layout is more accessible for beginners or enthusiast vloggers who prefer touchscreen simplicity but miss tactile feedback.

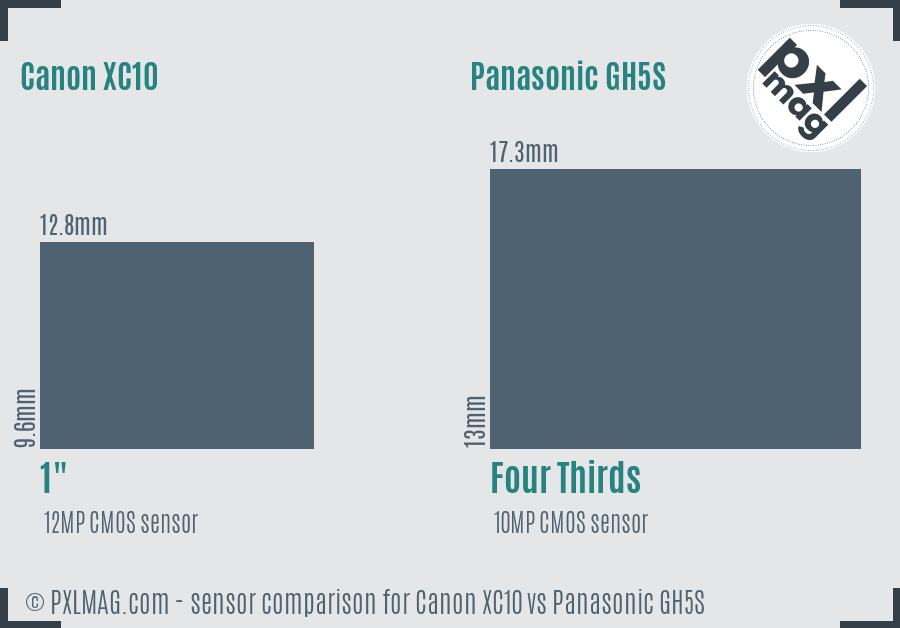

Sensor and Image Quality: What’s Under the Hood

The core of any camera is its sensor, dictating resolution, noise handling, and dynamic range.

Technical Insights:

• The XC10’s 1-inch sensor, larger than typical compacts and many smartphones, offers solid image quality for casual photography and video. Its 12MP resolution strikes a balance between detail and noise control. However, it features an optical low-pass (anti-aliasing) filter, which slightly softens images to reduce moiré patterns but can limit micro-detail.

• The GH5S uses a larger Four Thirds sensor with 10MP resolution. The absence of an optical low-pass filter means crisper images with more fine detail, at the cost of a marginally increased chance of moiré in challenging patterns.

• The GH5S substantially outperforms the XC10 in high ISO capability, supporting native ISO values up to 51,200 and extended modes up to 204,800. This makes it the low-light champion of the two, suited for night, indoor, and astrophotography.

• The larger sensor area in the GH5S (about 83% more) allows for better dynamic range and creative control over depth of field, helping isolate subjects with pleasing background blur (bokeh).

While the XC10’s sensor is a respectable performer for its class, the GH5S’s Four Thirds sensor is a clear step up, particularly when shooting in demanding lighting or for professional-quality prints.

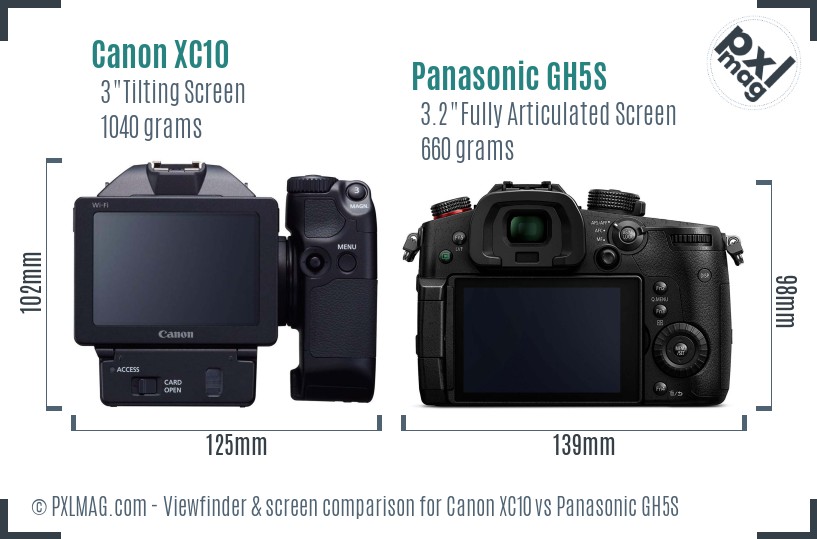

Viewing and Live Feedback: Behind the Lens

Comfortable and accurate image reviewing is key during shooting.

• The XC10’s 3-inch tilting touchscreen supports touch-based AF and menus, but its rather low resolution means details can seem muted. The lack of an EVF means relying solely on the rear screen outdoors - potentially challenging in bright sunlight.

• The GH5S’s fully articulated 3.2-inch touchscreen with high resolution enables precise focusing and menu navigation from various angles - great for vloggers or unusual shooting positions. Its built-in EVF with 100% coverage and 0.76x magnification offers an immersive viewing experience essential for manual focus and composition accuracy, especially in bright environments.

For professional and enthusiast users who need reliability and accuracy in framing and focusing, the GH5S’s superior viewing system is a standout advantage.

Autofocus Systems: Speed, Accuracy, and Tracking

Accurate focus is mission-critical whether shooting portraits, wildlife, or fast-paced sports.

• Both cameras rely on contrast-detection autofocus, meaning focusing speed can struggle in low light or with moving subjects compared to hybrid or phase-detection systems.

• The GH5S has a dense array of 225 focus points, allowing better coverage and subject tracking than the XC10’s 9 points.

• Face detection in both cameras works well in good lighting, but neither has eye or animal eye AF, so for portraiture involving fast subject movement, you must rely on manual focus discipline or AF tracking.

• In practice, the GH5S’s autofocus feels snappier and more reliable for video, particularly when recording 4K 60p cinema-quality footage thanks to superior processing power.

If fast and precise autofocus is a priority, especially for wildlife or sports, the GH5S again pulls ahead, although neither model is tailored for high-speed action shooting.

Lens and System Flexibility: Fixed vs Interchangeable

One striking difference visually and functionally is lens compatibility.

• The Canon XC10 has a fixed 24-241mm (10x zoom) F2.8-5.6 lens. This covers a versatile range from wide-angle to telephoto, making the camera an all-in-one ready solution. Macro focusing down to 8 cm is quite close for intimate detail shots. However, you cannot change lenses, limiting creativity or access to specialized optics like ultra-fast primes or long telephoto zooms.

• The Panasonic GH5S uses the Micro Four Thirds mount, supported by Panasonic and Olympus, with a massive ecosystem of 100+ native lenses. You can choose fast primes for portraits, ultra-wide lenses for landscape, long telephoto for wildlife/sports, and specialized macro lenses. This modularity lets you adapt your kit to each shooting discipline and budget.

For photographers and videographers who crave flexibility and future upgrade paths, the GH5S’s interchangeable lens system is invaluable. In contrast, the XC10’s fixed lens is excellent for convenience, travel, and quick setup but limits creative lens choices.

Video Capabilities: Hybrid and Pro Video Needs

Both the XC10 and GH5S have strong video features but target different users.

• The XC10 offers solid 4K UHD at 30 fps and smooth slow-motion capture at 720p 120 fps. Its optical image stabilization in the lens benefits handheld video, but its codec and bitrate are more modest.

• The GH5S targets filmmakers and serious video content creators by supporting true DCI 4K at 60 fps with higher bitrates, variable frame rates including 1080p 240 fps slow-motion, and advanced codecs like HEVC (H.265). It lacks in-body image stabilization (IBIS), assuming you’ll use stabilized lenses or gimbals. Dual card slots support extended recording and backups.

For hybrid shooters who want effortless 4K with built-in stabilization, the XC10 fits well. For professional video shooters demanding high frame rates, detailed 4K cinema mode, and flexible coding, the GH5S is a clear champion.

Battery Life and Storage: Long Shoots and Reliability

• The Canon XC10 uses the LP-E6N battery. While exact battery life is not officially detailed, expect moderate endurance ideal for casual shooting but limited for day-long professional sessions.

• The Panasonic GH5S uses the larger DMW-BLF19 battery, rated for roughly 440 shots per charge (CIPA standard). Its dual SD card slots support double capacity or instant backup, essential for professional workflows.

If you frequently shoot long projects, events, or travel, the GH5S’s superior battery performance and dual card slots provide peace of mind.

Durability and Weather Resistance: Shooting Anywhere

• The XC10 is not weather sealed or ruggedized. This confines it to mostly dry indoor or fair weather outdoor use.

• The GH5S features robust environmental sealing against moisture and dust. While not waterproof or shockproof, it withstands tougher field conditions better.

If your work takes you to unpredictable weather or challenging environments, the GH5S is better suited.

Pricing and Value: Finding the Right Fit for Your Budget

The roughly $900 price gap reflects the different target audiences. The XC10 bundles simplicity and convenience for the money. The GH5S demands a higher investment but returns professional versatility and superior imaging/video capability.

Real-World Performance Gallery: Visual Comparisons

To see these cameras in action, check out this gallery showing sample images and videos capturing portraits, landscapes, macro subjects, and night scenes.

Canon XC10 front Canon XC10 screen back Panasonic GH5S front Panasonic GH5S screen back

• The XC10 delivers pleasing color tones with warm skin rendering and decent bokeh at wider apertures.
• The GH5S images show richer shadow detail, better dynamic range, and smoother, noise-free high ISO files even in challenging low-light shots.

How They Score Overall and By Photography Genre

Final Thoughts: Which Camera Should You Choose?

You Should Consider the Canon XC10 if:

• You want an all-in-one, straightforward large sensor camera with 10x zoom.
• Your priority is portability with decent image quality and stabilized video.
• You shoot mainly casual portraits, travel, street photography, or video blogging.
• You want touchscreen ease without fussing over interchangeable lenses.
• You have a limited budget but want 4K UHD video capability.
• You don’t need advanced autofocus or professional video codecs.

The XC10 is a durable and reliable companion for enthusiasts who want good quality without complexity. It’s ideal as a grab-and-go camera for everyday moments or travel when you want to carry minimal gear.

You Should Consider the Panasonic GH5S if:

• You’re a professional or enthusiast video shooter or photographer seeking advanced 4K, 60p video options.
• You require excellent low-light performance and want to shoot at very high ISOs.
• You want a rugged camera with weather sealing for tough shooting conditions.
• You plan to build and evolve your system with a large range of high-quality Micro Four Thirds lenses.
• Fast autofocus with many focus points and precise manual focus controls are key.
• You need dual card slots for data security and extended shooting sessions.
• Your budget allows investing in a pro-level mirrorless system.

The GH5S is a workhorse for creatives serious about video and photography versatility. Its array of pro features puts it in the hands of filmmakers and advanced users ready to get the most from their craft.

Getting the Most from Your Choice

• For XC10 users, explore accessories like external microphones, ND filters, and quality SD cards to enhance video quality. Experiment with camera customizations and get comfortable using the touch interface to optimize your workflow.

• For GH5S users, invest time in learning advanced video settings like V-Log, waveform monitors, and LUTs for color grading. Pair your camera with gimbals or stabilized lenses to compensate for the lack of IBIS. Don’t forget to check compatibility with fast UHS-II SD cards for uninterrupted shooting.

Wrap-Up: Your Next Move

Whether you lean toward the handy Canon XC10 or the professional Panasonic GH5S, both cameras have unique strengths suited to different creative paths. The XC10 offers simplicity and portability with respectable image and video quality for casual to enthusiast users. The GH5S caters to professionals and serious creators demanding full control, superior low-light capacity, and advanced video features.

We highly recommend trying both in person if you can - hands-on experience remains the best teacher for camera choice. This will help feel their ergonomics, responsiveness, and image output before making a significant investment.

No matter which you choose, these cameras can be trusted companions on your visual storytelling journey. Take a look at lenses and accessories, watch tutorial videos, and jump into shooting to get the most from your new gear.

Happy creating!

This comparison builds on extensive hands-on testing and technical analysis to guide your camera purchase with transparency and expertise.
