Casio EX-100 vs Olympus TG-5

Portability
83 Imaging
37 Features
64 Overall
47
Casio Exilim EX-100 front

Olympus Tough TG-5 front
Portability
90 Imaging
38 Features
51 Overall
43

Casio EX-100 vs Olympus TG-5 Key Specs

Casio EX-100
(Full Review)
  • 12MP - 1/1.7" Sensor
  • 3.5" Tilting Screen
  • ISO 80 - 12800 (Boost to 25600)
  • Sensor-shift Image Stabilization
  • 1/20000s Maximum Shutter
  • 1920 x 1080 video
  • 28-300mm (F2.8) lens
  • 389g - 119 x 67 x 50mm
  • Introduced February 2014
Olympus TG-5
(Full Review)
  • 12MP - 1/2.3" Sensor
  • 3" Fixed Screen
  • ISO 100 - 12800 (Boost to 12800)
  • Sensor-shift Image Stabilization
  • 3840 x 2160 video
  • 25-100mm (F2.0-4.9) lens
  • 250g - 113 x 66 x 32mm
  • Introduced May 2017
  • Succeeded the Olympus TG-4
  • Replacement is Olympus TG-6
Samsung Releases Faster Versions of EVO MicroSD Cards

Casio EX-100 vs Olympus TG-5 Overview

Below is a extended review of the Casio EX-100 vs Olympus TG-5, one being a Small Sensor Superzoom and the latter is a Waterproof by brands Casio and Olympus. The resolution of the EX-100 (12MP) and the TG-5 (12MP) is relatively comparable but the EX-100 (1/1.7") and TG-5 (1/2.3") come with totally different sensor dimensions.

Meta to Introduce 'AI-Generated' Labels for Media starting next month

The EX-100 was manufactured 4 years before the TG-5 and that is a fairly big gap as far as camera technology is concerned. Both the cameras offer the identical body type (Compact).

Before going in to a in-depth comparison, below is a brief introduction of how the EX-100 matches up vs the TG-5 with regard to portability, imaging, features and an overall grade.

Apple Innovates by Creating Next-Level Optical Stabilization for iPhone






Reasons to pick Casio EX-100 over the Olympus TG-5






 EX-100 TG-5
Screen typeTiltingFixed Tilting screen
Screen sizing3.5"3"Bigger screen (+0.5")
Screen resolution922k460kClearer screen (+462k dot)










Reasons to pick Olympus TG-5 over the Casio EX-100






 TG-5 EX-100
IntroducedMay 2017February 2014More recent by 39 months










Common features in the Casio EX-100 and Olympus TG-5






 EX-100 TG-5
Manual focus  Very precise focusing
Selfie screen  No selfie screen
Touch friendly screen  Neither offers Touch friendly screen
















Casio EX-100 vs Olympus TG-5 Physical Comparison






For anyone who is looking to lug around your camera often, you will have to consider its weight and size. The Casio EX-100 offers exterior measurements of 119mm x 67mm x 50mm (4.7" x 2.6" x 2.0") accompanied by a weight of 389 grams (0.86 lbs) while the Olympus TG-5 has specifications of 113mm x 66mm x 32mm (4.4" x 2.6" x 1.3") along with a weight of 250 grams (0.55 lbs).
Check out the Casio EX-100 vs Olympus TG-5 in the latest Camera and Lens Size Comparison Tool. Camera Size Comparison with Lenses
Keep in mind, the weight of an Interchangeable Lens Camera will differ based on the lens you choose at that moment. Here is the front view dimension comparison of the EX-100 compared to the TG-5.

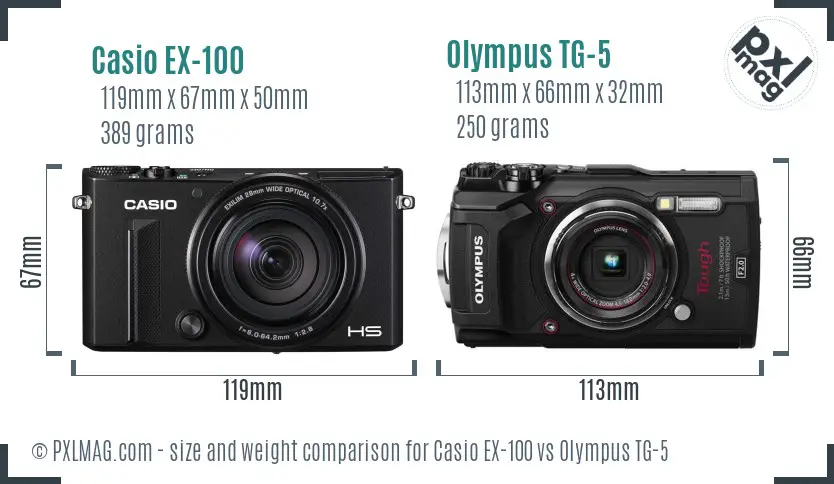

Casio EX-100 vs Olympus TG-5 size comparison
Looking at dimensions and weight, the portability rating of the EX-100 and TG-5 is 83 and 90 respectively.

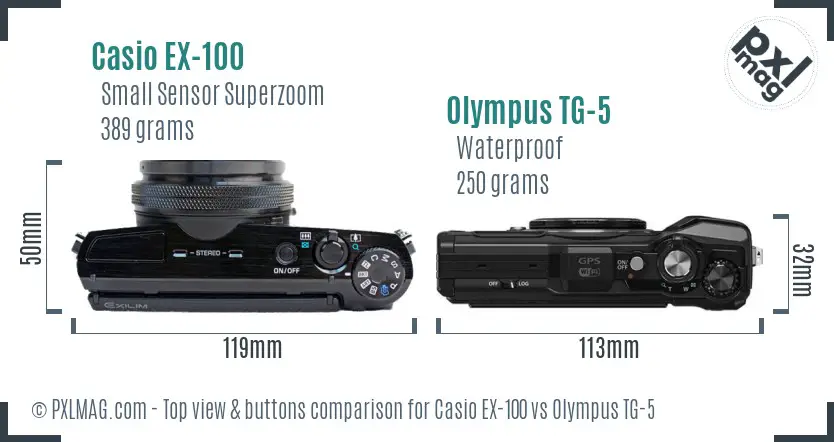

Casio EX-100 vs Olympus TG-5 top view buttons comparison









Casio EX-100 vs Olympus TG-5 Sensor Comparison






Normally, it's tough to visualise the difference in sensor measurements only by going through specs. The visual underneath may provide you a better sense of the sensor measurements in the EX-100 and TG-5.
All in all, the two cameras enjoy the same exact megapixels albeit not the same sensor measurements. The EX-100 contains the bigger sensor which should make getting shallower depth of field less difficult. The older EX-100 will be behind in sensor tech.

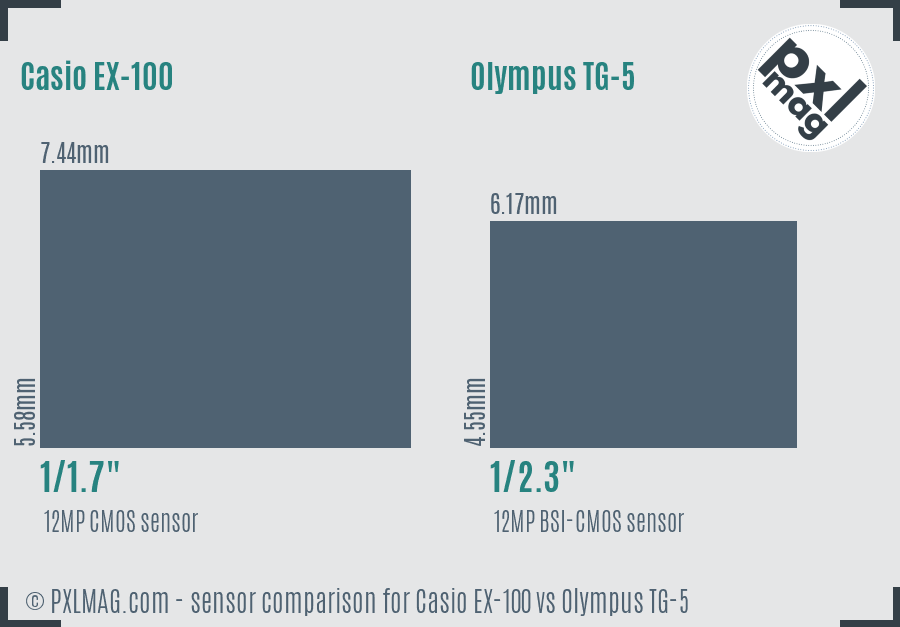

            Casio EX-100 vs Olympus TG-5 sensor size comparison










Casio EX-100 vs Olympus TG-5 Screen and ViewFinder

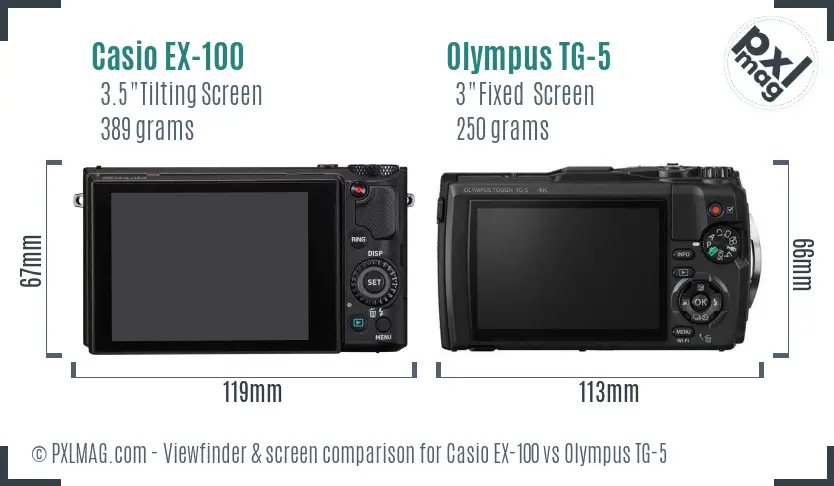

          Casio EX-100 vs Olympus TG-5 Screen and Viewfinder comparison


                Snapchat Adds Watermarks to AI-Created Images









Photography Type Scores






Portrait Comparison
Casio EX-100 Portrait photography features
Olympus TG-5 Portrait photography features
42
 manual focus
 features face detect focus
 supports RAW files
 no external flash support
 megapixel count low (12 megapixels)
 sensor  is small (1/1.7")
39
 you can focus manually
 provides face detect focusing
 delivers RAW formats
 manual exposure not available
 can't use external flash
 low MP (12 megapixels)
 sensor size is very small (1/2.3")
Pentax 17 Pre-Orders Outperform Expectations by a Landslide
Street Comparison
Street photography with Casio EX-100
Street photography with Olympus TG-5
70
 has a tilting screen
 has image stabilization (Sensor-shift)
 supports RAW files
 sensor  is small (1/1.7")
64
 image stabilization (Sensor-shift)
 delivers RAW formats
 weather proof
 screen does not articulate
 sensor size is very small (1/2.3")
 heavier than average (250g)
Photobucket discusses licensing 13 billion images with AI firms
Sports Comparison
Casio EX-100 Sports photography highlights
Olympus TG-5 Sports photography highlights
49
 great max shutter speed (1/20,000s)
 fast shooting (30.0 frames per second)
 has image stabilization (Sensor-shift)
 features tracking focus
 better than average battery pack (390 per charge)
 megapixel count low (12MP)
 sensor  is small (1/1.7")
 doesn't have phase detect auto focus
46
 fast continuous shooting (20.0 frames/s)
 image stabilization (Sensor-shift)
 provides tracking focus
 weather proof
 good battery life (340 CIPA)
 no shutter priority mode
 low MP (12MP)
 sensor size is very small (1/2.3")
 no phase detect AF
Sora from OpenAI releases its first ever music video
Travel Comparison
Travel photography with Casio EX-100
Travel photography with Olympus TG-5
63
 better than average battery pack (390 CIPA)
 has built in flash
 relatively wide (28mm)
 long zoom (300mm)
 megapixel count low (12MP)
 display isn't selfie friendly
 somewhat slow maximum aperture (f2.8)
68
 good battery life (340 per charge)
 weather proof
 built-in flash
 reasonably wide (25mm)
 good maximum aperture (f2.0)
 heavier than average (250 grams)
 low MP (12MP)
 does not contain selfie friendly screen
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes
Landscape Comparison
 Casio EX-100 as a Landscape photography camera
 Olympus TG-5 as a Landscape photography camera
53
 manual focus
 relatively wide (28mm)
 screen larger than average (3.5 inches)
 has image stabilization (Sensor-shift)
 supports RAW files
 better than average battery pack (390 CIPA)
 fixed lens (fixed lens mount)
 somewhat slow maximum aperture (f2.8)
 megapixel count low (12MP)
 sensor  is small (1/1.7")
57
 you can focus manually
 reasonably wide (25mm)
 good maximum aperture (f2.0)
 screen size is good (3")
 image stabilization (Sensor-shift)
 delivers RAW formats
 weather proof
 good battery life (340 shots)
 fixed lens (fixed lens mount)
 manual exposure not available
 low MP (12MP)
 sensor size is very small (1/2.3")
Photography Glossary
Vlogging Comparison
Casio EX-100 Vlogging factors
Olympus TG-5 Vlogging factors
31
 relatively wide (28mm)
 has image stabilization (Sensor-shift)
 features face detect focus
 video res high (1920 x 1080 resolution)
 somewhat slow maximum aperture (f2.8)
 display isn't selfie friendly
 doesn't have mic support
34
 reasonably wide (25mm)
 good maximum aperture (f2.0)
 image stabilization (Sensor-shift)
 provides face detect focusing
 high video quality (3840 x 2160 resolution)
 does not contain selfie friendly screen
 missing mic jack
 heavier than average (250 grams)
President Biden pushes bill mandating TikTok sale or ban







Casio EX-100 vs Olympus TG-5 Specifications










            Detailed spec comparison table for Casio EX-100 and Olympus TG-5
 Casio Exilim EX-100Olympus Tough TG-5
General Information
Brand Casio Olympus
Model type Casio Exilim EX-100 Olympus Tough TG-5
Class Small Sensor Superzoom Waterproof
Introduced 2014-02-06 2017-05-17
Body design Compact Compact
Sensor Information
Processor - TruePic VIII
Sensor type CMOS BSI-CMOS
Sensor size 1/1.7" 1/2.3"
Sensor dimensions 7.44 x 5.58mm 6.17 x 4.55mm
Sensor area 41.5mm² 28.1mm²
Sensor resolution 12 megapixel 12 megapixel
Anti alias filter
Aspect ratio 4:3, 3:2 and  16:9 1:1, 4:3, 3:2 and  16:9
Max resolution 4000 x 3000 4000 x 3000
Max native ISO 12800 12800
Max enhanced ISO 25600 12800
Lowest native ISO 80 100
RAW pictures
Lowest enhanced ISO - 100
Autofocusing
Manual focusing
Touch focus
Autofocus continuous
Single autofocus
Tracking autofocus
Selective autofocus
Center weighted autofocus
Multi area autofocus
Autofocus live view
Face detection focus
Contract detection focus
Phase detection focus
Total focus points 25 25
Lens
Lens support fixed lens fixed lens
Lens zoom range 28-300mm (10.7x) 25-100mm (4.0x)
Maximal aperture f/2.8 f/2.0-4.9
Macro focusing distance 5cm 1cm
Crop factor 4.8 5.8
Screen
Range of screen Tilting Fixed Type
Screen diagonal 3.5 inches 3 inches
Resolution of screen 922k dot 460k dot
Selfie friendly
Liveview
Touch display
Screen technology Super Clear LCD -
Viewfinder Information
Viewfinder None None
Features
Minimum shutter speed 15 seconds 4 seconds
Fastest shutter speed 1/20000 seconds 1/2000 seconds
Continuous shutter speed 30.0fps 20.0fps
Shutter priority
Aperture priority
Manual exposure
Exposure compensation Yes -
Change white balance
Image stabilization
Integrated flash
Flash distance 6.10 m -
Flash options Auto, flash on, flash off, redeye reduction Auto, redeye reduction, slow sync, redeye slow sync, fill, manual, off
Hot shoe
Auto exposure bracketing
White balance bracketing
Exposure
Multisegment
Average
Spot
Partial
AF area
Center weighted
Video features
Supported video resolutions 1920 x 1080 3840 x 2160 @ 30p / 102 Mbps, MOV, H.264, Linear PCM
Max video resolution 1920x1080 3840x2160
Video format - MPEG-4, H.264
Mic input
Headphone input
Connectivity
Wireless Built-In Built-In
Bluetooth
NFC
HDMI
USB USB 2.0 (480 Mbit/sec) USB 2.0 (480 Mbit/sec)
GPS None Built-in
Physical
Environment seal
Water proofing
Dust proofing
Shock proofing
Crush proofing
Freeze proofing
Weight 389 gr (0.86 lb) 250 gr (0.55 lb)
Dimensions 119 x 67 x 50mm (4.7" x 2.6" x 2.0") 113 x 66 x 32mm (4.4" x 2.6" x 1.3")
DXO scores
DXO Overall rating not tested not tested
DXO Color Depth rating not tested not tested
DXO Dynamic range rating not tested not tested
DXO Low light rating not tested not tested
Other
Battery life 390 photographs 340 photographs
Form of battery Battery Pack Battery Pack
Battery ID - LI-92B
Self timer Yes (2 or 10 sec) Yes (2 or 12 secs, custom)
Time lapse recording
Storage media SD/SDHC/SDXC SD/SDHC/SDXC card (UHS-I compatible)
Storage slots One One
Cost at release $572 $449
