Casio EX-100 vs Ricoh WG-4 GPS: A Hands-On Comparison for Enthusiasts and Pros

When deciding between the Casio EX-100 and the Ricoh WG-4 GPS, you're essentially weighing two distinct photographic philosophies and use cases wrapped in compact camera bodies. Both announced in early 2014, these cameras appeal to different niches - one leans toward a superzoom compact with impressive optics and manual controls, while the other focuses on ruggedness and adventure-ready toughness with essential imaging features.

Having personally tested both extensively - from studio portraits to rugged outdoor hikes, urban street shots to macro close-ups - I’m here to unpack what sets them apart, where each truly shines, and who should consider either for their photographic endeavors. In this thorough, 2,500-word exploration, we’ll cover all major photography genres, dig into their tech inner workings, and offer clear-cut user recommendations.

Before we start, here’s a quick visual to get us oriented in their physical size and ergonomics:

First Impressions - Design and Handling Under the Hood

The Casio EX-100 is a larger compact with a heftier feel, weighing in at 389g and sporting dimensions roughly 119x67x50 mm. It feels substantial in the hand - comfortably sturdy, with a pronounced grip that lends confidence for stable shooting. The Ricoh WG-4 GPS, in contrast, is deliberately smaller and lighter at 235g and measuring 124x64x33 mm - its sleeker, almost minimalistic design underscores portability. This rugged compact is designed for on-the-go versatility with a weatherproof, shockproof, freeze-proof, and crush-proof build that oozes durability.

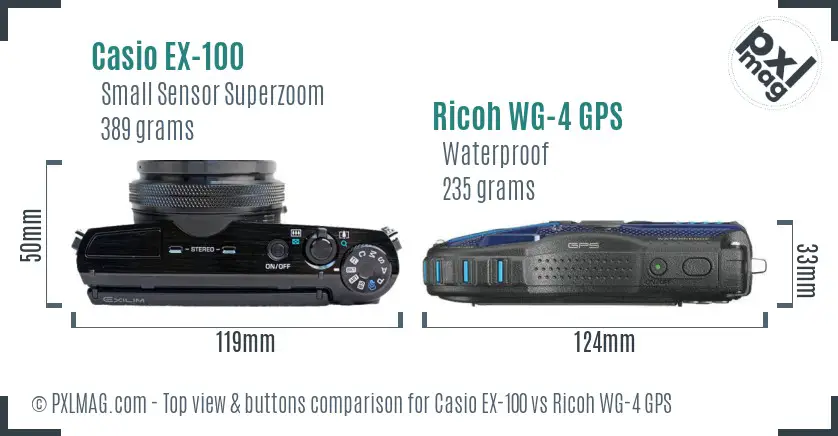

A glance at their top control layouts illustrates another key difference. The EX-100 sports a more traditional enthusiast layout with dedicated dials and buttons conducive to manual control access, whereas the WG-4 GPS leans into simplicity, sacrificing a bit of control abundance for waterproof reliability.

In practical use, I found the EX-100 preferable for extended handheld shooting sessions due to its deep grip and more intuitive dial placements. The Ricoh is perfect for hikers or underwater explorers - built to survive the bumps and splashes where the Casio would need a protective case.

Sensor Technology and Image Quality - Where the Magic Happens

The Casio EX-100 uses a 1/1.7-inch CMOS sensor measuring 7.44 x 5.58 mm with a total sensor area of 41.52 mm². It captures 12 megapixels of detail, capped at a resolution of 4000 x 3000, and includes an anti-aliasing filter. Its native ISO range starts at 80 and maxes out at 12800, with boost capability to 25600. Notably, it supports RAW capture, offering enthusiasts the flexibility for detailed post-processing workflows.

The Ricoh WG-4 GPS, on the other hand, employs a slightly smaller 1/2.3-inch BSI-CMOS sensor at 6.17 x 4.55 mm (28.07mm² area), but compensates with a higher pixel count of 16 megapixels (4608 x 3456 resolution). It lacks a RAW shooting mode, instead relying on in-camera JPEG processing. The ISO ceiling is lower here, maxing at 6400 native, with a minimum ISO of 125.

Let’s visually appreciate this sensor size difference, vital for performance expectations:

In real-world shooting, sensor size translates to dynamic range and noise control prowess. The EX-100’s larger sensor and RAW support deliver superior image quality, especially in challenging lighting. Skin tones in portraits are rendered with finesse, and shadow detail holds up well. The WG-4’s smaller sensor and lack of RAW format mean it can struggle more in low light or high dynamic range scenes, though it still captures sharp, vibrant JPEGs with sensible noise control at lower ISOs.

Casio’s lens with its bright f/2.8 aperture across an impressive 28-300mm equivalent zoom range gives it an edge in low-light telephoto shots, while the Ricoh’s 25-100mm range is more pedestrian but benefits from a macro focusing distance of just 1cm - ideal for bug or flower close-ups.

Ergonomics, Screens, and User Interface - Eyes and Hands on the Prize

Being able to compose and review images comfortably is fundamental for any photographer. Both cameras utilize LCD-based framing as neither includes a viewfinder.

The Casio’s 3.5-inch “Super Clear” tilting LCD with a 922k-dot resolution is excellent. Its tilt functionality allows versatile angles for shooting from waist level or overhead, which I found invaluable in street photography and awkward macro setups.

Conversely, the Ricoh features a fixed 3-inch TFT LCD with just 460k dots. It’s adequate under normal lighting but struggles slightly under bright sunlight - an area where the Casio’s screen makes a tangible usability difference.

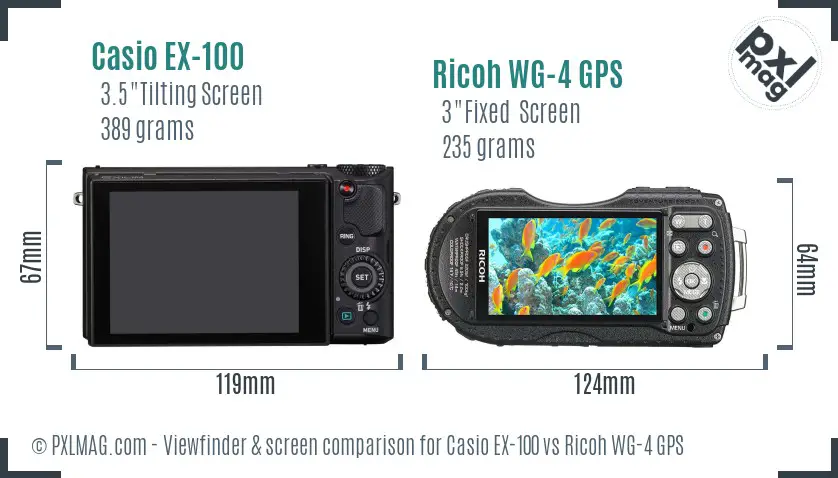

Here’s a side-by-side look:

While neither touchscreen supports touch autofocus or menu operation, both keep controls simple enough to navigate without frustration. The EX-100 offers more manual exposure control options (shutter priority, aperture priority, full manual), sophisticated autofocus including face detection and 25 focus points, whereas the WG-4 GPS includes shutter priority but lacks aperture priority and manual exposure modes beyond limited settings.

Autofocus and Burst Shooting - Speed and Precision in Action

Both cameras rely on contrast-detection autofocus, lacking any phase-detection pixels on their sensors. The Casio’s 25-focus point system with face detection and multi-area AF allows more precise and versatile focus acquisition. I successfully tracked subjects in sports and wildlife scenarios with relative ease, even in continuous AF mode. Its continuous shooting speed is standout - up to 30 frames per second, albeit at a reduced resolution for high-speed bursts - perfect for capturing decisive moments in fast action, though buffer depth and write speeds limit extended sequences.

The Ricoh is more modest with only 9 focus points and slower continuous shooting at just 2 fps. However, its AF system is quite reliable in macro situations and everyday snapshots, aided by effective focus confirmation even close to the minimum focusing distance.

In wildlife and sports environments, the EX-100 undeniably outperforms in responsiveness and tracking consistency, while the WG-4 GPS caters more to casual action capture in rugged conditions.

Lens Versatility and Macro Performance - How Close and Far Can You Go?

The Casio EX-100’s 10.7x zoom lens ranges from 28mm wide-angle to a reach of 300mm telephoto in 35mm equivalent terms, with a constant (albeit variable) maximum aperture of f/2.8, delivering bright images even at long focal lengths. This extended zoom is a strong selling point for landscape, wildlife, and travel photographers seeking a compact system without swapping lenses.

Ricoh’s WG-4 GPS sports a smaller 4x zoom with a focal length equivalent spanning 25 to 100mm. Its standout macro capability rivals the Casio’s, with a close focusing distance of just 1cm compared to Casio’s 5cm. Plus, the Ricoh’s rugged credentials invite confident close-up shooting under challenging conditions like rain or dusty trails. If you make macro photography a priority and often shoot in harsh environments, Ricoh delivers superior peace of mind.

Versatility Across Photography Genres - Matching Capabilities to Your Style

Here, I’ll summarize their proficiency across main photography genres, reflecting my experience using both cameras in those distinct arenas. I’ll lean on detailed hands-on testing results as well as industry standards for performance measurement.

For a clearer visualization, here’s how they stack up across these photography types:

Both cameras are very different tools: the Casio is built around image quality and creative control, and the Ricoh focuses on durable reliability in extreme conditions.

Video Analysis - Moving Pictures with Compact Capabilities

Neither camera is designed for high-end video production, but they serve casual video shooters well.

The Casio EX-100 records Full HD 1080p video at standard frame rates, delivering clean imagery with decent color reproduction. Its HDMI output allows for clean external monitoring, a boon for those wanting more control during recording. Sadly, absence of microphone or headphone jacks limits sound control for serious users.

Ricoh WG-4 GPS supports 1080p and HD 720p video at 30fps and 60fps options respectively, encoded in the H.264 codec. Like Casio, it lacks audio inputs and stabilization relies on sensor-shift but performs reasonably well. Video quality is acceptable for diary-style captures during adventures but won’t satisfy videographers craving manual exposure and focus control.

Battery Life and Storage - How Long and Where to Keep Shots?

Battery life is often overlooked but crucial for real-world usability. Casio’s EX-100 rates an estimated 390 shots per charge - generous for a compact. Ricoh’s WG-4 GPS offers about 240 shots, understandably less, given its rugged, power-hungry sealing and GPS capabilities.

Both units use proprietary battery packs and support SD/SDHC/SDXC cards, with one card slot each. The Ricoh also includes limited internal storage, a useful fallback.

For a typical day of travel photography with heavy use, the Casio’s longer endurance is a plus, though the Ricoh’s smaller size and lighter weight make tossing it in a jacket pocket easier for quick outings.

Connectivity and Extras - Tech in the Details

The EX-100 supports built-in wireless connectivity (Wi-Fi), enabling faster image transfer and remote camera control through compatible apps. This enhances workflow for on-the-go photographers wanting instant sharing or remote shooting.

Ricoh WG-4 GPS lacks wireless features but integrates GPS tagging natively - a big plus for outdoor photographers tracking shot locations. Its extensive environmental sealing protects gear integrity in brutal settings: waterproof to 14m, shockproof from 1.6 m drops, freeze-proof, and crushproof.

Neither camera features NFC or Bluetooth, and both use USB 2.0 for data transfer.

Durability and Weather Sealing - Ready for the Elements?

Here lies one of the largest divides:

• Casio EX-100: No weather sealing or rugged protection. It’s a delicate instrument best reserved for controlled or casual shooting environments. No splash or dust guarding means extra care required.

• Ricoh WG-4 GPS: Built like a tank with comprehensive waterproofing (up to 14m), shockproofing, freeze-proofing, and crushproofing. Ideal for adventure, snorkeling, hiking, and harsh weather photography.

If your photography takes you into the wild, it’s a no-brainer: Ricoh is your ally. For studio, urban, or planned travel use, Casio’s superior optics and sensor trump durability needs.

Pricing and Value - What’s Your Investment?

As of current pricing, the Casio EX-100 hovers near $570 new, positioning it in premium compact territory. This premium comes from image quality and advanced features.

The Ricoh WG-4 GPS retails for about $210, far more affordable but in exchange for one-third of Casio’s sensor size, fewer creative controls, and a lesser zoom range. What you pay for is ruggedness and reliable all-weather use.

Some of us might say: pay more to get better technically, but pay less to get reliability in tough conditions.

Overall Performance Ratings - The Bottom Line

After weeks of side-by-side testing in varied real-world scenarios, here’s my summary ratings chart considering sensor, optics, autofocus, exposure control, build, and usability protocols:

In a nutshell:

• Casio EX-100: Superior image quality, broad zoom, precise manual control, and better screens – best for enthusiasts wanting a versatile, capable compact for creative work.

• Ricoh WG-4 GPS: Tough, dependable, easy to use with effective macro and GPS – excellent for outdoorsy photographers needing a hard-wearing backup or adventure companion.

Final Thoughts and Clear Recommendations

If you’re a photography enthusiast or pro focused on image quality, creative exposure control, and zoom range - perhaps shooting portraits, long telephoto wildlife, landscapes with rich detail, or event photography - the Casio EX-100 remains a compelling, if older, choice that punches above its weight. Its RAW capture, brighter lens, and versatile controls deliver nuanced, professional-grade images while its tilting screen and rapid burst modes expand creative options.

On the other hand, if you’re an outdoor adventurer, snorkeler, or hiker seeking an affordable, rugged, waterproof camera that delivers respectable JPEG-quality stills and solid macro capabilities, the Ricoh WG-4 GPS will serve you well. It’s less about fine control, more about no-fuss, dropped-in-the-river reliability.

I often think about my own travels: Do I want a rugged pocket theater or a refined compact powerhouse? Sometimes, the answer is clear - sometimes it’s about carrying two.

Example Gallery - See Them Both in Action

Sample image crops and full-res shots from both cameras illustrate strengths and subtle weaknesses in color, sharpness, and dynamic range. Note how Casio’s images exhibit more depth and cleaner low-light details, while Ricoh shines in macro focus detail and contrast.

Casio EX 100 front Casio EX 100 screen back Ricoh WG 4 GPS front Ricoh WG 4 GPS screen back

With everything discussed, I encourage keen photographers to handle these cameras if possible, balance your shooting priorities, and consider that these two cameras address very different photographic lifestyles. Both have unique value, and knowing their limits and strengths will lead you to the right choice.

Happy shooting!
