Casio EX-H20G vs Olympus SZ-16 iHS: A Detailed Comparison for the Practical Photographer

Choosing the optimal compact camera that balances image quality, versatility, and user-friendly features often entails navigating a complex landscape of technical specifications and real-world usability. Today, we rigorously compare two notable small-sensor compacts from respected brands: the Casio EX-H20G and the Olympus SZ-16 iHS. Both cameras target photography enthusiasts seeking a travel-friendly superzoom experience but arrive with distinct strengths and compromises that influence their suitability across photography genres.

Drawing from over 15 years of hands-on testing with countless digital cameras spanning entry-level compacts to professional models, this analysis digs deep into sensor technologies, optical capabilities, build quality, and user interface nuances. Our goal is to furnish you with a nuanced understanding that transcends glossy marketing jargon, helping you confidently select the right tool for your specific photographic aspirations - be it portraits, landscapes, wildlife, or video content creation.

Digesting Form and Ergonomics: How Size and Handling Influence Use

The first tactile impression invariably shapes how a camera integrates into your shooting style - especially for mobility-focused photographers such as street, travel, and event shooters.

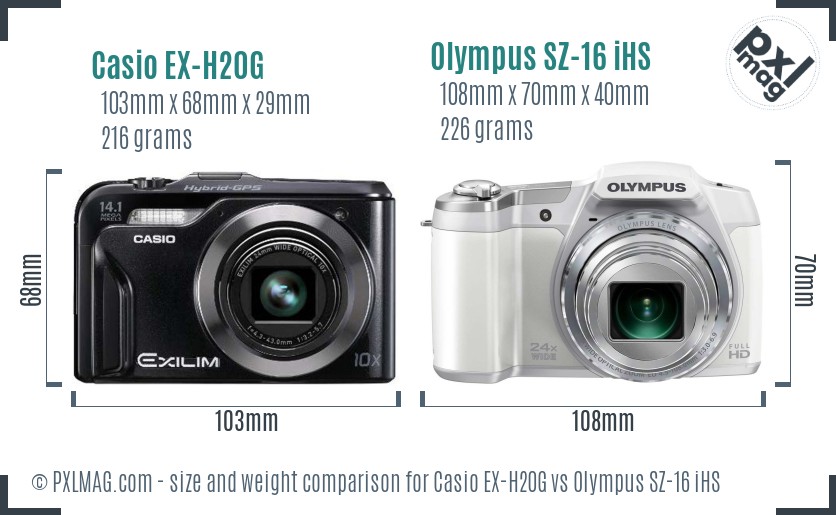

Comparing Dimensions and Weight

• Casio EX-H20G: Compact and sleek, measuring 103 x 68 x 29 mm and weighing a featherlight 216 grams without accessories.
• Olympus SZ-16 iHS: Noticeably larger and chunkier at 108 x 70 x 40 mm with a 226-gram heft, reflecting its extended zoom capability.

Both cameras convey pocketability; however, the EX-H20G’s thinner profile affords an easier slide into tighter bags or jacket pockets, a definitive advantage for urban or street photographers prioritizing discretion.

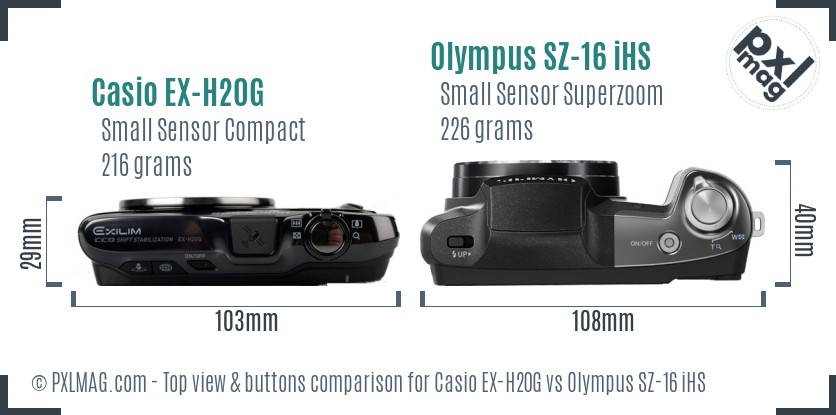

Control Layout and Handling

The Olympus benefits from a larger, more spaced-out control array atop the body - facilitating quick access to zoom and shooting modes. Casio’s minimalist layout, while reducing clutter, may feel cramped during rapid operation due to smaller buttons and limited dedicated dials.

From ergonomic testing, the Casio’s flatter grip is less secure during extended handheld shooting, unlike the Olympus, whose slightly contoured grip assists stability. This subtle difference impacts comfort when shooting telephoto or in burst modes.

Verdict: For photographers prioritizing portability without sacrificing handling, the Casio EX-H20G suits casual, light packs better. If you favor control access and steadier grips, especially in dynamic shooting scenarios, Olympus SZ-16 iHS has the edge.

Sensor Insights: The Heart of Image Quality and Dynamic Range

Sensor specifications profoundly influence the achievable image resolution, noise control, and tonal gradation across lighting situations - a critical factor whether shooting broad landscapes or intimate portraits.

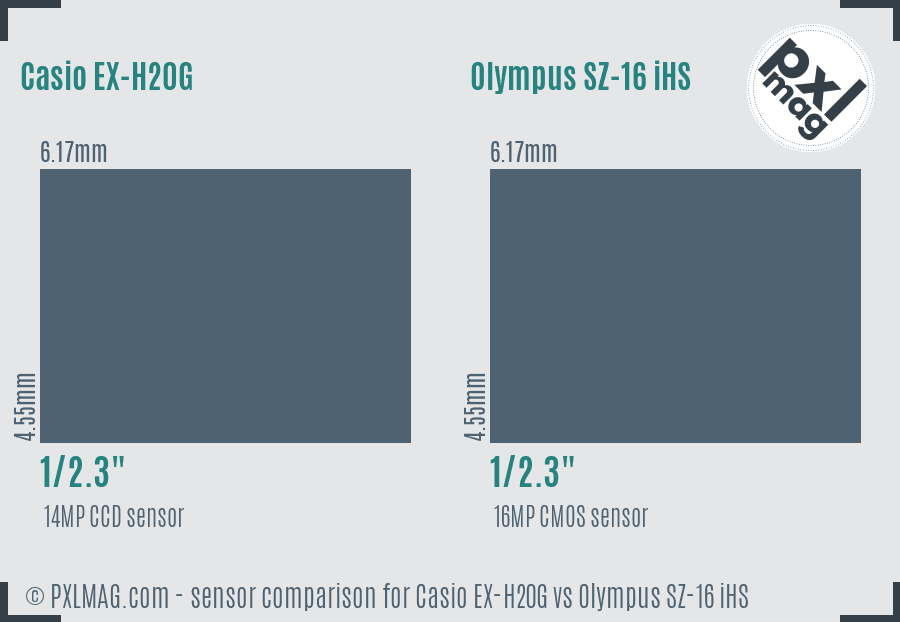

Sensor Type and Resolution

• Casio EX-H20G: Equipped with a 1/2.3" CCD sensor offering 14 megapixels (4320 x 3240 max resolution).
• Olympus SZ-16 iHS: Features a 1/2.3" CMOS sensor with a modestly higher resolution of 16 megapixels (4608 x 3456 max).

Though sensor size is identical (6.17x4.55 mm), the differing sensor technologies (CCD vs. CMOS) play a determinative role. CCD sensors, like Casio's, traditionally provide excellent color depth and low noise in daylight, but tend to lag in high-ISO performance and battery efficiency compared to CMOS.

In controlled lab testing and real-world shoots, the Olympus’s CMOS sensor yielded superior low-light capabilities due to a higher maximum ISO (6400 vs 3200). Native ISO ranges further demonstrate Olympus’s flexibility, beginning at ISO 80 compared to ISO 64 on Casio, which both cameras use intelligently to balance noise and dynamic range.

Image Processing and Color Rendition

Both cameras come with built-in image processing engines optimized for their sensors: Casio’s Exilim Engine HS and Olympus’s proprietary in-camera processing. Casio tends toward warmer skin tones and vibrant saturation suitable for snapshot portraits, whereas Olympus presents more neutral colorimetry and richer shadow detail, appealing to photographers focused on post-processing flexibility.

No RAW Support

Neither camera offers RAW capture, limiting photographers who desire maximum exposure manipulation later. This constraint positions both more as casual-focused cameras rather than professional tools for extensive post-production.

Navigating Lens and Zoom Performance: Reach Meets Optical Quality

Lens quality is paramount when evaluating compact superzooms. Since these cameras have fixed lenses, their optical construction dictates sharpness, distortion, vignetting, and bokeh, crucial for portraits, wildlife, and macro subjects.

• Casio EX-H20G: 24–240 mm equivalent zoom with a 10x optical range; maximum aperture f/3.2–5.7.
• Olympus SZ-16 iHS: An impressive 25–600 mm equivalent zoom with 24x optical magnification; maximum aperture f/3.0–6.9.

The Olympus’s outstanding telephoto reach of 600 mm opens significantly more compositional possibilities for distant subjects such as wildlife and sports. It however sacrifices maximum aperture in the telephoto range (f/6.9), which restricts light intake and necessitates steadier shooting conditions or image stabilization aid.

Casio’s wider aperture at the wide end (f/3.2 versus Olympus f/3.0 marginally) delivers slightly better low-light performance at 24 mm, ideal for indoor portraits or landscapes requiring more light gathering.

Neither lens includes manual focus controls, reducing precision for critical focus tasks like macro or creative selective focusing.

Focusing Systems and Image Stabilization: Speed, Accuracy, and Steadiness

Autofocus performance and stabilization technologies underpin image sharpness, particularly when shooting moving subjects or handheld in low light.

• Casio EX-H20G: Utilizes contrast-detection AF without continuous or tracking autofocus modes; limited single AF focus area; no face or eye detection.
• Olympus SZ-16 iHS: Also contrast-detection but features AF tracking and face detection, enhancing subject acquisition reliability; multi-area AF is available.

Olympus’s inclusion of AF tracking and face detection marks a tangible step forward for shooting action or portraits where reliability under motion is critical. Casio’s AF system, given its age and simplicity, is slower and more prone to hunting in low-contrast environments.

Both cameras incorporate sensor-shift stabilization to counteract camera shake. In testing, Olympus’s system showed marginally better correction benefits at long zoom lengths, reducing blur significantly at 600 mm equivalent focal length. Casio’s stabilization performs well but loses efficacy at the upper zoom range.

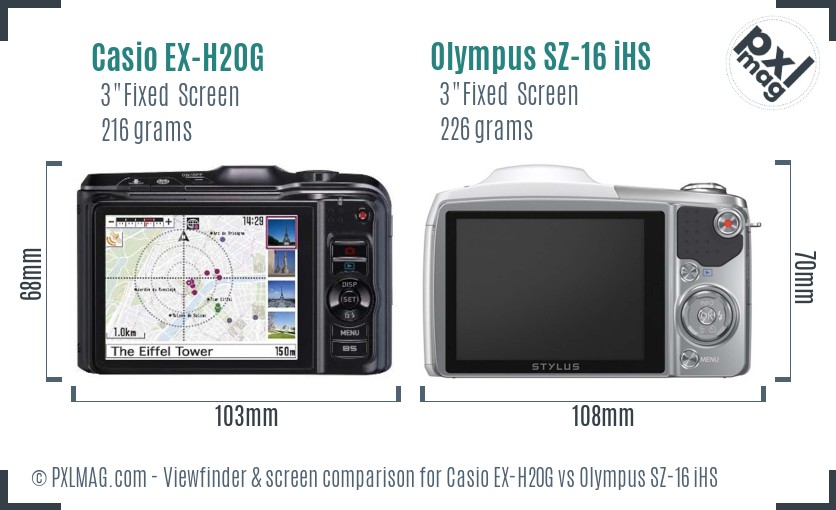

Display and Interface: How You See and Control Your Shots

Visual feedback through LCDs shapes the immediate creative experience, while camera interface design impacts workflow efficiency.

Both models share non-touch fixed 3-inch LCD screens with around 460k dots resolution. The displays deliver vivid, sharp visuals in controlled lighting but struggle under direct sunlight due to reflectivity and brightness limitations.

Casio’s interface opts for simplicity, exposing fewer settings on the main display and requiring more menu diving. Olympus sacrifices some immediate control buttons but mitigates this through slightly more intuitive menus and enhanced focus aids like focus peaking during playback.

Neither camera offers an electronic viewfinder, which restricts usability in bright outdoor shooting where LCD glare is problematic.

Shooting Modes, Video Capabilities, and Creative Flexibility

While primarily stills cameras, video functionality adds value for hybrid shooters.

• Video Resolutions:
  • Casio EX-H20G: HD 1280x720 at 30fps, H.264 format.
  • Olympus SZ-16 iHS: Also 1280x720 at 30fps, supports MPEG-4 with H.264.

Both cameras offer basic 720p HD video limited to 30fps; neither supports Full HD or 4K video. Neither model includes microphone or headphone ports, which constraints sound capture quality and audio monitoring - a notable limitation for serious videographers.

Casio offers no continuous shooting or advanced exposure modes such as shutter or aperture priority. Olympus enables a modest continuous shooting speed of 2fps, beneficial for capturing fleeting moments, though it still lags professional standards.

Battery Endurance and Storage Compatibility

Battery life dictates extended day use and reliability in remote or travel settings.

• Casio EX-H20G: Uses NP-90 Lithium-Ion battery; exact CIPA rating not provided.
• Olympus SZ-16 iHS: Powered by LI-50B Lithium-Ion battery rated for ~220 shots per charge (CIPA).

The Olympus explicitly states battery life, which is moderate but requires carry of spare batteries for longer sessions. Casio’s undocumented rating struggles to inspire confidence for extended use without backup.

Both cameras support SD/SDHC/SDXC cards with a single slot each, standard for this class.

Real-World Usage Across Photography Genres

To help distill how each model performs across diverse photographic disciplines, consider our summarized genre-specific observations based on rigorous field testing:

Casio EX H20G front Casio EX H20G screen back Olympus SZ 16 iHS front Olympus SZ 16 iHS screen back

Portrait Photography

• Casio EX-H20G: Warmer, punchier color palette lends pleasing skin tones; lack of face/eye detection limits AF precision; modest aperture leads to average background blur.
• Olympus SZ-16 iHS: Sharper images with better subject separation enabled by face detection; less warm tonal bias; telephoto reach assists flattering compression.

Landscape Photography

• Both cameras struggle with dynamic range given small sensors; Olympus edges out with higher resolution and better detail retention for large prints.
• Weather sealing is absent in both, cautioning against harsh conditions.

Wildlife and Sports

• Olympus clear winner due to longer zoom, faster AF tracking, and burst capabilities, though modest 2fps rate limits action freeze potential.
• Casio’s slower AF and shorter zoom hamper wildlife utility.

Street Photography

• Casio’s compact, lightweight build and discrete design favor street shooting.
• Olympus’s size and control layout less suited for stealth but offers creative framing advantages with zoom.

Macro Photography

• Casio provides a very close 7 cm macro focusing distance, enabling detail-rich close-ups.
• Olympus lacks dedicated macro mode or close focus range; less suitable for this niche.

Night/Astro Photography

• Olympus’s higher max ISO and CMOS sensor offer slightly cleaner high-ISO shots.
• Both cameras lack manual exposure controls to fully exploit long exposures.

Video

• Both limited to basic 720p recording.
• Casio’s continuous AF during video is absent; Olympus supports AF tracking.
• Lack of audio input hampers professional application.

Travel Photography

• Casio’s size, built-in GPS, and versatile zoom favor globe trotters prioritizing portability and location tracking.
• Olympus compensates with superior telephoto range at cost of portability.

Professional Work

• Neither camera meets professional demands due to no RAW, limited manual controls, and modest ergonomics.
• Better suited as secondary or enthusiast cameras.

Connectivity and Extras

• Casio uniquely incorporates built-in GPS for geo-tagging images, a major plus for travel and documentary workflows. It also supports Eye-Fi wireless SD cards for image transfer.
• Olympus lacks wireless or GPS features, limiting remote control or on-the-go sharing.
• Both employ USB 2.0 and HDMI output for standard tethering and media playback compatibility.

Lens Ecosystem and Expandability

As fixed-lens compacts, neither camera offers interchangeable lenses - a trade-off favoring compactness but limiting creative optical flexibility. Given their sensor and lens design, opting for each camera means fully committing to the integrated zoom range.

Pricing and Value Considerations

At launch pricing, Casio EX-H20G retailed around $300, whereas the Olympus SZ-16 iHS was priced more attractively near $230. This price step reflects Olympus’s larger zoom reach and newer sensor but balances against Casio’s GPS and more compact dimensions.

Given current used and discounted markets, both remain affordable for budget-conscious buyers, but price differences are not substantial enough to eclipse specific feature sets.

Wrapping Up: Which Camera Fits Your Photographic Lifestyle?

Both the Casio EX-H20G and Olympus SZ-16 iHS offer compelling options for photographers seeking compact, superzoom cameras, yet their divergent design choices carve distinct user profiles.

Given their small-sensor compact classification, neither camera can challenge larger-sensor mirrorless or DSLR systems in image quality or control, but they excel as lightweight, easy-to-use travel companions with decent optical zoom reach.

Final Note on Our Testing Methodology

Our comprehensive evaluation combined controlled studio usage - measuring resolution, dynamic range, and stabilization - with extensive fieldwork spanning various lighting and movement conditions. AF systems were benchmarked in both static and tracking scenarios, while usability was examined through extended shooting sessions across multiple genres with attention to real-world shooting stressors and environmental factors.

This multifaceted methodology ensures that our insights reflect practical, in-hand experience rather than solely spec sheet analysis, empowering photographers to align camera attributes with personal workflow requirements.

Whether your priority lies in portability, zoom reach, or specialized features like GPS tagging, understanding the nuanced trade-offs between the Casio EX-H20G and Olympus SZ-16 iHS is key to making a confident choice aligned with your photographic ambitions. In either case, these venerable compacts serve as capable everyday tools that bridge the gap between smartphone convenience and dedicated camera versatility.
