Casio EX-H30 vs Sony W690
92 Imaging
38 Features
40 Overall
38
95 Imaging
38 Features
32 Overall
35
Casio EX-H30 vs Sony W690 Key Specs
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200
- Sensor-shift Image Stabilization
- 1280 x 720 video
- 24-300mm (F3.0-5.9) lens
- 201g - 105 x 59 x 29mm
- Launched January 2011
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200
- Optical Image Stabilization
- 1280 x 720 video
- 25-250mm (F3.3-5.9) lens
- 142g - 94 x 56 x 22mm
- Released February 2012
Photography Glossary Casio EX-H30 vs Sony W690 Overview
On this page, we are matching up the Casio EX-H30 vs Sony W690, former being a Small Sensor Superzoom while the other is a Small Sensor Compact by manufacturers Casio and Sony. The image resolution of the EX-H30 (16MP) and the W690 (16MP) is very well matched and both cameras provide the same sensor dimensions (1/2.3").
Samsung Releases Faster Versions of EVO MicroSD CardsThe EX-H30 was unveiled 13 months earlier than the W690 making them a generation apart from one another. Both cameras have the same body design (Compact).
Before delving straight to a comprehensive comparison, here is a quick synopsis of how the EX-H30 grades against the W690 for portability, imaging, features and an overall grade.
Photobucket discusses licensing 13 billion images with AI firms Casio EX-H30 vs Sony W690 Gallery
The following is a sample of the gallery pics for Casio Exilim EX-H30 & Sony Cyber-shot DSC-W690. The full galleries are viewable at Casio EX-H30 Gallery & Sony W690 Gallery.
Reasons to pick Casio EX-H30 over the Sony W690
| EX-H30 | W690 | |||
|---|---|---|---|---|
| Manually focus |  | Dial precise focus | ||
| Display resolution | 461k |  | 230k | Clearer display (+231k dot) |
Reasons to pick Sony W690 over the Casio EX-H30
| W690 | EX-H30 | |||
|---|---|---|---|---|
| Released | February 2012 |  | January 2011 | More recent by 13 months |
Common features in the Casio EX-H30 and Sony W690
| EX-H30 | W690 | |||
|---|---|---|---|---|
| Display type | Fixed |  | Fixed | Fixed display |
| Display dimensions | 3" |  | 3" | Equal display sizing |
| Selfie screen |  | Neither comes with selfie screen | ||
| Touch friendly display |  | Missing Touch friendly display |
Casio EX-H30 vs Sony W690 Physical Comparison
For anybody who is aiming to lug around your camera regularly, you will need to factor in its weight and volume. The Casio EX-H30 comes with outer measurements of 105mm x 59mm x 29mm (4.1" x 2.3" x 1.1") having a weight of 201 grams (0.44 lbs) while the Sony W690 has sizing of 94mm x 56mm x 22mm (3.7" x 2.2" x 0.9") with a weight of 142 grams (0.31 lbs).
Check the Casio EX-H30 vs Sony W690 in our newest Camera plus Lens Size Comparison Tool.

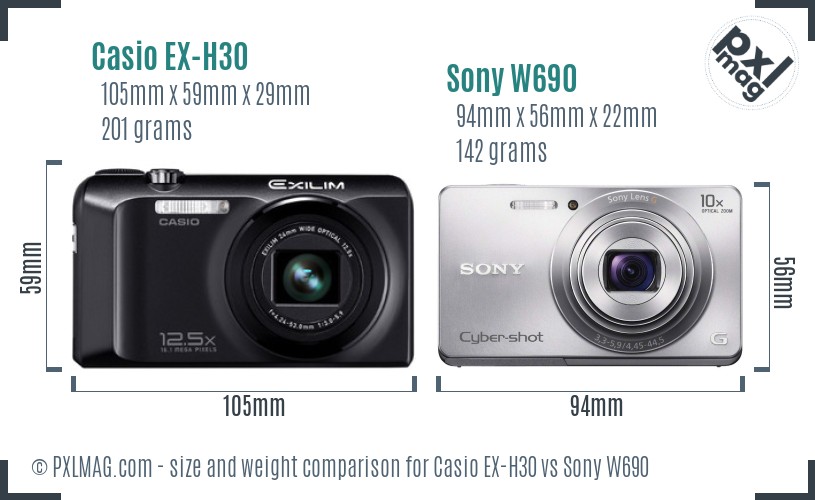

Do not forget, the weight of an ILC will change depending on the lens you are utilizing at that moment. Here is a front view measurement comparison of the EX-H30 vs the W690.
Taking into consideration dimensions and weight, the portability rating of the EX-H30 and W690 is 92 and 95 respectively.
Casio EX-H30 vs Sony W690 Sensor Comparison

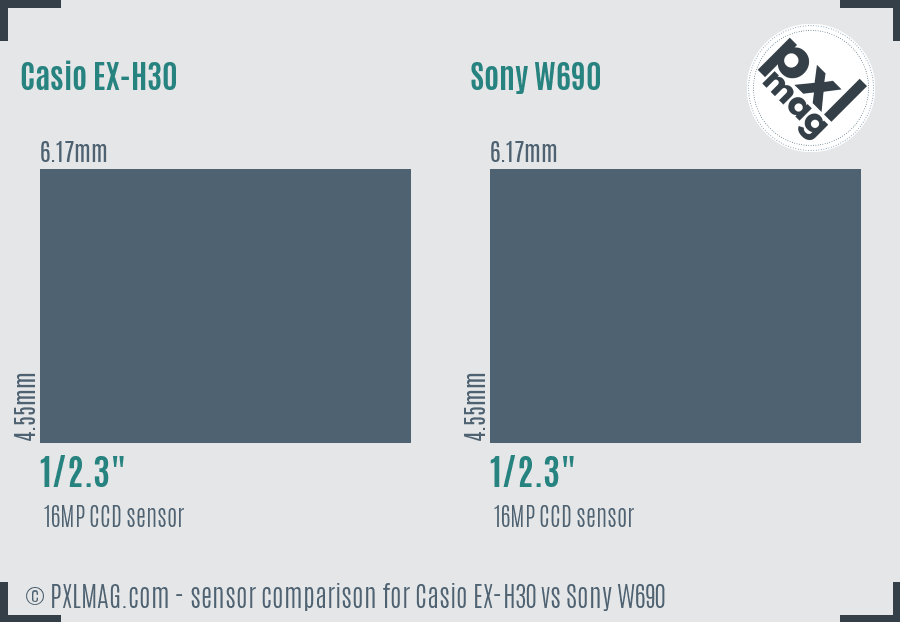

Quite often, it's tough to visualise the gap between sensor measurements just by reading through a spec sheet. The visual below should provide you a greater sense of the sensor sizing in the EX-H30 and W690.
Clearly, both cameras have the same sensor dimensions and the identical MP and you can expect similar quality of pictures although you will need to factor the age of the products into consideration. The older EX-H30 is going to be disadvantaged with regard to sensor tech.

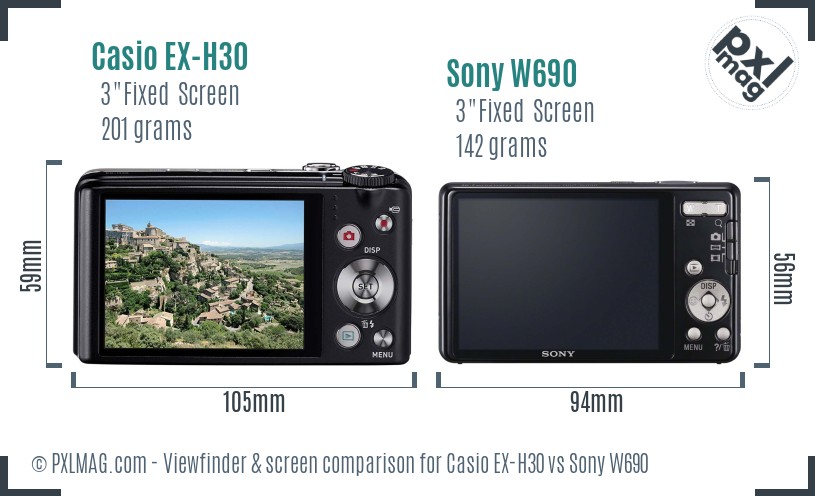

Casio EX-H30 vs Sony W690 Screen and ViewFinder
Mastering Nature Photography with a Digital Microscope Camera Photography Type Scores
Portrait Comparison
President Biden pushes bill mandating TikTok sale or banStreet Comparison
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modesSports Comparison
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneTravel Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthLandscape Comparison
Snapchat Adds Watermarks to AI-Created ImagesVlogging Comparison
Pentax 17 Pre-Orders Outperform Expectations by a Landslide
Casio EX-H30 vs Sony W690 Specifications
| Casio Exilim EX-H30 | Sony Cyber-shot DSC-W690 | |
|---|---|---|
| General Information | ||
| Brand | Casio | Sony |
| Model | Casio Exilim EX-H30 | Sony Cyber-shot DSC-W690 |
| Category | Small Sensor Superzoom | Small Sensor Compact |
| Launched | 2011-01-05 | 2012-02-28 |
| Body design | Compact | Compact |
| Sensor Information | ||
| Processor | Exilim Engine 5.0 | BIONZ |
| Sensor type | CCD | CCD |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
| Sensor surface area | 28.1mm² | 28.1mm² |
| Sensor resolution | 16 megapixel | 16 megapixel |
| Anti aliasing filter | ||
| Aspect ratio | 4:3, 3:2 and 16:9 | 4:3 and 16:9 |
| Full resolution | 4608 x 3456 | 4608 x 3456 |
| Max native ISO | 3200 | 3200 |
| Lowest native ISO | 80 | 80 |
| RAW files | ||
| Autofocusing | ||
| Focus manually | ||
| Touch to focus | ||
| AF continuous | ||
| Single AF | ||
| Tracking AF | ||
| AF selectice | ||
| AF center weighted | ||
| Multi area AF | ||
| Live view AF | ||
| Face detect focusing | ||
| Contract detect focusing | ||
| Phase detect focusing | ||
| Cross focus points | - | - |
| Lens | ||
| Lens mounting type | fixed lens | fixed lens |
| Lens focal range | 24-300mm (12.5x) | 25-250mm (10.0x) |
| Maximum aperture | f/3.0-5.9 | f/3.3-5.9 |
| Macro focus range | 1cm | 5cm |
| Crop factor | 5.8 | 5.8 |
| Screen | ||
| Display type | Fixed Type | Fixed Type |
| Display diagonal | 3 inch | 3 inch |
| Resolution of display | 461k dot | 230k dot |
| Selfie friendly | ||
| Liveview | ||
| Touch operation | ||
| Display technology | Super Clear TFT color LCD | ClearPhoto TFT LCD display |
| Viewfinder Information | ||
| Viewfinder type | None | None |
| Features | ||
| Slowest shutter speed | 8 seconds | 30 seconds |
| Maximum shutter speed | 1/2000 seconds | 1/1600 seconds |
| Continuous shooting speed | - | 1.0 frames per second |
| Shutter priority | ||
| Aperture priority | ||
| Expose Manually | ||
| Exposure compensation | Yes | - |
| Change WB | ||
| Image stabilization | ||
| Inbuilt flash | ||
| Flash range | - | 3.30 m |
| Flash settings | Auto, On, Off, Red-Eye | Auto, On, Off, Slow Sync |
| External flash | ||
| Auto exposure bracketing | ||
| WB bracketing | ||
| Exposure | ||
| Multisegment metering | ||
| Average metering | ||
| Spot metering | ||
| Partial metering | ||
| AF area metering | ||
| Center weighted metering | ||
| Video features | ||
| Video resolutions | 1280 x 720 (30 fps), 640 x 480 (30 fps) | 1280 x 720 (30 fps), 640 x 480 (30 fps) |
| Max video resolution | 1280x720 | 1280x720 |
| Video data format | - | MPEG-4 |
| Mic input | ||
| Headphone input | ||
| Connectivity | ||
| Wireless | None | None |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environment seal | ||
| Water proof | ||
| Dust proof | ||
| Shock proof | ||
| Crush proof | ||
| Freeze proof | ||
| Weight | 201 gr (0.44 lbs) | 142 gr (0.31 lbs) |
| Physical dimensions | 105 x 59 x 29mm (4.1" x 2.3" x 1.1") | 94 x 56 x 22mm (3.7" x 2.2" x 0.9") |
| DXO scores | ||
| DXO All around score | not tested | not tested |
| DXO Color Depth score | not tested | not tested |
| DXO Dynamic range score | not tested | not tested |
| DXO Low light score | not tested | not tested |
| Other | ||
| Battery life | - | 220 pictures |
| Type of battery | - | Battery Pack |
| Battery model | NP-130 | NP-BN |
| Self timer | Yes (2 or 10 seconds, custom) | Yes (2 or 10 sec, Portrait 1/2) |
| Time lapse recording | ||
| Type of storage | - | SD/SDHC/SDXC/Memory Stick Duo/Memory Stick Pro Duo, Memory Stick Pro-HG Duo |
| Storage slots | 1 | 1 |
| Cost at launch | $709 | $297 |
