Casio EX-Z33 vs Ricoh GR
97 Imaging
33 Features
17 Overall
26


90 Imaging
57 Features
54 Overall
55
Casio EX-Z33 vs Ricoh GR Key Specs
(Full Review)
- 10MP - 1/2.3" Sensor
- 2.5" Fixed Screen
- ISO 64 - 1600
- 640 x 480 video
- 36-107mm (F3.1-5.6) lens
- 106g - 95 x 56 x 18mm
- Introduced August 2009
(Full Review)
- 16MP - APS-C Sensor
- 3" Fixed Display
- ISO 100 - 25600
- 1920 x 1080 video
- 28mm (F2.8) lens
- 245g - 117 x 61 x 35mm
- Revealed April 2013
- Successor is Ricoh GR II

Casio EX-Z33 vs Ricoh GR Overview
Its time to look a little more in depth at the Casio EX-Z33 versus Ricoh GR, former being a Small Sensor Compact while the other is a Large Sensor Compact by brands Casio and Ricoh. There is a noticeable difference among the image resolutions of the EX-Z33 (10MP) and GR (16MP) and the EX-Z33 (1/2.3") and GR (APS-C) come with different sensor dimensions.

The EX-Z33 was released 4 years prior to the GR and that is a fairly sizable difference as far as camera tech is concerned. Both of these cameras come with different body type with the Casio EX-Z33 being a Compact camera and the Ricoh GR being a Large Sensor Compact camera.
Before getting through a in-depth comparison, below is a simple introduction of how the EX-Z33 scores vs the GR for portability, imaging, features and an overall rating.

Casio EX-Z33 vs Ricoh GR Gallery
Below is a sample of the gallery pics for Casio Exilim EX-Z33 & Ricoh GR. The complete galleries are provided at Casio EX-Z33 Gallery & Ricoh GR Gallery.
Reasons to pick Casio EX-Z33 over the Ricoh GR
EX-Z33 | GR |
---|
Reasons to pick Ricoh GR over the Casio EX-Z33
GR | EX-Z33 | |||
---|---|---|---|---|
Revealed | April 2013 | ![]() | August 2009 | Fresher by 44 months |
Display dimension | 3" | ![]() | 2.5" | Larger display (+0.5") |
Display resolution | 1230k | ![]() | 230k | Sharper display (+1000k dot) |
Common features in the Casio EX-Z33 and Ricoh GR
EX-Z33 | GR | |||
---|---|---|---|---|
Manually focus | ![]() | Very accurate focusing | ||
Display type | Fixed | ![]() | Fixed | Fixed display |
Selfie screen | ![]() | Neither comes with selfie screen | ||
Touch display | ![]() | Neither comes with Touch display |
Casio EX-Z33 vs Ricoh GR Physical Comparison
In case you're planning to carry your camera frequently, you have to consider its weight and proportions. The Casio EX-Z33 comes with outside measurements of 95mm x 56mm x 18mm (3.7" x 2.2" x 0.7") with a weight of 106 grams (0.23 lbs) while the Ricoh GR has measurements of 117mm x 61mm x 35mm (4.6" x 2.4" x 1.4") with a weight of 245 grams (0.54 lbs).
Check out the Casio EX-Z33 versus Ricoh GR in our newest Camera & Lens Size Comparison Tool.

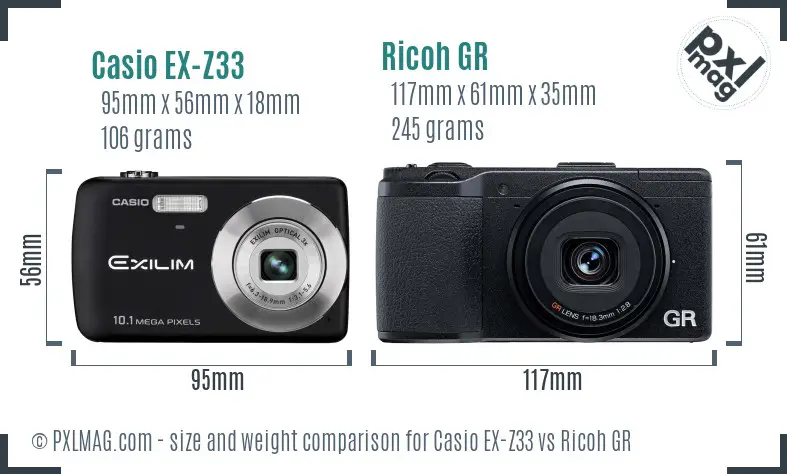

Remember, the weight of an ILC will vary based on the lens you are using at the time. Underneath is the front view dimension comparison of the EX-Z33 vs the GR.

Looking at size and weight, the portability score of the EX-Z33 and GR is 97 and 90 respectively.

Casio EX-Z33 vs Ricoh GR Sensor Comparison

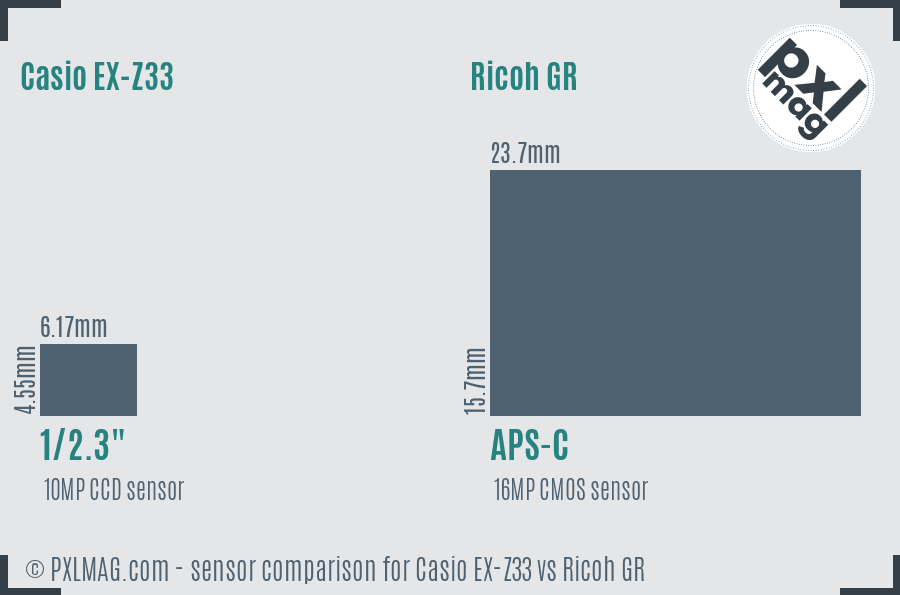

Often, it is very hard to picture the gap in sensor sizing only by checking out technical specs. The photograph here will help offer you a clearer sense of the sensor measurements in the EX-Z33 and GR.
As you have seen, both of those cameras posses different megapixel count and different sensor sizing. The EX-Z33 because of its smaller sensor is going to make achieving shallower DOF more challenging and the Ricoh GR will show greater detail as a result of its extra 6 Megapixels. Greater resolution will also make it easier to crop pics somewhat more aggressively. The older EX-Z33 will be disadvantaged in sensor technology.

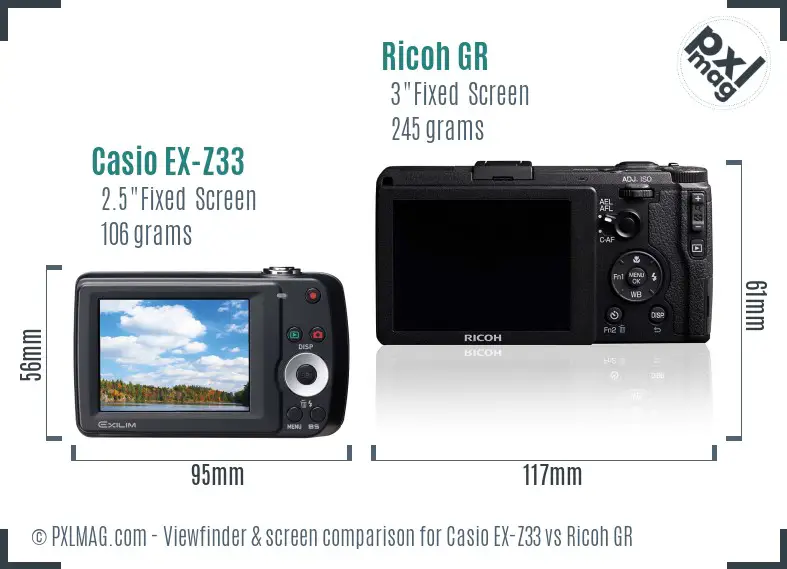

Casio EX-Z33 vs Ricoh GR Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Casio EX-Z33 vs Ricoh GR Specifications
Casio Exilim EX-Z33 | Ricoh GR | |
---|---|---|
General Information | ||
Manufacturer | Casio | Ricoh |
Model type | Casio Exilim EX-Z33 | Ricoh GR |
Type | Small Sensor Compact | Large Sensor Compact |
Introduced | 2009-08-31 | 2013-04-17 |
Physical type | Compact | Large Sensor Compact |
Sensor Information | ||
Sensor type | CCD | CMOS |
Sensor size | 1/2.3" | APS-C |
Sensor measurements | 6.17 x 4.55mm | 23.7 x 15.7mm |
Sensor surface area | 28.1mm² | 372.1mm² |
Sensor resolution | 10 megapixel | 16 megapixel |
Anti alias filter | ||
Aspect ratio | 4:3, 3:2 and 16:9 | 1:1, 4:3 and 3:2 |
Peak resolution | 3648 x 2736 | 4928 x 3264 |
Highest native ISO | 1600 | 25600 |
Minimum native ISO | 64 | 100 |
RAW support | ||
Autofocusing | ||
Focus manually | ||
AF touch | ||
Continuous AF | ||
Single AF | ||
AF tracking | ||
AF selectice | ||
AF center weighted | ||
AF multi area | ||
Live view AF | ||
Face detection AF | ||
Contract detection AF | ||
Phase detection AF | ||
Cross type focus points | - | - |
Lens | ||
Lens mount type | fixed lens | fixed lens |
Lens zoom range | 36-107mm (3.0x) | 28mm (1x) |
Maximum aperture | f/3.1-5.6 | f/2.8 |
Macro focusing range | 10cm | - |
Focal length multiplier | 5.8 | 1.5 |
Screen | ||
Type of screen | Fixed Type | Fixed Type |
Screen diagonal | 2.5 inch | 3 inch |
Resolution of screen | 230k dots | 1,230k dots |
Selfie friendly | ||
Liveview | ||
Touch friendly | ||
Screen tech | - | TFT LCD |
Viewfinder Information | ||
Viewfinder type | None | Optical (optional) |
Features | ||
Minimum shutter speed | 4 secs | 300 secs |
Fastest shutter speed | 1/2000 secs | 1/4000 secs |
Continuous shutter rate | - | 4.0 frames per second |
Shutter priority | ||
Aperture priority | ||
Manually set exposure | ||
Exposure compensation | - | Yes |
Change WB | ||
Image stabilization | ||
Built-in flash | ||
Flash distance | 2.80 m | 5.40 m (at ISO 100) |
Flash options | Auto, On, Off, Red-eye, Soft | - |
Hot shoe | ||
Auto exposure bracketing | ||
White balance bracketing | ||
Fastest flash synchronize | - | 1/4000 secs |
Exposure | ||
Multisegment | ||
Average | ||
Spot | ||
Partial | ||
AF area | ||
Center weighted | ||
Video features | ||
Video resolutions | 848 x 480 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) | 1920 x 1080 (30, 25, 24 fps), 1280 x 720 ( 60, 50, 30, 25, 24 fps), 640 x 480 (30, 25, 24 fps) |
Highest video resolution | 640x480 | 1920x1080 |
Video data format | Motion JPEG | MPEG-4 |
Microphone support | ||
Headphone support | ||
Connectivity | ||
Wireless | Eye-Fi Connected | Eye-Fi Connected |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental sealing | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 106 grams (0.23 lb) | 245 grams (0.54 lb) |
Dimensions | 95 x 56 x 18mm (3.7" x 2.2" x 0.7") | 117 x 61 x 35mm (4.6" x 2.4" x 1.4") |
DXO scores | ||
DXO Overall rating | not tested | 78 |
DXO Color Depth rating | not tested | 23.6 |
DXO Dynamic range rating | not tested | 13.5 |
DXO Low light rating | not tested | 972 |
Other | ||
Battery life | - | 290 photographs |
Type of battery | - | Battery Pack |
Battery ID | NP-82 | DB65 |
Self timer | Yes (2 or 10 sec, Triple) | Yes |
Time lapse recording | ||
Type of storage | SD/SDHC card, Internal | SD, SDHC, SDXC |
Card slots | Single | Single |
Cost at release | $120 | $971 |
