Leica V-Lux 20 vs Nikon S5300

Portability
91
Imaging
35
Features
33
Overall
34
Leica V-Lux 20 front

Nikon Coolpix S5300 front
Portability
95
Imaging
40
Features
40
Overall
40

Leica V-Lux 20 vs Nikon S5300 Key Specs

Leica V-Lux 20
(Full Review)
  • 12MP - 1/2.3" Sensor
  • 3" Fixed Screen
  • ISO 80 - 6400
  • Optical Image Stabilization
  • 1280 x 720 video
  • 25-300mm (F3.3-4.9) lens
  • 218g - 103 x 60 x 33mm
  • Revealed April 2010
Nikon S5300
(Full Review)
  • 16MP - 1/2.3" Sensor
  • 3" Fixed Screen
  • ISO 125 - 6400
  • Optical Image Stabilization
  • 1920 x 1080 video
  • 26-208mm (F3.7-6.6) lens
  • 138g - 97 x 58 x 21mm
  • Launched January 2014
Meta to Introduce 'AI-Generated' Labels for Media starting next month

Leica V-Lux 20 vs Nikon S5300 Overview

The following is a in-depth review of the Leica V-Lux 20 vs Nikon S5300, former is a Small Sensor Superzoom while the latter is a Small Sensor Compact by brands Leica and Nikon. There is a noticeable difference among the sensor resolutions of the V-Lux 20 (12MP) and S5300 (16MP) but both cameras provide the identical sensor sizing (1/2.3").

Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes

The V-Lux 20 was announced 4 years earlier than the S5300 which is a fairly sizable difference as far as camera tech is concerned. Each of these cameras feature the same body design (Compact).

Before getting right into a comprehensive comparison, here is a brief introduction of how the V-Lux 20 scores against the S5300 for portability, imaging, features and an overall mark.

President Biden pushes bill mandating TikTok sale or ban



Reasons to pick Leica V-Lux 20 over the Nikon S5300

 V-Lux 20 S5300
Screen resolution461k460kSharper screen (+1k dot)

Reasons to pick Nikon S5300 over the Leica V-Lux 20

 S5300 V-Lux 20
LaunchedJanuary 2014April 2010Newer by 45 months
Manually focus More accurate focus

Common features in the Leica V-Lux 20 and Nikon S5300

 V-Lux 20 S5300
Screen typeFixed Fixed Fixed screen
Screen size3"3"Same screen measurement
Selfie screen No selfie screen
Touch screen Neither offers Touch screen

Leica V-Lux 20 vs Nikon S5300 Physical Comparison

For those who are aiming to travel with your camera often, you need to take into account its weight and volume. The Leica V-Lux 20 offers external measurements of 103mm x 60mm x 33mm (4.1" x 2.4" x 1.3") accompanied by a weight of 218 grams (0.48 lbs) while the Nikon S5300 has sizing of 97mm x 58mm x 21mm (3.8" x 2.3" x 0.8") with a weight of 138 grams (0.30 lbs).

Contrast the Leica V-Lux 20 vs Nikon S5300 in our newest Camera & Lens Size Comparison Tool. Camera Size Comparison with Lenses

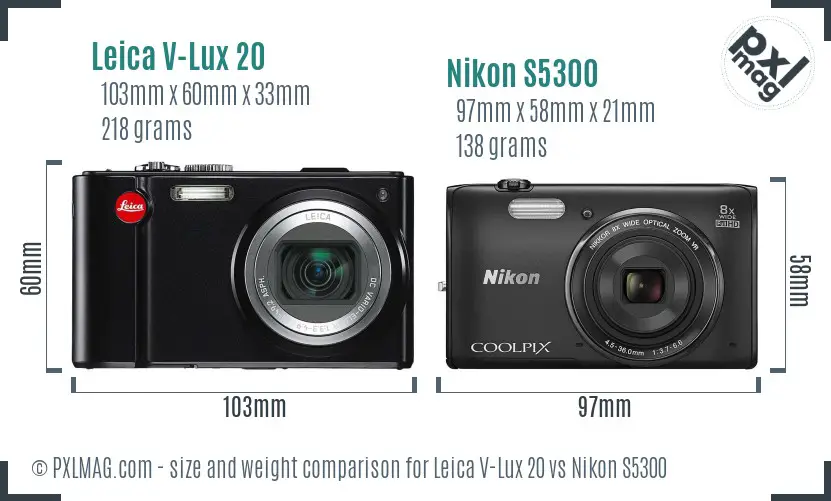

Take into consideration, the weight of an ILC will change dependant on the lens you choose at the time. Below is a front view over all size comparison of the V-Lux 20 compared to the S5300.

Leica V-Lux 20 vs Nikon S5300 size comparison

Looking at size and weight, the portability score of the V-Lux 20 and S5300 is 91 and 95 respectively.

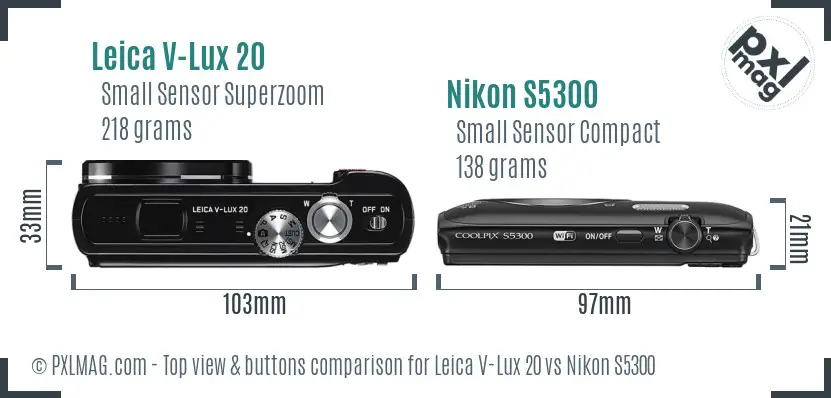

Leica V-Lux 20 vs Nikon S5300 top view buttons comparison

Leica V-Lux 20 vs Nikon S5300 Sensor Comparison

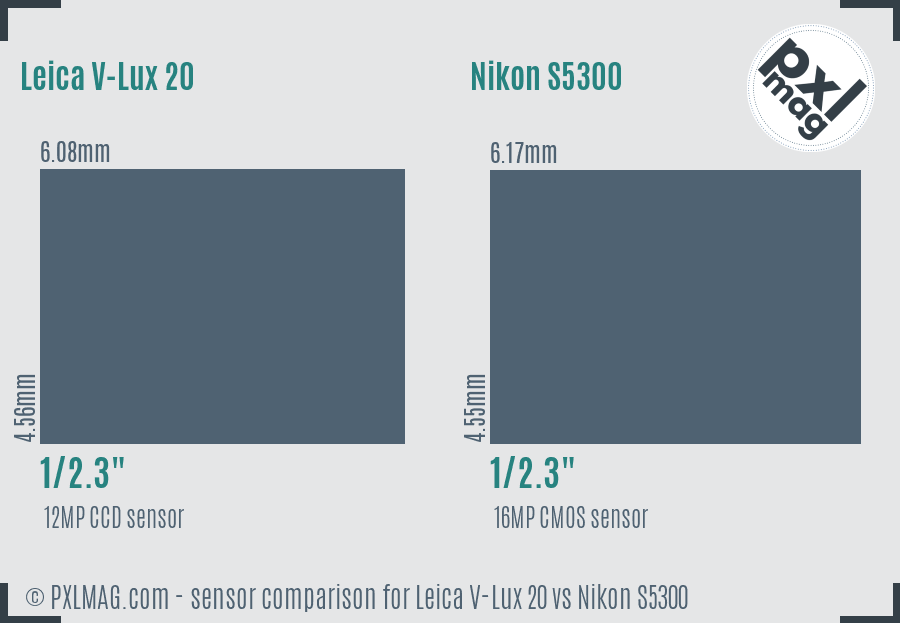

Often, its difficult to visualise the gap in sensor dimensions merely by going through specifications. The pic below will help give you a better sense of the sensor sizing in the V-Lux 20 and S5300.

Plainly, both of the cameras come with the identical sensor size albeit not the same MP. You can expect the Nikon S5300 to show extra detail with its extra 4MP. Higher resolution will also make it easier to crop pictures a good deal more aggressively. The more aged V-Lux 20 will be behind when it comes to sensor tech.

Leica V-Lux 20 vs Nikon S5300 sensor size comparison

Leica V-Lux 20 vs Nikon S5300 Screen and ViewFinder

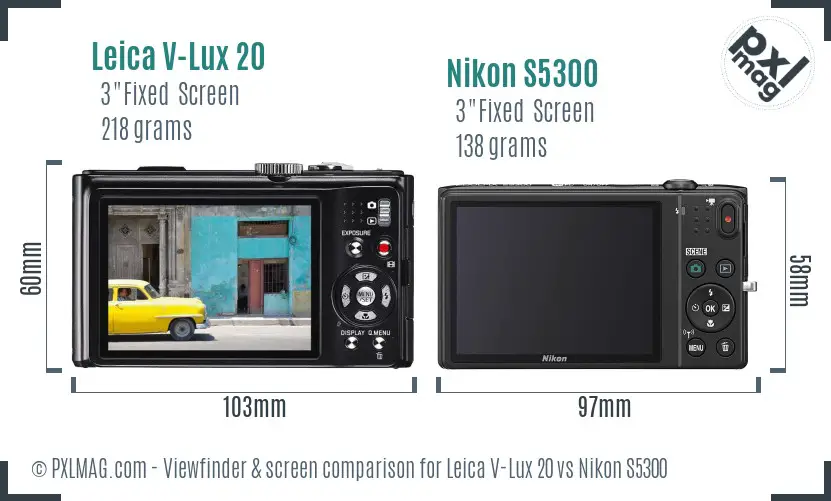

Leica V-Lux 20 vs Nikon S5300 Screen and Viewfinder comparison
Samsung Releases Faster Versions of EVO MicroSD Cards

Photography Type Scores

Portrait Comparison

Leica V-Lux 20 Portrait photography advice
Nikon S5300 Portrait photography advice
21
focusing manually not possible
cannot use external flash
megapixel count low (12MP)
sensor size is very small (1/2.3")
lacks RAW support
41
manual focus
decent MP (16 megapixels)
features face detect focusing
manual mode not possible
cannot use external flash
tiny sensor (1/2.3")
no RAW format
Snapchat Adds Watermarks to AI-Created Images

Street Comparison

Leica V-Lux 20 Street photography information
Nikon S5300 Street photography information
60
built in image stabilization (Optical)
lighter than others in class (218g)
no articulating screen
sensor size is very small (1/2.3")
lacks RAW support
63
built in image stabilization (Optical)
lighter than competitors (138g)
no articulating screen
tiny sensor (1/2.3")
no RAW format
Sora from OpenAI releases its first ever music video

Sports Comparison

Leica V-Lux 20 as a Sports photography camera
Nikon S5300 as a Sports photography camera
27
built in image stabilization (Optical)
slow frames per second (2.0 fps)
megapixel count low (12 megapixels)
sensor size is very small (1/2.3")
lacks phase detect autofocus
41
built in image stabilization (Optical)
decent MP (16 megapixels)
features tracking focus
no shutter priority
tiny sensor (1/2.3")
bad battery life (180 CIPA)
no phase detect AF
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone

Travel Comparison

Travel photography with Leica V-Lux 20
Travel photography with Nikon S5300
63
lighter than others in class (218 grams)
flash built-in
pretty wide (25mm)
long zoom (300mm)
missing Time Lapse function
megapixel count low (12 megapixels)
screen isn't selfie friendly
sluggish max aperture (f3.3)
66
lighter than competitors (138g)
decent MP (16MP)
built-in flash
really wide (26mm)
no Timelapse recording
bad battery life (180 per charge)
screen is not selfie friendly
sluggish maximum aperture (f3.7)
Photobucket discusses licensing 13 billion images with AI firms

Landscape Comparison

Leica V-Lux 20 Landscape photography info
Nikon S5300 Landscape photography info
38
pretty wide (25mm)
nice screen size (3")
built in image stabilization (Optical)
focusing manually not possible
fixed lens (fixed lens mount)
sluggish max aperture (f3.3)
megapixel count low (12MP)
sensor size is very small (1/2.3")
lacks RAW support
missing Time Lapse function
46
manual focus
really wide (26mm)
screen is a decent size (3 inches)
built in image stabilization (Optical)
decent MP (16MP)
can't switch lenses (fixed lens mount)
sluggish maximum aperture (f3.7)
manual mode not possible
tiny sensor (1/2.3")
no RAW format
bad battery life (180 CIPA)
no Timelapse recording
Pentax 17 Pre-Orders Outperform Expectations by a Landslide

Vlogging Comparison

Leica V-Lux 20 Vlogging details
Nikon S5300 Vlogging details
30
pretty wide (25mm)
built in image stabilization (Optical)
lighter than others in class (218g)
sluggish max aperture (f3.3)
screen isn't selfie friendly
video quality not great (1280 x 720 resolution)
missing mic jack
35
really wide (26mm)
built in image stabilization (Optical)
features face detect focusing
high video quality (1920 x 1080 resolution)
lighter than competitors (138 grams)
sluggish maximum aperture (f3.7)
screen is not selfie friendly
no microphone socket
Photography Glossary

Leica V-Lux 20 vs Nikon S5300 Specifications

Detailed spec comparison table for Leica V-Lux 20 and Nikon S5300
 Leica V-Lux 20Nikon Coolpix S5300
General Information
Brand Leica Nikon
Model type Leica V-Lux 20 Nikon Coolpix S5300
Type Small Sensor Superzoom Small Sensor Compact
Revealed 2010-04-20 2014-01-07
Physical type Compact Compact
Sensor Information
Sensor type CCD CMOS
Sensor size 1/2.3" 1/2.3"
Sensor measurements 6.08 x 4.56mm 6.17 x 4.55mm
Sensor area 27.7mm² 28.1mm²
Sensor resolution 12 megapixel 16 megapixel
Anti alias filter
Aspect ratio 4:3, 3:2 and 16:9 -
Peak resolution 4000 x 3000 4608 x 3456
Highest native ISO 6400 6400
Lowest native ISO 80 125
RAW support
Autofocusing
Manual focusing
Touch focus
Continuous autofocus
Autofocus single
Autofocus tracking
Autofocus selectice
Autofocus center weighted
Autofocus multi area
Live view autofocus
Face detection focus
Contract detection focus
Phase detection focus
Total focus points 11 99
Lens
Lens mount type fixed lens fixed lens
Lens zoom range 25-300mm (12.0x) 26-208mm (8.0x)
Highest aperture f/3.3-4.9 f/3.7-6.6
Macro focusing range 3cm -
Crop factor 5.9 5.8
Screen
Type of screen Fixed Type Fixed Type
Screen diagonal 3" 3"
Screen resolution 461k dots 460k dots
Selfie friendly
Liveview
Touch display
Screen tech - TFT-LCD
Viewfinder Information
Viewfinder None None
Features
Minimum shutter speed 60s 4s
Fastest shutter speed 1/2000s 1/1500s
Continuous shutter rate 2.0 frames/s 7.0 frames/s
Shutter priority
Aperture priority
Manually set exposure
Exposure compensation Yes -
Custom white balance
Image stabilization
Integrated flash
Flash distance 5.30 m 3.50 m
Flash options Auto, On, Off, Red-eye, Slow Syncro -
Hot shoe
AE bracketing
White balance bracketing
Exposure
Multisegment exposure
Average exposure
Spot exposure
Partial exposure
AF area exposure
Center weighted exposure
Video features
Supported video resolutions 1280 x 720 (60 fps), 848 x 480 (30 fps), 640 x 480 (30fps), 320 x 240 (30 fps) 1920 x 1080 (30fps), 1280 x 720 (30fps), 640 x 480 (120 fps)
Highest video resolution 1280x720 1920x1080
Video data format Motion JPEG MPEG-4, H.264
Microphone port
Headphone port
Connectivity
Wireless None Built-In
Bluetooth
NFC
HDMI
USB USB 2.0 (480 Mbit/sec) USB 2.0 (480 Mbit/sec)
GPS BuiltIn None
Physical
Environment sealing
Water proofing
Dust proofing
Shock proofing
Crush proofing
Freeze proofing
Weight 218g (0.48 lbs) 138g (0.30 lbs)
Physical dimensions 103 x 60 x 33mm (4.1" x 2.4" x 1.3") 97 x 58 x 21mm (3.8" x 2.3" x 0.8")
DXO scores
DXO Overall rating not tested not tested
DXO Color Depth rating not tested not tested
DXO Dynamic range rating not tested not tested
DXO Low light rating not tested not tested
Other
Battery life - 180 pictures
Battery type - Battery Pack
Battery ID - EN-EL19
Self timer Yes (2 or 10 sec) Yes (10 or 2 seconds)
Time lapse shooting
Storage type SD/SDHC/SDXC, Internal SD/SDHC/SDXC
Card slots One One
Cost at release $779 $180
