Olympus E-5 vs Samsung NX20 Key Specs
(Full Review)
- 12MP - Four Thirds Sensor
- 3" Fully Articulated Display
- ISO 100 - 6400
- Sensor based Image Stabilization
- 1/8000s Max Shutter
- 1280 x 720 video
- Micro Four Thirds Mount
- 800g - 143 x 117 x 75mm
- Announced February 2011
- Previous Model is Olympus E-3
(Full Review)
- 20MP - APS-C Sensor
- 3" Fully Articulated Display
- ISO 100 - 12800
- 1/8000s Maximum Shutter
- 1920 x 1080 video
- Samsung NX Mount
- 341g - 122 x 90 x 40mm
- Released April 2012
- Succeeded the Samsung NX11
- Renewed by Samsung NX30
Sora from OpenAI releases its first ever music video Olympus E-5 vs Samsung NX20 Overview
Below is a comprehensive comparison of the Olympus E-5 vs Samsung NX20, former being a Advanced DSLR while the other is a Advanced Mirrorless by rivals Olympus and Samsung. There is a considerable difference among the sensor resolutions of the E-5 (12MP) and NX20 (20MP) and the E-5 (Four Thirds) and NX20 (APS-C) come with different sensor dimensions.
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneThe E-5 was released 14 months prior to the NX20 making the cameras a generation apart from each other. Both cameras come with different body type with the Olympus E-5 being a Mid-size SLR camera and the Samsung NX20 being a SLR-style mirrorless camera.
Before delving straight into a in-depth comparison, below is a simple synopsis of how the E-5 grades vs the NX20 for portability, imaging, features and an overall grade.
Photobucket discusses licensing 13 billion images with AI firms Olympus E-5 vs Samsung NX20 Gallery
Below is a sample of the gallery pictures for Olympus E-5 & Samsung NX20. The complete galleries are viewable at Olympus E-5 Gallery & Samsung NX20 Gallery.
Reasons to pick Olympus E-5 over the Samsung NX20
| E-5 | NX20 | |||
|---|---|---|---|---|
| Display resolution | 920k |  | 614k | Clearer display (+306k dot) |
Reasons to pick Samsung NX20 over the Olympus E-5
| NX20 | E-5 | |||
|---|---|---|---|---|
| Released | April 2012 |  | February 2011 | More recent by 14 months |
Common features in the Olympus E-5 and Samsung NX20
| E-5 | NX20 | |||
|---|---|---|---|---|
| Manually focus |  | More accurate focusing | ||
| Display type | Fully Articulated |  | Fully Articulated | Fully Articulated display |
| Display dimension | 3" |  | 3" | Identical display sizing |
| Selfie screen |  | Both good for selfies | ||
| Touch display |  | Neither features Touch display |

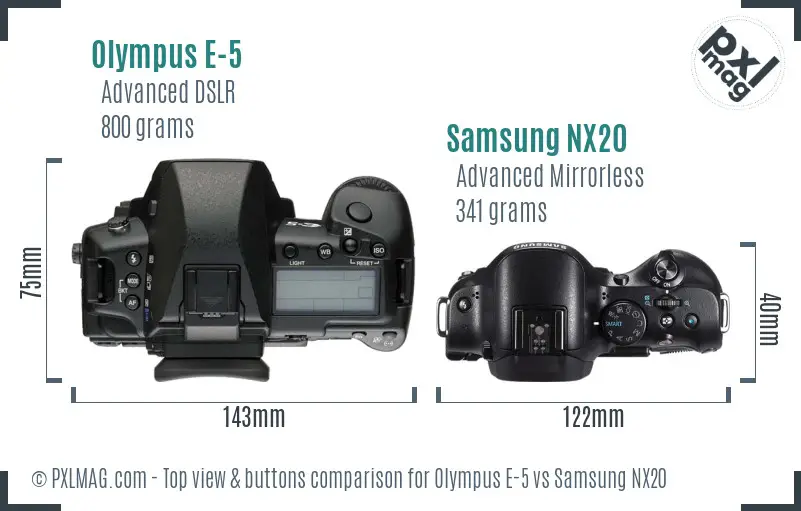

Olympus E-5 vs Samsung NX20 Physical Comparison
If you are looking to lug around your camera regularly, you have to think about its weight and size. The Olympus E-5 enjoys physical dimensions of 143mm x 117mm x 75mm (5.6" x 4.6" x 3.0") along with a weight of 800 grams (1.76 lbs) and the Samsung NX20 has specifications of 122mm x 90mm x 40mm (4.8" x 3.5" x 1.6") with a weight of 341 grams (0.75 lbs).
Compare the Olympus E-5 vs Samsung NX20 in our newest Camera plus Lens Size Comparison Tool.

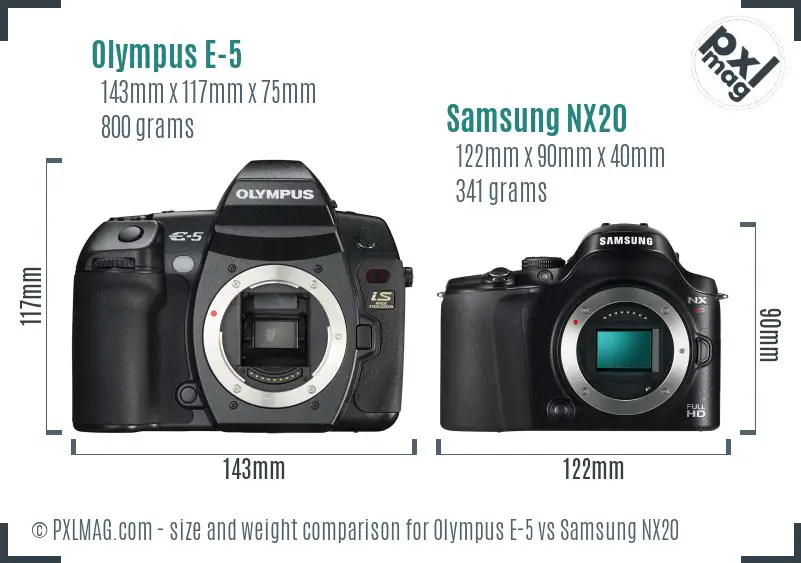

Remember, the weight of an ILC will change based on the lens you are employing at the time. The following is the front view size comparison of the E-5 versus the NX20.
Considering size and weight, the portability score of the E-5 and NX20 is 58 and 83 respectively.
Olympus E-5 vs Samsung NX20 Sensor Comparison

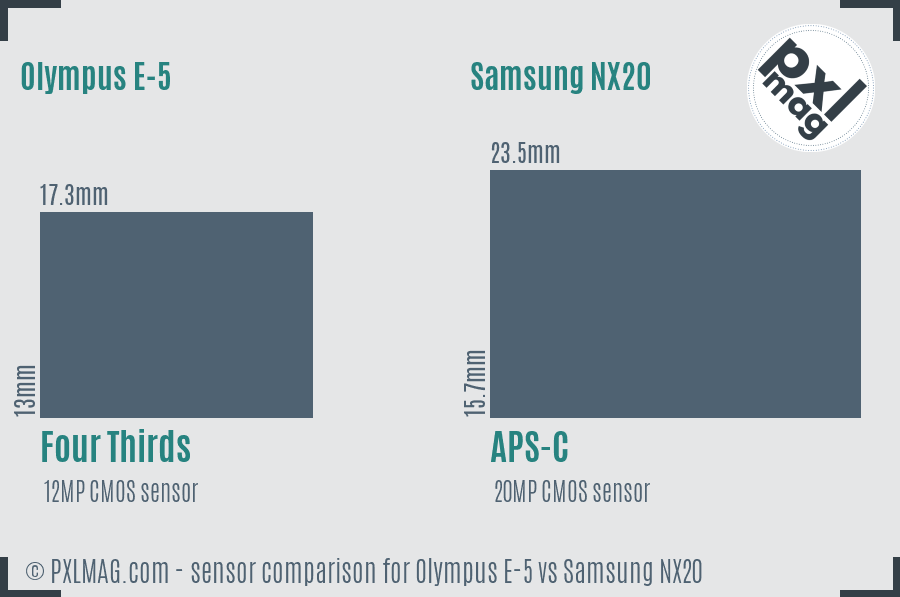

Usually, it is very tough to picture the difference in sensor measurements just by checking out specifications. The visual here will help give you a much better sense of the sensor dimensions in the E-5 and NX20.
To sum up, each of these cameras have got different megapixels and different sensor measurements. The E-5 featuring a smaller sensor is going to make shooting shallow depth of field trickier and the Samsung NX20 will show greater detail as a result of its extra 8MP. Greater resolution will also enable you to crop pics much more aggressively. The older E-5 will be behind with regard to sensor technology.

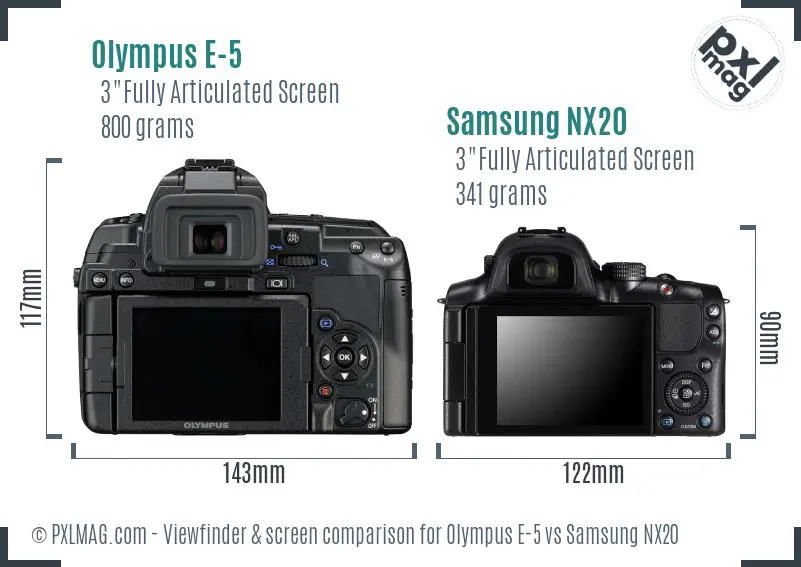

Olympus E-5 vs Samsung NX20 Screen and ViewFinder
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes Photography Type Scores
Portrait Comparison
President Biden pushes bill mandating TikTok sale or banStreet Comparison
Photography GlossarySports Comparison
Pentax 17 Pre-Orders Outperform Expectations by a LandslideTravel Comparison
Snapchat Adds Watermarks to AI-Created ImagesLandscape Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthVlogging Comparison
Samsung Releases Faster Versions of EVO MicroSD Cards
Olympus E-5 vs Samsung NX20 Specifications
| Olympus E-5 | Samsung NX20 | |
|---|---|---|
| General Information | ||
| Manufacturer | Olympus | Samsung |
| Model | Olympus E-5 | Samsung NX20 |
| Type | Advanced DSLR | Advanced Mirrorless |
| Announced | 2011-02-03 | 2012-04-20 |
| Physical type | Mid-size SLR | SLR-style mirrorless |
| Sensor Information | ||
| Processor | TruePic V+ | - |
| Sensor type | CMOS | CMOS |
| Sensor size | Four Thirds | APS-C |
| Sensor dimensions | 17.3 x 13mm | 23.5 x 15.7mm |
| Sensor area | 224.9mm² | 369.0mm² |
| Sensor resolution | 12 megapixels | 20 megapixels |
| Anti aliasing filter | ||
| Aspect ratio | 4:3 and 16:9 | 1:1, 3:2 and 16:9 |
| Full resolution | 4032 x 3024 | 5472 x 3648 |
| Max native ISO | 6400 | 12800 |
| Min native ISO | 100 | 100 |
| RAW photos | ||
| Autofocusing | ||
| Manual focus | ||
| Autofocus touch | ||
| Autofocus continuous | ||
| Autofocus single | ||
| Autofocus tracking | ||
| Selective autofocus | ||
| Autofocus center weighted | ||
| Multi area autofocus | ||
| Autofocus live view | ||
| Face detect autofocus | ||
| Contract detect autofocus | ||
| Phase detect autofocus | ||
| Number of focus points | 11 | 15 |
| Cross focus points | 11 | - |
| Lens | ||
| Lens mount | Micro Four Thirds | Samsung NX |
| Available lenses | 45 | 32 |
| Focal length multiplier | 2.1 | 1.5 |
| Screen | ||
| Display type | Fully Articulated | Fully Articulated |
| Display diagonal | 3 inches | 3 inches |
| Resolution of display | 920k dots | 614k dots |
| Selfie friendly | ||
| Liveview | ||
| Touch functionality | ||
| Display technology | HyperCrystal transmissive LCD | Active Matrix OLED screen |
| Viewfinder Information | ||
| Viewfinder type | Optical (pentaprism) | Electronic |
| Viewfinder coverage | 100 percent | 100 percent |
| Viewfinder magnification | 0.58x | 0.7x |
| Features | ||
| Lowest shutter speed | 60 seconds | 30 seconds |
| Highest shutter speed | 1/8000 seconds | 1/8000 seconds |
| Continuous shooting rate | 5.0 frames/s | 8.0 frames/s |
| Shutter priority | ||
| Aperture priority | ||
| Manually set exposure | ||
| Exposure compensation | Yes | Yes |
| Change white balance | ||
| Image stabilization | ||
| Integrated flash | ||
| Flash range | 18.00 m (at ISO 200) | 11.00 m |
| Flash modes | Auto, On, Off, Red-Eye, Slow Sync, Fill-in | Auto, On, Off, Red-eye, Fill-in, 1st/2nd Curtain, Smart Flash, Manual |
| Hot shoe | ||
| AEB | ||
| White balance bracketing | ||
| Highest flash synchronize | 1/250 seconds | 1/180 seconds |
| Exposure | ||
| Multisegment metering | ||
| Average metering | ||
| Spot metering | ||
| Partial metering | ||
| AF area metering | ||
| Center weighted metering | ||
| Video features | ||
| Video resolutions | 1280 x 720 (30 fps), 640 x 480 (30 fps) | 1920 x 1080 (30 fps), 1920 x 810 (24 fps) 1280 x 720 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) |
| Max video resolution | 1280x720 | 1920x1080 |
| Video format | Motion JPEG | MPEG-4, H.264 |
| Mic support | ||
| Headphone support | ||
| Connectivity | ||
| Wireless | None | Built-In |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | Optional |
| Physical | ||
| Environmental sealing | ||
| Water proof | ||
| Dust proof | ||
| Shock proof | ||
| Crush proof | ||
| Freeze proof | ||
| Weight | 800 gr (1.76 lbs) | 341 gr (0.75 lbs) |
| Dimensions | 143 x 117 x 75mm (5.6" x 4.6" x 3.0") | 122 x 90 x 40mm (4.8" x 3.5" x 1.6") |
| DXO scores | ||
| DXO All around score | 56 | 75 |
| DXO Color Depth score | 21.6 | 23.4 |
| DXO Dynamic range score | 10.5 | 12.9 |
| DXO Low light score | 519 | 785 |
| Other | ||
| Battery life | 870 photos | 360 photos |
| Type of battery | Battery Pack | Battery Pack |
| Battery model | BLM-5 | BP1130 |
| Self timer | Yes (2 or 12 sec) | Yes (2 sec to 30 sec) |
| Time lapse recording | ||
| Type of storage | Compact Flash (Type I or II)/SD/SDHC/SDXC | SD/SDHC/SDXC |
| Card slots | Two | 1 |
| Pricing at launch | $1,700 | $1,100 |
