Olympus E-M5 vs Sony W690
81 Imaging
52 Features
70 Overall
59
95 Imaging
39 Features
32 Overall
36
Olympus E-M5 vs Sony W690 Key Specs
(Full Review)
- 16MP - Four Thirds Sensor
- 3" Tilting Display
- ISO 200 - 25600
- Sensor based 5-axis Image Stabilization
- 1920 x 1080 video
- Micro Four Thirds Mount
- 425g - 122 x 89 x 43mm
- Revealed April 2012
- Successor is Olympus E-M5 II
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 1280 x 720 video
- 25-250mm (F3.3-5.9) lens
- 142g - 94 x 56 x 22mm
- Revealed February 2012
Olympus E-M5 vs Sony W690 Overview
Lets look much closer at the Olympus E-M5 vs Sony W690, former being a Advanced Mirrorless while the latter is a Small Sensor Compact by manufacturers Olympus and Sony. The resolution of the E-M5 (16MP) and the W690 (16MP) is pretty well matched but the E-M5 (Four Thirds) and W690 (1/2.3") come with totally different sensor dimensions.
Photobucket discusses licensing 13 billion images with AI firmsThe E-M5 was brought out 3 months later than the W690 which means that they are both of a similar age. Both of the cameras come with different body type with the Olympus E-M5 being a SLR-style mirrorless camera and the Sony W690 being a Compact camera.
Before going straight into a comprehensive comparison, below is a short synopsis of how the E-M5 scores versus the W690 in the way of portability, imaging, features and an overall rating.
Olympus E-M5 vs Sony W690 Gallery
This is a preview of the gallery images for Olympus OM-D E-M5 & Sony Cyber-shot DSC-W690. The entire galleries are available at Olympus E-M5 Gallery & Sony W690 Gallery.
Reasons to pick Olympus E-M5 over the Sony W690
E-M5 | W690 | |||
---|---|---|---|---|
Focus manually | More exact focusing | |||
Screen type | Tilting | Fixed | Tilting screen | |
Screen resolution | 610k | 230k | Clearer screen (+380k dot) | |
Touch screen | Quickly navigate |
Reasons to pick Sony W690 over the Olympus E-M5
W690 | E-M5 |
---|
Common features in the Olympus E-M5 and Sony W690
E-M5 | W690 | |||
---|---|---|---|---|
Revealed | April 2012 | February 2012 | Similar age | |
Screen dimension | 3" | 3" | Identical screen sizing | |
Selfie screen | Lack of selfie screen |
Olympus E-M5 vs Sony W690 Physical Comparison

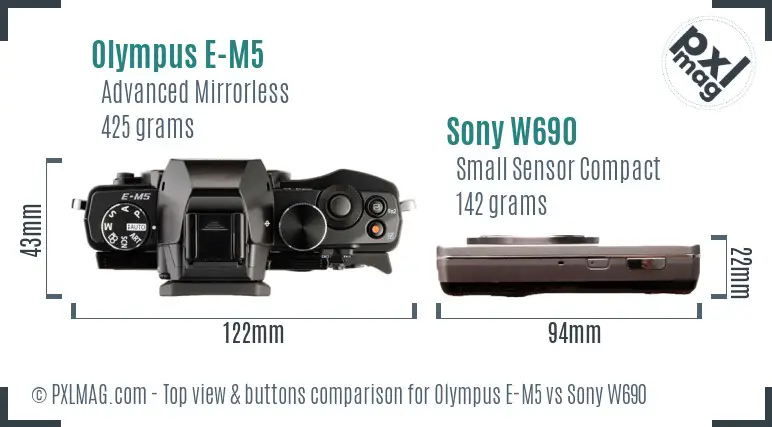

For those who are going to carry your camera often, you'll have to factor in its weight and size. The Olympus E-M5 comes with external dimensions of 122mm x 89mm x 43mm (4.8" x 3.5" x 1.7") with a weight of 425 grams (0.94 lbs) and the Sony W690 has specifications of 94mm x 56mm x 22mm (3.7" x 2.2" x 0.9") along with a weight of 142 grams (0.31 lbs).
Look at the Olympus E-M5 vs Sony W690 in our newest Camera plus Lens Size Comparison Tool.Don't forget, the weight of an ILC will differ dependant on the lens you are utilizing at the time. Here is the front view sizing comparison of the E-M5 versus the W690.
Factoring in dimensions and weight, the portability rating of the E-M5 and W690 is 81 and 95 respectively.
Olympus E-M5 vs Sony W690 Sensor Comparison
More often than not, it can be hard to visualise the gap between sensor sizing just by checking specifications. The graphic below will provide you a far better sense of the sensor dimensions in the E-M5 and W690.
Plainly, both of the cameras have got the exact same megapixels albeit not the same sensor sizing. The E-M5 includes the bigger sensor which will make getting shallower DOF less difficult.

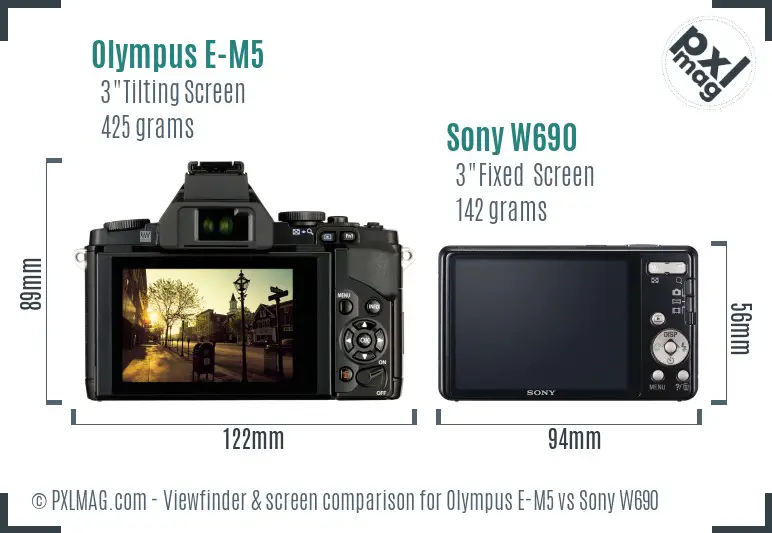

Olympus E-M5 vs Sony W690 Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Olympus E-M5 vs Sony W690 Specifications
Olympus OM-D E-M5 | Sony Cyber-shot DSC-W690 | |
---|---|---|
General Information | ||
Brand Name | Olympus | Sony |
Model | Olympus OM-D E-M5 | Sony Cyber-shot DSC-W690 |
Type | Advanced Mirrorless | Small Sensor Compact |
Revealed | 2012-04-30 | 2012-02-28 |
Physical type | SLR-style mirrorless | Compact |
Sensor Information | ||
Processor | TruePic VI | BIONZ |
Sensor type | CMOS | CCD |
Sensor size | Four Thirds | 1/2.3" |
Sensor dimensions | 17.3 x 13mm | 6.17 x 4.55mm |
Sensor surface area | 224.9mm² | 28.1mm² |
Sensor resolution | 16 megapixel | 16 megapixel |
Anti aliasing filter | ||
Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3 and 16:9 |
Maximum resolution | 4608 x 3456 | 4608 x 3456 |
Maximum native ISO | 25600 | 3200 |
Minimum native ISO | 200 | 80 |
RAW format | ||
Minimum boosted ISO | 100 | - |
Autofocusing | ||
Focus manually | ||
Touch focus | ||
AF continuous | ||
Single AF | ||
Tracking AF | ||
AF selectice | ||
AF center weighted | ||
Multi area AF | ||
Live view AF | ||
Face detect AF | ||
Contract detect AF | ||
Phase detect AF | ||
Number of focus points | 35 | - |
Cross focus points | - | - |
Lens | ||
Lens mounting type | Micro Four Thirds | fixed lens |
Lens focal range | - | 25-250mm (10.0x) |
Max aperture | - | f/3.3-5.9 |
Macro focus distance | - | 5cm |
Available lenses | 107 | - |
Crop factor | 2.1 | 5.8 |
Screen | ||
Type of display | Tilting | Fixed Type |
Display diagonal | 3 inches | 3 inches |
Resolution of display | 610k dots | 230k dots |
Selfie friendly | ||
Liveview | ||
Touch operation | ||
Display technology | Touch control in electrostatic capacitance type OLED monitor | ClearPhoto TFT LCD display |
Viewfinder Information | ||
Viewfinder | Electronic | None |
Viewfinder resolution | 1,440k dots | - |
Viewfinder coverage | 100 percent | - |
Viewfinder magnification | 0.58x | - |
Features | ||
Slowest shutter speed | 60 seconds | 30 seconds |
Maximum shutter speed | 1/4000 seconds | 1/1600 seconds |
Continuous shooting rate | 9.0 frames/s | 1.0 frames/s |
Shutter priority | ||
Aperture priority | ||
Manual mode | ||
Exposure compensation | Yes | - |
Set WB | ||
Image stabilization | ||
Integrated flash | ||
Flash range | no built-in flash | 3.30 m |
Flash modes | Auto, On, Off, Red-Eye, Fill-in, Slow Sync (2), Manual (3 levels) | Auto, On, Off, Slow Sync |
Hot shoe | ||
AEB | ||
WB bracketing | ||
Maximum flash synchronize | 1/250 seconds | - |
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Supported video resolutions | 1920 x 1080 (60 fps), 1280 x 720 (60, 30 fps), 640 x 480 (30 fps) | 1280 x 720 (30 fps), 640 x 480 (30 fps) |
Maximum video resolution | 1920x1080 | 1280x720 |
Video format | H.264, Motion JPEG | MPEG-4 |
Mic port | ||
Headphone port | ||
Connectivity | ||
Wireless | Eye-Fi Connected | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environment sealing | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 425 gr (0.94 lbs) | 142 gr (0.31 lbs) |
Dimensions | 122 x 89 x 43mm (4.8" x 3.5" x 1.7") | 94 x 56 x 22mm (3.7" x 2.2" x 0.9") |
DXO scores | ||
DXO All around score | 71 | not tested |
DXO Color Depth score | 22.8 | not tested |
DXO Dynamic range score | 12.3 | not tested |
DXO Low light score | 826 | not tested |
Other | ||
Battery life | 360 shots | 220 shots |
Battery type | Battery Pack | Battery Pack |
Battery model | BLN-1 | NP-BN |
Self timer | Yes (2 or 12 sec) | Yes (2 or 10 sec, Portrait 1/2) |
Time lapse recording | ||
Storage type | SD/SDHC/SDXC | SD/SDHC/SDXC/Memory Stick Duo/Memory Stick Pro Duo, Memory Stick Pro-HG Duo |
Card slots | Single | Single |
Pricing at launch | $799 | $297 |
