Olympus E-P1 vs Sony W570
86 Imaging
46 Features
42 Overall
44


96 Imaging
38 Features
25 Overall
32
Olympus E-P1 vs Sony W570 Key Specs
(Full Review)
- 12MP - Four Thirds Sensor
- 3" Fixed Display
- ISO 100 - 6400
- Sensor based Image Stabilization
- 1280 x 720 video
- Micro Four Thirds Mount
- 355g - 121 x 70 x 36mm
- Revealed July 2009
- New Model is Olympus E-P2
(Full Review)
- 16MP - 1/2.3" Sensor
- 2.7" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 1280 x 720 video
- 25-125mm (F2.6-6.3) lens
- 116g - 91 x 52 x 19mm
- Revealed January 2011

Olympus E-P1 vs Sony W570 Overview
Here is a complete review of the Olympus E-P1 and Sony W570, one being a Entry-Level Mirrorless and the latter is a Ultracompact by companies Olympus and Sony. There is a crucial difference between the image resolutions of the E-P1 (12MP) and W570 (16MP) and the E-P1 (Four Thirds) and W570 (1/2.3") boast different sensor measurements.

The E-P1 was launched 17 months prior to the W570 which makes them a generation apart from each other. Each of the cameras have different body design with the Olympus E-P1 being a Rangefinder-style mirrorless camera and the Sony W570 being a Ultracompact camera.
Before going straight to a in-depth comparison, here is a quick view of how the E-P1 matches up against the W570 in relation to portability, imaging, features and an overall rating.

Olympus E-P1 vs Sony W570 Gallery
Below is a preview of the gallery images for Olympus PEN E-P1 and Sony Cyber-shot DSC-W570. The complete galleries are available at Olympus E-P1 Gallery and Sony W570 Gallery.
Reasons to pick Olympus E-P1 over the Sony W570
E-P1 | W570 | |||
---|---|---|---|---|
Focus manually | ![]() | Dial exact focusing | ||
Screen dimensions | 3" | ![]() | 2.7" | Bigger screen (+0.3") |
Reasons to pick Sony W570 over the Olympus E-P1
W570 | E-P1 | |||
---|---|---|---|---|
Revealed | January 2011 | ![]() | July 2009 | Fresher by 17 months |
Common features in the Olympus E-P1 and Sony W570
E-P1 | W570 | |||
---|---|---|---|---|
Screen type | Fixed | ![]() | Fixed | Fixed screen |
Screen resolution | 230k | ![]() | 230k | Equal screen resolution |
Selfie screen | ![]() | Neither comes with selfie screen | ||
Touch friendly screen | ![]() | Lack of Touch friendly screen |
Olympus E-P1 vs Sony W570 Physical Comparison
In case you're planning to carry your camera regularly, you're going to have to take into account its weight and proportions. The Olympus E-P1 comes with outside measurements of 121mm x 70mm x 36mm (4.8" x 2.8" x 1.4") and a weight of 355 grams (0.78 lbs) and the Sony W570 has measurements of 91mm x 52mm x 19mm (3.6" x 2.0" x 0.7") accompanied by a weight of 116 grams (0.26 lbs).
Check out the Olympus E-P1 and Sony W570 in the latest Camera with Lens Size Comparison Tool.

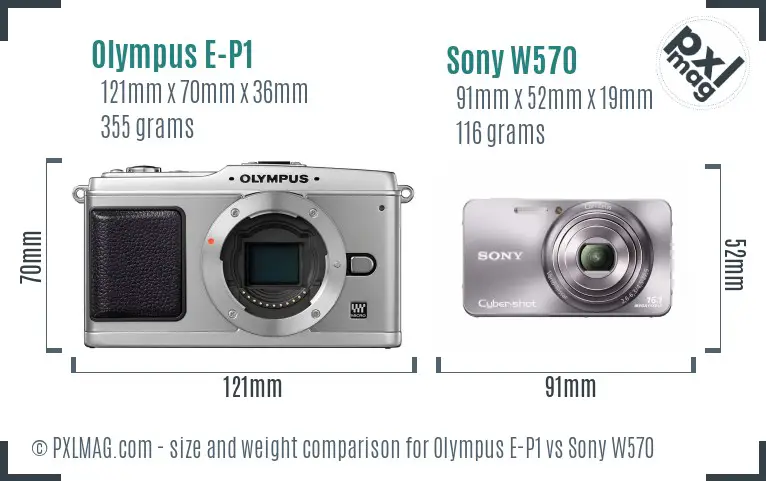

Always remember, the weight of an Interchangeable Lens Camera will change based on the lens you use during that time. Below is a front view size comparison of the E-P1 against the W570.

Taking into account size and weight, the portability rating of the E-P1 and W570 is 86 and 96 respectively.

Olympus E-P1 vs Sony W570 Sensor Comparison
Generally, it is difficult to picture the difference between sensor sizing just by looking at specs. The visual below will offer you a stronger sense of the sensor sizing in the E-P1 and W570.
As you can plainly see, the 2 cameras have different resolutions and different sensor sizing. The E-P1 due to its bigger sensor is going to make getting bokeh simpler and the Sony W570 will give you extra detail utilizing its extra 4MP. Higher resolution will let you crop shots a bit more aggressively. The older E-P1 is going to be behind in sensor technology.

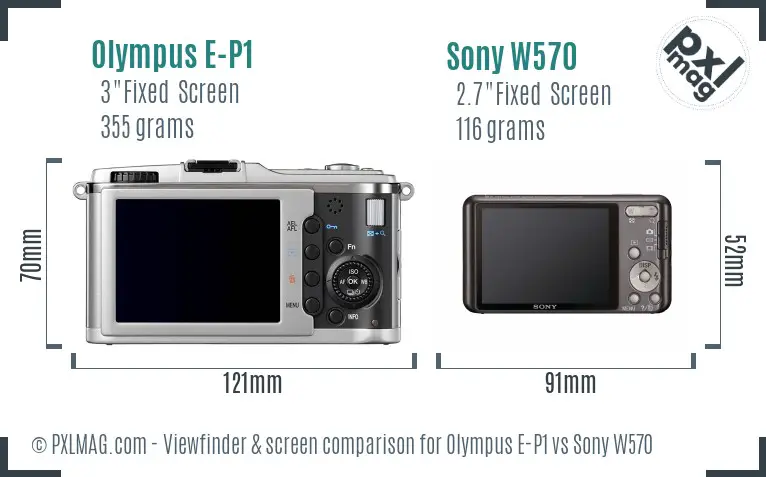

Olympus E-P1 vs Sony W570 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Olympus E-P1 vs Sony W570 Specifications
Olympus PEN E-P1 | Sony Cyber-shot DSC-W570 | |
---|---|---|
General Information | ||
Company | Olympus | Sony |
Model type | Olympus PEN E-P1 | Sony Cyber-shot DSC-W570 |
Category | Entry-Level Mirrorless | Ultracompact |
Revealed | 2009-07-29 | 2011-01-06 |
Body design | Rangefinder-style mirrorless | Ultracompact |
Sensor Information | ||
Powered by | TruePic V | BIONZ |
Sensor type | CMOS | CCD |
Sensor size | Four Thirds | 1/2.3" |
Sensor measurements | 17.3 x 13mm | 6.17 x 4.55mm |
Sensor surface area | 224.9mm² | 28.1mm² |
Sensor resolution | 12MP | 16MP |
Anti alias filter | ||
Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3 and 16:9 |
Peak resolution | 4032 x 3024 | 4608 x 3456 |
Highest native ISO | 6400 | 3200 |
Lowest native ISO | 100 | 80 |
RAW files | ||
Autofocusing | ||
Focus manually | ||
Touch to focus | ||
Autofocus continuous | ||
Single autofocus | ||
Tracking autofocus | ||
Autofocus selectice | ||
Autofocus center weighted | ||
Multi area autofocus | ||
Live view autofocus | ||
Face detect autofocus | ||
Contract detect autofocus | ||
Phase detect autofocus | ||
Total focus points | 11 | 9 |
Lens | ||
Lens mount type | Micro Four Thirds | fixed lens |
Lens zoom range | - | 25-125mm (5.0x) |
Highest aperture | - | f/2.6-6.3 |
Macro focusing range | - | 5cm |
Number of lenses | 107 | - |
Focal length multiplier | 2.1 | 5.8 |
Screen | ||
Range of display | Fixed Type | Fixed Type |
Display diagonal | 3 inch | 2.7 inch |
Display resolution | 230 thousand dot | 230 thousand dot |
Selfie friendly | ||
Liveview | ||
Touch screen | ||
Display tech | HyperCrystal LCD with AR(Anti-Reflective) coating | Clear Photo LCD |
Viewfinder Information | ||
Viewfinder type | None | None |
Features | ||
Minimum shutter speed | 60s | 2s |
Fastest shutter speed | 1/4000s | 1/1600s |
Continuous shutter speed | 3.0fps | 1.0fps |
Shutter priority | ||
Aperture priority | ||
Manually set exposure | ||
Exposure compensation | Yes | - |
Change white balance | ||
Image stabilization | ||
Integrated flash | ||
Flash distance | no built-in flash | 3.70 m |
Flash options | Auto, On, Off, Red-Eye, Fill-in, Slow Sync, Manual (3 levels) | Auto, On, Off, Slow Sync |
External flash | ||
Auto exposure bracketing | ||
WB bracketing | ||
Fastest flash sync | 1/180s | - |
Exposure | ||
Multisegment exposure | ||
Average exposure | ||
Spot exposure | ||
Partial exposure | ||
AF area exposure | ||
Center weighted exposure | ||
Video features | ||
Video resolutions | 1280 x 720 (30 fps), 640 x 480 (30 fps) | 1280 x 720 (30 fps), 640 x 480 (30 fps) |
Highest video resolution | 1280x720 | 1280x720 |
Video file format | Motion JPEG | MPEG-4 |
Microphone jack | ||
Headphone jack | ||
Connectivity | ||
Wireless | None | Eye-Fi Connected |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental seal | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 355 grams (0.78 lb) | 116 grams (0.26 lb) |
Physical dimensions | 121 x 70 x 36mm (4.8" x 2.8" x 1.4") | 91 x 52 x 19mm (3.6" x 2.0" x 0.7") |
DXO scores | ||
DXO Overall rating | 55 | not tested |
DXO Color Depth rating | 21.4 | not tested |
DXO Dynamic range rating | 10.4 | not tested |
DXO Low light rating | 536 | not tested |
Other | ||
Battery life | 300 photos | - |
Type of battery | Battery Pack | - |
Battery ID | BLS-1 | NP-BN1 |
Self timer | Yes (2 or 12 sec) | Yes (2 or 10 sec, Portrait 1/2) |
Time lapse shooting | ||
Type of storage | SD/SDHC card | SD/SDHC/SDXC/Memory Stick Duo/Memory Stick Pro Duo, Memory Stick Pro-HG Duo |
Storage slots | Single | Single |
Cost at release | $182 | $159 |
