Olympus TG-860 vs Panasonic GF5
91 Imaging
41 Features
42 Overall
41
89 Imaging
49 Features
54 Overall
51
Olympus TG-860 vs Panasonic GF5 Key Specs
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Tilting Screen
- ISO 125 - 6400
- Optical Image Stabilization
- 1920 x 1080 video
- 21-105mm (F3.5-5.7) lens
- 224g - 110 x 64 x 28mm
- Introduced February 2015
- Later Model is Olympus TG-870
(Full Review)
- 12MP - Four Thirds Sensor
- 3" Fixed Screen
- ISO 160 - 12800
- 1920 x 1080 video
- Micro Four Thirds Mount
- 267g - 108 x 67 x 37mm
- Introduced April 2012
- Previous Model is Panasonic GF3
- Later Model is Panasonic GF6
Olympus TG-860 vs Panasonic GF5 Overview
The following is a comprehensive comparison of the Olympus TG-860 versus Panasonic GF5, one is a Waterproof and the latter is a Entry-Level Mirrorless by companies Olympus and Panasonic. There exists a significant gap among the image resolutions of the TG-860 (16MP) and GF5 (12MP) and the TG-860 (1/2.3") and GF5 (Four Thirds) provide different sensor sizing.
Samsung Releases Faster Versions of EVO MicroSD CardsThe TG-860 was announced 2 years after the GF5 which is a fairly sizable gap as far as camera technology is concerned. Both of these cameras feature different body design with the Olympus TG-860 being a Ultracompact camera and the Panasonic GF5 being a Rangefinder-style mirrorless camera.
Before delving right into a full comparison, here is a simple view of how the TG-860 matches up versus the GF5 with respect to portability, imaging, features and an overall mark.
Olympus TG-860 vs Panasonic GF5 Gallery
Below is a preview of the gallery images for Olympus Stylus Tough TG-860 and Panasonic Lumix DMC-GF5. The whole galleries are viewable at Olympus TG-860 Gallery and Panasonic GF5 Gallery.
Reasons to pick Olympus TG-860 over the Panasonic GF5
TG-860 | GF5 | |||
---|---|---|---|---|
Introduced | February 2015 | April 2012 | Newer by 35 months | |
Screen type | Tilting | Fixed | Tilting screen |
Reasons to pick Panasonic GF5 over the Olympus TG-860
GF5 | TG-860 | |||
---|---|---|---|---|
Manually focus | Dial exact focus | |||
Screen resolution | 920k | 460k | Clearer screen (+460k dot) | |
Touch friendly screen | Quickly navigate |
Common features in the Olympus TG-860 and Panasonic GF5
TG-860 | GF5 | |||
---|---|---|---|---|
Screen size | 3" | 3" | Same screen measurement | |
Selfie screen | Absent selfie screen |

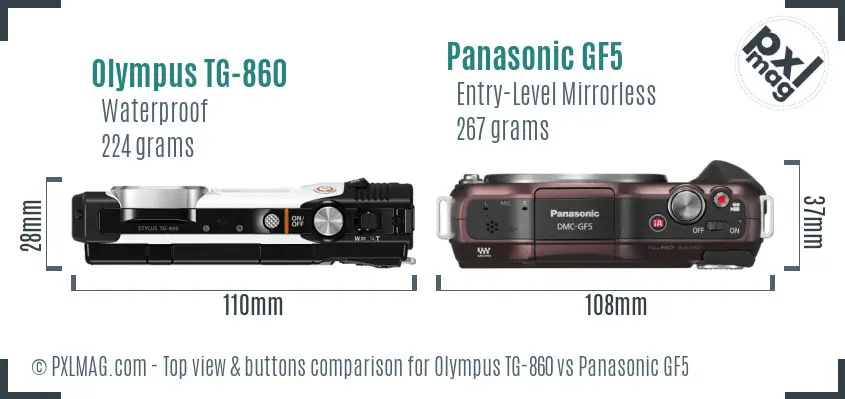

Olympus TG-860 vs Panasonic GF5 Physical Comparison
For anybody who is intending to travel with your camera often, you are going to need to factor its weight and volume. The Olympus TG-860 comes with external measurements of 110mm x 64mm x 28mm (4.3" x 2.5" x 1.1") accompanied by a weight of 224 grams (0.49 lbs) and the Panasonic GF5 has sizing of 108mm x 67mm x 37mm (4.3" x 2.6" x 1.5") accompanied by a weight of 267 grams (0.59 lbs).

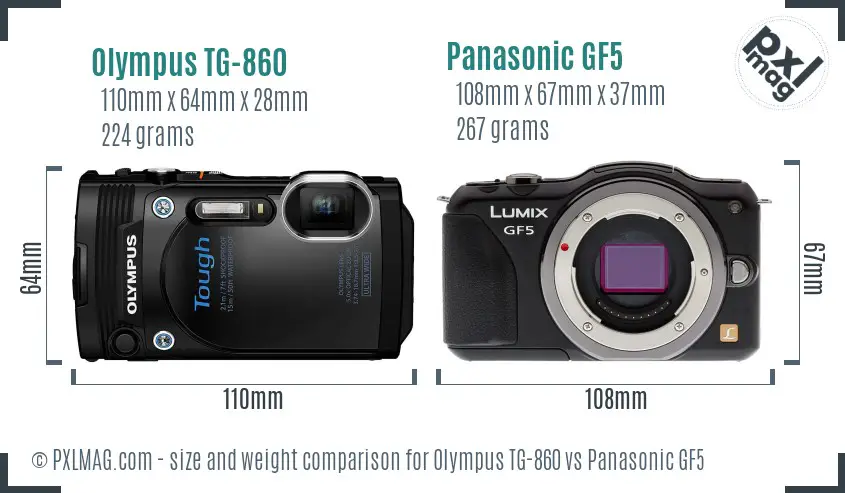

Compare the Olympus TG-860 versus Panasonic GF5 in the latest Camera and Lens Size Comparison Tool.Take into account, the weight of an Interchangeable Lens Camera will differ depending on the lens you use during that time. Following is a front view size comparison of the TG-860 and the GF5.
Taking into account dimensions and weight, the portability score of the TG-860 and GF5 is 91 and 89 respectively.
Olympus TG-860 vs Panasonic GF5 Sensor Comparison
Quite often, it is very difficult to visualize the difference in sensor dimensions only by looking through a spec sheet. The image underneath should provide you a stronger sense of the sensor sizing in the TG-860 and GF5.
As you can see, each of these cameras come with different megapixels and different sensor dimensions. The TG-860 with its smaller sensor is going to make getting shallower depth of field harder and the Olympus TG-860 will result in greater detail with its extra 4 Megapixels. Higher resolution will also make it easier to crop photographs a good deal more aggressively. The newer TG-860 provides a benefit with regard to sensor technology.

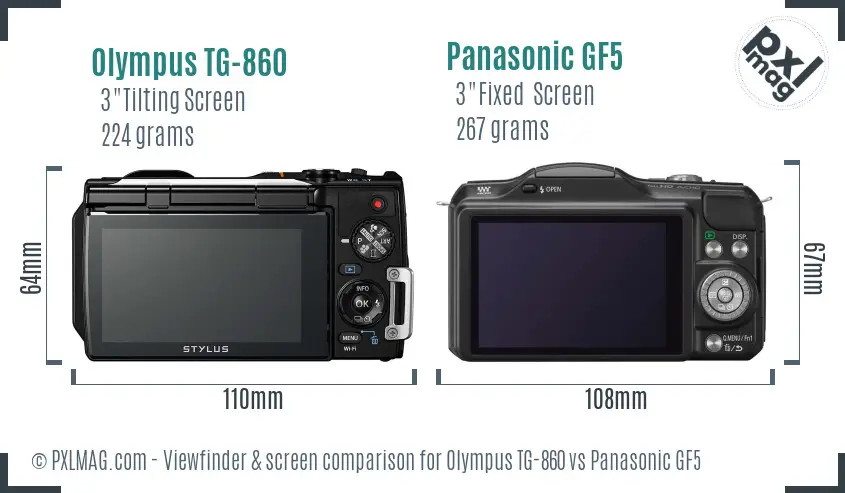

Olympus TG-860 vs Panasonic GF5 Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Olympus TG-860 vs Panasonic GF5 Specifications
Olympus Stylus Tough TG-860 | Panasonic Lumix DMC-GF5 | |
---|---|---|
General Information | ||
Company | Olympus | Panasonic |
Model type | Olympus Stylus Tough TG-860 | Panasonic Lumix DMC-GF5 |
Category | Waterproof | Entry-Level Mirrorless |
Introduced | 2015-02-06 | 2012-04-05 |
Body design | Ultracompact | Rangefinder-style mirrorless |
Sensor Information | ||
Processor | TruePic VII | Venus Engine FHD |
Sensor type | CMOS | CMOS |
Sensor size | 1/2.3" | Four Thirds |
Sensor measurements | 6.17 x 4.55mm | 17.3 x 13mm |
Sensor surface area | 28.1mm² | 224.9mm² |
Sensor resolution | 16 megapixel | 12 megapixel |
Anti alias filter | ||
Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 1:1, 4:3, 3:2 and 16:9 |
Full resolution | 4608 x 3456 | 4000 x 3000 |
Max native ISO | 6400 | 12800 |
Min native ISO | 125 | 160 |
RAW pictures | ||
Autofocusing | ||
Manual focusing | ||
Autofocus touch | ||
Continuous autofocus | ||
Single autofocus | ||
Tracking autofocus | ||
Autofocus selectice | ||
Center weighted autofocus | ||
Autofocus multi area | ||
Live view autofocus | ||
Face detection autofocus | ||
Contract detection autofocus | ||
Phase detection autofocus | ||
Total focus points | - | 23 |
Lens | ||
Lens support | fixed lens | Micro Four Thirds |
Lens zoom range | 21-105mm (5.0x) | - |
Maximum aperture | f/3.5-5.7 | - |
Macro focusing range | 1cm | - |
Available lenses | - | 107 |
Focal length multiplier | 5.8 | 2.1 |
Screen | ||
Range of screen | Tilting | Fixed Type |
Screen sizing | 3 inch | 3 inch |
Resolution of screen | 460 thousand dot | 920 thousand dot |
Selfie friendly | ||
Liveview | ||
Touch operation | ||
Screen tech | - | TFT Color LCD with wide-viewing angle |
Viewfinder Information | ||
Viewfinder | None | None |
Features | ||
Lowest shutter speed | 4 secs | 60 secs |
Highest shutter speed | 1/2000 secs | 1/4000 secs |
Continuous shooting speed | 7.0fps | 4.0fps |
Shutter priority | ||
Aperture priority | ||
Manual exposure | ||
Exposure compensation | - | Yes |
Custom white balance | ||
Image stabilization | ||
Built-in flash | ||
Flash distance | 4.00 m (at ISO 1600) | 6.30 m |
Flash options | Auto, redeye reduction, fill flash, off, LED illuminator | Auto, On, Off, Red-Eye, Slow Sync |
External flash | ||
Auto exposure bracketing | ||
WB bracketing | ||
Highest flash sync | - | 1/160 secs |
Exposure | ||
Multisegment | ||
Average | ||
Spot | ||
Partial | ||
AF area | ||
Center weighted | ||
Video features | ||
Supported video resolutions | 1920 x 1080 (60p), 1280 x 720 (60p), 640 x 480 (60p) | 1920 x 1080 (60, 50 fps), 1280 x 720p (60, 30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) |
Max video resolution | 1920x1080 | 1920x1080 |
Video data format | H.264 | MPEG-4, AVCHD |
Microphone jack | ||
Headphone jack | ||
Connectivity | ||
Wireless | Built-In | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | Yes | None |
Physical | ||
Environmental seal | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 224 grams (0.49 lb) | 267 grams (0.59 lb) |
Physical dimensions | 110 x 64 x 28mm (4.3" x 2.5" x 1.1") | 108 x 67 x 37mm (4.3" x 2.6" x 1.5") |
DXO scores | ||
DXO All around rating | not tested | 50 |
DXO Color Depth rating | not tested | 20.5 |
DXO Dynamic range rating | not tested | 10.0 |
DXO Low light rating | not tested | 573 |
Other | ||
Battery life | 300 photographs | 360 photographs |
Battery form | Battery Pack | Battery Pack |
Battery ID | Li-50B | - |
Self timer | Yes (2 or 10 sec, custom) | Yes (2 or 10 sec, 10 sec (3 images)) |
Time lapse recording | ||
Storage media | SD/SDHC/SDXC, Internal | SD/SDHC/SDXC |
Storage slots | 1 | 1 |
Price at launch | $279 | $600 |
