Olympus TG-860 vs Panasonic GX8

Portability
91
Imaging
40
Features
42
Overall
40
Olympus Stylus Tough TG-860 front

Panasonic Lumix DMC-GX8 front
Portability
74
Imaging
58
Features
84
Overall
68

Olympus TG-860 vs Panasonic GX8 Key Specs

Olympus TG-860
(Full Review)
  • 16MP - 1/2.3" Sensor
  • 3" Tilting Display
  • ISO 125 - 6400
  • Optical Image Stabilization
  • 1920 x 1080 video
  • 21-105mm (F3.5-5.7) lens
  • 224g - 110 x 64 x 28mm
  • Launched February 2015
  • Replacement is Olympus TG-870
Panasonic GX8
(Full Review)
  • 20MP - Four Thirds Sensor
  • 3" Fully Articulated Screen
  • ISO 200 - 25600
  • Sensor based Image Stabilization
  • 1/8000s Maximum Shutter
  • 3840 x 2160 video
  • Micro Four Thirds Mount
  • 487g - 133 x 78 x 63mm
  • Launched July 2015
  • Older Model is Panasonic GX7
Pentax 17 Pre-Orders Outperform Expectations by a Landslide

Olympus TG-860 vs Panasonic GX8 Overview

Here is a in-depth overview of the Olympus TG-860 vs Panasonic GX8, former being a Waterproof while the latter is a Advanced Mirrorless by competitors Olympus and Panasonic. The resolution of the TG-860 (16MP) and the GX8 (20MP) is pretty similar but the TG-860 (1/2.3") and GX8 (Four Thirds) provide totally different sensor dimensions.

Snapchat Adds Watermarks to AI-Created Images

The TG-860 was launched 5 months prior to the GX8 which means that they are both of a similar age. Both the cameras feature different body design with the Olympus TG-860 being a Ultracompact camera and the Panasonic GX8 being a Rangefinder-style mirrorless camera.

Before we go straight to a step-by-step comparison, here is a simple highlight of how the TG-860 scores against the GX8 in relation to portability, imaging, features and an overall rating.

Apple Innovates by Creating Next-Level Optical Stabilization for iPhone



Reasons to pick Olympus TG-860 over the Panasonic GX8

 TG-860 GX8

Reasons to pick Panasonic GX8 over the Olympus TG-860

 GX8 TG-860
Manual focus Very exact focusing
Screen typeFully ArticulatedTiltingFully Articulating screen
Screen resolution1040k460kCrisper screen (+580k dot)
Selfie screen Take selfies
Touch screen Quickly navigate

Common features in the Olympus TG-860 and Panasonic GX8

 TG-860 GX8
LaunchedFebruary 2015July 2015Similar age
Screen size3"3"Same screen sizing

Olympus TG-860 vs Panasonic GX8 Physical Comparison

If you are intending to carry your camera, you will want to take into account its weight and dimensions. The Olympus TG-860 enjoys external dimensions of 110mm x 64mm x 28mm (4.3" x 2.5" x 1.1") accompanied by a weight of 224 grams (0.49 lbs) while the Panasonic GX8 has dimensions of 133mm x 78mm x 63mm (5.2" x 3.1" x 2.5") along with a weight of 487 grams (1.07 lbs).

Examine the Olympus TG-860 vs Panasonic GX8 in our newest Camera & Lens Size Comparison Tool. Camera Size Comparison with Lenses

Take into account, the weight of an ILC will change depending on the lens you are using at that time. Following is a front view scale comparison of the TG-860 versus the GX8.

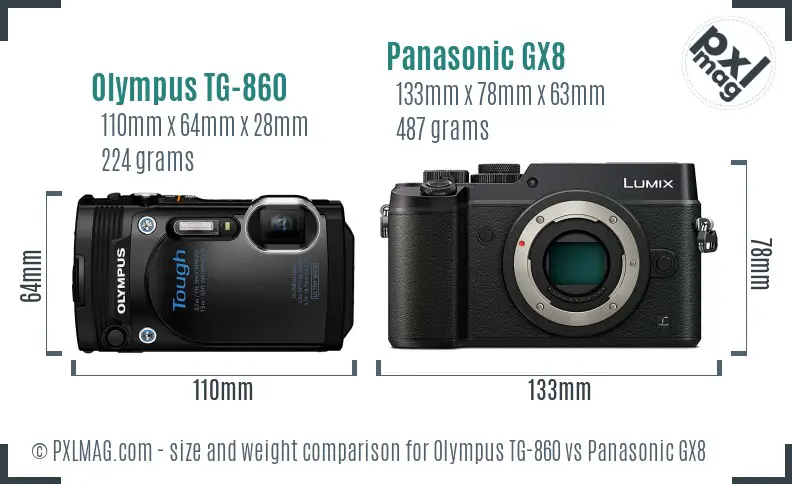

Olympus TG-860 vs Panasonic GX8 size comparison

Using dimensions and weight, the portability rating of the TG-860 and GX8 is 91 and 74 respectively.

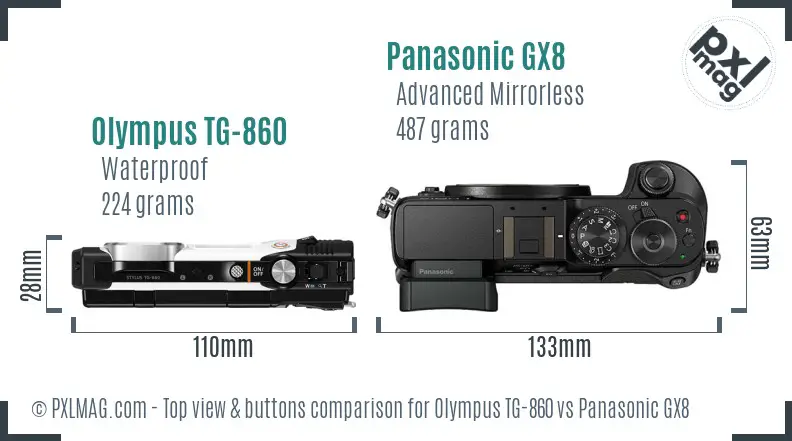

Olympus TG-860 vs Panasonic GX8 top view buttons comparison

Olympus TG-860 vs Panasonic GX8 Sensor Comparison

Sometimes, it's tough to envision the contrast between sensor sizing purely by going over specifications. The photograph underneath will help offer you a stronger sense of the sensor dimensions in the TG-860 and GX8.

To sum up, each of these cameras come with different resolutions and different sensor sizing. The TG-860 because of its tinier sensor will make shooting shallower DOF more challenging and the Panasonic GX8 will offer you extra detail utilizing its extra 4MP. Higher resolution can also enable you to crop photographs a good deal more aggressively.

Olympus TG-860 vs Panasonic GX8 sensor size comparison

Olympus TG-860 vs Panasonic GX8 Screen and ViewFinder

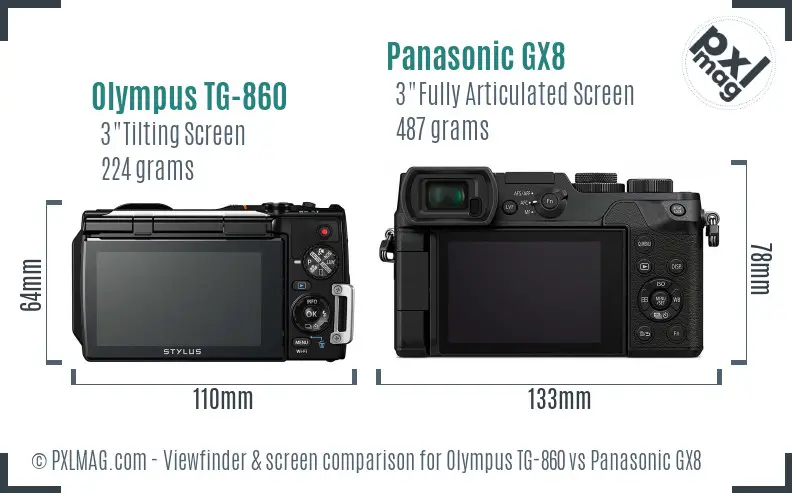

Olympus TG-860 vs Panasonic GX8 Screen and Viewfinder comparison
Photography Glossary

Photography Type Scores

Portrait Comparison

Portrait photography with Olympus TG-860
Portrait photography with Panasonic GX8
35
good resolution (16MP)
includes face detection focus
focusing manually not possible
manual mode not possible
cannot use external flash
sensor is tiny (1/2.3")
lack of RAW support
74
manual focus
resolution is good (20MP)
sensor size is good (Four Thirds)
includes face detection focus
delivers RAW formats
President Biden pushes bill mandating TikTok sale or ban

Street Comparison

Olympus TG-860 Street photography factors
Panasonic GX8 Street photography factors
69
has a tilting screen
has image stabilization (Optical)
weather proofing
sensor is tiny (1/2.3")
lack of RAW support
80
screen articulates fully
built in image stabilization (Sensor based)
sensor size is good (Four Thirds)
delivers RAW formats
supports touch to focus
weather proofing
very good ISO range (25,600)
Sora from OpenAI releases its first ever music video

Sports Comparison

Olympus TG-860 Sports photography features
Panasonic GX8 Sports photography features
48
has image stabilization (Optical)
good resolution (16MP)
includes tracking autofocus
weather proofing
no shutter priority mode
sensor is tiny (1/2.3")
lack of phase detect auto focus
67
maximum shutter speed is high (1/8,000 seconds)
quiet shutter (1/16,000 seconds)
built in image stabilization (Sensor based)
resolution is good (20MP)
sensor size is good (Four Thirds)
includes tracking autofocus
weather proofing
bad battery life (330 shots)
has no phase detect auto focus
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes

Travel Comparison

Olympus TG-860 Travel photography details
Panasonic GX8 Travel photography details
71
weather proofing
good resolution (16 megapixels)
flash built-in
relatively wide (21mm)
does not posses selfie friendly display
slow maximum aperture (f3.5)
73
weather proofing
supports touch to focus
resolution is good (20MP)
display is selfie friendly
bad battery life (330 per charge)
Meta to Introduce 'AI-Generated' Labels for Media starting next month

Landscape Comparison

Olympus TG-860 Landscape photography advice
Panasonic GX8 Landscape photography advice
47
relatively wide (21mm)
screen size is good (3")
has image stabilization (Optical)
good resolution (16 megapixels)
weather proofing
focusing manually not possible
fixed lens (fixed lens mount)
slow maximum aperture (f3.5)
manual mode not possible
sensor is tiny (1/2.3")
lack of RAW support
75
manual focus
switch lenses (Micro Four Thirds mount)
screen size is good (3 inches)
built in image stabilization (Sensor based)
resolution is good (20MP)
sensor size is good (Four Thirds)
very good ISO range (25,600)
delivers RAW formats
weather proofing
bad battery life (330 CIPA)
Samsung Releases Faster Versions of EVO MicroSD Cards

Vlogging Comparison

Olympus TG-860 Vlogging factors
Panasonic GX8 Vlogging factors
33
relatively wide (21mm)
has image stabilization (Optical)
includes face detection focus
high video quality (1920 x 1080 resolution)
slow maximum aperture (f3.5)
does not posses selfie friendly display
doesn't have external microphone support
81
display is selfie friendly
touch screen
built in image stabilization (Sensor based)
includes face detection focus
high quality video (3840 x 2160 resolution)
comes with external mic port
Photobucket discusses licensing 13 billion images with AI firms

Olympus TG-860 vs Panasonic GX8 Specifications

Detailed spec comparison table for Olympus TG-860 and Panasonic GX8
 Olympus Stylus Tough TG-860Panasonic Lumix DMC-GX8
General Information
Brand Name Olympus Panasonic
Model type Olympus Stylus Tough TG-860 Panasonic Lumix DMC-GX8
Type Waterproof Advanced Mirrorless
Launched 2015-02-06 2015-07-16
Body design Ultracompact Rangefinder-style mirrorless
Sensor Information
Powered by TruePic VII Venus Engine
Sensor type CMOS CMOS
Sensor size 1/2.3" Four Thirds
Sensor dimensions 6.17 x 4.55mm 17.3 x 13mm
Sensor area 28.1mm² 224.9mm²
Sensor resolution 16 megapixels 20 megapixels
Anti alias filter
Aspect ratio 1:1, 4:3, 3:2 and 16:9 1:1, 4:3, 3:2 and 16:9
Peak resolution 4608 x 3456 5184 x 3888
Highest native ISO 6400 25600
Lowest native ISO 125 200
RAW format
Lowest enhanced ISO - 100
Autofocusing
Manual focusing
Touch focus
AF continuous
AF single
Tracking AF
Selective AF
AF center weighted
Multi area AF
AF live view
Face detect AF
Contract detect AF
Phase detect AF
Total focus points - 49
Lens
Lens mount type fixed lens Micro Four Thirds
Lens zoom range 21-105mm (5.0x) -
Highest aperture f/3.5-5.7 -
Macro focusing range 1cm -
Number of lenses - 107
Crop factor 5.8 2.1
Screen
Display type Tilting Fully Articulated
Display sizing 3" 3"
Resolution of display 460 thousand dot 1,040 thousand dot
Selfie friendly
Liveview
Touch display
Viewfinder Information
Viewfinder None Electronic
Viewfinder resolution - 2,360 thousand dot
Viewfinder coverage - 100%
Viewfinder magnification - 0.77x
Features
Minimum shutter speed 4 secs 60 secs
Fastest shutter speed 1/2000 secs 1/8000 secs
Fastest quiet shutter speed - 1/16000 secs
Continuous shutter speed 7.0 frames/s 12.0 frames/s
Shutter priority
Aperture priority
Manual exposure
Exposure compensation - Yes
Change WB
Image stabilization
Inbuilt flash
Flash distance 4.00 m (at ISO 1600) no built-in flash
Flash settings Auto, redeye reduction, fill flash, off, LED illuminator Auto, auto w/redeye reduction, forced on, forced on w/redeye reduction, slow sync, slow sync w/redeye reduction, forced off
External flash
AE bracketing
WB bracketing
Exposure
Multisegment
Average
Spot
Partial
AF area
Center weighted
Video features
Supported video resolutions 1920 x 1080 (60p), 1280 x 720 (60p), 640 x 480 (60p) 3840 x 2160 (30p, 24p), 1920 x 1080 (60p, 30p), 1280 x 720 (60p, 30p), 1280 x 720 (30p), 640 x 480 (30p)
Highest video resolution 1920x1080 3840x2160
Video data format H.264 MPEG-4, AVCHD
Mic jack
Headphone jack
Connectivity
Wireless Built-In Built-In
Bluetooth
NFC
HDMI
USB USB 2.0 (480 Mbit/sec) USB 2.0 (480 Mbit/sec)
GPS Yes None
Physical
Environment seal
Water proofing
Dust proofing
Shock proofing
Crush proofing
Freeze proofing
Weight 224 grams (0.49 lbs) 487 grams (1.07 lbs)
Physical dimensions 110 x 64 x 28mm (4.3" x 2.5" x 1.1") 133 x 78 x 63mm (5.2" x 3.1" x 2.5")
DXO scores
DXO Overall rating not tested 75
DXO Color Depth rating not tested 23.5
DXO Dynamic range rating not tested 12.6
DXO Low light rating not tested 806
Other
Battery life 300 photos 330 photos
Battery form Battery Pack Battery Pack
Battery ID Li-50B -
Self timer Yes (2 or 10 sec, custom) Yes
Time lapse shooting
Storage media SD/SDHC/SDXC, Internal SD/SDHC/SDXC card
Storage slots One One
Retail price $279 $898
