Olympus TG-320 vs Samsung NX20
94 Imaging
38 Features
33 Overall
36
83 Imaging
62 Features
73 Overall
66
Olympus TG-320 vs Samsung NX20 Key Specs
(Full Review)
- 14MP - 1/2.3" Sensor
- 2.7" Fixed Display
- ISO 80 - 1600
- Sensor-shift Image Stabilization
- 1280 x 720 video
- 28-102mm (F3.5-5.1) lens
- 155g - 96 x 63 x 23mm
- Revealed January 2012
(Full Review)
- 20MP - APS-C Sensor
- 3" Fully Articulated Screen
- ISO 100 - 12800
- 1/8000s Max Shutter
- 1920 x 1080 video
- Samsung NX Mount
- 341g - 122 x 90 x 40mm
- Released April 2012
- Old Model is Samsung NX11
- Refreshed by Samsung NX30
Olympus TG-320 vs Samsung NX20 Overview
Let's look more closely at the Olympus TG-320 versus Samsung NX20, one is a Waterproof and the latter is a Advanced Mirrorless by rivals Olympus and Samsung. There exists a sizeable gap between the resolutions of the TG-320 (14MP) and NX20 (20MP) and the TG-320 (1/2.3") and NX20 (APS-C) boast different sensor size.
Photography GlossaryThe TG-320 was released 3 months before the NX20 and they are of a similar generation. The two cameras feature different body design with the Olympus TG-320 being a Compact camera and the Samsung NX20 being a SLR-style mirrorless camera.
Before we go into a more detailed comparison, here is a quick introduction of how the TG-320 matches up vs the NX20 in regards to portability, imaging, features and an overall score.
Olympus TG-320 vs Samsung NX20 Gallery
The following is a preview of the gallery images for Olympus TG-320 and Samsung NX20. The complete galleries are provided at Olympus TG-320 Gallery and Samsung NX20 Gallery.
Reasons to pick Olympus TG-320 over the Samsung NX20
TG-320 | NX20 |
---|
Reasons to pick Samsung NX20 over the Olympus TG-320
NX20 | TG-320 | |||
---|---|---|---|---|
Manually focus | Very exact focusing | |||
Screen type | Fully Articulated | Fixed | Fully Articulating screen | |
Screen size | 3" | 2.7" | Bigger screen (+0.3") | |
Screen resolution | 614k | 230k | Clearer screen (+384k dot) | |
Selfie screen | Take selfies |
Common features in the Olympus TG-320 and Samsung NX20
TG-320 | NX20 | |||
---|---|---|---|---|
Released | January 2012 | April 2012 | Similar generation | |
Touch friendly screen | Neither offers Touch friendly screen |
Olympus TG-320 vs Samsung NX20 Physical Comparison
If you're going to carry around your camera frequently, you are going to need to factor its weight and volume. The Olympus TG-320 offers outer measurements of 96mm x 63mm x 23mm (3.8" x 2.5" x 0.9") with a weight of 155 grams (0.34 lbs) and the Samsung NX20 has sizing of 122mm x 90mm x 40mm (4.8" x 3.5" x 1.6") along with a weight of 341 grams (0.75 lbs).

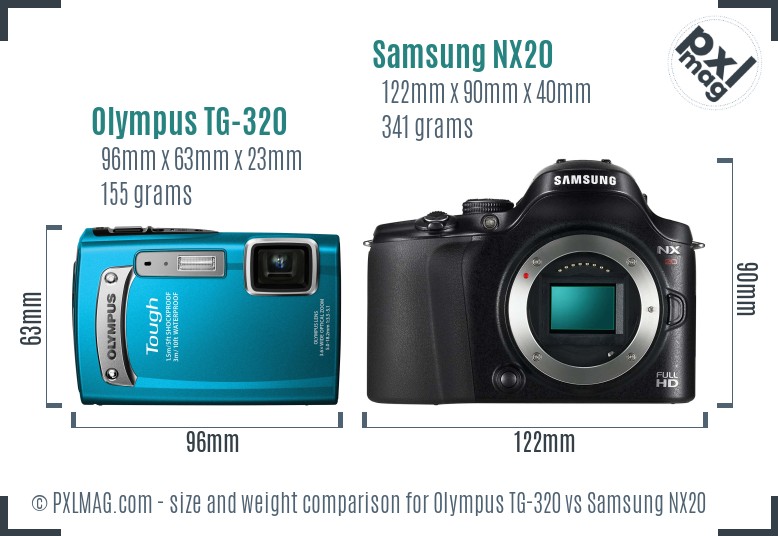

See the Olympus TG-320 versus Samsung NX20 in the latest Camera with Lens Size Comparison Tool.Bear in mind, the weight of an Interchangeable Lens Camera will change dependant on the lens you choose during that time. Here is a front view proportions comparison of the TG-320 vs the NX20.
Factoring in dimensions and weight, the portability grade of the TG-320 and NX20 is 94 and 83 respectively.
Olympus TG-320 vs Samsung NX20 Sensor Comparison
Typically, its hard to picture the gap between sensor sizes simply by going over a spec sheet. The picture here should give you a better sense of the sensor measurements in the TG-320 and NX20.
Clearly, both cameras come with different megapixels and different sensor sizes. The TG-320 due to its tinier sensor is going to make achieving shallower DOF more difficult and the Samsung NX20 will deliver more detail as a result of its extra 6MP. Higher resolution will also let you crop shots a good deal more aggressively.

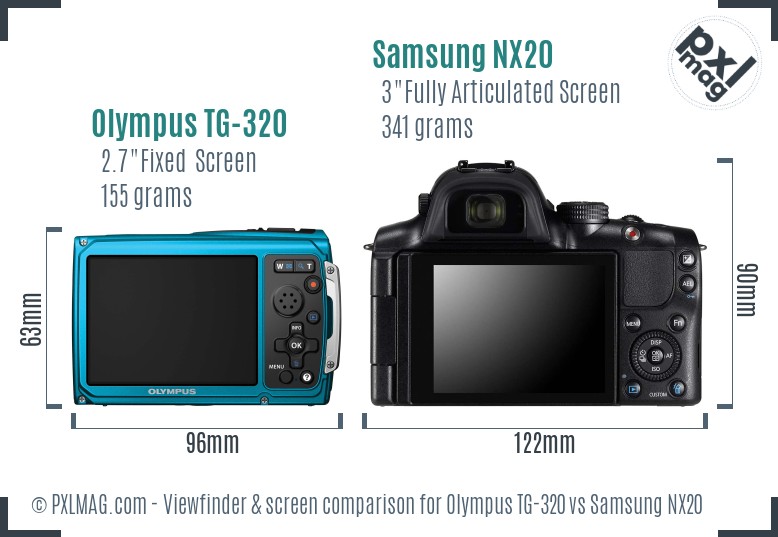

Olympus TG-320 vs Samsung NX20 Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Olympus TG-320 vs Samsung NX20 Specifications
Olympus TG-320 | Samsung NX20 | |
---|---|---|
General Information | ||
Make | Olympus | Samsung |
Model | Olympus TG-320 | Samsung NX20 |
Type | Waterproof | Advanced Mirrorless |
Revealed | 2012-01-10 | 2012-04-20 |
Physical type | Compact | SLR-style mirrorless |
Sensor Information | ||
Processor | TruePic III+ | - |
Sensor type | CCD | CMOS |
Sensor size | 1/2.3" | APS-C |
Sensor dimensions | 6.17 x 4.55mm | 23.5 x 15.7mm |
Sensor area | 28.1mm² | 369.0mm² |
Sensor resolution | 14 megapixel | 20 megapixel |
Anti aliasing filter | ||
Aspect ratio | - | 1:1, 3:2 and 16:9 |
Max resolution | 4288 x 3216 | 5472 x 3648 |
Max native ISO | 1600 | 12800 |
Lowest native ISO | 80 | 100 |
RAW data | ||
Autofocusing | ||
Manual focus | ||
Touch focus | ||
Continuous AF | ||
Single AF | ||
Tracking AF | ||
Selective AF | ||
Center weighted AF | ||
AF multi area | ||
AF live view | ||
Face detect AF | ||
Contract detect AF | ||
Phase detect AF | ||
Number of focus points | - | 15 |
Cross focus points | - | - |
Lens | ||
Lens mounting type | fixed lens | Samsung NX |
Lens focal range | 28-102mm (3.6x) | - |
Maximal aperture | f/3.5-5.1 | - |
Macro focus distance | 3cm | - |
Available lenses | - | 32 |
Crop factor | 5.8 | 1.5 |
Screen | ||
Display type | Fixed Type | Fully Articulated |
Display size | 2.7 inch | 3 inch |
Display resolution | 230 thousand dots | 614 thousand dots |
Selfie friendly | ||
Liveview | ||
Touch operation | ||
Display technology | TFT Color LCD | Active Matrix OLED screen |
Viewfinder Information | ||
Viewfinder | None | Electronic |
Viewfinder coverage | - | 100% |
Viewfinder magnification | - | 0.7x |
Features | ||
Minimum shutter speed | 4s | 30s |
Fastest shutter speed | 1/2000s | 1/8000s |
Continuous shutter rate | 1.0 frames/s | 8.0 frames/s |
Shutter priority | ||
Aperture priority | ||
Manually set exposure | ||
Exposure compensation | - | Yes |
Change WB | ||
Image stabilization | ||
Inbuilt flash | ||
Flash range | 5.80 m | 11.00 m |
Flash modes | Auto, On, Off, Red-Eye, Fill-in | Auto, On, Off, Red-eye, Fill-in, 1st/2nd Curtain, Smart Flash, Manual |
External flash | ||
Auto exposure bracketing | ||
White balance bracketing | ||
Fastest flash synchronize | - | 1/180s |
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Video resolutions | 1280 x 720 (30 fps), 640 x 480 (30 fps), 320 x 180 (30fps) | 1920 x 1080 (30 fps), 1920 x 810 (24 fps) 1280 x 720 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) |
Max video resolution | 1280x720 | 1920x1080 |
Video data format | MPEG-4, H.264 | MPEG-4, H.264 |
Mic port | ||
Headphone port | ||
Connectivity | ||
Wireless | None | Built-In |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | Optional |
Physical | ||
Environment sealing | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 155 gr (0.34 lb) | 341 gr (0.75 lb) |
Physical dimensions | 96 x 63 x 23mm (3.8" x 2.5" x 0.9") | 122 x 90 x 40mm (4.8" x 3.5" x 1.6") |
DXO scores | ||
DXO Overall score | not tested | 75 |
DXO Color Depth score | not tested | 23.4 |
DXO Dynamic range score | not tested | 12.9 |
DXO Low light score | not tested | 785 |
Other | ||
Battery life | 150 images | 360 images |
Battery type | Battery Pack | Battery Pack |
Battery model | LI-42B | BP1130 |
Self timer | Yes (2 or 12 sec, pet auto shutter) | Yes (2 sec to 30 sec) |
Time lapse shooting | ||
Type of storage | SD/SDHC/SDXC | SD/SDHC/SDXC |
Card slots | 1 | 1 |
Retail price | $0 | $1,100 |
