Olympus TG-1 iHS vs Panasonic SZ5

Portability
91 Imaging
35 Features
40 Overall
37
Olympus Tough TG-1 iHS front

Panasonic Lumix DMC-SZ5 front
Portability
95 Imaging
37 Features
34 Overall
35

Olympus TG-1 iHS vs Panasonic SZ5 Key Specs

Olympus TG-1 iHS
(Full Review)
  • 12MP - 1/2.3" Sensor
  • 3" Fixed Display
  • ISO 100 - 6400
  • Sensor-shift Image Stabilization
  • 1920 x 1080 video
  • 25-100mm (F2.0-4.9) lens
  • 230g - 112 x 67 x 30mm
  • Released May 2012
Panasonic SZ5
(Full Review)
  • 14MP - 1/2.3" Sensor
  • 3" Fixed Display
  • ISO 100 - 1600 (Push to 6400)
  • Optical Image Stabilization
  • 1280 x 720 video
  • 25-250mm (F3.1-5.9) lens
  • 136g - 104 x 58 x 21mm
  • Launched July 2012
Pentax 17 Pre-Orders Outperform Expectations by a Landslide

Olympus TG-1 iHS vs Panasonic SZ5 Overview

On this page, we are reviewing the Olympus TG-1 iHS and Panasonic SZ5, former is a Waterproof while the other is a Small Sensor Compact by rivals Olympus and Panasonic. The image resolution of the TG-1 iHS (12MP) and the SZ5 (14MP) is very close and both cameras boast the same sensor measurements (1/2.3").

Photography Glossary

The TG-1 iHS was revealed 2 months before the SZ5 which means that they are of a similar age. The two cameras have the same body design (Compact).

Before going straight to a more detailed comparison, here is a concise summation of how the TG-1 iHS grades against the SZ5 when it comes to portability, imaging, features and an overall mark.

Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes






Reasons to pick Olympus TG-1 iHS over the Panasonic SZ5






 TG-1 iHS SZ5
Display resolution610k230kSharper display (+380k dot)










Reasons to pick Panasonic SZ5 over the Olympus TG-1 iHS






 SZ5 TG-1 iHS










Common features in the Olympus TG-1 iHS and Panasonic SZ5






 TG-1 iHS SZ5
LaunchedMay 2012July 2012Same age
Focus manually  No manual focus
Display typeFixed Fixed Fixed display
Display dimensions3"3"Equal display measurements
Selfie screen  Absent selfie screen
Touch display  Absent Touch display
















Olympus TG-1 iHS vs Panasonic SZ5 Physical Comparison






For anybody who is going to travel with your camera often, you need to think about its weight and measurements. The Olympus TG-1 iHS enjoys outside dimensions of 112mm x 67mm x 30mm (4.4" x 2.6" x 1.2") accompanied by a weight of 230 grams (0.51 lbs) and the Panasonic SZ5 has proportions of 104mm x 58mm x 21mm (4.1" x 2.3" x 0.8") and a weight of 136 grams (0.30 lbs).
Contrast the Olympus TG-1 iHS and Panasonic SZ5 in our brand new Camera plus Lens Size Comparison Tool. Camera Size Comparison with Lenses
Keep in mind, the weight of an ILC will differ based on the lens you have at the time. Following is a front view physical size comparison of the TG-1 iHS and the SZ5.

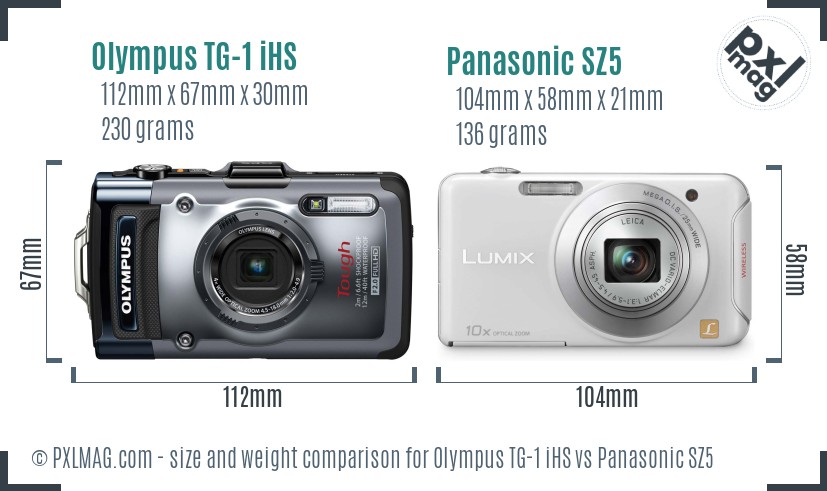

Olympus TG-1 iHS vs Panasonic SZ5 size comparison
Looking at dimensions and weight, the portability grade of the TG-1 iHS and SZ5 is 91 and 95 respectively.

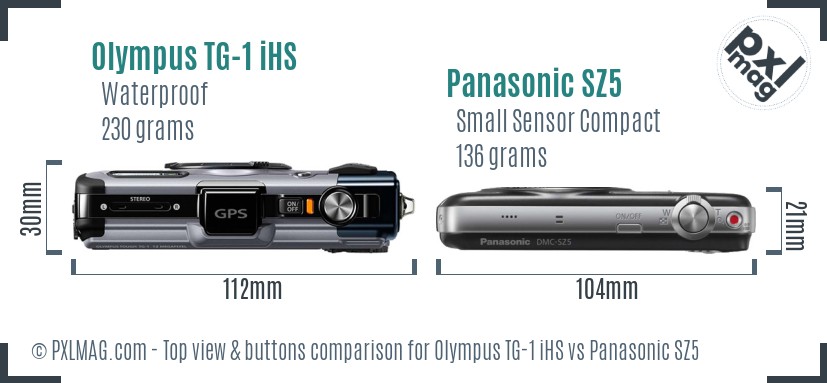

Olympus TG-1 iHS vs Panasonic SZ5 top view buttons comparison









Olympus TG-1 iHS vs Panasonic SZ5 Sensor Comparison






More often than not, it is very hard to picture the contrast in sensor dimensions merely by viewing specifications. The picture here may provide you a greater sense of the sensor dimensions in the TG-1 iHS and SZ5.
To sum up, both the cameras provide the same sensor dimensions but different resolution. You can expect to see the Panasonic SZ5 to provide you with greater detail because of its extra 2MP. Greater resolution will also let you crop pics more aggressively.

            Olympus TG-1 iHS vs Panasonic SZ5 sensor size comparison










Olympus TG-1 iHS vs Panasonic SZ5 Screen and ViewFinder

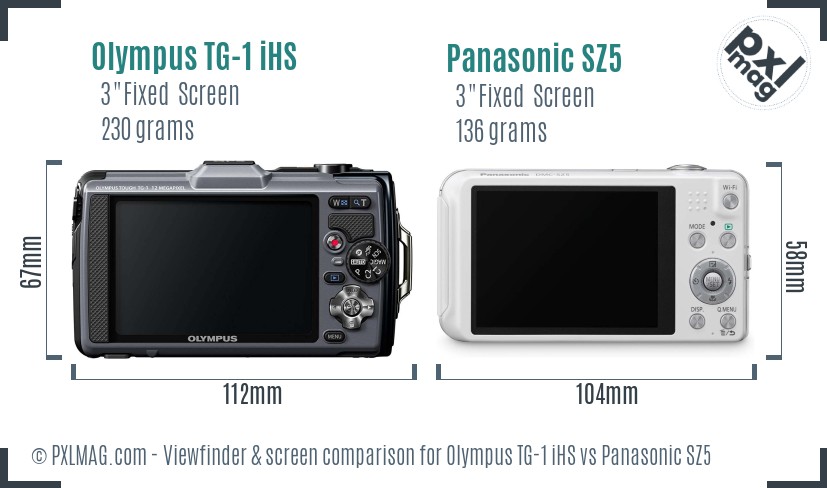

          Olympus TG-1 iHS vs Panasonic SZ5 Screen and Viewfinder comparison


                President Biden pushes bill mandating TikTok sale or ban









Photography Type Scores






Portrait Comparison
Olympus TG-1 iHS Portrait photography details
Panasonic SZ5 Portrait photography details
26
 provides face detection focusing
 focusing manually not possible
 lack of manual exposure
 external flash not possible
 megapixel count low (12 megapixels)
 tiny sensor size (1/2.3")
 does not have RAW format
33
 good  resolution (14 megapixels)
 has face detection focusing
 manual focus not available
 no manual mode
 no external flash support
 sensor size is small (1/2.3")
 doesn't have RAW format
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone
Street Comparison
Olympus TG-1 iHS Street photography details
Panasonic SZ5 Street photography details
60
 has image stabilization (Sensor-shift)
 weather proof
 no moving screen
 tiny sensor size (1/2.3")
 does not have RAW format
63
 image stabilization (Optical)
 lighter than competition (136g)
 no articulating screen
 sensor size is small (1/2.3")
 doesn't have RAW format
Meta to Introduce 'AI-Generated' Labels for Media starting next month
Sports Comparison
Olympus TG-1 iHS Sports photography information
Panasonic SZ5 Sports photography information
39
 has image stabilization (Sensor-shift)
 provides tracking autofocus
 weather proof
 good battery pack (350 CIPA)
 slow fps (3.0 frames/s)
 lack of shutter priority mode
 megapixel count low (12 megapixels)
 tiny sensor size (1/2.3")
 does not have phase detect AF
39
 image stabilization (Optical)
 good  resolution (14MP)
 has tracking autofocus
 very slow continuous shooting (2.0 frames/s)
 lack of shutter priority mode
 sensor size is small (1/2.3")
 doesn't have phase detect AF
Photobucket discusses licensing 13 billion images with AI firms
Travel Comparison
Olympus TG-1 iHS Travel photography info
Panasonic SZ5 Travel photography info
68
 good battery pack (350 CIPA)
 weather proof
 built-in flash
 really wide (25mm)
 good maximum aperture (f2.0)
 missing Time Lapse mode
 megapixel count low (12MP)
 does not feature selfie friendly screen
70
 lighter than competition (136g)
 good  resolution (14 megapixels)
 flash built-in
 relatively wide (25mm)
 very long zoom (250mm)
 does not have Time Lapse recording
 does not contain selfie friendly display
 somewhat slow maximum aperture (f3.1)
Snapchat Adds Watermarks to AI-Created Images
Landscape Comparison
Olympus TG-1 iHS Landscape photography features
Panasonic SZ5 Landscape photography features
46
 really wide (25mm)
 good maximum aperture (f2.0)
 screen is a decent size (3 inch)
 has image stabilization (Sensor-shift)
 weather proof
 good battery pack (350 per charge)
 focusing manually not possible
 lens is fixed (fixed lens mount)
 lack of manual exposure
 megapixel count low (12MP)
 tiny sensor size (1/2.3")
 does not have RAW format
 missing Time Lapse mode
42
 relatively wide (25mm)
 screen is a good size (3 inch)
 image stabilization (Optical)
 good  resolution (14MP)
 manual focus not available
 lens is fixed (fixed lens mount)
 somewhat slow maximum aperture (f3.1)
 no manual mode
 sensor size is small (1/2.3")
 doesn't have RAW format
 does not have Time Lapse recording
Mastering Nature Photography with a Digital Microscope Camera
Vlogging Comparison
 Olympus TG-1 iHS as a Vlogging camera
 Panasonic SZ5 as a Vlogging camera
35
 really wide (25mm)
 good maximum aperture (f2.0)
 has image stabilization (Sensor-shift)
 provides face detection focusing
 video res high (1920 x 1080 resolution)
 does not feature selfie friendly screen
 missing external mic jack
32
 relatively wide (25mm)
 image stabilization (Optical)
 has face detection focusing
 lighter than competition (136g)
 somewhat slow maximum aperture (f3.1)
 does not contain selfie friendly display
 low video resolution (1280 x 720 resolution)
 does not have external mic port
Samsung Releases Faster Versions of EVO MicroSD Cards







Olympus TG-1 iHS vs Panasonic SZ5 Specifications










            Detailed spec comparison table for Olympus TG-1 iHS and Panasonic SZ5
 Olympus Tough TG-1 iHSPanasonic Lumix DMC-SZ5
General Information
Company Olympus Panasonic
Model Olympus Tough TG-1 iHS Panasonic Lumix DMC-SZ5
Category Waterproof Small Sensor Compact
Released 2012-05-08 2012-07-18
Body design Compact Compact
Sensor Information
Powered by TruePic VI -
Sensor type BSI-CMOS CCD
Sensor size 1/2.3" 1/2.3"
Sensor dimensions 6.17 x 4.55mm 6.08 x 4.56mm
Sensor surface area 28.1mm² 27.7mm²
Sensor resolution 12MP 14MP
Anti aliasing filter
Aspect ratio 4:3 and  16:9 1:1, 4:3, 3:2 and  16:9
Max resolution 3968 x 2976 4320 x 3240
Max native ISO 6400 1600
Max enhanced ISO - 6400
Lowest native ISO 100 100
RAW pictures
Autofocusing
Focus manually
Touch focus
Continuous AF
AF single
Tracking AF
AF selectice
AF center weighted
AF multi area
Live view AF
Face detect focusing
Contract detect focusing
Phase detect focusing
Number of focus points - 23
Cross focus points - -
Lens
Lens mounting type fixed lens fixed lens
Lens focal range 25-100mm (4.0x) 25-250mm (10.0x)
Highest aperture f/2.0-4.9 f/3.1-5.9
Macro focus range - 5cm
Crop factor 5.8 5.9
Screen
Range of display Fixed Type Fixed Type
Display diagonal 3 inch 3 inch
Resolution of display 610k dot 230k dot
Selfie friendly
Liveview
Touch function
Display technology - TFT Screen LCD
Viewfinder Information
Viewfinder None None
Features
Minimum shutter speed 4 secs 8 secs
Fastest shutter speed 1/2000 secs 1/1600 secs
Continuous shutter speed 3.0 frames/s 2.0 frames/s
Shutter priority
Aperture priority
Manually set exposure
Set WB
Image stabilization
Inbuilt flash
Flash range - 5.60 m
Flash modes - Auto, On, Off, Red-eye, Slow Sync
Hot shoe
Auto exposure bracketing
White balance bracketing
Exposure
Multisegment exposure
Average exposure
Spot exposure
Partial exposure
AF area exposure
Center weighted exposure
Video features
Supported video resolutions 1920 x 1080 1280 x 720p ( 30,25 fps), 640 x 480 (30, 25 fps)
Max video resolution 1920x1080 1280x720
Video data format H.264 MPEG-4
Mic jack
Headphone jack
Connectivity
Wireless None Built-In
Bluetooth
NFC
HDMI
USB USB 2.0 (480 Mbit/sec) USB 2.0 (480 Mbit/sec)
GPS BuiltIn None
Physical
Environment seal
Water proof
Dust proof
Shock proof
Crush proof
Freeze proof
Weight 230 gr (0.51 lb) 136 gr (0.30 lb)
Physical dimensions 112 x 67 x 30mm (4.4" x 2.6" x 1.2") 104 x 58 x 21mm (4.1" x 2.3" x 0.8")
DXO scores
DXO Overall score not tested not tested
DXO Color Depth score not tested not tested
DXO Dynamic range score not tested not tested
DXO Low light score not tested not tested
Other
Battery life 350 shots 250 shots
Battery form Battery Pack Battery Pack
Battery model LI90B -
Self timer Yes (2 and 12 sec) Yes (2 or 10 secs)
Time lapse shooting
Storage media - SD/SDHC/SDXC, Internal
Storage slots 1 1
Cost at release $399 $195
