Olympus TG-3 vs Samsung NX20
90 Imaging
40 Features
46 Overall
42
83 Imaging
62 Features
73 Overall
66
Olympus TG-3 vs Samsung NX20 Key Specs
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 100 - 6400
- Sensor-shift Image Stabilization
- 1920 x 1080 video
- 25-100mm (F2.0-4.9) lens
- 247g - 112 x 66 x 31mm
- Released March 2014
- Later Model is Olympus TG-4
(Full Review)
- 20MP - APS-C Sensor
- 3" Fully Articulated Display
- ISO 100 - 12800
- 1/8000s Max Shutter
- 1920 x 1080 video
- Samsung NX Mount
- 341g - 122 x 90 x 40mm
- Introduced April 2012
- Previous Model is Samsung NX11
- Refreshed by Samsung NX30
Olympus TG-3 vs Samsung NX20 Overview
Its time to look more in depth at the Olympus TG-3 and Samsung NX20, one is a Waterproof and the other is a Advanced Mirrorless by competitors Olympus and Samsung. The image resolution of the TG-3 (16MP) and the NX20 (20MP) is very comparable but the TG-3 (1/2.3") and NX20 (APS-C) posses different sensor size.
Photography GlossaryThe TG-3 was revealed 24 months after the NX20 making them a generation away from each other. Each of the cameras have different body design with the Olympus TG-3 being a Compact camera and the Samsung NX20 being a SLR-style mirrorless camera.
Before delving straight to a more detailed comparison, here is a brief introduction of how the TG-3 grades vs the NX20 with regards to portability, imaging, features and an overall mark.
Olympus TG-3 vs Samsung NX20 Gallery
Below is a sample of the gallery pics for Olympus Tough TG-3 and Samsung NX20. The full galleries are available at Olympus TG-3 Gallery and Samsung NX20 Gallery.
Reasons to pick Olympus TG-3 over the Samsung NX20
TG-3 | NX20 | |||
---|---|---|---|---|
Introduced | March 2014 | April 2012 | Newer by 24 months |
Reasons to pick Samsung NX20 over the Olympus TG-3
NX20 | TG-3 | |||
---|---|---|---|---|
Manually focus | More accurate focus | |||
Display type | Fully Articulated | Fixed | Fully Articulating display | |
Display resolution | 614k | 460k | Sharper display (+154k dot) | |
Selfie screen | Take selfies |
Common features in the Olympus TG-3 and Samsung NX20
TG-3 | NX20 | |||
---|---|---|---|---|
Display dimensions | 3" | 3" | Equal display size | |
Touch friendly display | Lacking Touch friendly display |
Olympus TG-3 vs Samsung NX20 Physical Comparison
For those who are planning to travel with your camera often, you are going to need to factor in its weight and dimensions. The Olympus TG-3 provides outer measurements of 112mm x 66mm x 31mm (4.4" x 2.6" x 1.2") along with a weight of 247 grams (0.54 lbs) and the Samsung NX20 has dimensions of 122mm x 90mm x 40mm (4.8" x 3.5" x 1.6") with a weight of 341 grams (0.75 lbs).

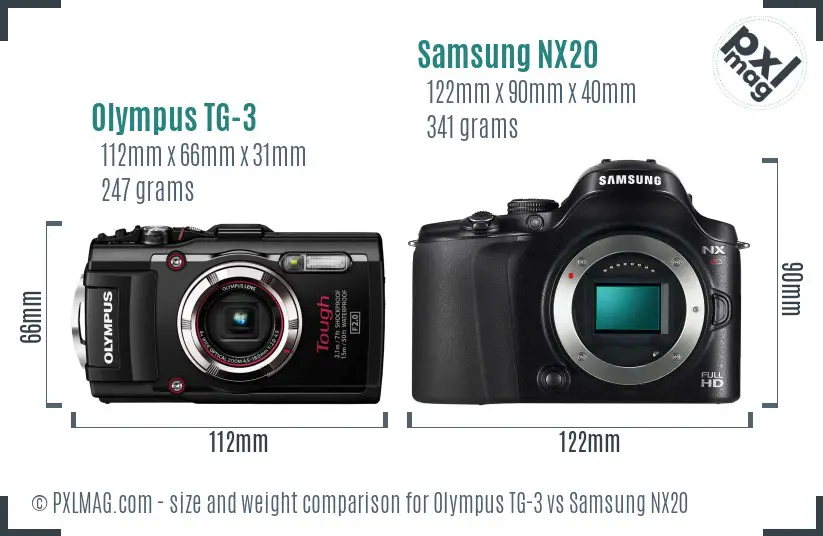

Look at the Olympus TG-3 and Samsung NX20 in the new Camera with Lens Size Comparison Tool.Take into account, the weight of an Interchangeable Lens Camera will differ depending on the lens you are using at that time. Following is a front view physical size comparison of the TG-3 vs the NX20.
Factoring in size and weight, the portability grade of the TG-3 and NX20 is 90 and 83 respectively.
Olympus TG-3 vs Samsung NX20 Sensor Comparison

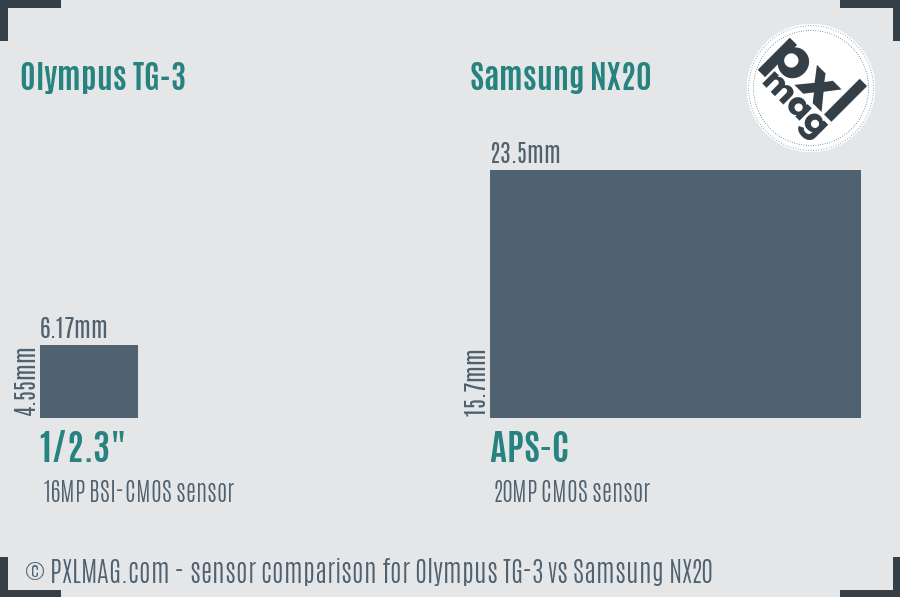

Usually, it's hard to visualize the difference in sensor dimensions only by checking out specs. The image underneath will offer you a much better sense of the sensor measurements in the TG-3 and NX20.
All in all, both of the cameras provide different resolutions and different sensor dimensions. The TG-3 with its smaller sensor is going to make getting shallow depth of field more challenging and the Samsung NX20 will provide extra detail because of its extra 4 Megapixels. Greater resolution can also enable you to crop pics more aggressively. The newer TG-3 provides an advantage with regard to sensor technology.
Olympus TG-3 vs Samsung NX20 Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Olympus TG-3 vs Samsung NX20 Specifications
Olympus Tough TG-3 | Samsung NX20 | |
---|---|---|
General Information | ||
Manufacturer | Olympus | Samsung |
Model type | Olympus Tough TG-3 | Samsung NX20 |
Type | Waterproof | Advanced Mirrorless |
Released | 2014-03-31 | 2012-04-20 |
Physical type | Compact | SLR-style mirrorless |
Sensor Information | ||
Processor Chip | TruePic VII | - |
Sensor type | BSI-CMOS | CMOS |
Sensor size | 1/2.3" | APS-C |
Sensor measurements | 6.17 x 4.55mm | 23.5 x 15.7mm |
Sensor area | 28.1mm² | 369.0mm² |
Sensor resolution | 16 megapixels | 20 megapixels |
Anti alias filter | ||
Aspect ratio | 3:2 | 1:1, 3:2 and 16:9 |
Full resolution | 4608 x 3456 | 5472 x 3648 |
Max native ISO | 6400 | 12800 |
Minimum native ISO | 100 | 100 |
RAW support | ||
Autofocusing | ||
Manual focusing | ||
AF touch | ||
Continuous AF | ||
Single AF | ||
AF tracking | ||
Selective AF | ||
Center weighted AF | ||
AF multi area | ||
AF live view | ||
Face detect focusing | ||
Contract detect focusing | ||
Phase detect focusing | ||
Total focus points | - | 15 |
Lens | ||
Lens mount type | fixed lens | Samsung NX |
Lens zoom range | 25-100mm (4.0x) | - |
Largest aperture | f/2.0-4.9 | - |
Macro focusing range | 1cm | - |
Total lenses | - | 32 |
Focal length multiplier | 5.8 | 1.5 |
Screen | ||
Type of display | Fixed Type | Fully Articulated |
Display diagonal | 3" | 3" |
Display resolution | 460 thousand dots | 614 thousand dots |
Selfie friendly | ||
Liveview | ||
Touch display | ||
Display tech | TFT-LCD | Active Matrix OLED screen |
Viewfinder Information | ||
Viewfinder | None | Electronic |
Viewfinder coverage | - | 100% |
Viewfinder magnification | - | 0.7x |
Features | ||
Lowest shutter speed | 4 seconds | 30 seconds |
Highest shutter speed | 1/2000 seconds | 1/8000 seconds |
Continuous shooting rate | 5.0fps | 8.0fps |
Shutter priority | ||
Aperture priority | ||
Expose Manually | ||
Exposure compensation | Yes | Yes |
Change WB | ||
Image stabilization | ||
Inbuilt flash | ||
Flash distance | - | 11.00 m |
Flash options | Auto, redeye reduction, fill-in, off, LED | Auto, On, Off, Red-eye, Fill-in, 1st/2nd Curtain, Smart Flash, Manual |
Hot shoe | ||
AEB | ||
White balance bracketing | ||
Highest flash synchronize | - | 1/180 seconds |
Exposure | ||
Multisegment | ||
Average | ||
Spot | ||
Partial | ||
AF area | ||
Center weighted | ||
Video features | ||
Supported video resolutions | 1920 x 1080 (30p), 1280 x 720 (30p), 640 x 480 (30 fps) | 1920 x 1080 (30 fps), 1920 x 810 (24 fps) 1280 x 720 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) |
Max video resolution | 1920x1080 | 1920x1080 |
Video data format | H.264, Motion JPEG | MPEG-4, H.264 |
Microphone support | ||
Headphone support | ||
Connectivity | ||
Wireless | Built-In | Built-In |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | BuiltIn | Optional |
Physical | ||
Environmental sealing | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 247 gr (0.54 pounds) | 341 gr (0.75 pounds) |
Physical dimensions | 112 x 66 x 31mm (4.4" x 2.6" x 1.2") | 122 x 90 x 40mm (4.8" x 3.5" x 1.6") |
DXO scores | ||
DXO All around rating | not tested | 75 |
DXO Color Depth rating | not tested | 23.4 |
DXO Dynamic range rating | not tested | 12.9 |
DXO Low light rating | not tested | 785 |
Other | ||
Battery life | 330 shots | 360 shots |
Battery style | Battery Pack | Battery Pack |
Battery ID | LI-92B | BP1130 |
Self timer | Yes (2 or 12 sec, custom) | Yes (2 sec to 30 sec) |
Time lapse feature | ||
Storage type | SD, SDHC, SDXC, Internal Memory | SD/SDHC/SDXC |
Card slots | One | One |
Retail cost | $350 | $1,100 |
