Olympus TG-5 vs Panasonic LZ30
90 Imaging
38 Features
51 Overall
43


66 Imaging
39 Features
32 Overall
36
Olympus TG-5 vs Panasonic LZ30 Key Specs
(Full Review)
- 12MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 100 - 12800 (Expand to 12800)
- Sensor-shift Image Stabilization
- 3840 x 2160 video
- 25-100mm (F2.0-4.9) lens
- 250g - 113 x 66 x 32mm
- Introduced May 2017
- Earlier Model is Olympus TG-4
- Later Model is Olympus TG-6
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 100 - 6400
- Optical Image Stabilization
- 1280 x 720 video
- 25-875mm (F3.0-5.9) lens
- 552g - 124 x 84 x 92mm
- Released January 2013
- Superseded the Panasonic LZ20
- Refreshed by Panasonic LZ40

Olympus TG-5 vs Panasonic LZ30 Overview
Here, we will be reviewing the Olympus TG-5 and Panasonic LZ30, one being a Waterproof and the latter is a Small Sensor Superzoom by rivals Olympus and Panasonic. There is a crucial difference among the image resolutions of the TG-5 (12MP) and LZ30 (16MP) but both cameras provide the identical sensor dimensions (1/2.3").

The TG-5 was released 4 years later than the LZ30 and that is a fairly serious gap as far as camera tech is concerned. Both cameras feature different body design with the Olympus TG-5 being a Compact camera and the Panasonic LZ30 being a SLR-like (bridge) camera.
Before delving into a full comparison, here is a concise view of how the TG-5 scores vs the LZ30 in relation to portability, imaging, features and an overall rating.

Olympus TG-5 vs Panasonic LZ30 Gallery
This is a preview of the gallery photos for Olympus Tough TG-5 and Panasonic Lumix DMC-LZ30. The complete galleries are viewable at Olympus TG-5 Gallery and Panasonic LZ30 Gallery.
Reasons to pick Olympus TG-5 over the Panasonic LZ30
TG-5 | LZ30 | |||
---|---|---|---|---|
Released | May 2017 | ![]() | January 2013 | Fresher by 54 months |
Focus manually | ![]() | More precise focusing |
Reasons to pick Panasonic LZ30 over the Olympus TG-5
LZ30 | TG-5 |
---|
Common features in the Olympus TG-5 and Panasonic LZ30
TG-5 | LZ30 | |||
---|---|---|---|---|
Screen type | Fixed | ![]() | Fixed | Fixed screen |
Screen size | 3" | ![]() | 3" | Same screen sizing |
Screen resolution | 460k | ![]() | 460k | The same screen resolution |
Selfie screen | ![]() | Absent selfie screen | ||
Touch friendly screen | ![]() | Neither provides Touch friendly screen |
Olympus TG-5 vs Panasonic LZ30 Physical Comparison
For those who are going to carry your camera often, you should take into account its weight and size. The Olympus TG-5 provides external measurements of 113mm x 66mm x 32mm (4.4" x 2.6" x 1.3") having a weight of 250 grams (0.55 lbs) whilst the Panasonic LZ30 has specifications of 124mm x 84mm x 92mm (4.9" x 3.3" x 3.6") with a weight of 552 grams (1.22 lbs).
Take a look at the Olympus TG-5 and Panasonic LZ30 in the latest Camera with Lens Size Comparison Tool.

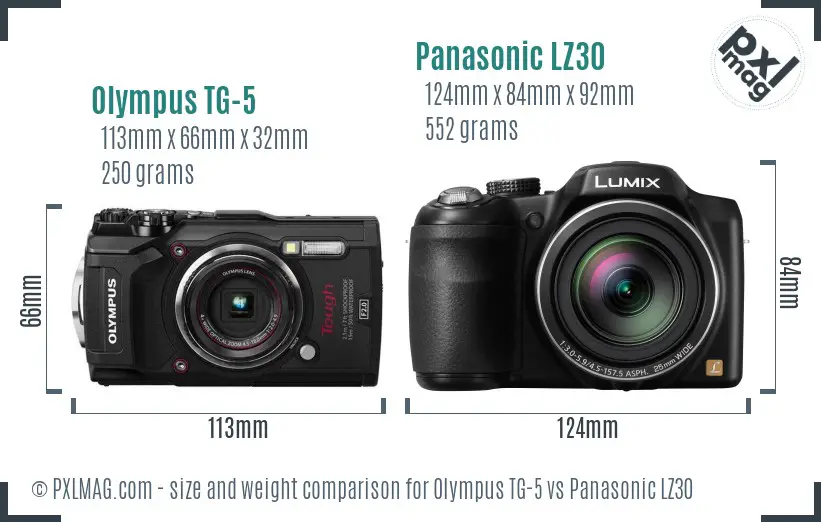

Don't forget, the weight of an Interchangeable Lens Camera will differ based on the lens you are utilizing at that time. Following is a front view scale comparison of the TG-5 and the LZ30.

Taking into account size and weight, the portability score of the TG-5 and LZ30 is 90 and 66 respectively.

Olympus TG-5 vs Panasonic LZ30 Sensor Comparison

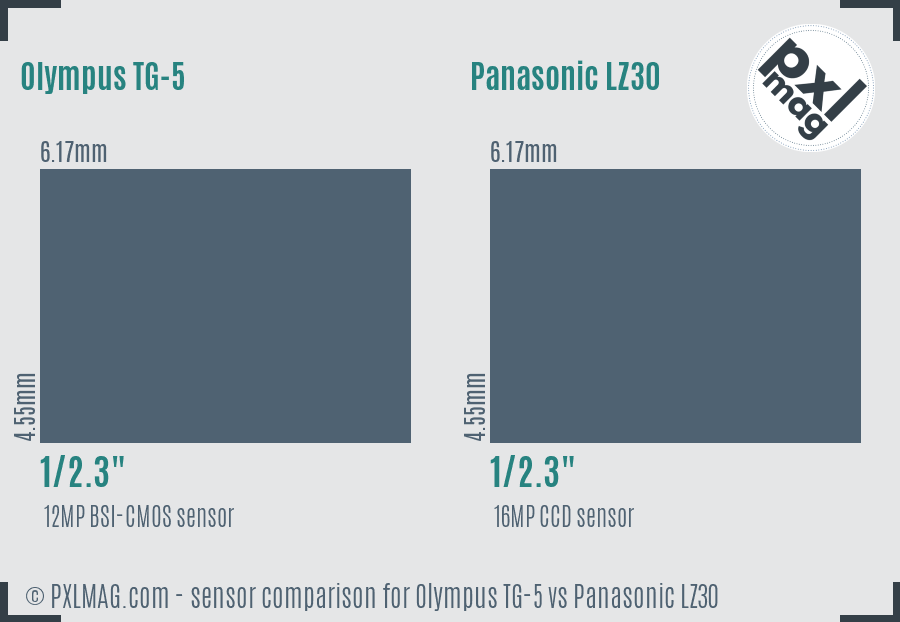

Usually, it is very tough to imagine the gap in sensor sizing just by looking through a spec sheet. The graphic below may offer you a better sense of the sensor sizing in the TG-5 and LZ30.
Clearly, both of these cameras feature the identical sensor size albeit different resolution. You should count on the Panasonic LZ30 to result in extra detail as a result of its extra 4MP. Higher resolution will allow you to crop shots way more aggressively. The more recent TG-5 provides an edge in sensor innovation.

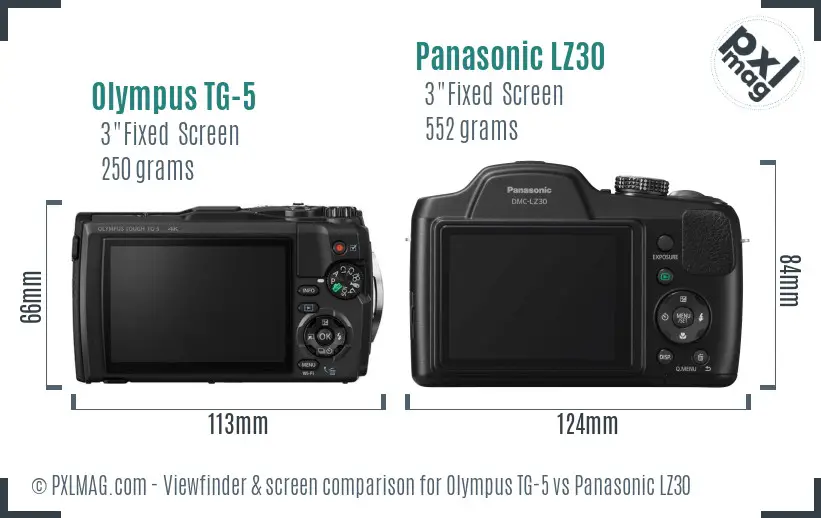

Olympus TG-5 vs Panasonic LZ30 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Olympus TG-5 vs Panasonic LZ30 Specifications
Olympus Tough TG-5 | Panasonic Lumix DMC-LZ30 | |
---|---|---|
General Information | ||
Brand Name | Olympus | Panasonic |
Model type | Olympus Tough TG-5 | Panasonic Lumix DMC-LZ30 |
Class | Waterproof | Small Sensor Superzoom |
Introduced | 2017-05-17 | 2013-01-07 |
Physical type | Compact | SLR-like (bridge) |
Sensor Information | ||
Processor | TruePic VIII | - |
Sensor type | BSI-CMOS | CCD |
Sensor size | 1/2.3" | 1/2.3" |
Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
Sensor area | 28.1mm² | 28.1mm² |
Sensor resolution | 12 megapixels | 16 megapixels |
Anti alias filter | ||
Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | - |
Max resolution | 4000 x 3000 | 4608 x 3456 |
Max native ISO | 12800 | 6400 |
Max enhanced ISO | 12800 | - |
Lowest native ISO | 100 | 100 |
RAW format | ||
Lowest enhanced ISO | 100 | - |
Autofocusing | ||
Manual focusing | ||
Autofocus touch | ||
Autofocus continuous | ||
Autofocus single | ||
Tracking autofocus | ||
Autofocus selectice | ||
Autofocus center weighted | ||
Multi area autofocus | ||
Live view autofocus | ||
Face detect autofocus | ||
Contract detect autofocus | ||
Phase detect autofocus | ||
Total focus points | 25 | - |
Cross type focus points | - | - |
Lens | ||
Lens mount type | fixed lens | fixed lens |
Lens zoom range | 25-100mm (4.0x) | 25-875mm (35.0x) |
Largest aperture | f/2.0-4.9 | f/3.0-5.9 |
Macro focusing distance | 1cm | 1cm |
Focal length multiplier | 5.8 | 5.8 |
Screen | ||
Type of display | Fixed Type | Fixed Type |
Display diagonal | 3 inches | 3 inches |
Display resolution | 460 thousand dots | 460 thousand dots |
Selfie friendly | ||
Liveview | ||
Touch display | ||
Display technology | - | TFT LCD |
Viewfinder Information | ||
Viewfinder | None | None |
Features | ||
Min shutter speed | 4s | 15s |
Max shutter speed | 1/2000s | 1/2000s |
Continuous shutter rate | 20.0 frames per sec | 1.0 frames per sec |
Shutter priority | ||
Aperture priority | ||
Expose Manually | ||
Exposure compensation | - | Yes |
Custom white balance | ||
Image stabilization | ||
Built-in flash | ||
Flash distance | - | 4.40 m |
Flash modes | Auto, redeye reduction, slow sync, redeye slow sync, fill, manual, off | Auto, On, Off, Red-eye, Slow Syncro |
Hot shoe | ||
AEB | ||
White balance bracketing | ||
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Supported video resolutions | 3840 x 2160 @ 30p / 102 Mbps, MOV, H.264, Linear PCM | 1280 x 720 (30 fps), 640 x 480 (30 fps) |
Max video resolution | 3840x2160 | 1280x720 |
Video data format | MPEG-4, H.264 | Motion JPEG |
Mic support | ||
Headphone support | ||
Connectivity | ||
Wireless | Built-In | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | Built-in | None |
Physical | ||
Environmental sealing | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 250 grams (0.55 lbs) | 552 grams (1.22 lbs) |
Physical dimensions | 113 x 66 x 32mm (4.4" x 2.6" x 1.3") | 124 x 84 x 92mm (4.9" x 3.3" x 3.6") |
DXO scores | ||
DXO Overall rating | not tested | not tested |
DXO Color Depth rating | not tested | not tested |
DXO Dynamic range rating | not tested | not tested |
DXO Low light rating | not tested | not tested |
Other | ||
Battery life | 340 photographs | 380 photographs |
Form of battery | Battery Pack | AA |
Battery ID | LI-92B | 4 x AA |
Self timer | Yes (2 or 12 secs, custom) | Yes (2 0r 10 sec) |
Time lapse recording | ||
Storage type | SD/SDHC/SDXC card (UHS-I compatible) | SD/SDHC/SDXC, Internal |
Card slots | Single | Single |
Retail cost | $449 | $230 |
