Panasonic FH20 vs Sigma DP1 Merrill
93 Imaging
37 Features
21 Overall
30
82 Imaging
56 Features
30 Overall
45
Panasonic FH20 vs Sigma DP1 Merrill Key Specs
(Full Review)
- 14MP - 1/2.3" Sensor
- 2.7" Fixed Display
- ISO 80 - 6400
- Optical Image Stabilization
- 1280 x 720 video
- 28-224mm (F3.3-5.9) lens
- 178g - 100 x 56 x 28mm
- Revealed January 2010
- Alternative Name is Lumix DMC-FS30
(Full Review)
- 15MP - APS-C Sensor
- " Fixed Screen
- ISO 100 - 6400
- 640 x 480 video
- ()mm (F2.8) lens
- 330g - 122 x 67 x 64mm
- Launched February 2012
- New Model is Sigma DP2 Merrill
Panasonic FH20 vs Sigma DP1 Merrill Overview
Lets look a bit more in depth at the Panasonic FH20 and Sigma DP1 Merrill, former is a Small Sensor Compact while the latter is a Large Sensor Compact by competitors Panasonic and Sigma. The sensor resolution of the FH20 (14MP) and the DP1 Merrill (15MP) is relatively close but the FH20 (1/2.3") and DP1 Merrill (APS-C) feature totally different sensor sizes.
Samsung Releases Faster Versions of EVO MicroSD CardsThe FH20 was introduced 3 years prior to the DP1 Merrill which is a fairly large difference as far as camera technology is concerned. The two cameras come with different body type with the Panasonic FH20 being a Compact camera and the Sigma DP1 Merrill being a Large Sensor Compact camera.
Before we go through a more detailed comparison, below is a short highlight of how the FH20 grades vs the DP1 Merrill in the way of portability, imaging, features and an overall mark.
Panasonic FH20 vs Sigma DP1 Merrill Gallery
Below is a preview of the gallery photos for Panasonic Lumix DMC-FH20 & Sigma DP1 Merrill. The whole galleries are available at Panasonic FH20 Gallery & Sigma DP1 Merrill Gallery.
Reasons to pick Panasonic FH20 over the Sigma DP1 Merrill
FH20 | DP1 Merrill | |||
---|---|---|---|---|
Screen dimension | 2.7" | " | Bigger screen (+2.7") |
Reasons to pick Sigma DP1 Merrill over the Panasonic FH20
DP1 Merrill | FH20 | |||
---|---|---|---|---|
Launched | February 2012 | January 2010 | Newer by 25 months | |
Focus manually | Dial precise focus | |||
Screen resolution | 920k | 230k | Sharper screen (+690k dot) |
Common features in the Panasonic FH20 and Sigma DP1 Merrill
FH20 | DP1 Merrill | |||
---|---|---|---|---|
Screen type | Fixed | Fixed | Fixed screen | |
Selfie screen | Lacking selfie screen | |||
Touch screen | Lacking Touch screen |
Panasonic FH20 vs Sigma DP1 Merrill Physical Comparison
For those who are planning to travel with your camera, you're going to have to think about its weight and measurements. The Panasonic FH20 provides outer dimensions of 100mm x 56mm x 28mm (3.9" x 2.2" x 1.1") accompanied by a weight of 178 grams (0.39 lbs) whilst the Sigma DP1 Merrill has proportions of 122mm x 67mm x 64mm (4.8" x 2.6" x 2.5") with a weight of 330 grams (0.73 lbs).

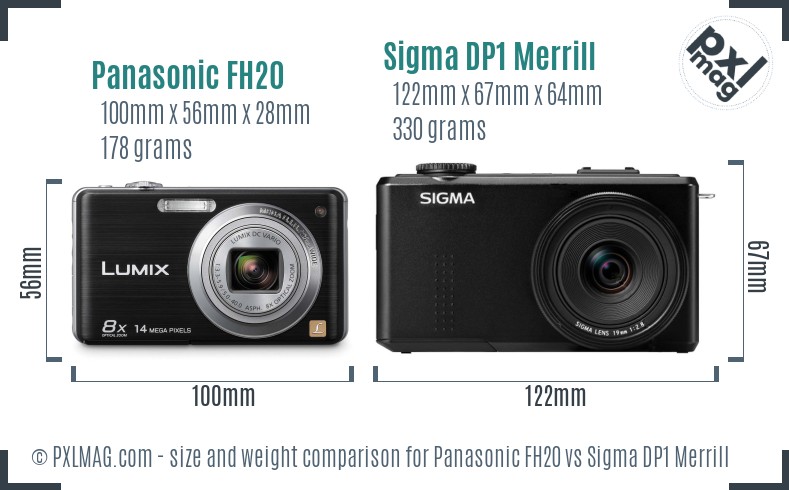

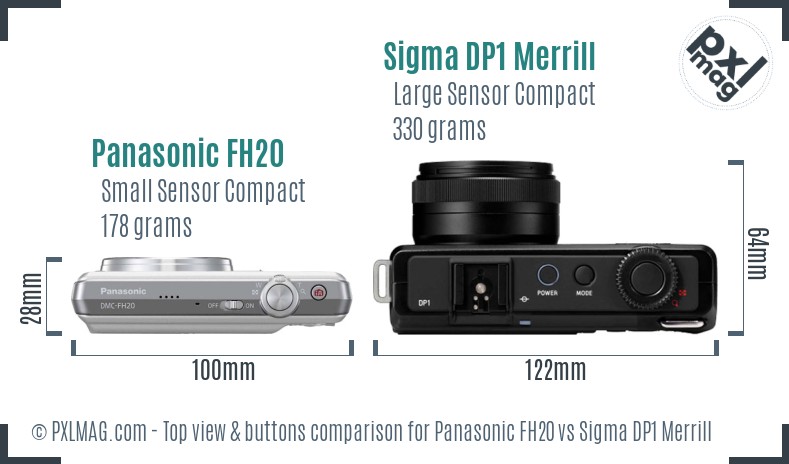

Take a look at the Panasonic FH20 and Sigma DP1 Merrill in our completely new Camera & Lens Size Comparison Tool.Remember that, the weight of an ILC will vary based on the lens you have at that moment. Following is the front view dimension comparison of the FH20 and the DP1 Merrill.
Using dimensions and weight, the portability grade of the FH20 and DP1 Merrill is 93 and 82 respectively.
Panasonic FH20 vs Sigma DP1 Merrill Sensor Comparison
Typically, it can be tough to visualise the difference in sensor dimensions merely by viewing technical specs. The picture here will help provide you a clearer sense of the sensor dimensions in the FH20 and DP1 Merrill.
As you have seen, the two cameras have got different megapixels and different sensor dimensions. The FH20 having a smaller sensor will make getting shallower depth of field tougher and the Sigma DP1 Merrill will provide you with extra detail using its extra 1MP. Higher resolution will also allow you to crop photographs much more aggressively. The more aged FH20 will be disadvantaged with regard to sensor innovation.

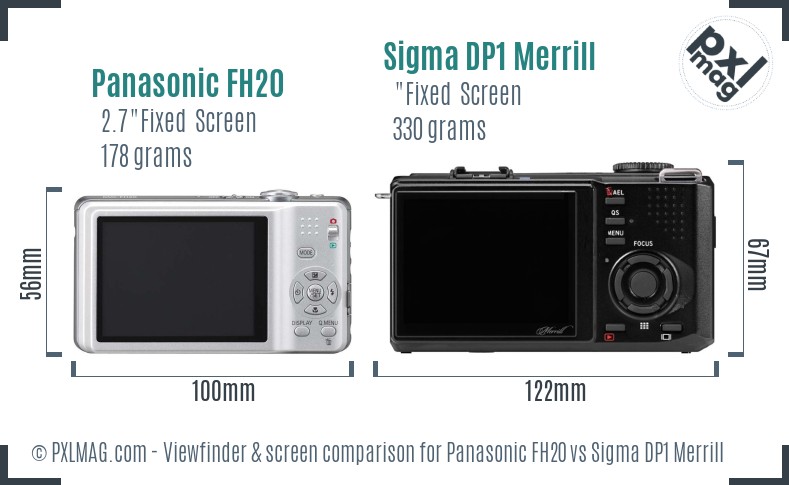

Panasonic FH20 vs Sigma DP1 Merrill Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Panasonic FH20 vs Sigma DP1 Merrill Specifications
Panasonic Lumix DMC-FH20 | Sigma DP1 Merrill | |
---|---|---|
General Information | ||
Brand | Panasonic | Sigma |
Model | Panasonic Lumix DMC-FH20 | Sigma DP1 Merrill |
Also Known as | Lumix DMC-FS30 | - |
Class | Small Sensor Compact | Large Sensor Compact |
Revealed | 2010-01-06 | 2012-02-08 |
Body design | Compact | Large Sensor Compact |
Sensor Information | ||
Processor Chip | - | Dual TRUE II engine |
Sensor type | CCD | CMOS (Foveon X3) |
Sensor size | 1/2.3" | APS-C |
Sensor measurements | 6.08 x 4.56mm | 24 x 16mm |
Sensor surface area | 27.7mm² | 384.0mm² |
Sensor resolution | 14MP | 15MP |
Anti aliasing filter | ||
Aspect ratio | 4:3, 3:2 and 16:9 | - |
Maximum resolution | 4320 x 3240 | 4704 x 3136 |
Maximum native ISO | 6400 | 6400 |
Lowest native ISO | 80 | 100 |
RAW files | ||
Autofocusing | ||
Focus manually | ||
Touch to focus | ||
Continuous autofocus | ||
Single autofocus | ||
Autofocus tracking | ||
Selective autofocus | ||
Center weighted autofocus | ||
Autofocus multi area | ||
Autofocus live view | ||
Face detect focus | ||
Contract detect focus | ||
Phase detect focus | ||
Number of focus points | 9 | - |
Lens | ||
Lens mounting type | fixed lens | fixed lens |
Lens focal range | 28-224mm (8.0x) | () |
Highest aperture | f/3.3-5.9 | f/2.8 |
Macro focus distance | 5cm | - |
Focal length multiplier | 5.9 | 1.5 |
Screen | ||
Range of display | Fixed Type | Fixed Type |
Display size | 2.7" | - |
Resolution of display | 230 thousand dot | 920 thousand dot |
Selfie friendly | ||
Liveview | ||
Touch function | ||
Viewfinder Information | ||
Viewfinder type | None | None |
Features | ||
Lowest shutter speed | 60s | - |
Highest shutter speed | 1/1600s | - |
Continuous shooting speed | 5.0 frames per sec | - |
Shutter priority | ||
Aperture priority | ||
Expose Manually | ||
Exposure compensation | - | Yes |
Custom white balance | ||
Image stabilization | ||
Integrated flash | ||
Flash range | 5.80 m (Auto ISO) | no built-in flash |
Flash options | Auto, On, Off, Red-eye, Slow Syncro | no built-in flash |
External flash | ||
AEB | ||
WB bracketing | ||
Exposure | ||
Multisegment | ||
Average | ||
Spot | ||
Partial | ||
AF area | ||
Center weighted | ||
Video features | ||
Supported video resolutions | 1280 x 720 (30 fps), 848 x 480 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) | 640 x 480 |
Maximum video resolution | 1280x720 | 640x480 |
Video data format | Motion JPEG | Motion JPEG |
Microphone input | ||
Headphone input | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental seal | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 178 grams (0.39 lbs) | 330 grams (0.73 lbs) |
Dimensions | 100 x 56 x 28mm (3.9" x 2.2" x 1.1") | 122 x 67 x 64mm (4.8" x 2.6" x 2.5") |
DXO scores | ||
DXO All around score | not tested | not tested |
DXO Color Depth score | not tested | not tested |
DXO Dynamic range score | not tested | not tested |
DXO Low light score | not tested | not tested |
Other | ||
Self timer | Yes (2 or 10 sec) | - |
Time lapse shooting | ||
Storage media | SD/SDHC/SDXC, Internal | - |
Storage slots | 1 | 1 |
Retail cost | $179 | $1,250 |
