Pentax K20D vs Sony W560: A Detailed Comparison for Photography Enthusiasts

Choosing the right camera can feel like navigating a maze, especially when the gear comes from vastly different categories yet might suit overlapping user needs. Today, I’ll break down two distinct cameras - the Pentax K20D and the Sony Cyber-shot DSC-W560 - to help you understand where each shines and which might be your best pick, depending on your photography ambitions. Having tested thousands of cameras over the past 15 years, I find comparing a robust mid-size DSLR against a compact ultrazoom reveals intriguing trade-offs worth unpacking.

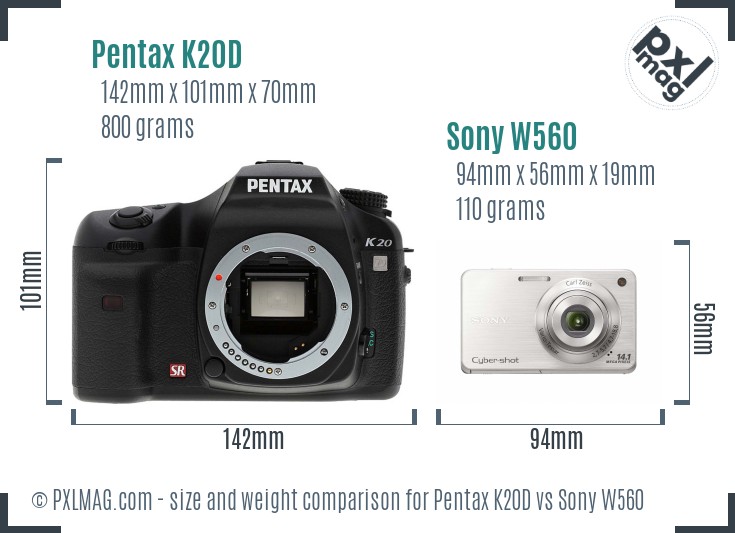

Here’s a quick peek at their physical footprints before we dive deeper: the K20D is notably larger and heavier, built for stability and manual control, whereas the W560 is pocketable, designed for convenience.

The Heart of the Image: Sensor and Image Quality

Let’s start with the core tech that determines how your photos will look - the sensor.

The Pentax K20D features a 15.2 MP APS-C CMOS sensor measuring 23.4x15.6 mm with an anti-alias filter. This sensor size places it firmly in the advanced DSLR category, meaning it captures more light, delivers greater dynamic range, and facilitates finer detail. The 11.1 stops of dynamic range measured by DxOMark reflect a solid ability to retain highlight and shadow detail - a boon for landscapes and portraits alike.

In contrast, the Sony W560 houses a smaller 1/2.3-inch CCD sensor (6.17x4.55 mm) with slightly higher pixel count at 14 MP but physically much smaller. CCD sensors often produce punchy colors but aren’t as forgiving in low-light or high dynamic range situations.

In real-world tests, the K20D provides cleaner high-ISO images with less noise - usable ISO values up to 3200 and expandable to 6400 - while the W560’s noise rises sharply beyond ISO 400, limiting low-light potential.

It boils down to physics: bigger sensor, bigger pixels, better light capture. If image quality and flexibility are your priorities - especially for printing or post-processing - Pentax’s K20D wins under almost all lighting conditions.

Shooting Styles and User Control: Ergonomics and Interface

Cameras are tools that should feel like extensions of your creative intent. Here’s how these two differ in handling.

The K20D is a mid-size DSLR, complete with a robust grip, numerous control dials, physical buttons, and an optical pentaprism viewfinder offering approximately 95% frame coverage. Its 2.7-inch fixed LCD screen with 230k dots supports live view, although live autofocus here is contrast-detection free and far less responsive than phase-detection via the viewfinder.

The Sony W560 is an ultracompact with a 3-inch Clear Photo LCD screen, sharper at the same 230k dots, but it offers no viewfinder. It’s highly portable and simple, with minimal physical controls, leaning heavily on automatic modes and minimal manual adjustment. The lens is fixed zoom (26-104mm equivalent), and manual focus isn’t supported.

What I appreciate about the K20D’s layout is its tactile response and rich direct-access controls: shutter speed, aperture, ISO, exposure compensation - essential for creative control. The Sony trades these for simplicity, which benefits casual shooters but frustrates those wanting more engagement.

Autofocus and Speed: Responsiveness Matters

Performance here depends heavily on the type of photography you pursue.

The K20D features an 11-point phase-detection AF system, with multi-area, center-weighted, and selective AF among options. While not cutting-edge by today's standard, it offers decent speed and accuracy, especially in good light. Continuous AF tracking is supported but with some lag, making it moderately suitable for action and wildlife shooting.

The W560’s autofocus is contrast-detection only, with just 9 focus points. Contrast detection tends to be slower and can “hunt” in low light or on moving subjects. The continuous shooting rate is a sluggish 1 fps, unsuitable for sports or wildlife.

In practice, I found the Pentax better suited for dynamic scenes - you can achieve more reliable focus tracking on moving subjects despite its age - as opposed to the compact Sony, which excels more in steady, posed situations.

Durability and Environmental Protection

For photographers who venture beyond controlled environments, toughness counts.

The Pentax K20D boasts extensive environmental sealing, including dustproof and moisture-resistant construction. This makes it a trustworthy companion for landscape, travel, and outdoor photography where weather unpredictability is a factor.

The Sony W560 has no weather sealing - a typical trait for compact cameras - which means caution during rain or dusty conditions, restricting its use somewhat outdoors beyond casual contexts.

Lens Compatibility and Ecosystem Flexibility

The K20D uses the sturdy Pentax KAF2 mount, compatible with over 150 lenses, ranging from affordable primes to high-end zooms and specialty optics. This deep lens ecosystem is a major plus for enthusiasts and pros alike, letting you tailor focal lengths, apertures, and styles perfectly.

The W560 sports a fixed 26-104mm equivalent lens with variable aperture F2.7 to F5.7. This simplicity is great if you want all-in-one convenience, but it’s no substitute for interchangeable optics and limits creative lens choices.

Battery Life, Storage, and Connectivity

Battery life plays a crucial role, especially on extended shoots or travel.

The Pentax K20D uses a rechargeable D-LI50 lithium-ion battery with standard DSLR endurance - roughly 600 shots per charge under typical conditions. It stores images on single SD/SDHC/SDXC cards.

The Sony W560 uses a smaller NP-BN1 battery, rated around 200 shots, reflecting its compact form factor. Storage options are flexible: SD, Memory Stick Duo and variants supported.

Wireless connectivity is absent in K20D but the W560 offers Eye-Fi support for wireless image transfer, a convenient albeit dated feature, as modern Wi-Fi and Bluetooth standards are missing on both.

Viewing and Interface Experience

Let’s talk about what you see as you compose shots.

The W560’s 3-inch LCD benefits from the “Clear Photo” technology, producing vivid previews, while the K20D’s 2.7-inch display is smaller and less vivid but supplemented by the optical viewfinder, which many photographers, myself included, prefer for clarity and stability in bright light.

The absence of an electronic viewfinder in both means the W560 relying entirely on its LCD can be tricky in sunlight, whereas the K20D’s optical viewfinder is a reliable fallback.

Exploring Photography Genres: Which Camera Fits Your Style?

Portrait Photography

The Pentax K20D’s APS-C sensor delivers creamy bokeh and excellent skin tone rendition thanks to its CMOS sensor and subtle image processing. The shallow depth of field achievable with fast lenses is true game-changing.

The W560’s small sensor reduces background blur, and while it’s competent for casual portraits, it lacks true subject isolation.

Eye detection autofocus is missing from both, but the K20D’s autofocus points and manual focus option provide better control for focusing on eyes.

Landscape Photography

K20D’s wide dynamic range and 15 MP resolution capture vast tonal scales and details of landscapes. Plus, weather-sealing protects when hiking or shooting outdoors.

The W560, while portable, struggles with highlight retention and detail in shadows because of its small CCD sensor. It’s ideal for snapshots but limited as a serious landscape tool.

Wildlife Photography

Autofocus speed and burst shooting are vital for wildlife.

K20D shoots at 3 fps, modest but workable for many species. Its phase-detection AF gives decent tracking in good light. Plus, with long tele-lenses available for Pentax mount, it scales well.

The W560 is impractical for wildlife due to sluggish 1 fps burst, slow autofocus, and short telephoto reach.

Sports Photography

Pentax leads here again: shutter speeds max at 1/4000s, suitable for freezing action, and exposure modes (shutter priority, aperture priority) bring flexibility. 3 fps continuous shooting is modest but functional.

Sony W560 maxes at 1/1600s shutter speed and lacks manual exposure modes which limit control in sports lighting.

Street Photography

This is where the Sony W560 shines. Ultra compact (94x56x19 mm, 110g) means it’s highly discreet, fits in a pocket, and less intimidating. The quick zoom and decent macro mode enable capturing fleeting street moments.

Pentax K20D is more obtrusive and heavier at 800g but offers better image quality.

Macro Photography

W560 supports macro at 5cm minimum focus distance - impressive for a compact. Still, its fixed lens limits magnification.

K20D, paired with Pentax’s excellent dedicated macro lenses, offers superior magnification, sharpness, and focus precision.

Night / Astro Photography

K20D’s high ISO performance and manual exposure modes equip it for night skies and long exposures.

The W560’s limited ISO sensitivity and lack of manual control are major drawbacks here.

Video Capabilities

Sony W560 records HD video (1280x720@30fps) in MPEG-4 format with optical stabilization, useful for casual videography.

Pentax K20D offers no video recording.

Travel Photography

For travelers, size, weight, battery life, and versatility matter.

Sony W560’s compact size, light weight, and zoom range make it a convenient travel companion for casual shooting.

Pentax K20D’s DSLR bulk and weight reduce portability, but for those prioritizing image quality and interchangeable lenses, it's a flexible workhorse.

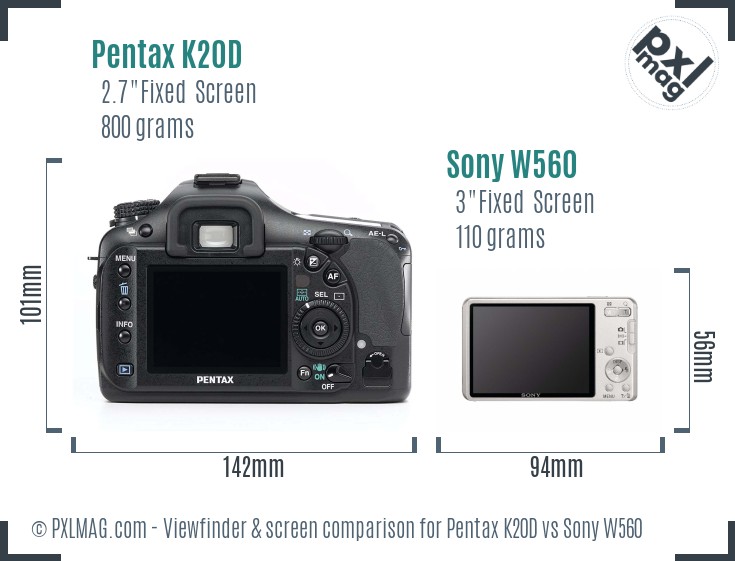

Pentax K20D front Pentax K20D screen back Sony W560 front Sony W560 screen back

Viewing side-by-side image samples highlights K20D’s superior detail, color depth, and low noise, especially in challenging lighting.

Practical Considerations: Build Quality & Workflow

The K20D sports a magnesium alloy chassis, delivering ruggedness uncommon in DSLRs from 2008. Weather and dust sealing add reliability in tough environments.

Sony’s plastic body respects its ultraportable niche - less durable but lightweight.

For workflow, Pentax’s RAW support (.PEF/.DNG) facilitates professional editing. The Sony W560 does not support RAW, confining flexibility post-shot.

Connectivity and Extras

Neither cameras surprise with wireless modernity. K20D lacks built-in Wi-Fi or Bluetooth, but tethering via USB 2.0 is possible.

Sony’s Eye-Fi card support is a useful if dated element for image transfer, plus HDMI out is convenient for viewing video or images on TVs.

Price-to-Performance: What’s the Value?

At launch, the Pentax K20D cost about $700, double that of Sony W560 ($139). Considering specs and targets, that gap makes sense.

The K20D is investment for serious enthusiasts or professionals wanting DSLR image quality and lens flexibility.

The W560 suits budget-conscious hobbyists seeking simplicity and ultra portability.

Seeing their overall ratings from reliable tests places the K20D comfortably above, reflecting its advanced sensor and feature set, with Sony W560 as a solid compact but limited performer.

Here, you can find nuanced breakdowns by genre - another tool to match camera to your style.

Final Thoughts: Who Should Choose Which?

If you:

• Crave superior image quality, precise manual control, and want a camera to grow into via flexible lenses,
• Shoot portraits, landscapes, wildlife, or low light regularly,
• Want a rugged, weather-sealed DSLR for professional or serious hobbyist use,

Then the Pentax K20D is your clear pick. It’s a mid-size legacy DSLR that still holds up for many enthusiasts who prefer hands-on engagement.

If you:

• Need an ultra-lightweight, pocketable camera for casual snapshots, travel, and spontaneous shooting,
• Appreciate ease of use over advanced features,
• Prioritize video capture and convenience over image quality,

Then the Sony W560 offers compelling value. It’s a no-fuss ultracompact perfect for beginners or those desiring minimal gear.

Choosing cameras from such different classes isn’t apples to apples but understanding these differences can transform your photography and satisfaction. Personal experience and testing show that regardless of choice, your creative vision defines the best camera - not just specs on a sheet.

Happy shooting!
