Pentax WG-2 vs Sony W690
91 Imaging
39 Features
37 Overall
38


95 Imaging
39 Features
32 Overall
36
Pentax WG-2 vs Sony W690 Key Specs
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 125 - 6400
- 1920 x 1080 video
- 28-140mm (F3.5-5.5) lens
- 192g - 122 x 61 x 30mm
- Announced February 2012
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 1280 x 720 video
- 25-250mm (F3.3-5.9) lens
- 142g - 94 x 56 x 22mm
- Introduced February 2012

Pentax WG-2 vs Sony W690 Overview
Let's look a bit more closely at the Pentax WG-2 vs Sony W690, former is a Waterproof while the latter is a Small Sensor Compact by companies Pentax and Sony. The resolution of the WG-2 (16MP) and the W690 (16MP) is pretty similar and both cameras posses the identical sensor dimensions (1/2.3").

The WG-2 was brought out within a month of the W690 and they are of a similar age. Both of these cameras feature the same body design (Compact).
Before diving into a in-depth comparison, here is a quick introduction of how the WG-2 matches up versus the W690 in relation to portability, imaging, features and an overall score.

Pentax WG-2 vs Sony W690 Gallery
This is a preview of the gallery images for Pentax Optio WG-2 & Sony Cyber-shot DSC-W690. The entire galleries are available at Pentax WG-2 Gallery & Sony W690 Gallery.
Reasons to pick Pentax WG-2 over the Sony W690
WG-2 | W690 | |||
---|---|---|---|---|
Focus manually | ![]() | Very exact focusing | ||
Screen resolution | 460k | ![]() | 230k | Clearer screen (+230k dot) |
Reasons to pick Sony W690 over the Pentax WG-2
W690 | WG-2 |
---|
Common features in the Pentax WG-2 and Sony W690
WG-2 | W690 | |||
---|---|---|---|---|
Introduced | February 2012 | ![]() | February 2012 | Similar age |
Screen type | Fixed | ![]() | Fixed | Fixed screen |
Screen size | 3" | ![]() | 3" | Same screen sizing |
Selfie screen | ![]() | Neither provides selfie screen | ||
Touch friendly screen | ![]() | Neither provides Touch friendly screen |

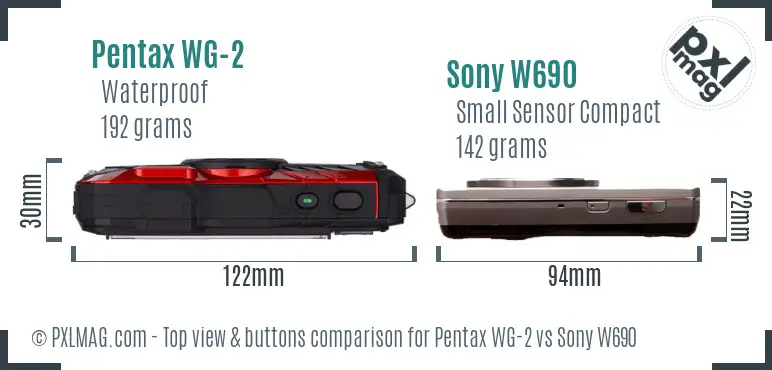

Pentax WG-2 vs Sony W690 Physical Comparison
If you are going to carry around your camera frequently, you are going to need to factor in its weight and size. The Pentax WG-2 provides outer dimensions of 122mm x 61mm x 30mm (4.8" x 2.4" x 1.2") and a weight of 192 grams (0.42 lbs) whilst the Sony W690 has specifications of 94mm x 56mm x 22mm (3.7" x 2.2" x 0.9") along with a weight of 142 grams (0.31 lbs).
Look at the Pentax WG-2 vs Sony W690 in our brand new Camera plus Lens Size Comparison Tool.

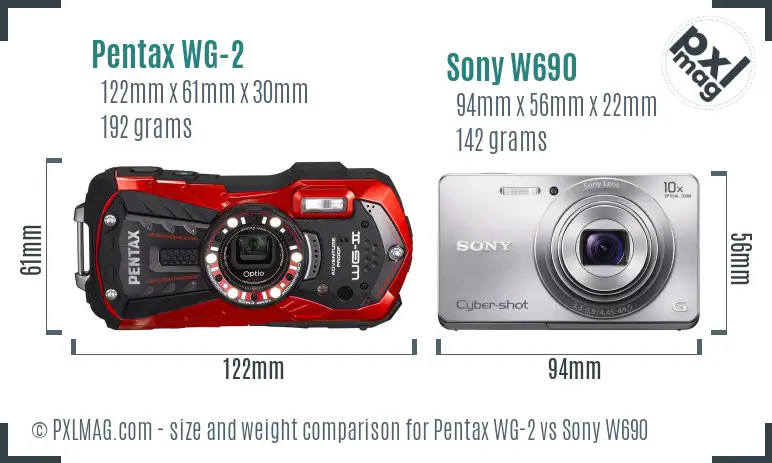

Remember that, the weight of an ILC will vary dependant on the lens you have at that time. The following is a front view size comparison of the WG-2 compared to the W690.

Taking into consideration size and weight, the portability rating of the WG-2 and W690 is 91 and 95 respectively.

Pentax WG-2 vs Sony W690 Sensor Comparison

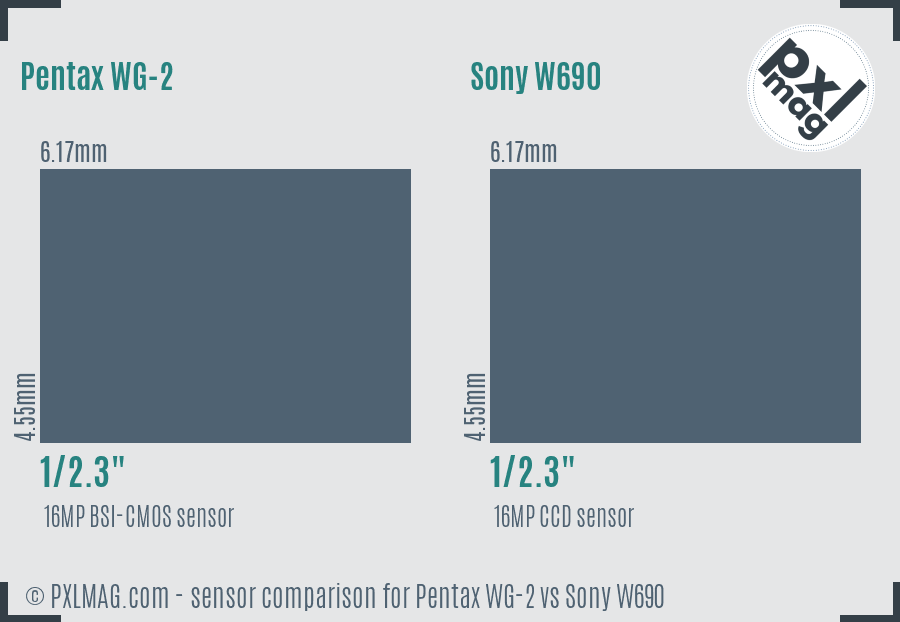

Generally, it is very difficult to visualise the contrast between sensor sizes merely by going over a spec sheet. The image underneath will give you a much better sense of the sensor dimensions in the WG-2 and W690.
Clearly, the two cameras feature the identical sensor size and the exact same megapixels and you can expect similar quality of photographs however you might want to take the age of the products into consideration.

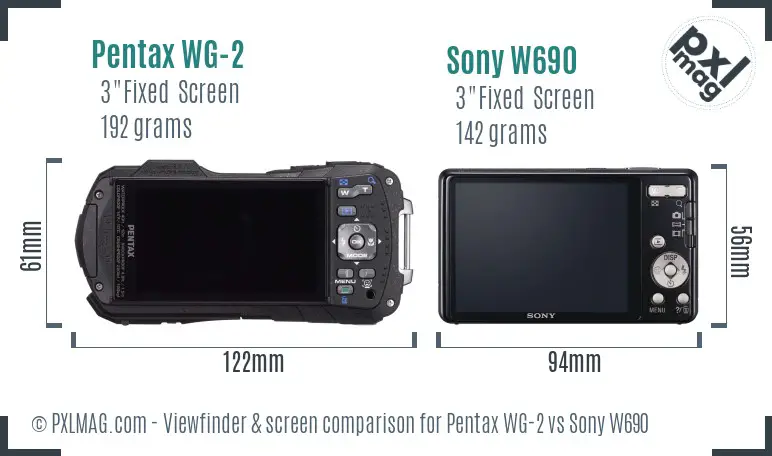

Pentax WG-2 vs Sony W690 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Pentax WG-2 vs Sony W690 Specifications
Pentax Optio WG-2 | Sony Cyber-shot DSC-W690 | |
---|---|---|
General Information | ||
Company | Pentax | Sony |
Model type | Pentax Optio WG-2 | Sony Cyber-shot DSC-W690 |
Type | Waterproof | Small Sensor Compact |
Announced | 2012-02-07 | 2012-02-28 |
Body design | Compact | Compact |
Sensor Information | ||
Chip | - | BIONZ |
Sensor type | BSI-CMOS | CCD |
Sensor size | 1/2.3" | 1/2.3" |
Sensor measurements | 6.17 x 4.55mm | 6.17 x 4.55mm |
Sensor surface area | 28.1mm² | 28.1mm² |
Sensor resolution | 16 megapixels | 16 megapixels |
Anti alias filter | ||
Aspect ratio | 1:1, 4:3 and 16:9 | 4:3 and 16:9 |
Peak resolution | 4288 x 3216 | 4608 x 3456 |
Highest native ISO | 6400 | 3200 |
Minimum native ISO | 125 | 80 |
RAW format | ||
Autofocusing | ||
Focus manually | ||
AF touch | ||
AF continuous | ||
AF single | ||
AF tracking | ||
AF selectice | ||
AF center weighted | ||
Multi area AF | ||
Live view AF | ||
Face detect AF | ||
Contract detect AF | ||
Phase detect AF | ||
Total focus points | 9 | - |
Cross type focus points | - | - |
Lens | ||
Lens support | fixed lens | fixed lens |
Lens zoom range | 28-140mm (5.0x) | 25-250mm (10.0x) |
Largest aperture | f/3.5-5.5 | f/3.3-5.9 |
Macro focusing distance | 1cm | 5cm |
Focal length multiplier | 5.8 | 5.8 |
Screen | ||
Display type | Fixed Type | Fixed Type |
Display size | 3" | 3" |
Resolution of display | 460k dot | 230k dot |
Selfie friendly | ||
Liveview | ||
Touch screen | ||
Display tech | Widescreen TFT color LCD with anti-reflective coating | ClearPhoto TFT LCD display |
Viewfinder Information | ||
Viewfinder | None | None |
Features | ||
Minimum shutter speed | 4 seconds | 30 seconds |
Fastest shutter speed | 1/4000 seconds | 1/1600 seconds |
Continuous shutter speed | 1.0 frames/s | 1.0 frames/s |
Shutter priority | ||
Aperture priority | ||
Manual exposure | ||
Change WB | ||
Image stabilization | ||
Inbuilt flash | ||
Flash distance | 5.40 m | 3.30 m |
Flash settings | Auto, On, Off, Red-eye, Soft | Auto, On, Off, Slow Sync |
External flash | ||
AEB | ||
WB bracketing | ||
Exposure | ||
Multisegment | ||
Average | ||
Spot | ||
Partial | ||
AF area | ||
Center weighted | ||
Video features | ||
Video resolutions | 1920 x 1080 (30 fps), 1280 x 720 (60, 30 fps), 640 x 480 (30fps), 320 x 240 (30, 15 fps) | 1280 x 720 (30 fps), 640 x 480 (30 fps) |
Highest video resolution | 1920x1080 | 1280x720 |
Video data format | MPEG-4, H.264 | MPEG-4 |
Microphone input | ||
Headphone input | ||
Connectivity | ||
Wireless | Eye-Fi Connected | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental seal | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 192 grams (0.42 pounds) | 142 grams (0.31 pounds) |
Physical dimensions | 122 x 61 x 30mm (4.8" x 2.4" x 1.2") | 94 x 56 x 22mm (3.7" x 2.2" x 0.9") |
DXO scores | ||
DXO Overall rating | not tested | not tested |
DXO Color Depth rating | not tested | not tested |
DXO Dynamic range rating | not tested | not tested |
DXO Low light rating | not tested | not tested |
Other | ||
Battery life | 260 photos | 220 photos |
Type of battery | Battery Pack | Battery Pack |
Battery ID | D-LI92 | NP-BN |
Self timer | Yes (2 or 10 sec) | Yes (2 or 10 sec, Portrait 1/2) |
Time lapse feature | ||
Type of storage | SD/SDHC/SDXC card, Internal | SD/SDHC/SDXC/Memory Stick Duo/Memory Stick Pro Duo, Memory Stick Pro-HG Duo |
Storage slots | Single | Single |
Retail cost | $350 | $297 |
