Samsung NX30 vs Samsung PL170
75 Imaging
63 Features
85 Overall
71
99 Imaging
39 Features
20 Overall
31
Samsung NX30 vs Samsung PL170 Key Specs
(Full Review)
- 20MP - APS-C Sensor
- 3" Fully Articulated Screen
- ISO 100 - 25600
- 1/8000s Maximum Shutter
- 1920 x 1080 video
- Samsung NX Mount
- 375g - 127 x 96 x 58mm
- Revealed January 2014
- Older Model is Samsung NX20
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 0 - 3200
- 1280 x 720 video
- ()mm (F) lens
- n/ag - 95 x 57 x 19mm
- Revealed January 2011
Samsung NX30 vs Samsung PL170 Overview
Its time to take a more detailed look at the Samsung NX30 versus Samsung PL170, one being a Advanced Mirrorless and the other is a Ultracompact and both of them are created by Samsung. There exists a crucial gap between the resolutions of the NX30 (20MP) and PL170 (16MP) and the NX30 (APS-C) and PL170 (1/2.3") posses different sensor sizing.
President Biden pushes bill mandating TikTok sale or banThe NX30 was revealed 3 years later than the PL170 and that is quite a serious gap as far as technology is concerned. Both of the cameras have different body design with the Samsung NX30 being a SLR-style mirrorless camera and the Samsung PL170 being a Ultracompact camera.
Before we go into a comprehensive comparison, here is a concise view of how the NX30 matches up against the PL170 with respect to portability, imaging, features and an overall rating.
Samsung NX30 vs Samsung PL170 Gallery
This is a sample of the gallery pictures for Samsung NX30 and Samsung PL170. The full galleries are available at Samsung NX30 Gallery and Samsung PL170 Gallery.
Reasons to pick Samsung NX30 over the Samsung PL170
NX30 | PL170 | |||
---|---|---|---|---|
Revealed | January 2014 | January 2011 | Fresher by 37 months | |
Focus manually | Very accurate focus | |||
Display type | Fully Articulated | Fixed | Fully Articulating display | |
Display resolution | 1036k | 230k | Sharper display (+806k dot) | |
Selfie screen | Take selfies | |||
Touch friendly display | Easily navigate |
Reasons to pick Samsung PL170 over the Samsung NX30
PL170 | NX30 |
---|
Common features in the Samsung NX30 and Samsung PL170
NX30 | PL170 | |||
---|---|---|---|---|
Display dimensions | 3" | 3" | Equal display measurement |
Samsung NX30 vs Samsung PL170 Physical Comparison
If you are going to carry your camera frequently, you will need to take into account its weight and dimensions. The Samsung NX30 has physical dimensions of 127mm x 96mm x 58mm (5.0" x 3.8" x 2.3") having a weight of 375 grams (0.83 lbs) and the Samsung PL170 has dimensions of 95mm x 57mm x 19mm (3.7" x 2.2" x 0.7") accompanied by a weight of n/a grams (0.00 lbs).

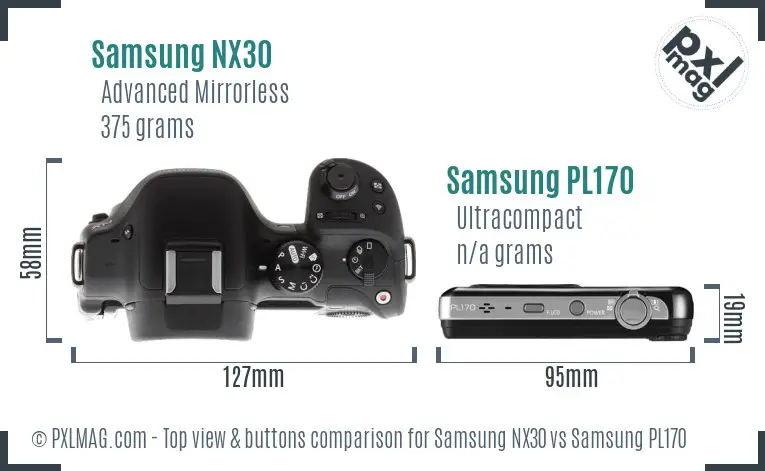

See the Samsung NX30 versus Samsung PL170 in the all new Camera and Lens Size Comparison Tool.Remember, the weight of an Interchangeable Lens Camera will vary depending on the lens you have at that time. Here is a front view sizing comparison of the NX30 vs the PL170.
Taking into account dimensions and weight, the portability score of the NX30 and PL170 is 75 and 99 respectively.
Samsung NX30 vs Samsung PL170 Sensor Comparison

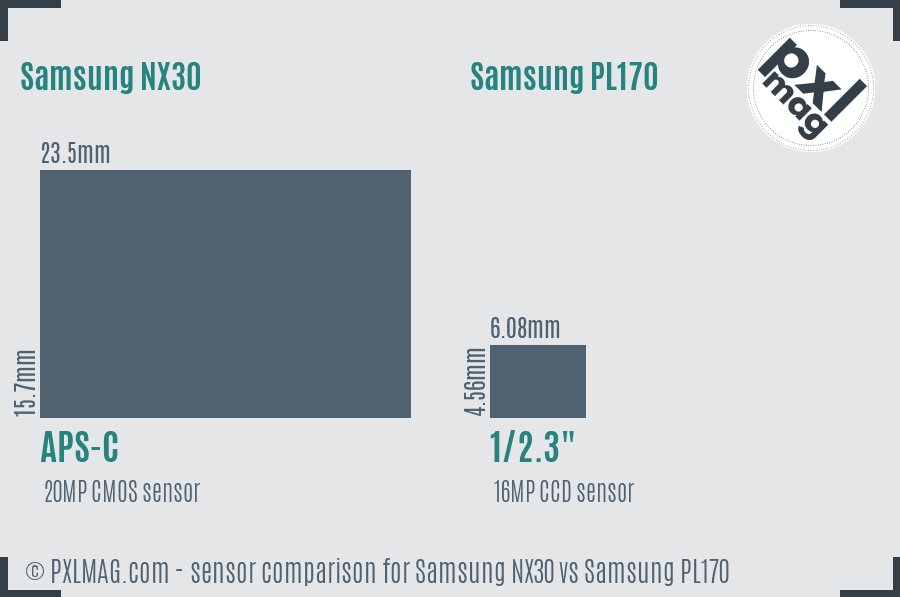

Quite often, it's difficult to visualize the contrast between sensor sizing purely by looking at specs. The photograph here might provide you a greater sense of the sensor dimensions in the NX30 and PL170.
As you can plainly see, both the cameras provide different megapixels and different sensor sizing. The NX30 having a larger sensor is going to make getting shallow depth of field easier and the Samsung NX30 will resolve extra detail because of its extra 4MP. Greater resolution will make it easier to crop photos more aggressively. The more recent NX30 should have an advantage with regard to sensor technology.
Samsung NX30 vs Samsung PL170 Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Samsung NX30 vs Samsung PL170 Specifications
Samsung NX30 | Samsung PL170 | |
---|---|---|
General Information | ||
Brand | Samsung | Samsung |
Model type | Samsung NX30 | Samsung PL170 |
Category | Advanced Mirrorless | Ultracompact |
Revealed | 2014-01-03 | 2011-01-05 |
Physical type | SLR-style mirrorless | Ultracompact |
Sensor Information | ||
Processor Chip | DRIMeIV | - |
Sensor type | CMOS | CCD |
Sensor size | APS-C | 1/2.3" |
Sensor measurements | 23.5 x 15.7mm | 6.08 x 4.56mm |
Sensor area | 369.0mm² | 27.7mm² |
Sensor resolution | 20 megapixels | 16 megapixels |
Anti alias filter | ||
Aspect ratio | 1:1, 3:2 and 16:9 | - |
Max resolution | 5472 x 3648 | 4608 x 3456 |
Max native ISO | 25600 | 3200 |
Lowest native ISO | 100 | - |
RAW photos | ||
Autofocusing | ||
Focus manually | ||
AF touch | ||
Continuous AF | ||
Single AF | ||
AF tracking | ||
Selective AF | ||
Center weighted AF | ||
AF multi area | ||
AF live view | ||
Face detection AF | ||
Contract detection AF | ||
Phase detection AF | ||
Total focus points | 247 | - |
Cross type focus points | - | - |
Lens | ||
Lens support | Samsung NX | fixed lens |
Lens zoom range | - | () |
Total lenses | 32 | - |
Focal length multiplier | 1.5 | 5.9 |
Screen | ||
Screen type | Fully Articulated | Fixed Type |
Screen sizing | 3 inches | 3 inches |
Screen resolution | 1,036k dots | 230k dots |
Selfie friendly | ||
Liveview | ||
Touch function | ||
Screen tech | AMOLED | - |
Viewfinder Information | ||
Viewfinder | Electronic | None |
Viewfinder resolution | 2,359k dots | - |
Viewfinder coverage | 100 percent | - |
Viewfinder magnification | 0.66x | - |
Features | ||
Min shutter speed | 30s | 8s |
Max shutter speed | 1/8000s | 1/2000s |
Continuous shutter rate | 9.0 frames per second | - |
Shutter priority | ||
Aperture priority | ||
Manually set exposure | ||
Exposure compensation | Yes | - |
Change WB | ||
Image stabilization | ||
Inbuilt flash | ||
External flash | ||
AEB | ||
White balance bracketing | ||
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Video resolutions | 1920 x 1080 (60p), 1280 x 720, 640 x 480, 320 x 240 | 1280 x 720 |
Max video resolution | 1920x1080 | 1280x720 |
Video data format | MPEG-4, H.264 | - |
Microphone port | ||
Headphone port | ||
Connectivity | ||
Wireless | Built-In | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | none |
GPS | None | None |
Physical | ||
Environmental sealing | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 375 grams (0.83 lbs) | - |
Physical dimensions | 127 x 96 x 58mm (5.0" x 3.8" x 2.3") | 95 x 57 x 19mm (3.7" x 2.2" x 0.7") |
DXO scores | ||
DXO Overall rating | 77 | not tested |
DXO Color Depth rating | 23.5 | not tested |
DXO Dynamic range rating | 12.4 | not tested |
DXO Low light rating | 1014 | not tested |
Other | ||
Battery life | 360 photographs | - |
Battery type | Battery Pack | - |
Battery ID | BP1410 | - |
Self timer | Yes (2 - 30 secs) | - |
Time lapse feature | ||
Type of storage | SD, SDHC, SDXC | - |
Card slots | One | One |
Launch pricing | $699 | $175 |
