Sigma DP1 Merrill vs Sony A9 II
82 Imaging
55 Features
30 Overall
45


62 Imaging
75 Features
93 Overall
82
Sigma DP1 Merrill vs Sony A9 II Key Specs
(Full Review)
- 15MP - APS-C Sensor
- " Fixed Screen
- ISO 100 - 6400
- 640 x 480 video
- ()mm (F2.8) lens
- 330g - 122 x 67 x 64mm
- Released February 2012
- Successor is Sigma DP2 Merrill
(Full Review)
- 24MP - Full frame Sensor
- 3" Tilting Screen
- ISO 100 - 51200 (Bump to 204800)
- Sensor based 5-axis Image Stabilization
- 1/8000s Max Shutter
- 3840 x 2160 video
- Sony E Mount
- 678g - 129 x 96 x 76mm
- Announced October 2019
- Old Model is Sony A9

Sigma DP1 Merrill vs Sony A9 II Overview
Its time to look a bit more in depth at the Sigma DP1 Merrill versus Sony A9 II, one is a Large Sensor Compact and the latter is a Pro Mirrorless by competitors Sigma and Sony. There is a crucial difference among the image resolutions of the DP1 Merrill (15MP) and A9 II (24MP) and the DP1 Merrill (APS-C) and A9 II (Full frame) offer totally different sensor measurements.

The DP1 Merrill was announced 8 years earlier than the A9 II which is a fairly serious gap as far as camera tech is concerned. Both the cameras feature different body design with the Sigma DP1 Merrill being a Large Sensor Compact camera and the Sony A9 II being a SLR-style mirrorless camera.
Before delving into a thorough comparison, here is a simple highlight of how the DP1 Merrill grades versus the A9 II when it comes to portability, imaging, features and an overall score.

Sigma DP1 Merrill vs Sony A9 II Gallery
Below is a preview of the gallery images for Sigma DP1 Merrill and Sony Alpha A9 Mark II. The whole galleries are provided at Sigma DP1 Merrill Gallery and Sony A9 II Gallery.
Reasons to pick Sigma DP1 Merrill over the Sony A9 II
DP1 Merrill | A9 II |
---|
Reasons to pick Sony A9 II over the Sigma DP1 Merrill
A9 II | DP1 Merrill | |||
---|---|---|---|---|
Announced | October 2019 | ![]() | February 2012 | More modern by 93 months |
Screen type | Tilting | ![]() | Fixed | Tilting screen |
Screen size | 3" | ![]() | " | Bigger screen (+3") |
Screen resolution | 1440k | ![]() | 920k | Crisper screen (+520k dot) |
Touch screen | ![]() | Quickly navigate |
Common features in the Sigma DP1 Merrill and Sony A9 II
DP1 Merrill | A9 II | |||
---|---|---|---|---|
Manual focus | ![]() | Dial precise focus | ||
Selfie screen | ![]() | Neither features selfie screen |

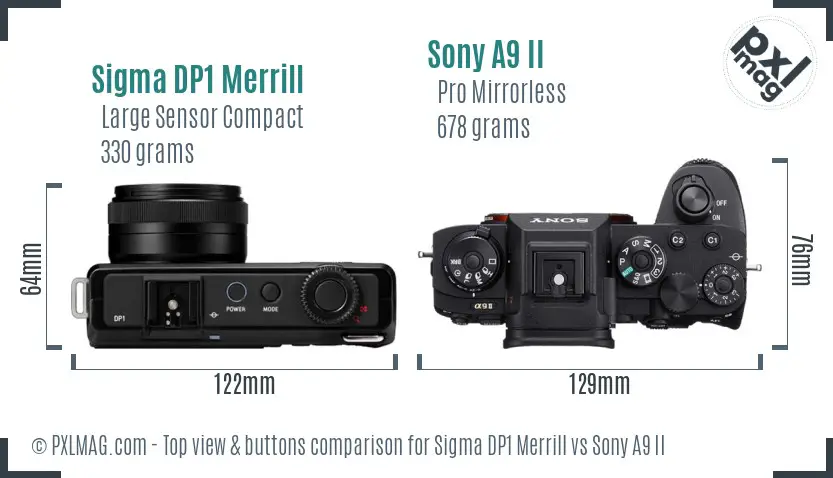

Sigma DP1 Merrill vs Sony A9 II Physical Comparison
For those who are going to carry around your camera frequently, you have to consider its weight and dimensions. The Sigma DP1 Merrill enjoys outside measurements of 122mm x 67mm x 64mm (4.8" x 2.6" x 2.5") having a weight of 330 grams (0.73 lbs) while the Sony A9 II has dimensions of 129mm x 96mm x 76mm (5.1" x 3.8" x 3.0") and a weight of 678 grams (1.49 lbs).
Examine the Sigma DP1 Merrill versus Sony A9 II in the all new Camera and Lens Size Comparison Tool.

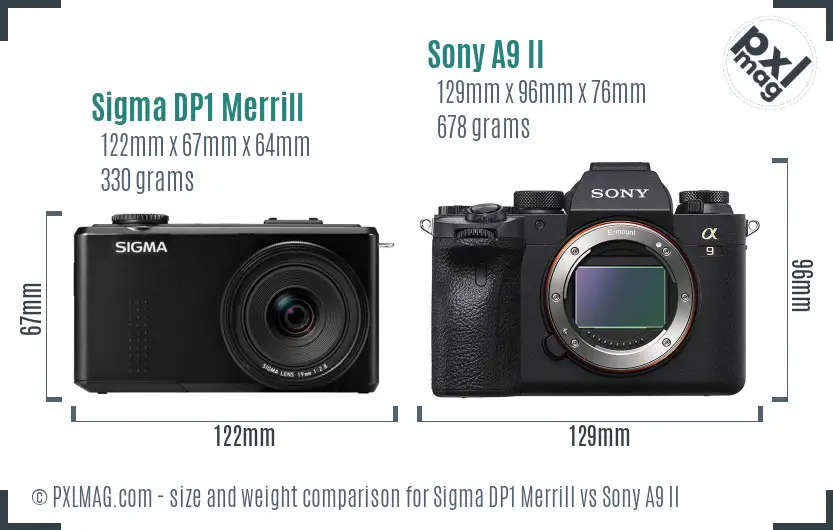

Remember that, the weight of an Interchangeable Lens Camera will differ depending on the lens you are utilising at that moment. Following is a front view measurements comparison of the DP1 Merrill compared to the A9 II.

Looking at size and weight, the portability grade of the DP1 Merrill and A9 II is 82 and 62 respectively.

Sigma DP1 Merrill vs Sony A9 II Sensor Comparison

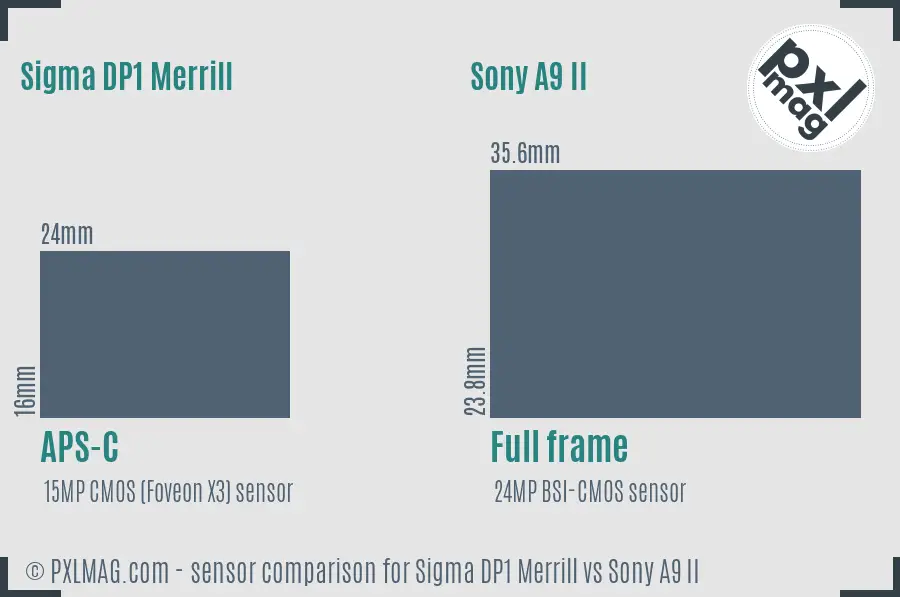

Generally, it can be tough to see the contrast in sensor sizes just by looking through technical specs. The pic underneath will offer you a greater sense of the sensor measurements in the DP1 Merrill and A9 II.
As you can tell, both the cameras come with different resolutions and different sensor sizes. The DP1 Merrill having a smaller sensor will make achieving shallow DOF more difficult and the Sony A9 II will provide you with more detail with its extra 9MP. Higher resolution will enable you to crop shots a good deal more aggressively. The more aged DP1 Merrill will be disadvantaged when it comes to sensor technology.

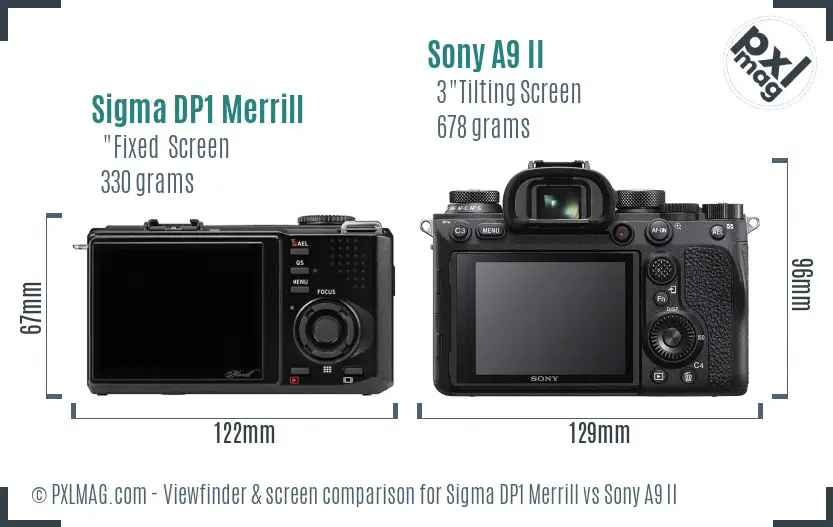

Sigma DP1 Merrill vs Sony A9 II Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Sigma DP1 Merrill vs Sony A9 II Specifications
Sigma DP1 Merrill | Sony Alpha A9 Mark II | |
---|---|---|
General Information | ||
Brand | Sigma | Sony |
Model | Sigma DP1 Merrill | Sony Alpha A9 Mark II |
Class | Large Sensor Compact | Pro Mirrorless |
Released | 2012-02-08 | 2019-10-03 |
Physical type | Large Sensor Compact | SLR-style mirrorless |
Sensor Information | ||
Processor Chip | Dual TRUE II engine | BIONZ X |
Sensor type | CMOS (Foveon X3) | BSI-CMOS |
Sensor size | APS-C | Full frame |
Sensor dimensions | 24 x 16mm | 35.6 x 23.8mm |
Sensor surface area | 384.0mm² | 847.3mm² |
Sensor resolution | 15MP | 24MP |
Anti aliasing filter | ||
Aspect ratio | - | 3:2 |
Full resolution | 4704 x 3136 | 6000 x 4000 |
Max native ISO | 6400 | 51200 |
Max boosted ISO | - | 204800 |
Minimum native ISO | 100 | 100 |
RAW data | ||
Minimum boosted ISO | - | 50 |
Autofocusing | ||
Focus manually | ||
Autofocus touch | ||
Continuous autofocus | ||
Autofocus single | ||
Tracking autofocus | ||
Autofocus selectice | ||
Autofocus center weighted | ||
Autofocus multi area | ||
Live view autofocus | ||
Face detection autofocus | ||
Contract detection autofocus | ||
Phase detection autofocus | ||
Number of focus points | - | 693 |
Lens | ||
Lens mounting type | fixed lens | Sony E |
Lens focal range | () | - |
Max aperture | f/2.8 | - |
Total lenses | - | 121 |
Focal length multiplier | 1.5 | 1 |
Screen | ||
Type of screen | Fixed Type | Tilting |
Screen size | - | 3 inches |
Screen resolution | 920k dots | 1,440k dots |
Selfie friendly | ||
Liveview | ||
Touch screen | ||
Viewfinder Information | ||
Viewfinder type | None | Electronic |
Viewfinder resolution | - | 3,686k dots |
Viewfinder coverage | - | 100 percent |
Viewfinder magnification | - | 0.78x |
Features | ||
Lowest shutter speed | - | 30s |
Highest shutter speed | - | 1/8000s |
Highest silent shutter speed | - | 1/32000s |
Continuous shooting rate | - | 20.0 frames per sec |
Shutter priority | ||
Aperture priority | ||
Manual mode | ||
Exposure compensation | Yes | Yes |
Custom white balance | ||
Image stabilization | ||
Inbuilt flash | ||
Flash range | no built-in flash | no built-in flash |
Flash modes | no built-in flash | Flash off, Autoflash, Fill-flash, Slow Sync., Rear Sync., Red-eye reduction, Wireless, Hi-speed sync |
Hot shoe | ||
Auto exposure bracketing | ||
White balance bracketing | ||
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Video resolutions | 640 x 480 | 3840 x 2160 @ 30p / 100 Mbps, XAVC S, MP4, H.264, Linear PCM |
Max video resolution | 640x480 | 3840x2160 |
Video file format | Motion JPEG | MPEG-4, AVCHD, H.264 |
Mic port | ||
Headphone port | ||
Connectivity | ||
Wireless | None | Built-In |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 3.1 Gen 1 (5 GBit/sec) |
GPS | None | None |
Physical | ||
Environmental sealing | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 330g (0.73 pounds) | 678g (1.49 pounds) |
Physical dimensions | 122 x 67 x 64mm (4.8" x 2.6" x 2.5") | 129 x 96 x 76mm (5.1" x 3.8" x 3.0") |
DXO scores | ||
DXO All around score | not tested | not tested |
DXO Color Depth score | not tested | not tested |
DXO Dynamic range score | not tested | not tested |
DXO Low light score | not tested | not tested |
Other | ||
Battery life | - | 690 pictures |
Battery type | - | Battery Pack |
Battery model | - | NP-FZ100 |
Self timer | - | Yes (2, 5, 10 secs + continuous, 3 or 5 frames) |
Time lapse shooting | ||
Type of storage | - | Dual SD/SDHC/SDXC slots (UHS-II compatible) |
Card slots | One | Two |
Cost at launch | $1,250 | $4,498 |
