Sigma DP3 Merrill vs Sigma SD1
83 Imaging
57 Features
33 Overall
47
77 Imaging
55 Features
43 Overall
50
Sigma DP3 Merrill vs Sigma SD1 Key Specs
(Full Review)
- 15MP - APS-C Sensor
- 3" Fixed Display
- ISO 100 - 6400
- 640 x 480 video
- 75mm (F2.8) lens
- 330g - 122 x 67 x 59mm
- Announced January 2013
- Superseded the Sigma DP2 Merrill
(Full Review)
- 15MP - APS-C Sensor
- 3" Fixed Screen
- ISO 0 - 0
- No Video
- Sigma SA Mount
- n/ag - 146 x 113 x 80mm
- Revealed September 2010
- Refreshed by Sigma SD1 Merrill
Sigma DP3 Merrill vs Sigma SD1 Overview
Here is a complete analysis of the Sigma DP3 Merrill vs Sigma SD1, one being a Large Sensor Compact and the latter is a Advanced DSLR and both of them are created by Sigma. The resolution of the DP3 Merrill (15MP) and the SD1 (15MP) is pretty well matched and they possess the same exact sensor measurements (APS-C).
Sora from OpenAI releases its first ever music videoThe DP3 Merrill was announced 2 years later than the SD1 and that is quite a large gap as far as tech is concerned. Both the cameras offer different body type with the Sigma DP3 Merrill being a Large Sensor Compact camera and the Sigma SD1 being a Mid-size SLR camera.
Before going through a comprehensive comparison, below is a simple introduction of how the DP3 Merrill matches up versus the SD1 in terms of portability, imaging, features and an overall rating.
Sigma DP3 Merrill vs Sigma SD1 Gallery
Here is a preview of the gallery images for Sigma DP3 Merrill and Sigma SD1. The whole galleries are viewable at Sigma DP3 Merrill Gallery and Sigma SD1 Gallery.
Reasons to pick Sigma DP3 Merrill over the Sigma SD1
DP3 Merrill | SD1 | |||
---|---|---|---|---|
Revealed | January 2013 | September 2010 | Fresher by 28 months | |
Screen resolution | 920k | 460k | Sharper screen (+460k dot) |
Reasons to pick Sigma SD1 over the Sigma DP3 Merrill
SD1 | DP3 Merrill |
---|
Common features in the Sigma DP3 Merrill and Sigma SD1
DP3 Merrill | SD1 | |||
---|---|---|---|---|
Manually focus | Dial accurate focus | |||
Screen type | Fixed | Fixed | Fixed screen | |
Screen sizing | 3" | 3" | Equivalent screen measurements | |
Selfie screen | Neither has selfie screen | |||
Touch screen | Neither has Touch screen |
Sigma DP3 Merrill vs Sigma SD1 Physical Comparison
When you are intending to carry your camera, you will want to take into account its weight and measurements. The Sigma DP3 Merrill has physical measurements of 122mm x 67mm x 59mm (4.8" x 2.6" x 2.3") along with a weight of 330 grams (0.73 lbs) and the Sigma SD1 has proportions of 146mm x 113mm x 80mm (5.7" x 4.4" x 3.1") and a weight of n/a grams (0.00 lbs).

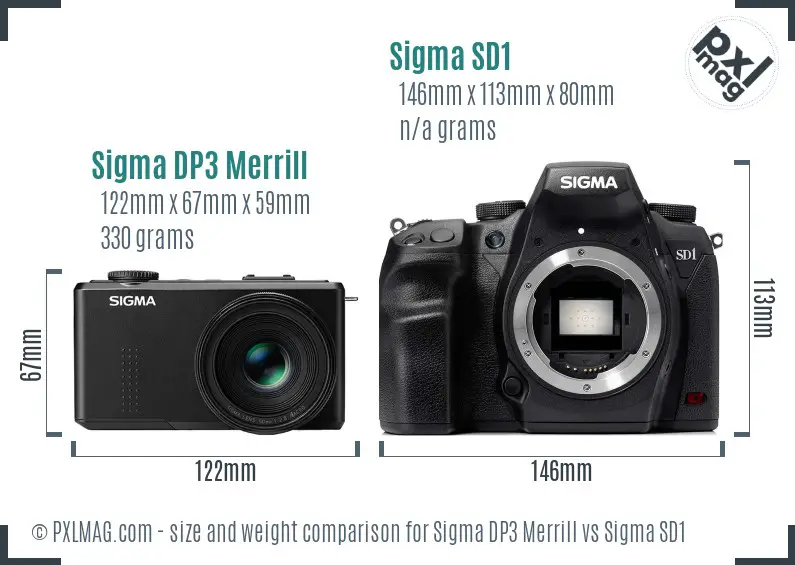

Check out the Sigma DP3 Merrill vs Sigma SD1 in the new Camera and Lens Size Comparison Tool.Keep in mind, the weight of an Interchangeable Lens Camera will differ depending on the lens you are utilizing at that time. Underneath is the front view scale comparison of the DP3 Merrill against the SD1.
Factoring in size and weight, the portability grade of the DP3 Merrill and SD1 is 83 and 77 respectively.
Sigma DP3 Merrill vs Sigma SD1 Sensor Comparison
Generally, it's tough to picture the contrast between sensor sizing purely by reading through specifications. The graphic underneath will offer you a far better sense of the sensor sizing in the DP3 Merrill and SD1.
To sum up, both of those cameras offer the same exact sensor sizing and the same exact MP therefore you should expect similar quality of images but you will want to factor the production date of the products into consideration. The younger DP3 Merrill should have an advantage in sensor tech.
Sigma DP3 Merrill vs Sigma SD1 Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Sigma DP3 Merrill vs Sigma SD1 Specifications
Sigma DP3 Merrill | Sigma SD1 | |
---|---|---|
General Information | ||
Make | Sigma | Sigma |
Model type | Sigma DP3 Merrill | Sigma SD1 |
Class | Large Sensor Compact | Advanced DSLR |
Announced | 2013-01-08 | 2010-09-21 |
Physical type | Large Sensor Compact | Mid-size SLR |
Sensor Information | ||
Powered by | Dual TRUE II engine | Dual True II |
Sensor type | CMOS (Foveon X3) | CMOS (Foveon X3) |
Sensor size | APS-C | APS-C |
Sensor dimensions | 24 x 16mm | 24 x 16mm |
Sensor area | 384.0mm² | 384.0mm² |
Sensor resolution | 15 megapixels | 15 megapixels |
Anti alias filter | ||
Max resolution | 4704 x 3136 | 4800 x 3200 |
Max native ISO | 6400 | - |
Min native ISO | 100 | - |
RAW support | ||
Autofocusing | ||
Manual focusing | ||
Touch to focus | ||
Autofocus continuous | ||
Autofocus single | ||
Tracking autofocus | ||
Selective autofocus | ||
Autofocus center weighted | ||
Multi area autofocus | ||
Autofocus live view | ||
Face detect focus | ||
Contract detect focus | ||
Phase detect focus | ||
Total focus points | - | 11 |
Cross type focus points | - | 2 |
Lens | ||
Lens support | fixed lens | Sigma SA |
Lens zoom range | 75mm (1x) | - |
Largest aperture | f/2.8 | - |
Number of lenses | - | 76 |
Focal length multiplier | 1.5 | 1.5 |
Screen | ||
Type of display | Fixed Type | Fixed Type |
Display diagonal | 3 inches | 3 inches |
Display resolution | 920 thousand dots | 460 thousand dots |
Selfie friendly | ||
Liveview | ||
Touch display | ||
Viewfinder Information | ||
Viewfinder type | None | Optical (pentaprism) |
Viewfinder coverage | - | 96% |
Viewfinder magnification | - | 0.64x |
Features | ||
Min shutter speed | - | 15 seconds |
Max shutter speed | - | 1/2000 seconds |
Continuous shutter rate | 4.0fps | 5.0fps |
Shutter priority | ||
Aperture priority | ||
Manual mode | ||
Exposure compensation | Yes | Yes |
Set white balance | ||
Image stabilization | ||
Integrated flash | ||
Flash distance | no built-in flash | - |
Flash modes | no built-in flash | - |
External flash | ||
AEB | ||
WB bracketing | ||
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Supported video resolutions | 640 x 480 | - |
Max video resolution | 640x480 | None |
Video file format | Motion JPEG | - |
Mic support | ||
Headphone support | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental sealing | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 330g (0.73 lbs) | - |
Dimensions | 122 x 67 x 59mm (4.8" x 2.6" x 2.3") | 146 x 113 x 80mm (5.7" x 4.4" x 3.1") |
DXO scores | ||
DXO Overall rating | not tested | not tested |
DXO Color Depth rating | not tested | not tested |
DXO Dynamic range rating | not tested | not tested |
DXO Low light rating | not tested | not tested |
Other | ||
Self timer | - | Yes |
Time lapse shooting | ||
Storage type | - | Compact Flash (Type I, UDMA compatible) |
Card slots | 1 | 1 |
Retail pricing | $1,353 | $2,339 |
