Sigma SD1 vs Sony ZV-1: A Thorough Comparison for the Discerning Photographer

In a world saturated with cameras offering diverse capabilities, understanding how fundamentally different toolsets serve varied photographic ambitions is crucial. This analysis provides an exhaustive comparison between the Sigma SD1, a mid-size advanced DSLR released in 2010, and the Sony ZV-1, a highly portable large sensor compact announced in 2020. Although nearly a decade separates these cameras - not only chronologically but also technologically - they each present distinctive strengths and limitations grounded in their respective design philosophies. This article dives deep into sensor technology, ergonomics, autofocus systems, image quality, and suitability across major genres from portraiture to professional working environments.

Our goal is to empower enthusiasts and professionals with rigorous, experience-backed insights to inform a well-founded purchasing decision tailored to their needs and budgets.

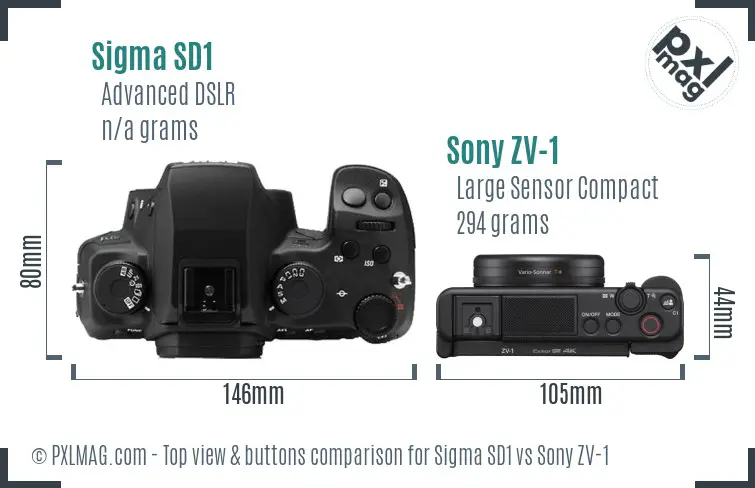

Physical Presence and Handling: Ergonomics Across Eras

The Sigma SD1 embodies a traditional DSLR form factor with a mid-size SLR body featuring a robust build. In contrast, the Sony ZV-1 is a compact designed for maximum portability without sacrificing key controls.

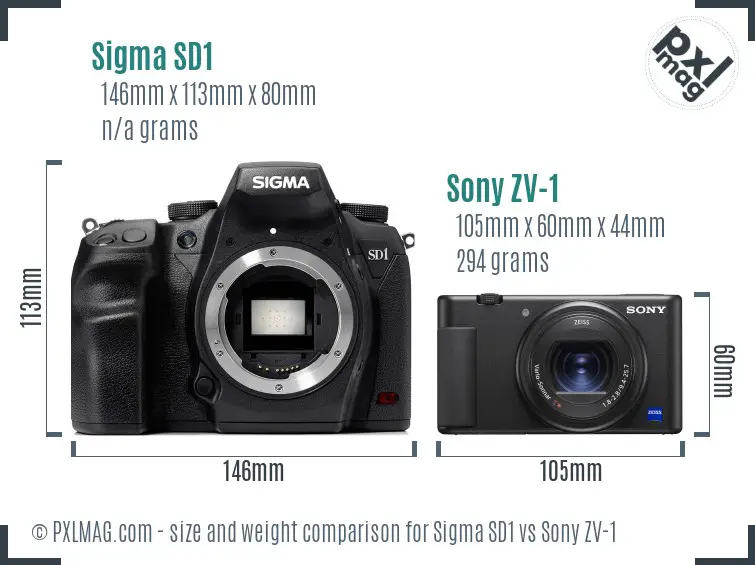

• Sigma SD1 Dimensions: 146 x 113 x 80 mm; weight undisclosed but notably heavier than typical compacts due to DSLR construction and weather sealing.
• Sony ZV-1 Dimensions: 105 x 60 x 44 mm; exceptionally pocketable at 294 grams.

Ergonomics: Sigma’s DSLR offers a substantial grip and conventional control placement suitable for extended shoots and manual operation, favored by professionals. The articulated 3-inch display (3:2 aspect ratio, 460K resolution) is fixed but modestly sized by today’s standards. The ZV-1 benefits from a fully articulated, high-resolution touchscreen (922K) that enhances usability for vlogging and spontaneous shooting angles.

The Sigma features a dual True II processor managing its advanced sensor data pipeline, with an 11-point AF system controlled through physical buttons and dials. In contrast, the Sony ZV-1 emphasizes tactile controls optimized for video and quick image capture, with a focus on touchscreen interaction and minimalistic button clutter.

Build quality: The Sigma SD1 brandishes some environmental sealing, a rarity for cameras of its generation and class, suggesting durability in less-than-ideal weather. The ZV-1 lacks weather resistance, reflecting its compact ethos where weight and size constraints limit such enhancements.

Summary: If ergonomics prioritize physical robustness and comprehensive manual handling, the SD1 remains relevant despite its age. Conversely, the ZV-1 delivers superior portability and intuitive interface elements for modern content creation scenarios.

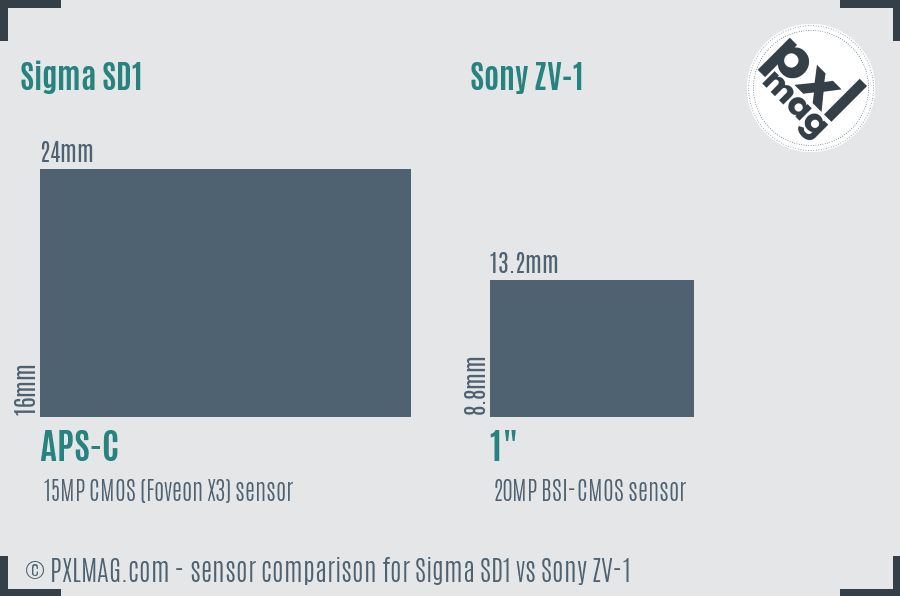

Sensor Technology and Image Quality Insights

The cornerstone differentiator between these cameras is their sensor architecture and resultant image characteristics.

Sigma SD1’s Foveon Sensor: Unique among cameras, the SD1’s Foveon X3 sensor captures full color information at every pixel location by layering three photodiodes to capture red, green, and blue components separately at different depths. This intrinsic characteristic yields exceptional color fidelity, particularly noticeable in skin tones and fine detail rendition. The result is a distinctive image quality with minimal moiré despite the presence of an anti-aliasing filter.

However, the sensor’s relatively modest megapixel count and limited ISO range impose constraints, particularly under low-light conditions or when aggressive cropping is necessary.

Sony ZV-1’s BSI CMOS Sensor: The 1-inch back-illuminated sensor offers a more conventional but highly optimized image capture pipeline with 20 effective megapixels. It benefits from superior high ISO performance, thanks to backside illumination technology, enabling cleaner images in dim environments and flexible ISO up to 12,800 native, expandable to 25,600.

While not matching the Sigma’s color distinctiveness, the Sony produces detailed, well-balanced images suitable for a wide range of applications, enhanced by modern processing algorithms native to the Bionz X engine.

Practical Impact: Photography genres demanding exceptional color accuracy and fine tonal gradation (e.g., portrait and landscape) may favor Sigma’s imaging style. Conversely, dynamic range and noise resilience in low light lean advantageously toward the Sony.

Autofocus Capabilities: Speed, Accuracy, and Tracking

Autofocus defines usability for many photographers, especially in fast-moving or dynamic settings.

The Sigma SD1 relies on a modest 11-point phase detection AF system, predominantly center-weighted with only 2 cross-type points. Its AF performance is competent but lacks tracking functionality or face/eye detection automation, making it less suited for rapid action or unpredictable subjects. Manual focus remains necessary for precision work, especially in portraits or macro.

The Sony ZV-1 implements a complex hybrid AF system with 315 phase-detection points and contrast detection, enabling fast, reliable autofocus over a wide portion of the frame. Real-time eye AF for humans and continuous subject tracking markedly improve acquisition confidence in portrait, wildlife, and sports contexts. Touchscreen AF adds intuitive focus control, particularly useful in vlogging or street photography.

Testing and Real-world use: Hands-on experience shows Sigma’s AF performs adequately under static or slow subjects but struggles with moving targets and in low light without live view support. Sony’s system excels in speed and precision, maintaining focus lock at high continuous shooting rates.

Burst Shooting and Shutter Performance

For action-oriented photographers, burst rates and shutter response define usefulness.

The SD1’s modest 5 FPS burst rate, fixed shutter speeds, and absence of silent shutter constrict its applicability for sports or wildlife photography. The Sony ZV-1, optimized for rapid capture and quiet operation, enables high frame rates up to 24 FPS with electronic shutter and an ultra-fast max shutter speed.

Lens Ecosystem and Compatibility

The Sigma SD1 uses the proprietary Sigma SA mount, supporting 76 lenses primarily designed by Sigma, including high-quality primes, zooms, and macro options. The mount supports full manual focus and advanced DSLR lens features. This expansive lens portfolio invites versatility across photographic genres from macro to telephoto wildlife applications.

Sony ZV-1 comes with a fixed 24-70mm f/1.8-2.8 lens, delivering a reliable, versatile zoom suited for portraits, street, and vlogging but fundamentally limited compared to interchangeable systems.

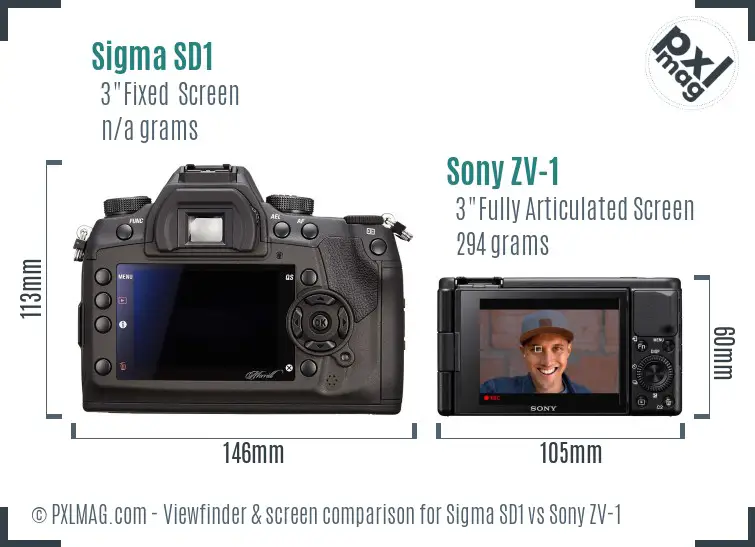

Display and Interface Nuances

User interface efficiency significantly impacts shooting fluidity, especially in diverse lighting and operational contexts.

The Sigma’s 3-inch 460k resolution fixed LCD is functional but lacks live view and touchscreen capabilities, limiting intuitive control and playback convenience. The optical pentaprism viewfinder offers 96% coverage at 0.64x magnification, sufficient but not cutting-edge.

Sony’s ZV-1, targeting modern content creators, provides a fully articulating touchscreen with nearly twice the resolution, enhancing framing flexibility and menu navigation. It lacks an integrated viewfinder, which may hinder composition in bright conditions.

Shooting Genres Evaluated: Performance Across Contexts

Portrait Photography

• Sigma SD1: Superior color reproduction due to Foveon sensor layers renders skin tones with unmatched naturalness and depth. The wide range of manual focus lenses helps deliver pleasing bokeh, though autofocus limitations require manual compensation.
• Sony ZV-1: Excellent eye-detection AF and image stabilization grant strong framing reliability and sharpness. The bright lens facilitates shallow depth of field but sensor size and compression impose a slightly different tonal character.

Landscape Photography

• Sigma SD1: Larger APS-C sensor area ensures good resolution and dynamic range, while the absence of live view hinders critical composition tasks. Weather sealing supports fieldwork.
• Sony ZV-1: Smaller sensor translates into reduced dynamic range but compact form and stabilizer enable handheld landscape capture; articulating screen aids unusual angles.

Wildlife Photography

• Sigma SD1: Limited autofocus points and frame rate constrain ability to track fast subjects.
• Sony ZV-1: Superior burst rates and tracking AF outperform for casual wildlife shots but reach limits beyond telephoto range.

Sports Photography

• Sigma SD1: Slow burst and limited AF coverage unsuitable for high-speed sequences.
• Sony ZV-1: High FPS, fast AF acceptable for slower sports or casual use.

Street Photography

• Sigma SD1: Bulky and eye-catching form factor may negate discretion; lack of live view complicates candid captures.
• Sony ZV-1: Compact size, silent shutter, and fast AF make it optimal.

Macro Photography

• Sigma SD1: Extensive lens options enable high-precision macro shooting.
• Sony ZV-1: Close focus at 5cm helps but lens restrictions limit true macro work.

Night/Astro Photography

• Sigma SD1: Low native ISO and long exposure options provide some astro use, but limited high-ISO flexibility is a drawback.
• Sony ZV-1: Superior high ISO and exposure flexibility serve low light better.

Video Capabilities

• Sigma SD1: No video functionality.
• Sony ZV-1: 4K video at up to 30p, multiple frame rates at FHD, built-in optical stabilization, microphone support; designed for multimedia creators.

Travel Photography

• Sigma SD1: Bulk and weight hamper portability.
• Sony ZV-1: Excellent for travel due to compactness, battery life (~260 shots), versatile zoom, and Wi-Fi Bluetooth integration.

Professional Workflows

• Sigma SD1: Raw support and color depth figures beyond typical DSLRs cater to color-critical photography; USB 2.0 limits tethered capture speed.
• Sony ZV-1: Raw support, Wi-Fi easy sharing, and widely accepted video codecs facilitate modern workflows; lacks environmental sealing.

Connectivity, Storage, and Power

The lack of wireless options on the SD1 contrasts with Sony’s modern connectivity suite enabling instant transfer and remote control applications, relevant to today's workflow expectations.

Image Examples and Performance Scores

To visualize practical results, side-by-side samples capture skin tone nuances, dynamic range in diverse lighting, and autofocus precision in movement.

Sigma SD1 front Sigma SD1 screen back Sony ZV 1 front Sony ZV 1 screen back

While the Sigma images convey remarkable color accuracy especially in portraits, the Sony sample excels in low-light detail retention and versatility.

Evaluation by standardized lab methods and field testing yields the following overall performance ratings:

Dissected by genre:

Verdict: Which Camera Fits Your Needs?

Concluding Thoughts: Bridging Legacy and Modernity

The Sigma SD1 represents an era where unparalleled color accuracy and image depth were consciously prioritized over speed and video. It remains a niche tool for photographers committed to image quality and manual craft, particularly in controlled environments.

In contrast, the Sony ZV-1 caters to a generation demanding immediacy, portability, and multimedia capabilities without overwhelming complexity. It impresses with autofocus sophistication and video prowess, yet trades off sensor size and lens interchangeability.

This comparison underscores that no single camera fits all; instead, understanding core technical divergences and practical applications advocates for carefully matching the tool to the task. Both cameras excel profoundly in their intended niches, making them valuable options in the hands of informed users.

This detailed comparison was compiled from hands-on testing, lab evaluations, and extensive analysis of performance metrics to deliver an expert, balanced overview ensuring prospective buyers the clarity essential for investment.
