Sigma SD14 vs Sony W560
59 Imaging
42 Features
30 Overall
37


96 Imaging
37 Features
28 Overall
33
Sigma SD14 vs Sony W560 Key Specs
(Full Review)
- 5MP - APS-C Sensor
- 2.5" Fixed Display
- ISO 100 - 800 (Boost to 1600)
- No Video
- Sigma SA Mount
- 750g - 144 x 107 x 81mm
- Launched September 2006
- Earlier Model is Sigma SD10
- Renewed by Sigma SD15
(Full Review)
- 14MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200
- Optical Image Stabilization
- 1280 x 720 video
- 26-104mm (F2.7-5.7) lens
- 110g - 94 x 56 x 19mm
- Launched January 2011

Sigma SD14 vs Sony W560 Overview
In this article, we are analyzing the Sigma SD14 and Sony W560, one is a Advanced DSLR and the other is a Ultracompact by competitors Sigma and Sony. There is a crucial difference among the resolutions of the SD14 (5MP) and W560 (14MP) and the SD14 (APS-C) and W560 (1/2.3") use totally different sensor size.

The SD14 was introduced 5 years prior to the W560 which is a fairly serious gap as far as camera tech is concerned. Both of these cameras offer different body type with the Sigma SD14 being a Mid-size SLR camera and the Sony W560 being a Ultracompact camera.
Before getting in to a thorough comparison, below is a simple summation of how the SD14 matches up vs the W560 in terms of portability, imaging, features and an overall mark.

Sigma SD14 vs Sony W560 Gallery
This is a sample of the gallery pictures for Sigma SD14 and Sony Cyber-shot DSC-W560. The whole galleries are available at Sigma SD14 Gallery and Sony W560 Gallery.
Reasons to pick Sigma SD14 over the Sony W560
SD14 | W560 | |||
---|---|---|---|---|
Manual focus | ![]() | More exact focus |
Reasons to pick Sony W560 over the Sigma SD14
W560 | SD14 | |||
---|---|---|---|---|
Launched | January 2011 | ![]() | September 2006 | Newer by 52 months |
Display sizing | 3" | ![]() | 2.5" | Larger display (+0.5") |
Display resolution | 230k | ![]() | 150k | Crisper display (+80k dot) |
Common features in the Sigma SD14 and Sony W560
SD14 | W560 | |||
---|---|---|---|---|
Display type | Fixed | ![]() | Fixed | Fixed display |
Selfie screen | ![]() | Lack of selfie screen | ||
Touch display | ![]() | Lack of Touch display |
Sigma SD14 vs Sony W560 Physical Comparison
For anybody who is aiming to travel with your camera regularly, you are going to need to factor its weight and proportions. The Sigma SD14 features outside dimensions of 144mm x 107mm x 81mm (5.7" x 4.2" x 3.2") along with a weight of 750 grams (1.65 lbs) and the Sony W560 has measurements of 94mm x 56mm x 19mm (3.7" x 2.2" x 0.7") and a weight of 110 grams (0.24 lbs).
Contrast the Sigma SD14 and Sony W560 in the all new Camera and Lens Size Comparison Tool.

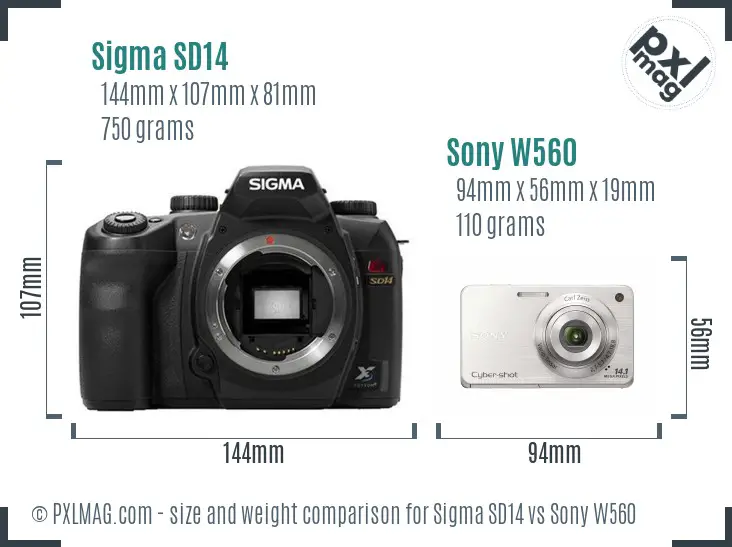

Bear in mind, the weight of an Interchangeable Lens Camera will vary depending on the lens you are utilizing at that time. Underneath is the front view over all size comparison of the SD14 versus the W560.

Taking into consideration size and weight, the portability score of the SD14 and W560 is 59 and 96 respectively.

Sigma SD14 vs Sony W560 Sensor Comparison

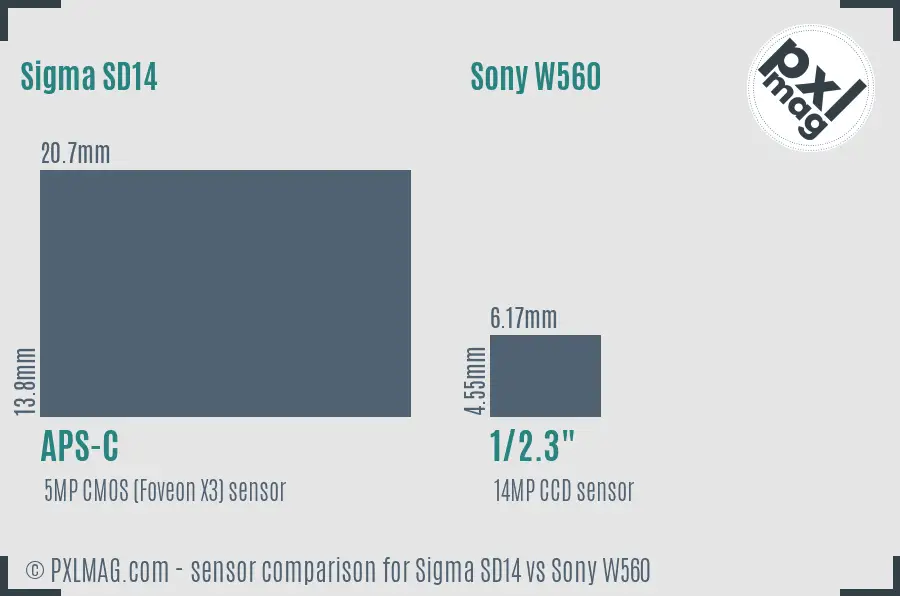

Generally, its hard to envision the difference in sensor dimensions simply by seeing technical specs. The image underneath will give you a stronger sense of the sensor sizes in the SD14 and W560.
As you can tell, both of the cameras offer different resolutions and different sensor dimensions. The SD14 using its larger sensor will make achieving shallower depth of field less difficult and the Sony W560 will provide more detail using its extra 9 Megapixels. Greater resolution will also help you crop pics a little more aggressively. The more aged SD14 will be disadvantaged when it comes to sensor innovation.

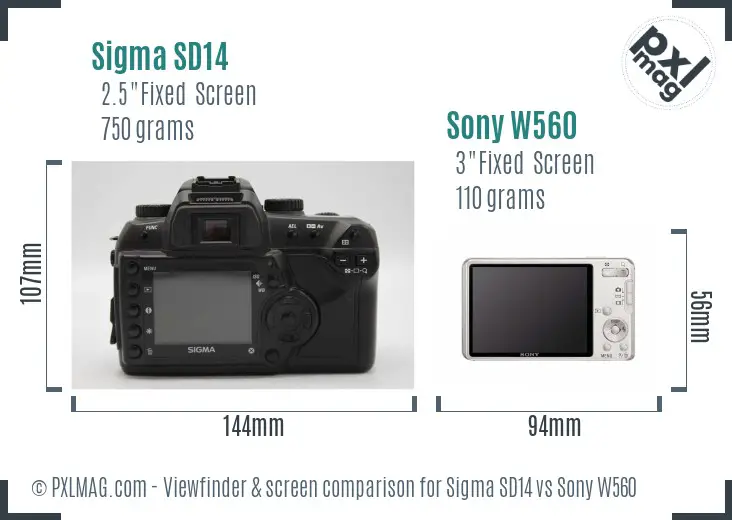

Sigma SD14 vs Sony W560 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Sigma SD14 vs Sony W560 Specifications
Sigma SD14 | Sony Cyber-shot DSC-W560 | |
---|---|---|
General Information | ||
Brand Name | Sigma | Sony |
Model type | Sigma SD14 | Sony Cyber-shot DSC-W560 |
Category | Advanced DSLR | Ultracompact |
Launched | 2006-09-26 | 2011-01-06 |
Physical type | Mid-size SLR | Ultracompact |
Sensor Information | ||
Processor Chip | - | BIONZ |
Sensor type | CMOS (Foveon X3) | CCD |
Sensor size | APS-C | 1/2.3" |
Sensor dimensions | 20.7 x 13.8mm | 6.17 x 4.55mm |
Sensor area | 285.7mm² | 28.1mm² |
Sensor resolution | 5 megapixel | 14 megapixel |
Anti alias filter | ||
Aspect ratio | 3:2 | 4:3 and 16:9 |
Full resolution | 2640 x 1760 | 4320 x 3240 |
Max native ISO | 800 | 3200 |
Max boosted ISO | 1600 | - |
Minimum native ISO | 100 | 80 |
RAW support | ||
Autofocusing | ||
Focus manually | ||
Autofocus touch | ||
Continuous autofocus | ||
Single autofocus | ||
Tracking autofocus | ||
Selective autofocus | ||
Autofocus center weighted | ||
Autofocus multi area | ||
Autofocus live view | ||
Face detect autofocus | ||
Contract detect autofocus | ||
Phase detect autofocus | ||
Total focus points | - | 9 |
Lens | ||
Lens mount type | Sigma SA | fixed lens |
Lens zoom range | - | 26-104mm (4.0x) |
Largest aperture | - | f/2.7-5.7 |
Macro focusing distance | - | 5cm |
Total lenses | 76 | - |
Focal length multiplier | 1.7 | 5.8 |
Screen | ||
Display type | Fixed Type | Fixed Type |
Display sizing | 2.5 inch | 3 inch |
Display resolution | 150k dots | 230k dots |
Selfie friendly | ||
Liveview | ||
Touch display | ||
Display technology | - | Clear Photo LCD |
Viewfinder Information | ||
Viewfinder | Optical (pentaprism) | None |
Viewfinder coverage | 98 percent | - |
Viewfinder magnification | 0.6x | - |
Features | ||
Slowest shutter speed | 30s | 2s |
Maximum shutter speed | 1/4000s | 1/1600s |
Continuous shooting rate | 3.0 frames per second | 1.0 frames per second |
Shutter priority | ||
Aperture priority | ||
Manually set exposure | ||
Exposure compensation | Yes | - |
Change white balance | ||
Image stabilization | ||
Integrated flash | ||
Flash distance | - | 3.80 m |
Flash settings | - | Auto, On, Off, Slow Sync |
External flash | ||
Auto exposure bracketing | ||
White balance bracketing | ||
Maximum flash synchronize | 1/180s | - |
Exposure | ||
Multisegment | ||
Average | ||
Spot | ||
Partial | ||
AF area | ||
Center weighted | ||
Video features | ||
Video resolutions | - | 1280 x 720 (30 fps), 640 x 480 (30 fps) |
Max video resolution | None | 1280x720 |
Video format | - | MPEG-4 |
Mic port | ||
Headphone port | ||
Connectivity | ||
Wireless | None | Eye-Fi Connected |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 1.0 (1.5 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental sealing | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 750 grams (1.65 lbs) | 110 grams (0.24 lbs) |
Dimensions | 144 x 107 x 81mm (5.7" x 4.2" x 3.2") | 94 x 56 x 19mm (3.7" x 2.2" x 0.7") |
DXO scores | ||
DXO All around rating | not tested | not tested |
DXO Color Depth rating | not tested | not tested |
DXO Dynamic range rating | not tested | not tested |
DXO Low light rating | not tested | not tested |
Other | ||
Battery ID | - | NP-BN1 |
Self timer | Yes (10 sec) | Yes (2 or 10 sec, Portrait 1/2) |
Time lapse feature | ||
Type of storage | Compact Flash Type I or II | SD/SDHC/SDXC/Memory Stick Duo/Memory Stick Pro Duo, Memory Stick Pro-HG Duo |
Card slots | 1 | 1 |
Retail pricing | $198 | $139 |
