Sigma SD9 vs Sony WX5
54 Imaging
38 Features
27 Overall
33


95 Imaging
35 Features
29 Overall
32
Sigma SD9 vs Sony WX5 Key Specs
(Full Review)
- 3MP - APS-C Sensor
- 1.8" Fixed Screen
- ISO 100 - 400
- 1/6000s Maximum Shutter
- No Video
- Sigma SA Mount
- 950g - 152 x 120 x 79mm
- Introduced November 2002
- Replacement is Sigma SD10
(Full Review)
- 12MP - 1/2.3" Sensor
- 2.8" Fixed Screen
- ISO 125 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-120mm (F2.4-5.9) lens
- 146g - 92 x 52 x 22mm
- Announced July 2010

Sigma SD9 vs Sony WX5 Overview
In this article, we will be matching up the Sigma SD9 and Sony WX5, one being a Advanced DSLR and the latter is a Small Sensor Compact by competitors Sigma and Sony. There is a significant difference among the resolutions of the SD9 (3MP) and WX5 (12MP) and the SD9 (APS-C) and WX5 (1/2.3") enjoy totally different sensor sizing.

The SD9 was released 8 years prior to the WX5 and that is a fairly sizable gap as far as camera tech is concerned. Each of these cameras offer different body type with the Sigma SD9 being a Mid-size SLR camera and the Sony WX5 being a Compact camera.
Before getting in to a in-depth comparison, below is a simple overview of how the SD9 matches up vs the WX5 in regards to portability, imaging, features and an overall grade.

Sigma SD9 vs Sony WX5 Gallery
The following is a preview of the gallery photos for Sigma SD9 and Sony Cyber-shot DSC-WX5. The complete galleries are available at Sigma SD9 Gallery and Sony WX5 Gallery.
Reasons to pick Sigma SD9 over the Sony WX5
SD9 | WX5 | |||
---|---|---|---|---|
Focus manually | ![]() | More exact focusing |
Reasons to pick Sony WX5 over the Sigma SD9
WX5 | SD9 | |||
---|---|---|---|---|
Announced | July 2010 | ![]() | November 2002 | More recent by 92 months |
Screen sizing | 2.8" | ![]() | 1.8" | Bigger screen (+1") |
Screen resolution | 461k | ![]() | 130k | Sharper screen (+331k dot) |
Common features in the Sigma SD9 and Sony WX5
SD9 | WX5 | |||
---|---|---|---|---|
Screen type | Fixed | ![]() | Fixed | Fixed screen |
Selfie screen | ![]() | No selfie screen | ||
Touch screen | ![]() | No Touch screen |

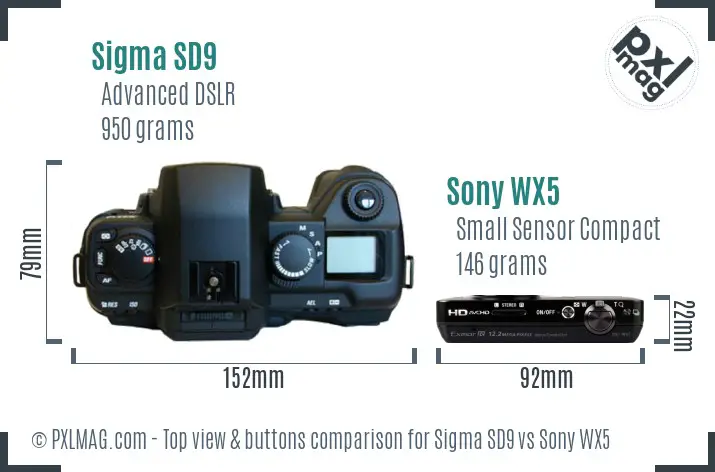

Sigma SD9 vs Sony WX5 Physical Comparison
For anyone who is going to lug around your camera, you will have to factor in its weight and measurements. The Sigma SD9 has physical dimensions of 152mm x 120mm x 79mm (6.0" x 4.7" x 3.1") along with a weight of 950 grams (2.09 lbs) whilst the Sony WX5 has proportions of 92mm x 52mm x 22mm (3.6" x 2.0" x 0.9") with a weight of 146 grams (0.32 lbs).
Contrast the Sigma SD9 and Sony WX5 in the all new Camera with Lens Size Comparison Tool.

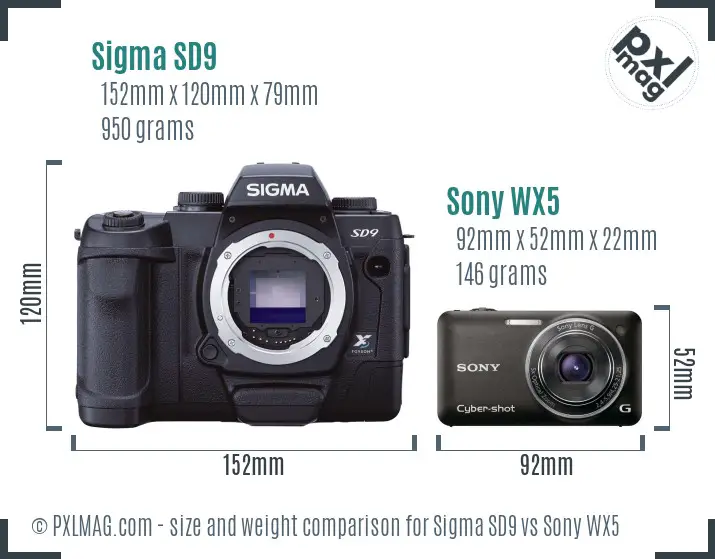

Remember that, the weight of an Interchangeable Lens Camera will differ dependant on the lens you are utilising during that time. The following is the front view measurement comparison of the SD9 versus the WX5.

Looking at size and weight, the portability score of the SD9 and WX5 is 54 and 95 respectively.

Sigma SD9 vs Sony WX5 Sensor Comparison

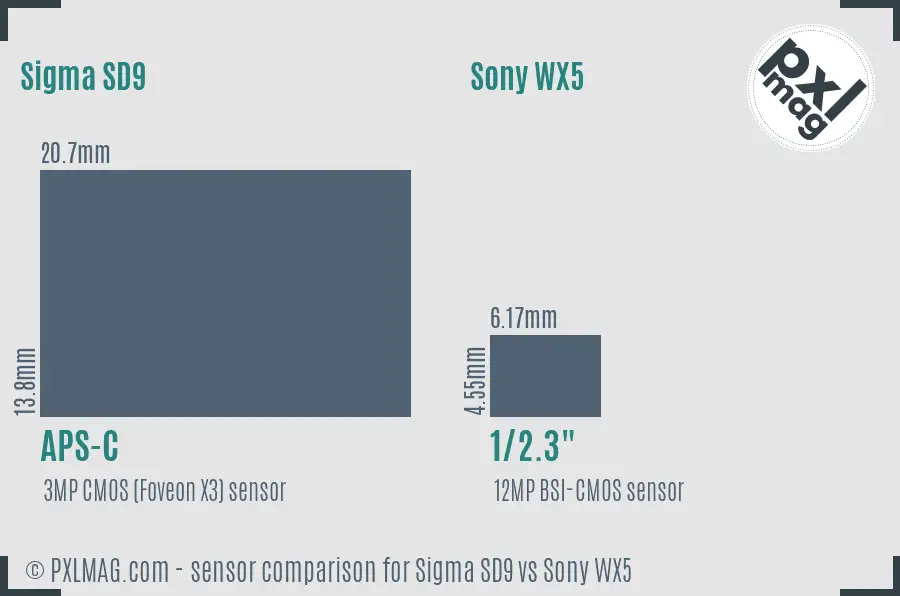

Often, it's tough to envision the gap in sensor measurements just by checking out specifications. The graphic below may offer you a much better sense of the sensor dimensions in the SD9 and WX5.
To sum up, both of the cameras enjoy different resolutions and different sensor measurements. The SD9 because of its bigger sensor will make getting bokeh easier and the Sony WX5 will show extra detail as a result of its extra 9MP. Higher resolution will also make it easier to crop shots far more aggressively. The older SD9 will be disadvantaged in sensor technology.

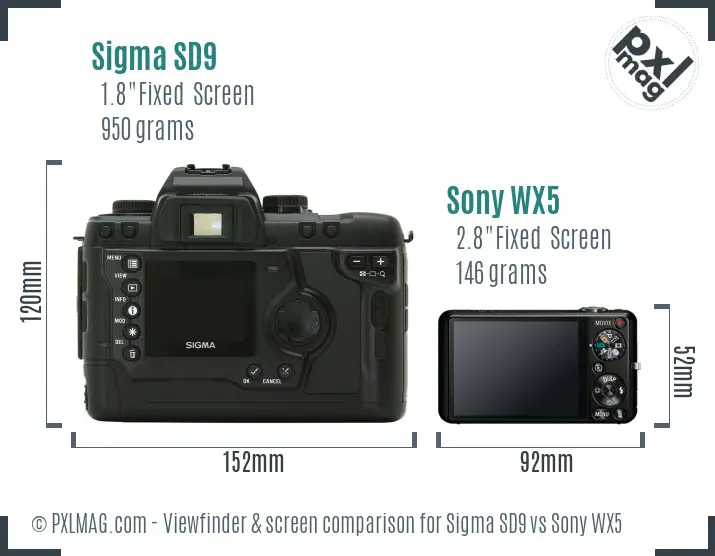

Sigma SD9 vs Sony WX5 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Sigma SD9 vs Sony WX5 Specifications
Sigma SD9 | Sony Cyber-shot DSC-WX5 | |
---|---|---|
General Information | ||
Company | Sigma | Sony |
Model type | Sigma SD9 | Sony Cyber-shot DSC-WX5 |
Class | Advanced DSLR | Small Sensor Compact |
Introduced | 2002-11-26 | 2010-07-08 |
Body design | Mid-size SLR | Compact |
Sensor Information | ||
Powered by | - | Bionz |
Sensor type | CMOS (Foveon X3) | BSI-CMOS |
Sensor size | APS-C | 1/2.3" |
Sensor dimensions | 20.7 x 13.8mm | 6.17 x 4.55mm |
Sensor area | 285.7mm² | 28.1mm² |
Sensor resolution | 3 megapixels | 12 megapixels |
Anti alias filter | ||
Aspect ratio | 3:2 | 4:3 and 16:9 |
Highest Possible resolution | 2268 x 1512 | 4000 x 3000 |
Maximum native ISO | 400 | 3200 |
Min native ISO | 100 | 125 |
RAW data | ||
Autofocusing | ||
Manual focusing | ||
AF touch | ||
Continuous AF | ||
AF single | ||
AF tracking | ||
Selective AF | ||
Center weighted AF | ||
AF multi area | ||
AF live view | ||
Face detection focusing | ||
Contract detection focusing | ||
Phase detection focusing | ||
Total focus points | - | 9 |
Lens | ||
Lens mount type | Sigma SA | fixed lens |
Lens zoom range | - | 24-120mm (5.0x) |
Max aperture | - | f/2.4-5.9 |
Macro focusing range | - | 5cm |
Number of lenses | 76 | - |
Focal length multiplier | 1.7 | 5.8 |
Screen | ||
Range of screen | Fixed Type | Fixed Type |
Screen size | 1.8" | 2.8" |
Screen resolution | 130k dot | 461k dot |
Selfie friendly | ||
Liveview | ||
Touch capability | ||
Viewfinder Information | ||
Viewfinder | Optical (pentaprism) | None |
Viewfinder coverage | 98 percent | - |
Viewfinder magnification | 0.77x | - |
Features | ||
Minimum shutter speed | 30s | 2s |
Fastest shutter speed | 1/6000s | 1/1600s |
Continuous shutter speed | - | 10.0 frames/s |
Shutter priority | ||
Aperture priority | ||
Expose Manually | ||
Exposure compensation | Yes | - |
Custom WB | ||
Image stabilization | ||
Integrated flash | ||
Flash distance | no built-in flash | 5.10 m |
Flash settings | - | Auto, On, Off, Red-eye, Slow sync |
Hot shoe | ||
Auto exposure bracketing | ||
White balance bracketing | ||
Fastest flash sync | 1/180s | - |
Exposure | ||
Multisegment exposure | ||
Average exposure | ||
Spot exposure | ||
Partial exposure | ||
AF area exposure | ||
Center weighted exposure | ||
Video features | ||
Supported video resolutions | - | 1920 x 1080 (50 fps), 1440 x 1080 (50, 25fps), 1280 x 720 (25 fps), 640 x 480 (25 fps) |
Maximum video resolution | None | 1920x1080 |
Video file format | - | AVCHD |
Mic jack | ||
Headphone jack | ||
Connectivity | ||
Wireless | None | Eye-Fi Connected |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 1.0 (1.5 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental seal | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 950 grams (2.09 pounds) | 146 grams (0.32 pounds) |
Dimensions | 152 x 120 x 79mm (6.0" x 4.7" x 3.1") | 92 x 52 x 22mm (3.6" x 2.0" x 0.9") |
DXO scores | ||
DXO Overall rating | not tested | not tested |
DXO Color Depth rating | not tested | not tested |
DXO Dynamic range rating | not tested | not tested |
DXO Low light rating | not tested | not tested |
Other | ||
Battery ID | - | NP-BN1 |
Self timer | Yes (10 sec) | Yes (2 or 10 sec) |
Time lapse feature | ||
Storage media | Compact Flash Type I or II | SD/ SDHC/ SDXC, Memory Stick Duo/Pro Duo, Internal |
Storage slots | Single | Single |
Launch cost | $3,001 | $250 |
