Canon M6 vs Olympus E-PL5
84 Imaging
66 Features
84 Overall
73
88 Imaging
51 Features
72 Overall
59
Canon M6 vs Olympus E-PL5 Key Specs
(Full Review)
- 24MP - APS-C Sensor
- 3" Tilting Screen
- ISO 100 - 25600
- 1920 x 1080 video
- Canon EF-M Mount
- 390g - 112 x 68 x 45mm
- Released February 2017
- Older Model is Canon M3
- Successor is Canon M6 MII
(Full Review)
- 16MP - Four Thirds Sensor
- 3" Tilting Display
- ISO 200 - 25600
- Sensor based Image Stabilization
- 1920 x 1080 video
- Micro Four Thirds Mount
- 325g - 111 x 64 x 38mm
- Revealed September 2012
Pentax 17 Pre-Orders Outperform Expectations by a Landslide Canon M6 vs Olympus E-PL5 Overview
Lets look more closely at the Canon M6 and Olympus E-PL5, former being a Advanced Mirrorless while the other is a Entry-Level Mirrorless by rivals Canon and Olympus. There exists a considerable gap between the image resolutions of the M6 (24MP) and E-PL5 (16MP) and the M6 (APS-C) and E-PL5 (Four Thirds) provide totally different sensor sizes.
Sora from OpenAI releases its first ever music videoThe M6 was unveiled 4 years later than the E-PL5 and that is quite a large difference as far as technology is concerned. Each of the cameras have the same body design (Rangefinder-style mirrorless).
Before delving into a comprehensive comparison, here is a brief overview of how the M6 matches up against the E-PL5 for portability, imaging, features and an overall rating.
Samsung Releases Faster Versions of EVO MicroSD Cards Canon M6 vs Olympus E-PL5 Gallery
The following is a sample of the gallery pictures for Canon EOS M6 & Olympus PEN E-PL5. The full galleries are provided at Canon M6 Gallery & Olympus E-PL5 Gallery.
Reasons to pick Canon M6 over the Olympus E-PL5
| M6 | E-PL5 | |||
|---|---|---|---|---|
| Revealed | February 2017 |  | September 2012 | Fresher by 54 months |
| Display resolution | 1040k |  | 460k | Crisper display (+580k dot) |
Reasons to pick Olympus E-PL5 over the Canon M6
| E-PL5 | M6 |
|---|
Common features in the Canon M6 and Olympus E-PL5
| M6 | E-PL5 | |||
|---|---|---|---|---|
| Manual focus |  | Very exact focus | ||
| Display type | Tilting |  | Tilting | Tilting display |
| Display dimensions | 3" |  | 3" | Equal display dimensions |
| Selfie screen |  | Both good for selfies | ||
| Touch friendly display |  | Easily navigate |
Canon M6 vs Olympus E-PL5 Physical Comparison
In case you're aiming to carry your camera frequently, you will want to factor its weight and measurements. The Canon M6 comes with physical dimensions of 112mm x 68mm x 45mm (4.4" x 2.7" x 1.8") accompanied by a weight of 390 grams (0.86 lbs) while the Olympus E-PL5 has proportions of 111mm x 64mm x 38mm (4.4" x 2.5" x 1.5") having a weight of 325 grams (0.72 lbs).
Compare the Canon M6 and Olympus E-PL5 in our brand new Camera & Lens Size Comparison Tool.

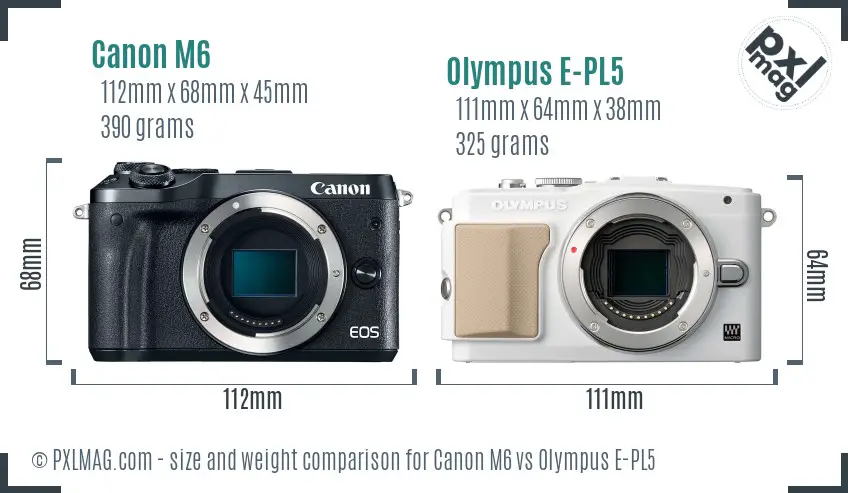

Bear in mind, the weight of an ILC will change based on the lens you have chosen at the time. Underneath is a front view dimension comparison of the M6 vs the E-PL5.
Looking at dimensions and weight, the portability score of the M6 and E-PL5 is 84 and 88 respectively.
Canon M6 vs Olympus E-PL5 Sensor Comparison

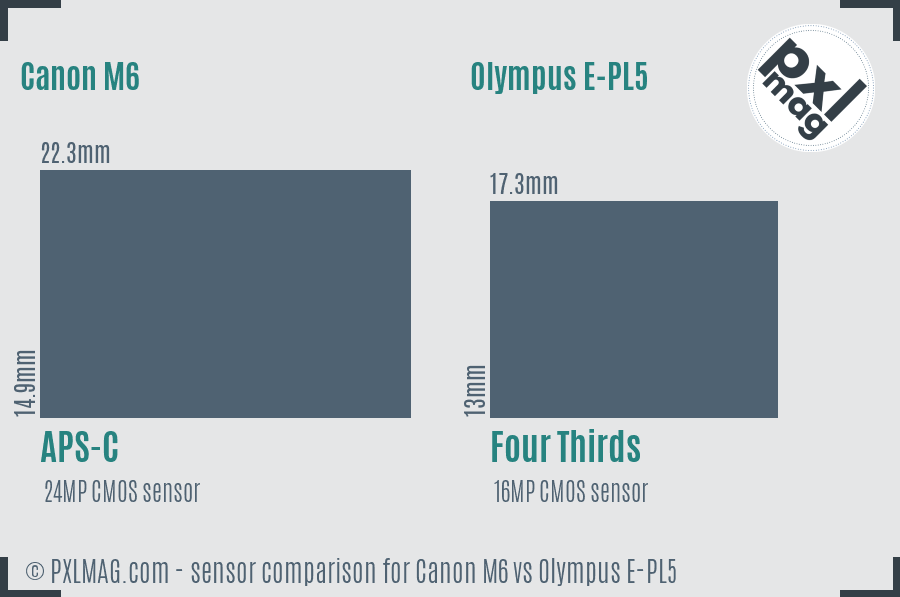

More often than not, it is very hard to envision the gap between sensor sizing just by looking at a spec sheet. The visual here will provide you a greater sense of the sensor dimensions in the M6 and E-PL5.
As you can see, both of those cameras have different resolutions and different sensor sizing. The M6 having a larger sensor will make getting shallow depth of field less difficult and the Canon M6 will give greater detail having an extra 8 Megapixels. Greater resolution will also enable you to crop photos a bit more aggressively. The younger M6 will have an edge with regard to sensor tech.

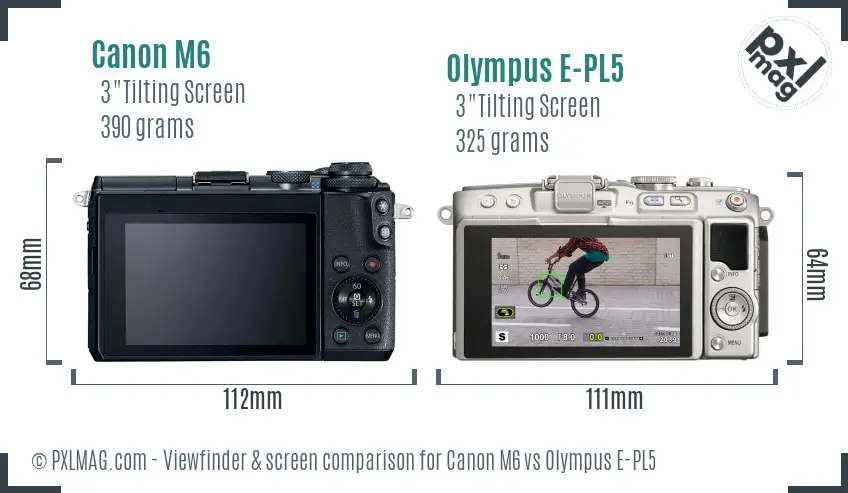

Canon M6 vs Olympus E-PL5 Screen and ViewFinder
Snapchat Adds Watermarks to AI-Created Images Photography Type Scores
Portrait Comparison
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneStreet Comparison
Photobucket discusses licensing 13 billion images with AI firmsSports Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthTravel Comparison
President Biden pushes bill mandating TikTok sale or banLandscape Comparison
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modesVlogging Comparison
Photography Glossary
Canon M6 vs Olympus E-PL5 Specifications
| Canon EOS M6 | Olympus PEN E-PL5 | |
|---|---|---|
| General Information | ||
| Make | Canon | Olympus |
| Model type | Canon EOS M6 | Olympus PEN E-PL5 |
| Type | Advanced Mirrorless | Entry-Level Mirrorless |
| Released | 2017-02-15 | 2012-09-17 |
| Physical type | Rangefinder-style mirrorless | Rangefinder-style mirrorless |
| Sensor Information | ||
| Processor | Digic 7 | - |
| Sensor type | CMOS | CMOS |
| Sensor size | APS-C | Four Thirds |
| Sensor dimensions | 22.3 x 14.9mm | 17.3 x 13mm |
| Sensor area | 332.3mm² | 224.9mm² |
| Sensor resolution | 24 megapixels | 16 megapixels |
| Anti alias filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3 |
| Highest resolution | 6000 x 4000 | 4608 x 3456 |
| Highest native ISO | 25600 | 25600 |
| Minimum native ISO | 100 | 200 |
| RAW support | ||
| Autofocusing | ||
| Focus manually | ||
| Autofocus touch | ||
| Autofocus continuous | ||
| Autofocus single | ||
| Autofocus tracking | ||
| Autofocus selectice | ||
| Center weighted autofocus | ||
| Multi area autofocus | ||
| Live view autofocus | ||
| Face detection autofocus | ||
| Contract detection autofocus | ||
| Phase detection autofocus | ||
| Total focus points | 49 | 35 |
| Lens | ||
| Lens support | Canon EF-M | Micro Four Thirds |
| Available lenses | 23 | 107 |
| Focal length multiplier | 1.6 | 2.1 |
| Screen | ||
| Screen type | Tilting | Tilting |
| Screen size | 3 inches | 3 inches |
| Resolution of screen | 1,040 thousand dots | 460 thousand dots |
| Selfie friendly | ||
| Liveview | ||
| Touch display | ||
| Viewfinder Information | ||
| Viewfinder | Electronic (optional) | Electronic (optional) |
| Features | ||
| Lowest shutter speed | 30s | 60s |
| Highest shutter speed | 1/4000s | 1/4000s |
| Continuous shooting rate | 9.0 frames per sec | 8.0 frames per sec |
| Shutter priority | ||
| Aperture priority | ||
| Manual mode | ||
| Exposure compensation | Yes | Yes |
| Custom white balance | ||
| Image stabilization | ||
| Integrated flash | ||
| Flash distance | 5.00 m (at ISO 100) | 7.00 m (bundled FL-LM1) |
| Flash modes | - | Auto, On, Off, Red-Eye, Fill-in, Slow Sync, Manual (3 levels) |
| External flash | ||
| AEB | ||
| WB bracketing | ||
| Highest flash synchronize | - | 1/250s |
| Exposure | ||
| Multisegment metering | ||
| Average metering | ||
| Spot metering | ||
| Partial metering | ||
| AF area metering | ||
| Center weighted metering | ||
| Video features | ||
| Video resolutions | 1920 x 1080 @ 60p / 35 Mbps, MP4, H.264, AAC | 1920 x 1080 (30 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) |
| Highest video resolution | 1920x1080 | 1920x1080 |
| Video data format | MPEG-4, H.264 | MPEG-4, H.264, Motion JPEG |
| Mic support | ||
| Headphone support | ||
| Connectivity | ||
| Wireless | Built-In | Eye-Fi Connected |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environmental sealing | ||
| Water proofing | ||
| Dust proofing | ||
| Shock proofing | ||
| Crush proofing | ||
| Freeze proofing | ||
| Weight | 390 grams (0.86 lbs) | 325 grams (0.72 lbs) |
| Physical dimensions | 112 x 68 x 45mm (4.4" x 2.7" x 1.8") | 111 x 64 x 38mm (4.4" x 2.5" x 1.5") |
| DXO scores | ||
| DXO All around rating | 78 | 72 |
| DXO Color Depth rating | 23.4 | 22.8 |
| DXO Dynamic range rating | 12.6 | 12.3 |
| DXO Low light rating | 1317 | 889 |
| Other | ||
| Battery life | 295 shots | 360 shots |
| Style of battery | Battery Pack | Battery Pack |
| Battery ID | - | BLS-5 |
| Self timer | Yes (2 or 10 secs, custom, remote) | Yes (2 or 12 sec) |
| Time lapse shooting | ||
| Type of storage | SD/SDHC/SDXC card | SD/SDHC/SDXC |
| Card slots | 1 | 1 |
| Launch cost | $679 | $400 |
