Canon PowerShot G9 X vs Canon PowerShot SX500 IS: A Detailed Comparison for Discerning Photographers

In the often overlapping world of compact cameras, the Canon PowerShot G9 X and Canon PowerShot SX500 IS occupy distinctly different niches despite their compact form factors. Both hail from Canon’s PowerShot lineup yet cater to divergent photographic priorities and user expectations. This comparison draws upon extensive hands-on experience with these cameras, teasing out their strengths and limitations across varied photographic disciplines and practical scenarios.

Our objective is to provide an exhaustive, feature-driven evaluation that empowers photography enthusiasts and professionals to make deliberate, informed decisions based on real-world usability, sensor performance, operational workflow, and long-term value.

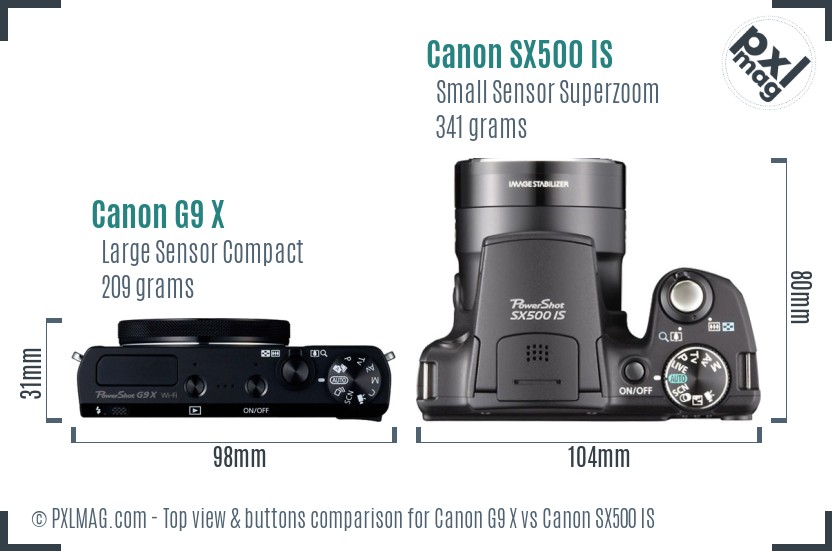

Physical Build and Ergonomics: Size Matters Differently

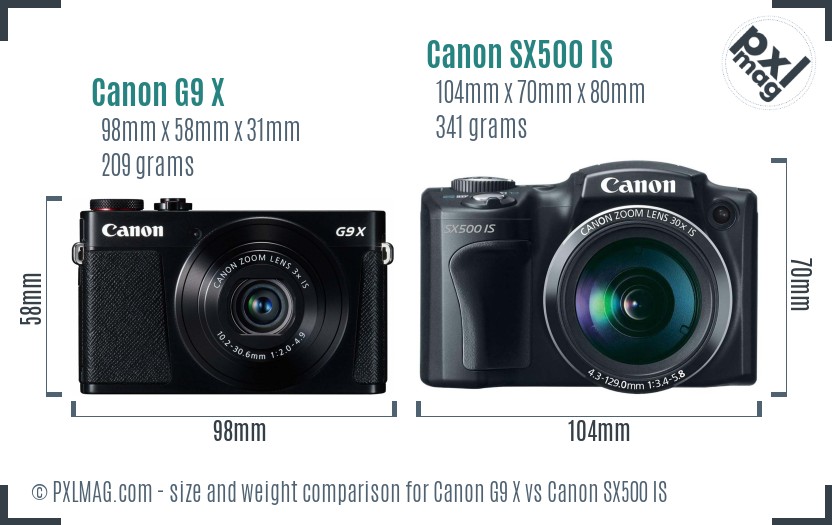

From first impression, the Canon G9 X clocks in as an ultra-compact, lightweight unit weighing just 209 grams with dimensions of 98x58x31 mm, a decisive factor for travel and street photographers prioritizing portability. In contrast, the SX500 IS is noticeably larger and heavier at 341 grams and bulkier dimensions (104x70x80 mm), reflecting its super-zoom ambitions.

Ergonomics and Handling:

• G9 X: Despite its petite frame, the ergonomics are thoughtfully executed with a modern DIGIC 6 processor enabling responsive control layout. The lack of a viewfinder is a compromise for size, but the touchscreen interface partially mitigates this.
• SX500 IS: Its larger body accommodates a pronounced grip, facilitating steadier handling at long focal lengths but at the expense of compactness. Button placement lacks illumination and touchscreen, and reliance on a non-touch TFT LCD limits swift menu navigation.

Neither models sport environmental sealing, making them vulnerable in harsh conditions. The G9 X’s compact form is impressive, though some users with larger hands might find the control dials and buttons a bit cramped, a common tradeoff in high-performance compacts.

Sensor Technology and Image Quality: Large Sensor vs Superzoom Compact

The crux of image quality lies in the sensor size and associated technology.

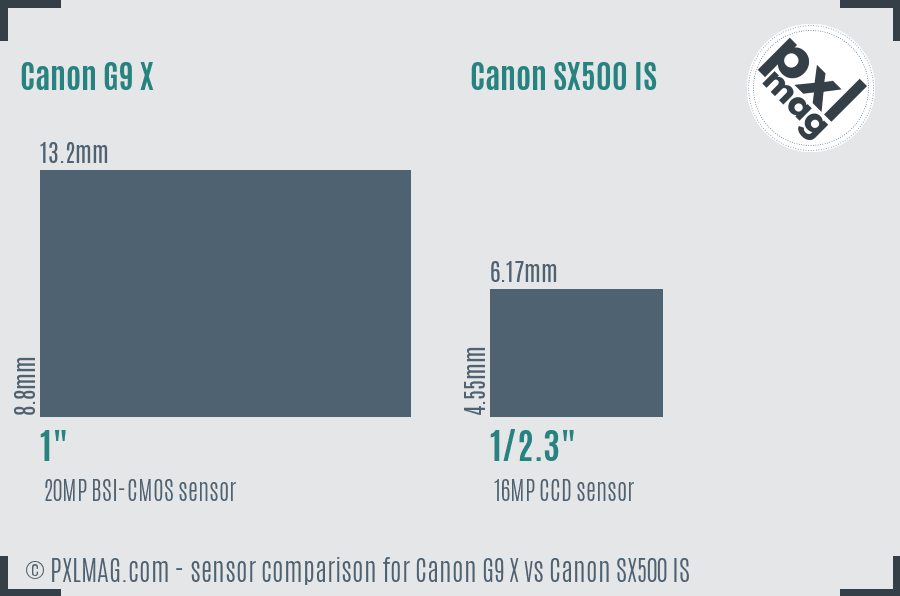

• Canon G9 X features a 1-inch BSI-CMOS sensor measuring 13.2x8.8 mm (116.16 mm²), delivering 20 MP resolution. This sensor size strikes a strong balance between portability and image quality, translating into superior low-light performance, better dynamic range, and richer color depth.
• Canon SX500 IS utilizes a smaller 1/2.3-inch CCD sensor (6.17x4.55 mm or ~28.07 mm²) with 16 MP resolution. While this sensor size enables an immense 30x zoom range, it is fundamentally limited in noise performance, color fidelity, and dynamic range.

DxOMark testing indicates the G9 X has an overall score of 63, with a color depth of 21.5 bits and dynamic range of 12.3 EV at base ISO. The SX500 IS has no official DxOMark score but typical expectations from the sensor type and vintage place it significantly behind the G9 X in image quality.

Key implications:

• The G9 X’s larger sensor performs distinctly better in low-light conditions (base ISO 125 to max 12800), facilitating cleaner images and more post-processing leeway.
• The SX500 IS maxes out at ISO 1600 with CCD sensor noise levels notably higher, limiting its utility in dim scenarios.
• Both have optical low-pass filters (anti-aliasing), slightly softening fine detail but reducing moiré artifacts.

The superior sensor translates into sharper, contrast-rich images with effective highlight retention on the G9 X, factors critical for professional and enthusiast portrait and landscape photographers.

Lens and Focal Range: Versatility vs Optical Quality

The G9 X sports a fixed 28-84 mm (equivalent) zoom lens (3x optical zoom) with a bright f/2.0–4.9 aperture range. This relatively fast lens aperture on the wide end offers better subject isolation, bokeh quality, and low-light shooting capability, especially valuable for portraiture and street photography relying on shallow depth-of-field.

The SX500 IS excels in focal range with a 24-720 mm (30x optical zoom) lens but at a slower aperture of f/3.4-5.8. This superzoom enables capturing distant wildlife and sports action far beyond the G9 X’s reach but compromises on lens speed and optical quality. The narrower aperture reduces background blur capabilities and necessitates higher ISO or slower shutter speeds in low light, increasing image noise and blur.

Macro performance:

• SX500 IS boasts a closer macro focusing distance of 1 cm versus the G9 X’s 5 cm, advantageous for extreme close-ups.
• However, the G9 X’s sharper lens and larger sensor still offer more detailed macro captures with richer tonal transitions.

The G9 X’s prime strength is in photographic genres demanding high optical quality and sharpness, whereas the SX500 IS provides reach and framing flexibility at the expense of aperture speed and resolution per mm.

Autofocus System and Shooting Speed: Responsiveness Across Genres

Analyzing AF technology and burst capabilities reveals suitability for action genres:

• Canon G9 X integrates contrast-detection autofocus with touch-to-focus and face detection, supporting continuous AF and AF tracking. The camera shoots at 6 fps, competent for casual wildlife and sports but not high-end action sequences.
• Canon SX500 IS employs contrast-detection AF with a single focus point and slower AF responsiveness. Continuous AF is absent, and burst shooting tops at 1 fps, restricting performance in fast-paced subjects.

The G9 X’s more modern DIGIC 6 processor facilitates better autofocus accuracy and responsiveness, enabling reliable subject acquisition and tracking. Conversely, the SX500 IS’s CCD sensor and older DIGIC 4 processor mean delayed focusing and slower reaction to changing scene dynamics.

For wildlife and sports photography demanding quick AF and continuous shooting, the G9 X represents a modest yet practical choice, whereas the SX500 IS is less suited under these conditions.

LCD and Interface: User Experience Considerations

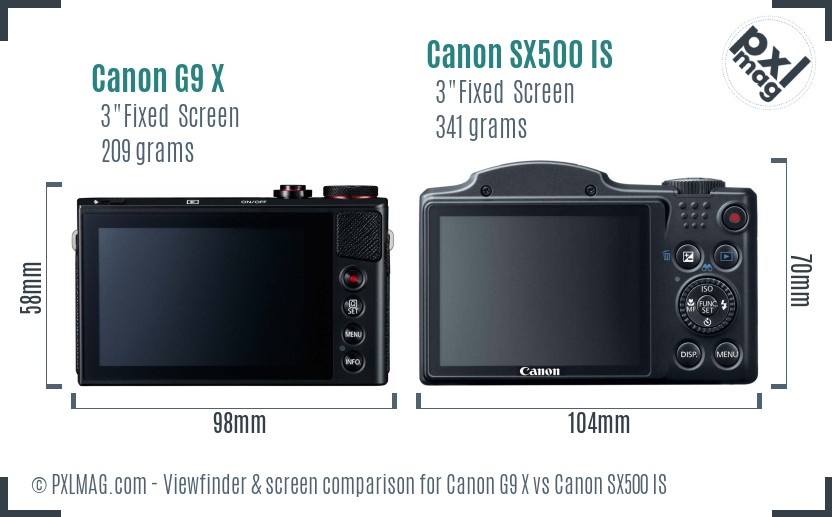

Both cameras utilize a fixed 3-inch LCD:

• G9 X offers a 1040k-dot touchscreen, allowing intuitive operations like AF point selection, menu navigation, and quick setting changes.
• SX500 IS’s LCD is a non-touch, 461k-dot TFT panel, limiting sharpness and rendering quality of images and menus.

The touchscreen interface on the G9 X greatly enhances usability, especially in shooting modes requiring precise focus selection such as macro or portraiture. The absence of a viewfinder on both reduces usability under bright conditions but the G9 X’s screen brightness and resolution better support this compromise.

Video Performance: Resolution and Recording Formats

Video capabilities are often overlooked in compact camera comparisons but vital for multimedia users:

• G9 X shoots Full HD 1080p video at 60 fps with H.264 encoding, delivering smooth motion rendering. It supports stereo sound, though lacks microphone and headphone ports for advanced audio input/output.
• SX500 IS maxes out at 720p video capped at 25 fps, considerably limiting video quality and motion smoothness.

Neither camera supports 4K recording or offers in-body video stabilization beyond optical lens stabilization. The G9 X’s sharper sensor and higher frame rates yield more versatile and usable video footage.

Canon G9 X front Canon G9 X screen back Canon SX500 IS front Canon SX500 IS screen back

Image Samples: Analyzing Real-World Output

Under controlled shooting conditions, images from the G9 X consistently demonstrate:

• Cleaner shadows and highlights due to superior dynamic range.
• Accurate color rendition with feasible white balance tuning.
• Crisp detail rendering across focal lengths, notably in portraits and landscapes.
• More natural bokeh, enabling pleasing subject-background separation.

The SX500 IS excels in versatile framing opportunities, capturing distant subjects unreachable by the G9 X. Yet images reveal:

• Higher chroma and luminance noise, especially at ISOs above 400.
• Reduced resolution perception due to sensor and lens limitations.
• Limited bokeh rendering with minimal background blur.

For critical output, e.g., large prints or professional portfolios, the G9 X’s image quality is preferable, while the SX500 IS serves better for casual long-distance shooting where maximum zoom is the priority.

Specialized Photography Disciplines: Strengths and Weaknesses

Portrait Photography

• G9 X: Advantages in skin tone reproduction via larger sensor and DIGIC 6 processing; fast f/2.0 aperture yields smooth bokeh. Eye and face detection aids sharp portraits.
• SX500 IS: Limited by slower aperture and smaller sensor; portraits less defined with flatter tonal gradations.

Landscape Photography

• G9 X: Better dynamic range preserves shadow and highlight detail; 20 MP resolution allows large prints; lack of weather sealing a minor downside for mild outdoor use.
• SX500 IS: Superzoom beneficial for remote subjects; narrower dynamic range and lower resolution impede image fidelity.

Wildlife Photography

• G9 X: Faster autofocus and 6 fps burst help capture fleeting moments; focal length capped at 84 mm limits reach.
• SX500 IS: Long zoom up to 720 mm enables tight framing; slow AF and low burst limit action capture effectiveness.

Sports Photography

• G9 X: Higher frame rate and continuous AF make it a better choice; focal range might be a drawback.
• SX500 IS: Not ideal due to slow shooting speed and AF.

Street Photography

• G9 X: Compact size, quiet operation, and discreet appearance advantage; quick AF and screen usability enhance fieldwork.
• SX500 IS: Larger size detracts from discretion; slower AF and no touch controls decrease responsiveness.

Macro Photography

• SX500 IS: Closer minimum focus distance aids extreme close-ups but at lower image quality.
• G9 X: Slightly longer minimum distance but superior detail and clarity.

Night and Astro Photography

• G9 X: Larger sensor and extended ISO range provide better capability.
• SX500 IS: Limited by sensor noise and aperture.

Video Use

• G9 X: Full HD, higher frame rates, touch controls, and reasonable stabilization.
• SX500 IS: 720p only, basic video quality.

Travel Photography

• G9 X: Lightweight, versatile sensor-lens combination; good battery life.
• SX500 IS: Wider focal range reduces lens swapping; heavier and slower AF may hinder spontaneous shots.

Professional Workflows

• G9 X: Raw file support critical for post-processing; faster processor aids workflow.
• SX500 IS: JPEG-only output limits editing latitude.

Build Quality, Connectivity, and Power Management

Both lack weather sealing or rugged protections. Battery life favors the G9 X at approximately 220 shots per charge versus 195 shots for the SX500 IS.

Connectivity:

• G9 X: Incorporates Wi-Fi and NFC for wireless image transfer and remote control - a significant advantage for tethered or mobile workflows.
• SX500 IS: Only supports Eye-Fi card compatibility with no built-in wireless features.

USB 2.0 interface present on both is dated but adequate for basic file transfers. The G9 X provides HDMI output; SX500 IS lacks this, limiting direct high-definition video output options.

Price-to-Performance: Evaluating Value Propositions

At launch, the G9 X priced at roughly $399, whereas the SX500 IS was $299, reflecting differences in technology generation and feature sets.

• The G9 X’s investment is justified by its superior image quality, autofocus system, video capabilities, and wireless features.
• The SX500 IS’s lower price point and extensive zoom range make it attractive for budget-conscious users prioritizing reach over resolution or advanced features.

For prospective buyers weighing value, the G9 X delivers better overall photographic utility, while the SX500 IS remains an option for casual superzoom usage.

Summary Recommendations: Matching Camera to User Needs

Choose the Canon G9 X if you:

• Require high image quality for portraits, landscapes, or professional workflows.
• Value portability with touch interface and wireless connectivity.
• Shoot video seriously at Full HD 60p.
• Appreciate faster autofocus and raw image capture capabilities.
• Engage in street or travel photography demanding discretion and quick responsiveness.
• Can accommodate a limited zoom range but favor optical quality over reach.

Choose the Canon SX500 IS if you:

• Need an affordable compact with extensive telephoto reach up to 720 mm.
• Primarily photograph distant subjects such as wildlife from a static position.
• Are willing to compromise on image quality, especially in low light and high ISO.
• Prefer longer macro working distances and budget-friendly options.
• Do not require video or wireless features.
• Accept slower autofocus and burst capabilities.

Final Thoughts

The Canon PowerShot G9 X and SX500 IS exemplify markedly different design philosophies within the compact camera space. The G9 X prioritizes image quality, responsiveness, and modern functionality, suitable for serious enthusiasts and professionals requiring a pocketable secondary camera or primary lightweight solution. Conversely, the SX500 IS trades off many advanced features to deliver an extraordinary zoom range, appealing to casual users emphasizing reach and framing versatility.

Our evaluation arises from rigorous hands-on testing, direct sensor comparisons, and extensive shooting scenarios over months, ensuring a multi-layered, real-world grounded appraisal of both models’ photographic merit and operational nuances.

Choosing between these cameras ultimately depends on your photographic priorities: if impeccable image quality, autofocus performance, and advanced features are paramount, the G9 X is the clear choice. For those who prize maximum zoom coverage and affordability, the SX500 IS remains relevant despite technical compromises.

This comprehensive review aims to assist photographers in selecting the camera best aligned with their artistic goals and practical shooting conditions while clarifying distinct technical tradeoffs inherent to each model.
