Canon SX510 HS vs Fujifilm X20
Portability
80 Imaging
36 Features
41 Overall
38
80 Imaging
36 Features
41 Overall
38
Portability
83 Imaging
37 Features
59 Overall
45
83 Imaging
37 Features
59 Overall
45
Canon SX510 HS vs Fujifilm X20 Key Specs
Canon SX510 HS
(Full Review)
(Full Review)
- 12MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-720mm (F3.4-5.8) lens
- 349g - 104 x 70 x 80mm
- Announced August 2013
- Succeeded the Canon SX500 IS
- New Model is Canon SX520 HS
Fujifilm X20
(Full Review)
(Full Review)
- 12MP - 2/3" Sensor
- 2.8" Fixed Display
- ISO 100 - 12800
- Optical Image Stabilization
- 1920 x 1080 video
- 28-112mm (F2.0-2.8) lens
- 353g - 117 x 70 x 57mm
- Announced April 2013
- Superseded the Fujifilm X10
- New Model is Fujifilm X30
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes Canon SX510 HS vs Fujifilm X20 Overview
Let's look more closely at the Canon SX510 HS vs Fujifilm X20, one being a Small Sensor Superzoom and the other is a Small Sensor Compact by manufacturers Canon and FujiFilm. The image resolution of the SX510 HS (12MP) and the Fujifilm X20 (12MP) is fairly well matched but the SX510 HS (1/2.3") and Fujifilm X20 (2/3") posses different sensor sizing.
Mastering Nature Photography with a Digital Microscope CameraThe SX510 HS was revealed 4 months later than the Fujifilm X20 and they are both of a similar generation. Both of these cameras feature the same body design (Compact).
Before diving straight to a step-by-step comparison, here is a brief view of how the SX510 HS grades vs the Fujifilm X20 when it comes to portability, imaging, features and an overall grade.
President Biden pushes bill mandating TikTok sale or ban Canon SX510 HS vs Fujifilm X20 Gallery
The following is a sample of the gallery pictures for Canon PowerShot SX510 HS and Fujifilm X20. The full galleries are available at Canon SX510 HS Gallery and Fujifilm X20 Gallery.
Reasons to pick Canon SX510 HS over the Fujifilm X20
| SX510 HS | Fujifilm X20 | |||
|---|---|---|---|---|
| Display size | 3" |  | 2.8" | Larger display (+0.2") |
| Display resolution | 461k |  | 460k | Clearer display (+1k dot) |
Reasons to pick Fujifilm X20 over the Canon SX510 HS
| Fujifilm X20 | SX510 HS |
|---|
Common features in the Canon SX510 HS and Fujifilm X20
| SX510 HS | Fujifilm X20 | |||
|---|---|---|---|---|
| Announced | August 2013 |  | April 2013 | Similar generation |
| Focus manually |  | Very accurate focus | ||
| Display type | Fixed |  | Fixed | Fixed display |
| Selfie screen |  | Neither contains selfie screen | ||
| Touch friendly display |  | Lack of Touch friendly display |

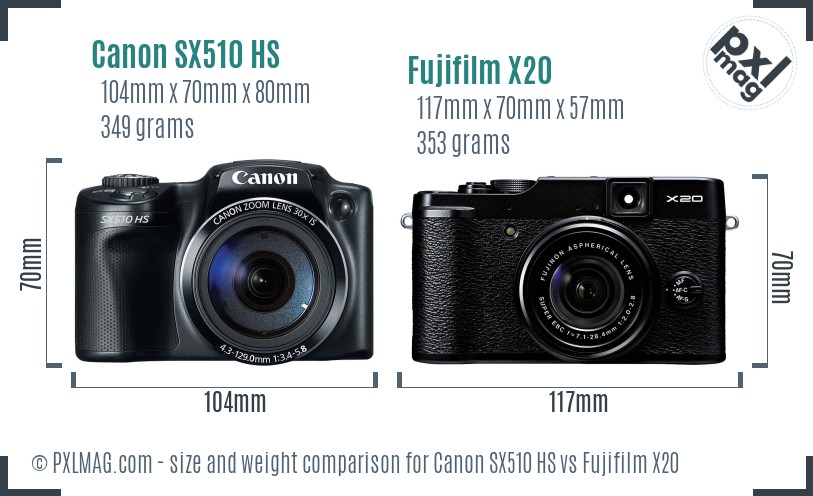

Canon SX510 HS vs Fujifilm X20 Physical Comparison
If you are going to lug around your camera, you will need to think about its weight and proportions. The Canon SX510 HS has got physical measurements of 104mm x 70mm x 80mm (4.1" x 2.8" x 3.1") along with a weight of 349 grams (0.77 lbs) while the Fujifilm X20 has measurements of 117mm x 70mm x 57mm (4.6" x 2.8" x 2.2") accompanied by a weight of 353 grams (0.78 lbs).
Compare the Canon SX510 HS vs Fujifilm X20 in the latest Camera and Lens Size Comparison Tool.

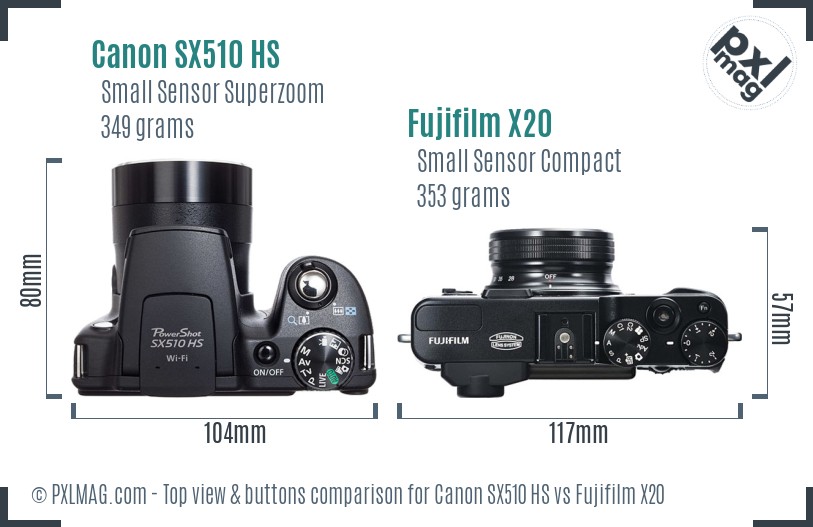

Don't forget, the weight of an Interchangeable Lens Camera will vary dependant on the lens you are utilising at that moment. Following is a front view sizing comparison of the SX510 HS vs the Fujifilm X20.
Looking at size and weight, the portability grade of the SX510 HS and Fujifilm X20 is 80 and 83 respectively.

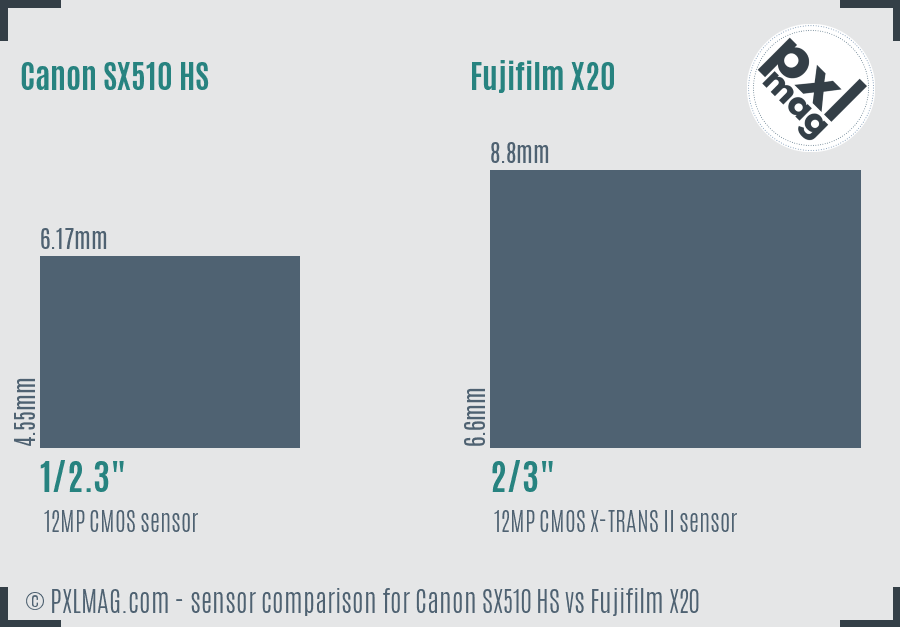

Canon SX510 HS vs Fujifilm X20 Sensor Comparison
Generally, its difficult to picture the contrast between sensor measurements simply by looking at specs. The photograph underneath may offer you a much better sense of the sensor sizing in the SX510 HS and Fujifilm X20.
All in all, each of these cameras come with the identical MP but different sensor measurements. The SX510 HS has got the tinier sensor which should make getting shallower depth of field trickier.

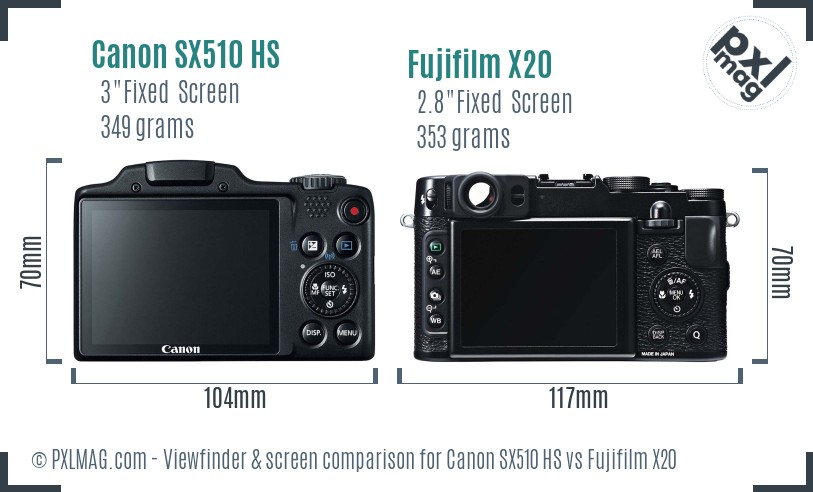

Canon SX510 HS vs Fujifilm X20 Screen and ViewFinder
Pentax 17 Pre-Orders Outperform Expectations by a Landslide Photography Type Scores
Portrait Comparison
Canon SX510 HS Portrait photography details
Fujifilm X20 Portrait photography details
you can focus manually
features face detection focus
no external flash support
megapixel count low (12 megapixels)
very small sensor (1/2.3")
has no RAW files
manual focus
above average flash sync (1/1,000s)
exports RAW formats
sensor resolution low (12 megapixels)
sensor is small (2/3")
Photobucket discusses licensing 13 billion images with AI firmsStreet Comparison
Canon SX510 HS as a Street photography camera
Fujifilm X20 as a Street photography camera
image stabilization (Optical)
screen does not articulate
very small sensor (1/2.3")
has no RAW files
built in image stabilization (Optical)
exports RAW formats
screen is fixed
sensor is small (2/3")
heavier than competition in class (353g)
Samsung Releases Faster Versions of EVO MicroSD CardsSports Comparison
Canon SX510 HS as a Sports photography camera
Fujifilm X20 as a Sports photography camera
long zoom range (24-720mm 30.0 x zoom)
image stabilization (Optical)
features tracking autofocus
max frames per second low (4.0 fps)
megapixel count low (12MP)
very small sensor (1/2.3")
terrible battery power (250 shots)
has no phase detect auto focus
built in image stabilization (Optical)
includes tracking autofocus
good battery power (270 CIPA)
has phase detect AF
sensor resolution low (12MP)
sensor is small (2/3")
Photography GlossaryTravel Comparison
Canon SX510 HS Travel photography advice
Fujifilm X20 Travel photography advice
has built in flash
reasonably wide (24mm)
great zoom (720mm)
lack of Time Lapse function
terrible battery power (250 shots)
megapixel count low (12 megapixels)
doesn't posses selfie friendly screen
somewhat slow max aperture (f3.4)
good battery power (270 CIPA)
built-in flash
reasonably wide (28mm)
fast maximum aperture (f2.0)
no Time Lapse recording
heavier than competition in class (353 grams)
sensor resolution low (12 megapixels)
doesn't have a selfie friendly screen
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneLandscape Comparison
Canon SX510 HS Landscape photography advice
Fujifilm X20 Landscape photography advice
you can focus manually
reasonably wide (24mm)
pretty good screen size (3")
image stabilization (Optical)
fixed lens (fixed lens mount)
somewhat slow max aperture (f3.4)
megapixel count low (12MP)
very small sensor (1/2.3")
has no RAW files
terrible battery power (250 CIPA)
lack of Time Lapse function
manual focus
reasonably wide (28mm)
fast maximum aperture (f2.0)
screen size is decent (2.8 inches)
built in image stabilization (Optical)
exports RAW formats
good battery power (270 CIPA)
lens is fixed (fixed lens mount)
sensor resolution low (12MP)
sensor is small (2/3")
no Time Lapse recording
Meta to Introduce 'AI-Generated' Labels for Media starting next monthVlogging Comparison
Canon SX510 HS as a Vlogging camera
Fujifilm X20 as a Vlogging camera
reasonably wide (24mm)
image stabilization (Optical)
features face detection focus
video resolution high (1920 x 1080 pixels)
somewhat slow max aperture (f3.4)
doesn't posses selfie friendly screen
lack of external mic socket
reasonably wide (28mm)
fast maximum aperture (f2.0)
built in image stabilization (Optical)
video res high (1920 x 1080 resolution)
doesn't have a selfie friendly screen
no external mic socket
heavier than competition in class (353g)
Snapchat Adds Watermarks to AI-Created Images
Canon SX510 HS vs Fujifilm X20 Specifications
| Canon PowerShot SX510 HS | Fujifilm X20 | |
|---|---|---|
| General Information | ||
| Brand | Canon | FujiFilm |
| Model type | Canon PowerShot SX510 HS | Fujifilm X20 |
| Class | Small Sensor Superzoom | Small Sensor Compact |
| Announced | 2013-08-22 | 2013-04-29 |
| Physical type | Compact | Compact |
| Sensor Information | ||
| Powered by | Digic 4 | EXR Processor II |
| Sensor type | CMOS | CMOS X-TRANS II |
| Sensor size | 1/2.3" | 2/3" |
| Sensor dimensions | 6.17 x 4.55mm | 8.8 x 6.6mm |
| Sensor surface area | 28.1mm² | 58.1mm² |
| Sensor resolution | 12MP | 12MP |
| Anti alias filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 1:1, 4:3, 3:2 and 16:9 |
| Full resolution | 4608 x 3456 | 4000 x 3000 |
| Max native ISO | 3200 | 12800 |
| Minimum native ISO | 80 | 100 |
| RAW files | ||
| Autofocusing | ||
| Manual focusing | ||
| Touch to focus | ||
| Continuous AF | ||
| AF single | ||
| AF tracking | ||
| AF selectice | ||
| Center weighted AF | ||
| AF multi area | ||
| Live view AF | ||
| Face detection AF | ||
| Contract detection AF | ||
| Phase detection AF | ||
| Total focus points | 1 | - |
| Lens | ||
| Lens mount type | fixed lens | fixed lens |
| Lens zoom range | 24-720mm (30.0x) | 28-112mm (4.0x) |
| Maximum aperture | f/3.4-5.8 | f/2.0-2.8 |
| Macro focusing distance | 0cm | 1cm |
| Focal length multiplier | 5.8 | 4.1 |
| Screen | ||
| Screen type | Fixed Type | Fixed Type |
| Screen diagonal | 3" | 2.8" |
| Screen resolution | 461 thousand dots | 460 thousand dots |
| Selfie friendly | ||
| Liveview | ||
| Touch operation | ||
| Screen technology | TFT Color LCD | TFT color LCD monitor |
| Viewfinder Information | ||
| Viewfinder type | None | Optical (tunnel) |
| Viewfinder coverage | - | 85% |
| Features | ||
| Lowest shutter speed | 15s | 30s |
| Highest shutter speed | 1/1600s | 1/4000s |
| Continuous shooting rate | 4.0 frames/s | 12.0 frames/s |
| Shutter priority | ||
| Aperture priority | ||
| Manual mode | ||
| Exposure compensation | Yes | Yes |
| Custom WB | ||
| Image stabilization | ||
| Inbuilt flash | ||
| Flash distance | 5.00 m | 7.00 m |
| Flash settings | Auto, on, slow synchro, off | Auto, On, Off, Red-Eye, Slow Sync |
| External flash | ||
| AE bracketing | ||
| White balance bracketing | ||
| Highest flash synchronize | - | 1/1000s |
| Exposure | ||
| Multisegment exposure | ||
| Average exposure | ||
| Spot exposure | ||
| Partial exposure | ||
| AF area exposure | ||
| Center weighted exposure | ||
| Video features | ||
| Supported video resolutions | 1920 x 1080 (24 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) | 1920 x 1080 (60 fps), 1280 x 720 (60 fps), 640 x 480 (30 fps) |
| Max video resolution | 1920x1080 | 1920x1080 |
| Video data format | MPEG-4, H.264 | H.264 |
| Mic port | ||
| Headphone port | ||
| Connectivity | ||
| Wireless | Built-In | None |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environmental sealing | ||
| Water proofing | ||
| Dust proofing | ||
| Shock proofing | ||
| Crush proofing | ||
| Freeze proofing | ||
| Weight | 349 gr (0.77 pounds) | 353 gr (0.78 pounds) |
| Physical dimensions | 104 x 70 x 80mm (4.1" x 2.8" x 3.1") | 117 x 70 x 57mm (4.6" x 2.8" x 2.2") |
| DXO scores | ||
| DXO All around rating | not tested | not tested |
| DXO Color Depth rating | not tested | not tested |
| DXO Dynamic range rating | not tested | not tested |
| DXO Low light rating | not tested | not tested |
| Other | ||
| Battery life | 250 shots | 270 shots |
| Form of battery | Battery Pack | Battery Pack |
| Battery ID | NB-6LH | NP-50 |
| Self timer | Yes (2 or 10 sec, Custom) | Yes (2 or 10 sec) |
| Time lapse shooting | ||
| Storage type | SD/SDHC/SDXC | SD/SDHC/SDXC |
| Card slots | 1 | 1 |
| Launch cost | $249 | $500 |
