Canon SX540 HS vs Casio EX-Z280
69 Imaging
46 Features
44 Overall
45
96 Imaging
34 Features
21 Overall
28
Canon SX540 HS vs Casio EX-Z280 Key Specs
(Full Review)
- 20MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 24-1200mm (F3.4-6.5) lens
- 442g - 120 x 82 x 92mm
- Released January 2016
(Full Review)
- 12MP - 1/2.3" Sensor
- 2.7" Fixed Display
- ISO 64 - 3200
- 1280 x 720 video
- 26-104mm (F2.6-5.9) lens
- 133g - 97 x 53 x 20mm
- Released August 2009
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes Canon SX540 HS vs Casio EX-Z280 Overview
Let's take a closer look at the Canon SX540 HS vs Casio EX-Z280, one being a Small Sensor Superzoom and the other is a Small Sensor Compact by rivals Canon and Casio. There is a sizeable difference between the sensor resolutions of the SX540 HS (20MP) and EX-Z280 (12MP) but they use the same exact sensor sizing (1/2.3").
Samsung Releases Faster Versions of EVO MicroSD CardsThe SX540 HS was introduced 6 years later than the EX-Z280 and that is quite a large gap as far as tech is concerned. Each of these cameras offer different body type with the Canon SX540 HS being a SLR-like (bridge) camera and the Casio EX-Z280 being a Compact camera.
Before diving straight into a thorough comparison, below is a short view of how the SX540 HS matches up against the EX-Z280 for portability, imaging, features and an overall rating.
Photography Glossary Canon SX540 HS vs Casio EX-Z280 Gallery
The following is a sample of the gallery pics for Canon PowerShot SX540 HS and Casio Exilim EX-Z280. The whole galleries are viewable at Canon SX540 HS Gallery and Casio EX-Z280 Gallery.
Reasons to pick Canon SX540 HS over the Casio EX-Z280
| SX540 HS | EX-Z280 | |||
|---|---|---|---|---|
| Released | January 2016 |  | August 2009 | Fresher by 78 months |
| Display sizing | 3" |  | 2.7" | Larger display (+0.3") |
| Display resolution | 461k |  | 115k | Sharper display (+346k dot) |
Reasons to pick Casio EX-Z280 over the Canon SX540 HS
| EX-Z280 | SX540 HS |
|---|
Common features in the Canon SX540 HS and Casio EX-Z280
| SX540 HS | EX-Z280 | |||
|---|---|---|---|---|
| Manual focus |  | Very accurate focus | ||
| Display type | Fixed |  | Fixed | Fixed display |
| Selfie screen |  | Missing selfie screen | ||
| Touch display |  | Missing Touch display |
Canon SX540 HS vs Casio EX-Z280 Physical Comparison
For anybody who is intending to carry your camera frequently, you need to think about its weight and proportions. The Canon SX540 HS features physical measurements of 120mm x 82mm x 92mm (4.7" x 3.2" x 3.6") and a weight of 442 grams (0.97 lbs) whilst the Casio EX-Z280 has measurements of 97mm x 53mm x 20mm (3.8" x 2.1" x 0.8") along with a weight of 133 grams (0.29 lbs).
Look at the Canon SX540 HS vs Casio EX-Z280 in the new Camera and Lens Size Comparison Tool.

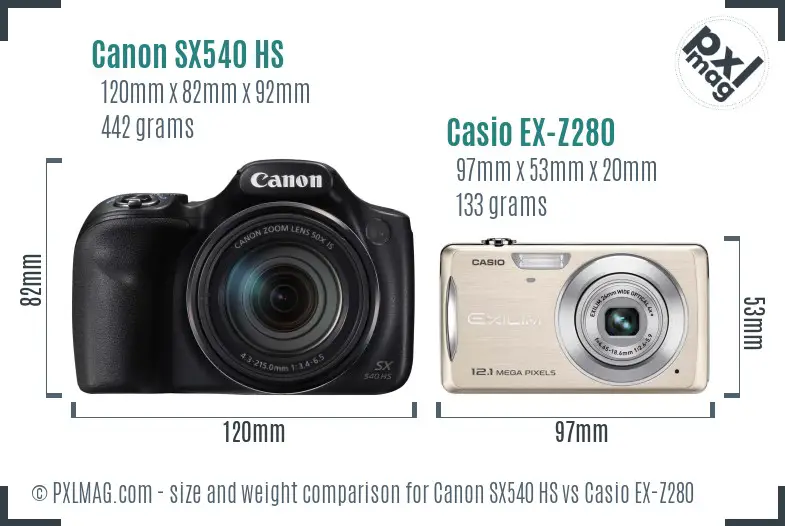

Do not forget, the weight of an Interchangeable Lens Camera will change based on the lens you choose at that moment. The following is the front view proportions comparison of the SX540 HS vs the EX-Z280.
Taking into account size and weight, the portability rating of the SX540 HS and EX-Z280 is 69 and 96 respectively.
Canon SX540 HS vs Casio EX-Z280 Sensor Comparison
Generally, it is difficult to imagine the gap between sensor sizing only by looking at specifications. The visual here might give you a far better sense of the sensor sizing in the SX540 HS and EX-Z280.
To sum up, both of the cameras enjoy the same exact sensor sizing but different resolution. You should expect to see the Canon SX540 HS to give greater detail using its extra 8 Megapixels. Greater resolution can also make it easier to crop images far more aggressively. The more modern SX540 HS provides an advantage with regard to sensor technology.

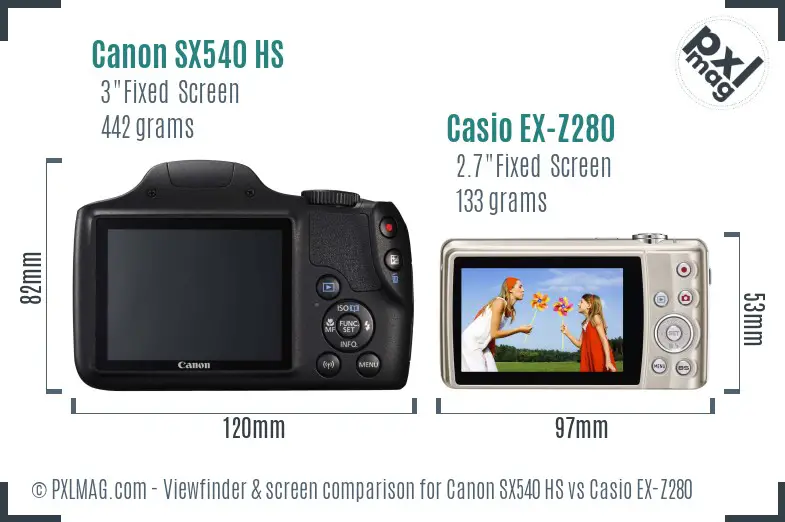

Canon SX540 HS vs Casio EX-Z280 Screen and ViewFinder
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone Photography Type Scores
Portrait Comparison
Meta to Introduce 'AI-Generated' Labels for Media starting next monthStreet Comparison
Photobucket discusses licensing 13 billion images with AI firmsSports Comparison
Snapchat Adds Watermarks to AI-Created ImagesTravel Comparison
Sora from OpenAI releases its first ever music videoLandscape Comparison
President Biden pushes bill mandating TikTok sale or banVlogging Comparison
Pentax 17 Pre-Orders Outperform Expectations by a Landslide
Canon SX540 HS vs Casio EX-Z280 Specifications
| Canon PowerShot SX540 HS | Casio Exilim EX-Z280 | |
|---|---|---|
| General Information | ||
| Brand | Canon | Casio |
| Model | Canon PowerShot SX540 HS | Casio Exilim EX-Z280 |
| Type | Small Sensor Superzoom | Small Sensor Compact |
| Released | 2016-01-05 | 2009-08-31 |
| Physical type | SLR-like (bridge) | Compact |
| Sensor Information | ||
| Powered by | DIGIC 6 | - |
| Sensor type | BSI-CMOS | CCD |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor measurements | 6.17 x 4.55mm | 6.17 x 4.55mm |
| Sensor area | 28.1mm² | 28.1mm² |
| Sensor resolution | 20MP | 12MP |
| Anti aliasing filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3, 3:2 and 16:9 |
| Maximum resolution | 5184 x 3888 | 4000 x 3000 |
| Maximum native ISO | 3200 | 3200 |
| Lowest native ISO | 80 | 64 |
| RAW files | ||
| Autofocusing | ||
| Manual focus | ||
| Autofocus touch | ||
| Autofocus continuous | ||
| Single autofocus | ||
| Tracking autofocus | ||
| Selective autofocus | ||
| Autofocus center weighted | ||
| Multi area autofocus | ||
| Autofocus live view | ||
| Face detect focus | ||
| Contract detect focus | ||
| Phase detect focus | ||
| Lens | ||
| Lens mounting type | fixed lens | fixed lens |
| Lens focal range | 24-1200mm (50.0x) | 26-104mm (4.0x) |
| Maximum aperture | f/3.4-6.5 | f/2.6-5.9 |
| Macro focus distance | 0cm | 5cm |
| Focal length multiplier | 5.8 | 5.8 |
| Screen | ||
| Display type | Fixed Type | Fixed Type |
| Display size | 3 inch | 2.7 inch |
| Display resolution | 461k dots | 115k dots |
| Selfie friendly | ||
| Liveview | ||
| Touch capability | ||
| Viewfinder Information | ||
| Viewfinder | None | None |
| Features | ||
| Lowest shutter speed | 15s | 4s |
| Highest shutter speed | 1/2000s | 1/2000s |
| Continuous shooting rate | 5.9fps | - |
| Shutter priority | ||
| Aperture priority | ||
| Manual mode | ||
| Exposure compensation | Yes | - |
| Change white balance | ||
| Image stabilization | ||
| Inbuilt flash | ||
| Flash range | 5.50 m (at Auto ISO) | 4.20 m |
| Flash options | Auto, on, off, slow synchro | Auto, On, Off, Red-eye, Soft |
| Hot shoe | ||
| AEB | ||
| WB bracketing | ||
| Exposure | ||
| Multisegment | ||
| Average | ||
| Spot | ||
| Partial | ||
| AF area | ||
| Center weighted | ||
| Video features | ||
| Video resolutions | 1920 x 1080 (60p, 30p), 1280 x 720 (30p), 640 x 480 (30p) | 1280 x 720 (30fps), 848 x 480 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) |
| Maximum video resolution | 1920x1080 | 1280x720 |
| Video file format | MPEG-4, H.264 | Motion JPEG |
| Microphone support | ||
| Headphone support | ||
| Connectivity | ||
| Wireless | Built-In | None |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | None |
| Physical | ||
| Environmental sealing | ||
| Water proof | ||
| Dust proof | ||
| Shock proof | ||
| Crush proof | ||
| Freeze proof | ||
| Weight | 442 grams (0.97 lbs) | 133 grams (0.29 lbs) |
| Dimensions | 120 x 82 x 92mm (4.7" x 3.2" x 3.6") | 97 x 53 x 20mm (3.8" x 2.1" x 0.8") |
| DXO scores | ||
| DXO All around score | not tested | not tested |
| DXO Color Depth score | not tested | not tested |
| DXO Dynamic range score | not tested | not tested |
| DXO Low light score | not tested | not tested |
| Other | ||
| Battery life | 205 shots | - |
| Battery style | Battery Pack | - |
| Battery model | NB-6LH | NP-80 |
| Self timer | Yes (2 or 10 secs, custom) | Yes (2 or 10 sec, Triple) |
| Time lapse shooting | ||
| Type of storage | SD/SDHC/SDXC | SD/SDHC card, Internal |
| Card slots | Single | Single |
| Retail cost | $399 | $180 |
