Fujifilm X-T20 vs Panasonic S5 II X
83 Imaging
67 Features
82 Overall
73


59 Imaging
78 Features
93 Overall
84
Fujifilm X-T20 vs Panasonic S5 II X Key Specs
(Full Review)
- 24MP - APS-C Sensor
- 3" Tilting Screen
- ISO 200 - 12800 (Increase to 51200)
- No Anti-Alias Filter
- 3840 x 2160 video
- Fujifilm X Mount
- 383g - 118 x 83 x 41mm
- Announced January 2017
- Earlier Model is Fujifilm X-T10
- Updated by Fujifilm X-T30
(Full Review)
- 24MP - Full frame Sensor
- 3.00" Fully Articulated Screen
- ISO 100 - 51200 (Push to 204800)
- Sensor based 5-axis Image Stabilization
- No Anti-Alias Filter
- 1/8000s Maximum Shutter
- 5952 x 3968 video
- Leica L Mount
- 740g - 134 x 102 x 90mm
- Announced January 2023
- Previous Model is Panasonic S5

Fujifilm X-T20 vs Panasonic S5 II X Overview
Here, we will be evaluating the Fujifilm X-T20 versus Panasonic S5 II X, former is a Entry-Level Mirrorless while the latter is a Pro Mirrorless by rivals FujiFilm and Panasonic. The image resolution of the Fujifilm X-T20 (24MP) and the S5 II X (24MP) is relatively close but the Fujifilm X-T20 (APS-C) and S5 II X (Full frame) have different sensor size.

The Fujifilm X-T20 was launched 7 years prior to the S5 II X which is a fairly serious difference as far as camera tech is concerned. Both cameras feature the same body design (SLR-style mirrorless).
Before we go straight to a full comparison, here is a concise highlight of how the Fujifilm X-T20 matches up vs the S5 II X when it comes to portability, imaging, features and an overall mark.

Fujifilm X-T20 vs Panasonic S5 II X Gallery
Below is a preview of the gallery photos for Fujifilm X-T20 & Panasonic Lumix DC-S5 Mark II X. The complete galleries are provided at Fujifilm X-T20 Gallery & Panasonic S5 II X Gallery.
Reasons to pick Fujifilm X-T20 over the Panasonic S5 II X
Fujifilm X-T20 | S5 II X |
---|
Reasons to pick Panasonic S5 II X over the Fujifilm X-T20
S5 II X | Fujifilm X-T20 | |||
---|---|---|---|---|
Announced | January 2023 | ![]() | January 2017 | Newer by 72 months |
Screen type | Fully Articulated | ![]() | Tilting | Fully Articulating screen |
Screen resolution | 1840k | ![]() | 920k | Sharper screen (+920k dot) |
Selfie screen | ![]() | Take selfies |
Common features in the Fujifilm X-T20 and Panasonic S5 II X
Fujifilm X-T20 | S5 II X | |||
---|---|---|---|---|
Manually focus | ![]() | Dial accurate focusing | ||
Screen size | 3" | ![]() | 3.00" | Same screen size |
Touch screen | ![]() | Quickly navigate |
Fujifilm X-T20 vs Panasonic S5 II X Physical Comparison
For those who are intending to travel with your camera often, you need to consider its weight and size. The Fujifilm X-T20 has physical measurements of 118mm x 83mm x 41mm (4.6" x 3.3" x 1.6") and a weight of 383 grams (0.84 lbs) and the Panasonic S5 II X has specifications of 134mm x 102mm x 90mm (5.3" x 4.0" x 3.5") with a weight of 740 grams (1.63 lbs).
Analyze the Fujifilm X-T20 versus Panasonic S5 II X in our newest Camera & Lens Size Comparison Tool.

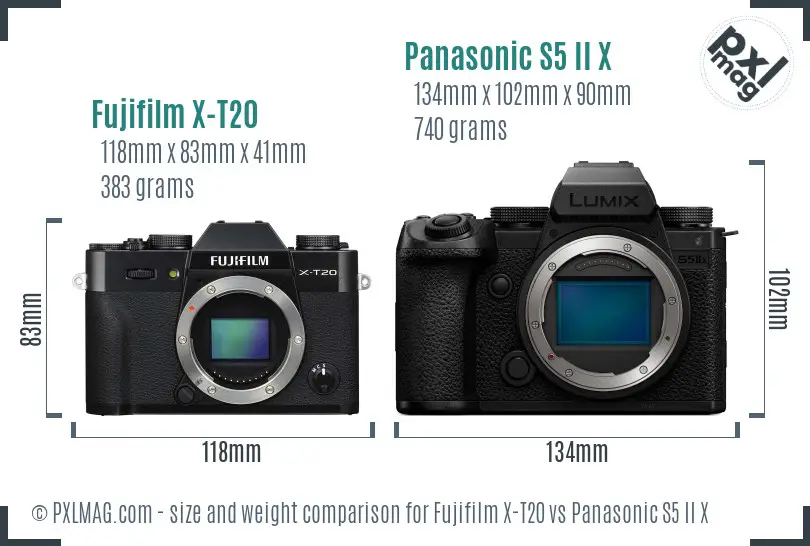

Keep in mind, the weight of an ILC will vary depending on the lens you use at the time. Here is a front view size comparison of the Fujifilm X-T20 vs the S5 II X.

Considering size and weight, the portability grade of the Fujifilm X-T20 and S5 II X is 83 and 59 respectively.

Fujifilm X-T20 vs Panasonic S5 II X Sensor Comparison

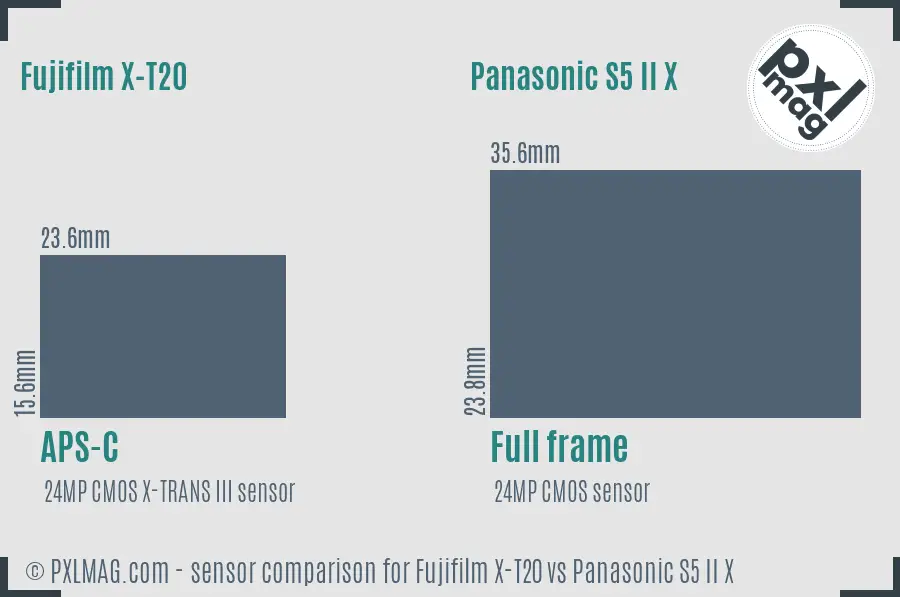

Oftentimes, it can be hard to imagine the gap in sensor dimensions purely by viewing technical specs. The image below might give you a far better sense of the sensor sizing in the Fujifilm X-T20 and S5 II X.
As you can tell, both cameras feature the identical resolution albeit different sensor dimensions. The Fujifilm X-T20 features the smaller sensor which is going to make getting bokeh more challenging. The more aged Fujifilm X-T20 will be disadvantaged in sensor technology.

Fujifilm X-T20 vs Panasonic S5 II X Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Fujifilm X-T20 vs Panasonic S5 II X Specifications
Fujifilm X-T20 | Panasonic Lumix DC-S5 Mark II X | |
---|---|---|
General Information | ||
Brand Name | FujiFilm | Panasonic |
Model type | Fujifilm X-T20 | Panasonic Lumix DC-S5 Mark II X |
Type | Entry-Level Mirrorless | Pro Mirrorless |
Announced | 2017-01-18 | 2023-01-04 |
Physical type | SLR-style mirrorless | SLR-style mirrorless |
Sensor Information | ||
Processor | X-Processor Pro2 | - |
Sensor type | CMOS X-TRANS III | CMOS |
Sensor size | APS-C | Full frame |
Sensor measurements | 23.6 x 15.6mm | 35.6 x 23.8mm |
Sensor surface area | 368.2mm² | 847.3mm² |
Sensor resolution | 24MP | 24MP |
Anti alias filter | ||
Aspect ratio | 1:1, 3:2 and 16:9 | 1:1, 4:3, 3:2 and 16:9 |
Maximum resolution | 6000 x 4000 | 6000 x 4000 |
Maximum native ISO | 12800 | 51200 |
Maximum boosted ISO | 51200 | 204800 |
Lowest native ISO | 200 | 100 |
RAW format | ||
Lowest boosted ISO | 100 | 50 |
Autofocusing | ||
Manual focusing | ||
AF touch | ||
AF continuous | ||
Single AF | ||
AF tracking | ||
AF selectice | ||
AF center weighted | ||
Multi area AF | ||
Live view AF | ||
Face detection focusing | ||
Contract detection focusing | ||
Phase detection focusing | ||
Total focus points | 325 | 779 |
Lens | ||
Lens mount type | Fujifilm X | Leica L |
Available lenses | 54 | 65 |
Focal length multiplier | 1.5 | 1 |
Screen | ||
Type of screen | Tilting | Fully Articulated |
Screen sizing | 3 inches | 3.00 inches |
Resolution of screen | 920k dots | 1,840k dots |
Selfie friendly | ||
Liveview | ||
Touch friendly | ||
Viewfinder Information | ||
Viewfinder type | Electronic | Electronic |
Viewfinder resolution | 2,360k dots | 3,680k dots |
Viewfinder coverage | 100 percent | 100 percent |
Viewfinder magnification | 0.62x | 0.78x |
Features | ||
Slowest shutter speed | 30 secs | 60 secs |
Maximum shutter speed | 1/4000 secs | 1/8000 secs |
Maximum silent shutter speed | 1/32000 secs | 1/8000 secs |
Continuous shooting rate | 14.0 frames per sec | 9.0 frames per sec |
Shutter priority | ||
Aperture priority | ||
Manually set exposure | ||
Exposure compensation | Yes | Yes |
Custom WB | ||
Image stabilization | ||
Integrated flash | ||
Flash distance | 5.00 m (ISO 100) | no built-in flash |
Flash modes | Auto, forced flash, slow synchro, flash off, rear-curtain synchro, commander | Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, Slow Sync, Slow Sync w/Red-eye Reduction, Forced Off |
Hot shoe | ||
AEB | ||
WB bracketing | ||
Maximum flash synchronize | 1/180 secs | 1/250 secs |
Exposure | ||
Multisegment | ||
Average | ||
Spot | ||
Partial | ||
AF area | ||
Center weighted | ||
Video features | ||
Supported video resolutions | 3840 x 2160 (29.97p, 25p, 24p, 23.98p), 1920 x 1080 (59.94p, 50p, 29.97p, 25p, 24p, 23.98p), 1280 x 720 (60p, 50p, 30p, 25p, 24p) | 5952 x 3968 @ 30p/24p |
Maximum video resolution | 3840x2160 | 5952x3968 |
Video format | MPEG-4, H.264 | MPEG-4, H.264, H.265 |
Microphone support | ||
Headphone support | ||
Connectivity | ||
Wireless | Built-In | Built-In |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 3.2 Gen 2 (5 GBit/sec) |
GPS | Optional | None |
Physical | ||
Environmental sealing | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 383g (0.84 lbs) | 740g (1.63 lbs) |
Physical dimensions | 118 x 83 x 41mm (4.6" x 3.3" x 1.6") | 134 x 102 x 90mm (5.3" x 4.0" x 3.5") |
DXO scores | ||
DXO All around rating | not tested | not tested |
DXO Color Depth rating | not tested | not tested |
DXO Dynamic range rating | not tested | not tested |
DXO Low light rating | not tested | not tested |
Other | ||
Battery life | 350 photos | 370 photos |
Battery style | Battery Pack | Battery Pack |
Battery ID | NP-W126S | DMW-BLJ31 |
Self timer | Yes (10sec. / 2sec. Delay) | Yes |
Time lapse feature | ||
Storage type | SD / SDHC / SDXC (UHS-II compatible) | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
Card slots | 1 | Dual |
Launch cost | $900 | $2,199 |
